DPC DUMB-4850H Pure White Background Hardware Shot 2
DpcModel: DUMB-4850H

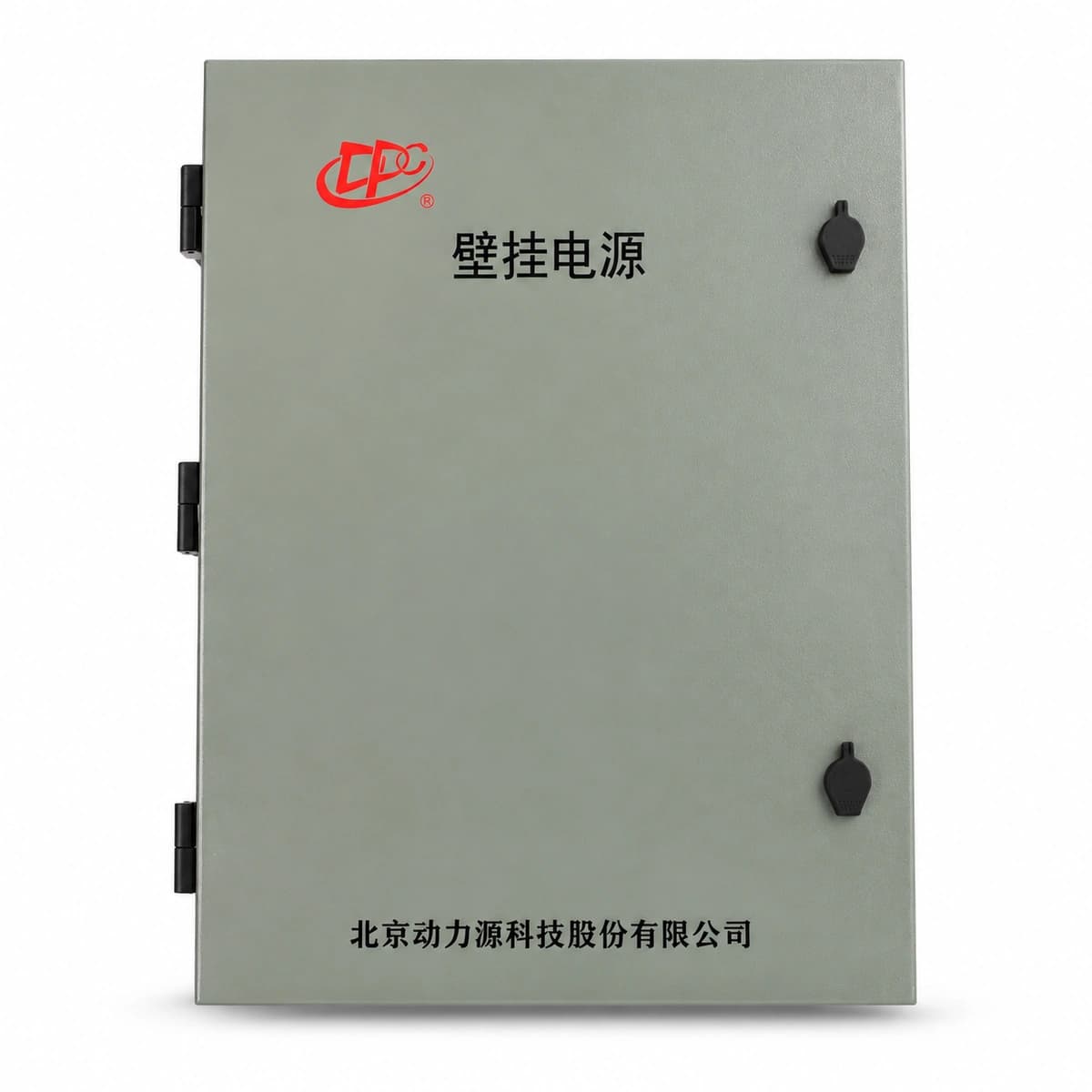

DPC DUMB-4850H Wall/Rack Mounted Telecom DC Power Distribution Box (-48V 100A/150A)

The DPC DUMB-4850H is a compact, wall-mounted and 19-inch rack-compatible telecom DC power distribution and supervisory system engineered for nominal -48V DC applications with a maximum system capacity of up to 150A. Integrating utility AC mains input distribution, DC branch circuit breakers, high-capacity battery connection terminals, an intelligent central supervisory unit (CSU), and automatic low-voltage disconnect (LVD) circuitry, it provides carrier-grade uninterrupted DC power in space-constrained network installations.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
System Nominal Voltage
48V DC
Maximum System Capacity
150A
AC Input Voltage
90V AC ~ 290V AC
Power Distribution Units
AC Input, DC Dist & Battery Fuses
Operating Temperature Range
-40°C ~ +75°C
Hot-Swappable Support
Live Hot-Swappable

What this product is

What this product is

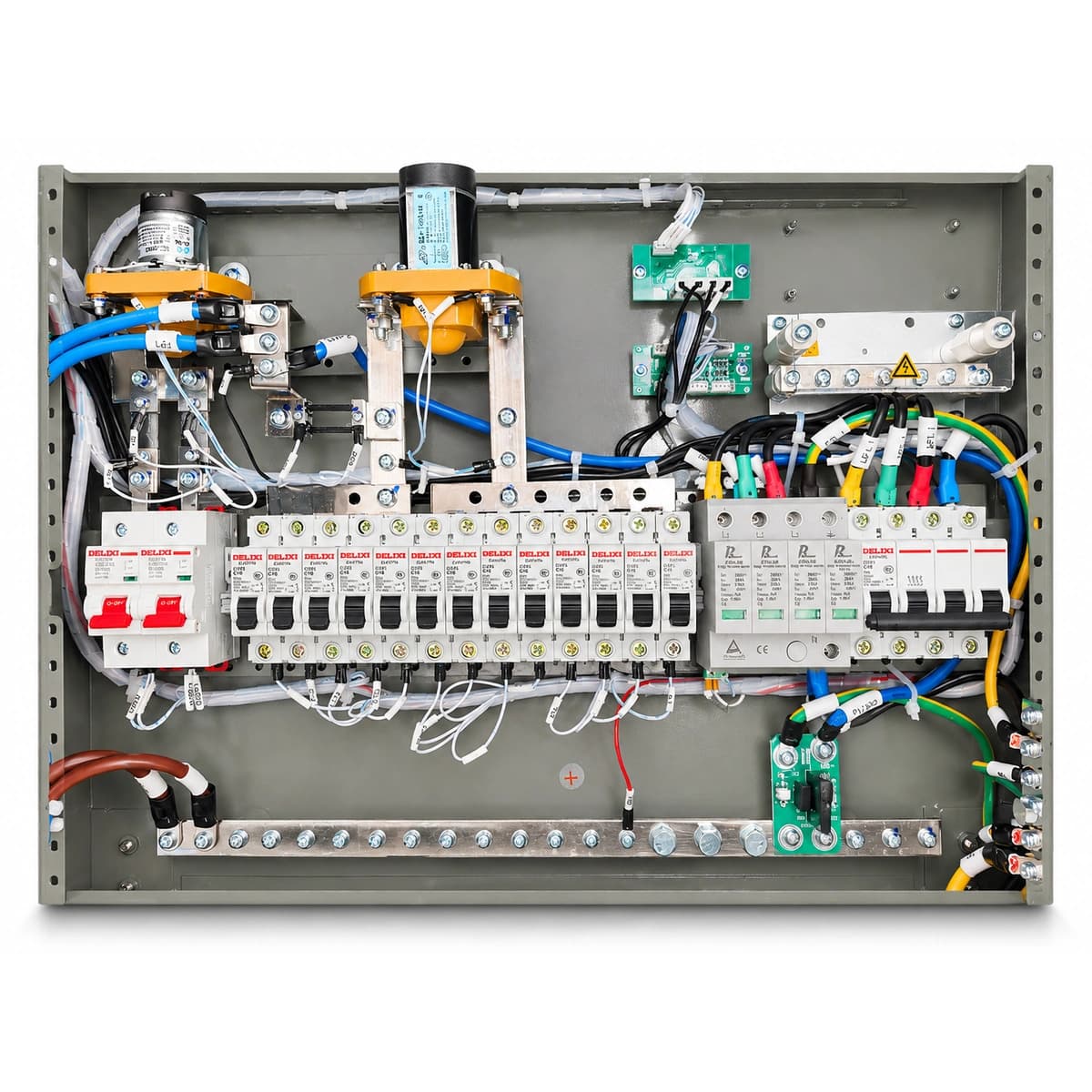

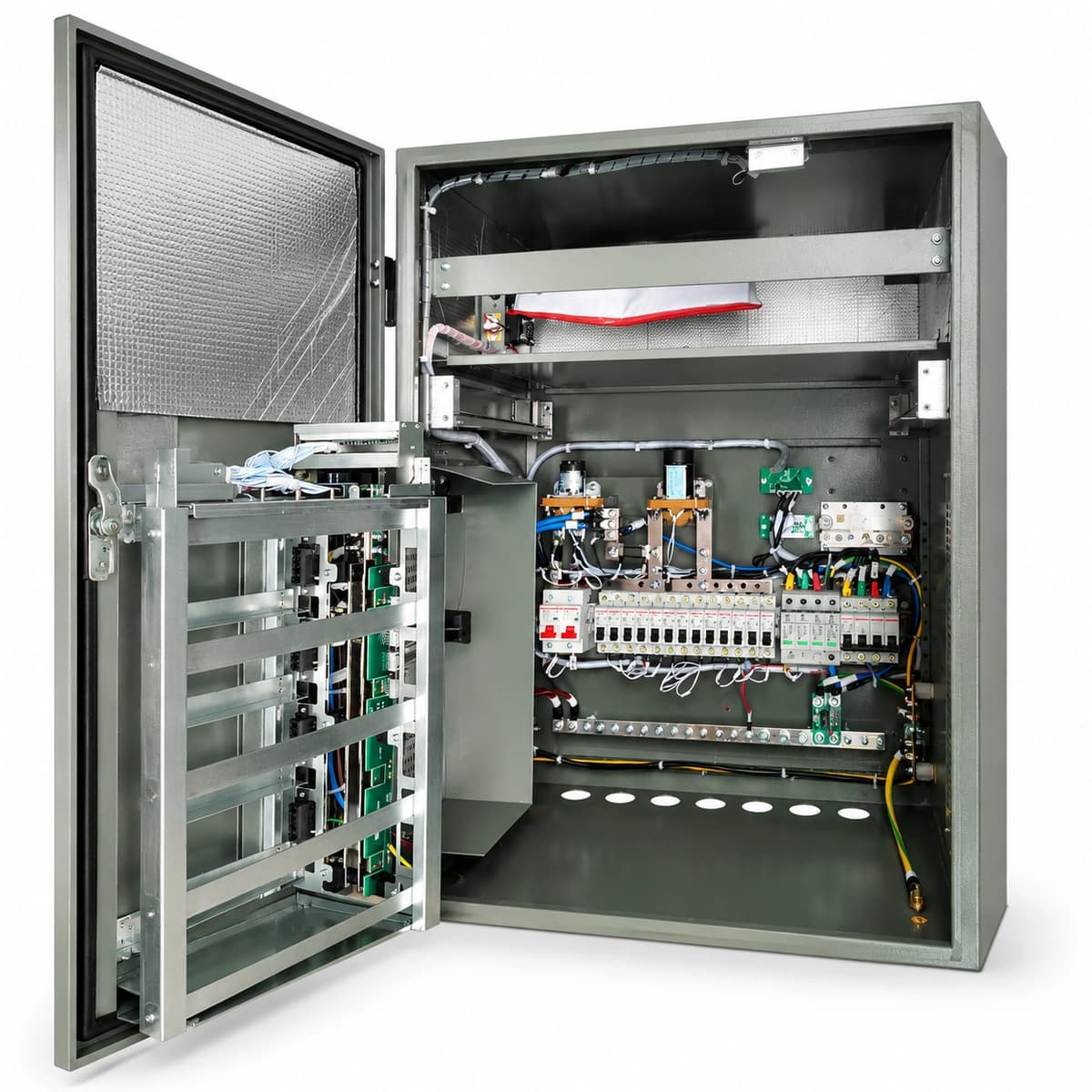

Architecturally, the DUMB-4850H is an integrated power box constructed from heavy-gauge industrial galvanized steel, segregated internally into an AC mains input section, hot-plug rectifier bays, a DC distribution field, and digital monitoring processing circuitry. The rectifier modules utilize active power factor correction (PFC) coupled with an isolated DC-DC resonant converter stage. The distribution plane houses configurable DC circuit breakers and battery disconnect fuses managed via microprocessor-driven BLVD/LLVD contactors, fully compliant with ITU-T, ETSI, and telecom industry EMC/safety standards.

What problem it solves

The DUMB-4850H eliminates critical field risks common to edge telecom deployments, such as rectifier burnout from severe AC brownouts and grid surges, thermal derating in poorly ventilated environments, and catastrophic lead-acid or lithium battery destruction caused by uncontrolled deep discharges. It also solves operational visibility challenges in remote sites by providing digital telemetry and trip-alarm surveillance across all input and output breakers.

Who and where it is for

Ideal for 4G/5G small cell sites, remote radio heads (RRH), microwave backbone repeater shelters, fiber access node (FTTx/OLT) terminals, trackside railway communication cabinets, electrical utility substation automation panels, and various indoor/outdoor wall-mounted or integrated cabinet deployments.

Core advantages

  • Wide input voltage range (90V-290V AC) with active power factor correction (APFC) ensures high resilience against severe grid voltage sags in remote edge sites.
  • Supports hot-swappable 50A rectifiers with up to 150A system capacity, delivering high-availability N+1 redundancy and flexible modular scalability.
  • Integrated dual-stage low-voltage load disconnect (BLVD/LLVD) and battery fuse protection prevent deep battery discharge and extend backup lifespan.
  • Features local LCD interface and RS485/SNMP remote telemetry, strictly complying with industry standards for real-time fault reporting and remote management.

Technical specifications

Key specificationsValue
Maximum System Capacity150A
AC Input Voltage90V AC ~ 290V AC
Power Distribution UnitsAC Input, DC Dist & Battery Fuses
System Nominal Voltage48V DC
Operating Temperature Range-40°C ~ +75°C
Hot-Swappable SupportLive Hot-Swappable
Overall System EfficiencyUp to 96.2% (Gold Standard)
Ingress Protection RatingIP20 (Indoor Dust & Finger Proof)
Acoustic Noise≤ 55 dBA (at 25°C ambient load)
Dielectric Withstand Voltage3000VAC Input to Ground (< 5mA)

Applications

01

5G small cell densification and indoor Distributed Antenna System (DAS) master distribution power supply

02

Railway signaling, trackside telemetry cabinets, and train control radio communications hubs

03

Substation SCADA automation, protection relay panels, and Remote Terminal Units (RTUs)

04

Remote solar-hybrid/grid-tied microwave transmission repeaters and satellite earth stations
