Eltek 252189 Subrack Telecom DC Power System (-48V 4-Slot Flatpack2)
Compact 2U -48VDC telecom-grade embedded power system supporting high-efficiency Flatpack2 rectifiers with integrated distribution and intelligent battery management.

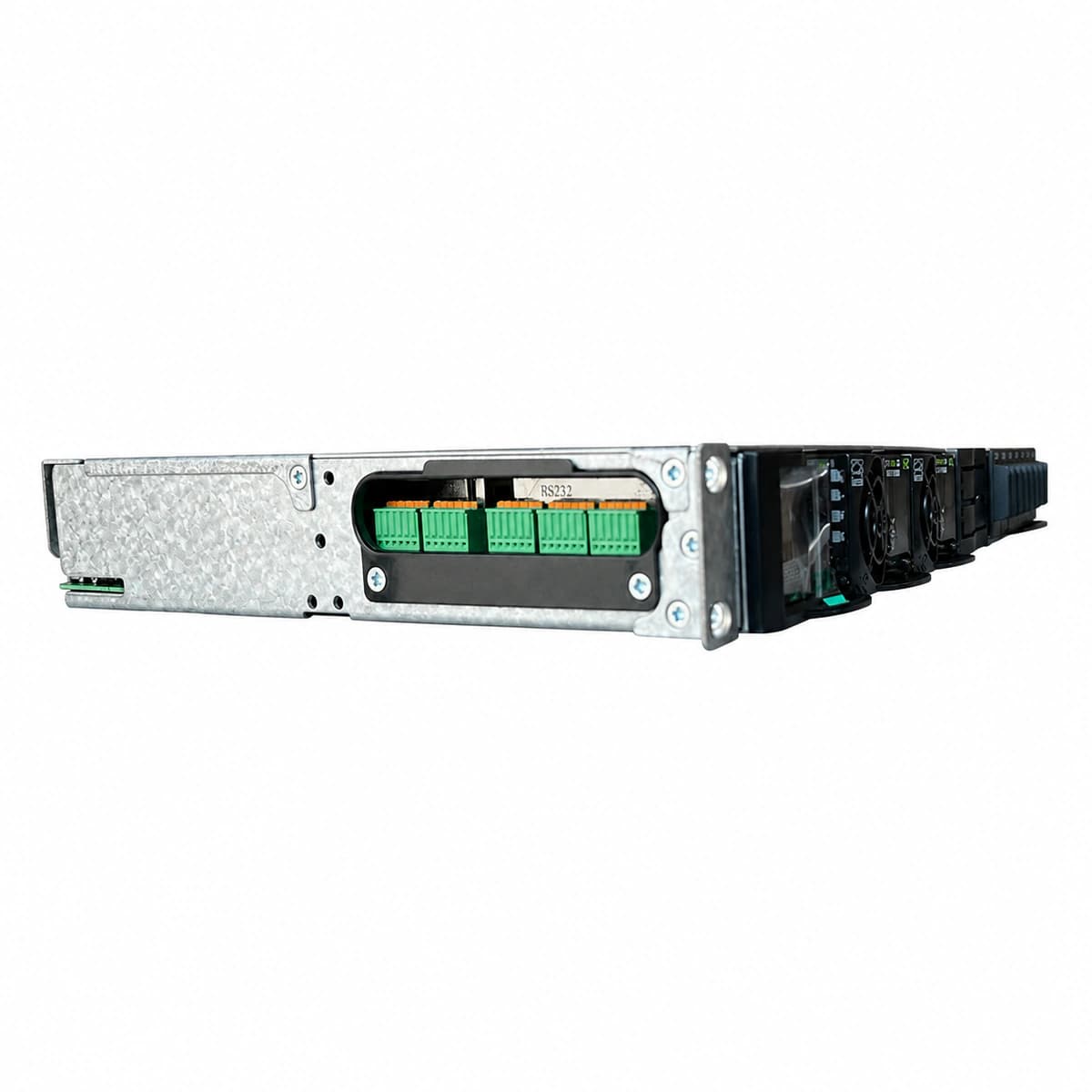

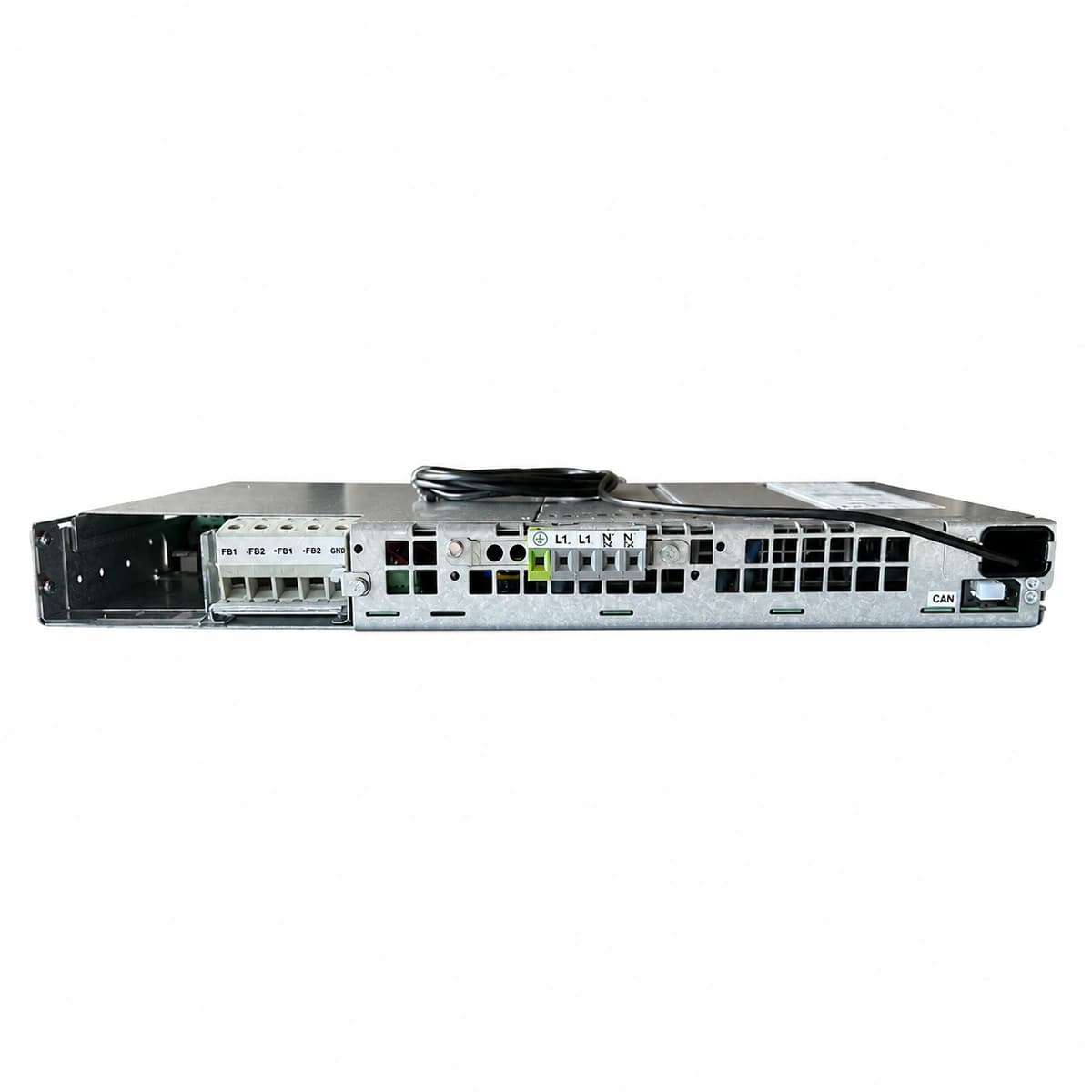

EltekModel: Eltek CT0S0201 Subrack System
Eltek CT0S0201 Embedded Telecom DC Power Subrack System (-48V 150A-300A / Flatpack2 & Smartpack)
The ELTEK CT0S0201 is a carrier-grade, standard 19-inch embedded -48V DC power subrack integrating rectifier module slots, a dedicated Smartpack controller bay, and combined AC/DC distribution, engineered to deliver up to 150A-300A system capacity with integrated Low Voltage Disconnect (LVDS) battery protection.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- System Output Capacity
- Max Supports 150A ~ 300A (-48V DC)
- Rectifier Module Slots
- Multi-Slot Supports Flatpack2 / Minipack Rectifiers
- Physical Form Factor
- 19-Inch Rackmount
- Monitoring Controller Configuration
- Dedicated Smartpack Controller Slot
- AC Distribution Inputs
- Single / 3-Phase Compatible AC Input Breaker
- DC Distribution Branches
- -48VDC (-42V ~ -58V)
What this product is
What this product is
A modular, heavy-duty 19-inch rack-mount physical enclosure platform that integrates AC utility input terminals, multi-position Flatpack2 rectifier backplane buses, a Smartpack controller interface, and pre-wired DC distribution breakers with battery low-voltage disconnectors.
What problem it solves
Eliminates footprint waste, chaotic cable routing, and integration headaches caused by separate power boxes in macro-sites; provides unified digital supervisory control and automatic battery cut-off logic in a compact form factor.
Who and where it is for
Ideal for 4G/5G macro and micro base stations, central offices, optical broadband nodes (OLT/FTTx), electric substation automation panels, and rail transit trackside signaling systems.
Core advantages
- All-in-One Space Saving Design: Integrates AC input, rectifier slots, DC distribution breakers, and controller inside a standardized 19-inch subrack.
- High Efficiency Operation: Operates with Flatpack2 HE modules delivering >96% conversion efficiency, drastically cutting site thermal load and energy bills.
- Intelligent Battery Protection: Built-in programmable Low Voltage Battery Disconnect (LVBD) / Load Disconnect (LVLD) contactors to prevent deep-discharge cell damage.
- Robust Grid & Field Reliability: Features wide AC input tolerance, multi-stage lightning surge suppression, and an industrial operational window of -40°C to +65°C.
Technical specifications
| Key specifications | Value |
|---|---|
| System Output Capacity | Max Supports 150A ~ 300A (-48V DC) |
| Rectifier Module Slots | Multi-Slot Supports Flatpack2 / Minipack Rectifiers |
| Monitoring Controller Configuration | Dedicated Smartpack Controller Slot |
| AC Distribution Inputs | Single / 3-Phase Compatible AC Input Breaker |
| DC Distribution Branches | -48VDC (-42V ~ -58V) |
| Power Conversion Efficiency | ≥ 96% (Depends on Configured Rectifier Modules) |
| Physical Form Factor | 19-Inch Rackmount |
| Operating Temperature Range | -40°C to +65°C |
Applications
01
4G/5G Cellular Base Stations (BBU/RRU Power Infrastructure)
02
Optical Fiber Access Network Concentrator Racks (FTTH/OLT/ODN)
03
Power Utility Substation Secondary SCADA & Protection Panels
04
Railway Signaling, Communication and Dispatch Center DC Backups
