Question 1

What are the core optical parameters, electrical performance, and link budget of the Huawei 1.25G eSFP 10km (eSFP-GE-LX-SM1310)?

Accepted Answer

Compliant with IEEE 802.3z 1000BASE-LX and SFF-8472 specifications, the module operates at a central wavelength of 1310 nm using an uncooled FP transmitter and a high-sensitivity PIN receiver. It features a transmit optical power between -9.0 dBm and -3.0 dBm, receiver sensitivity of ≤ -20.0 dBm, and an optical saturation point of ≥ -3.0 dBm, yielding an optical link budget of ≥ 11.0 dB to support 10 km reach over standard 9/125 μm single-mode fiber (SMF). Operating on a standard 3.3V ±5% rail with typical power consumption under 0.8 W, it integrates full Digital Diagnostics Monitoring (DDM/DOM) for real-time telemetry of internal voltage, Tx bias current, Tx/Rx optical power, and operating temperature.

Question 2

How does the module perform in terms of chassis compatibility and mixed slot deployment across Huawei platforms?

Accepted Answer

Flashed with genuine Huawei firmware microcode (Part Number: 02315200 / eSFP-GE-LX-SM1310), this module offers native plug-and-play compatibility across Huawei CloudEngine switches, S-series campus switches (e.g., S5700/S6700/S7700), NetEngine routers (NE40E/NE8000), and OptiX OSN/PTN platforms. Conforming strictly to the SFP Multi-Source Agreement (INF-8074i), it supports hot-swapping and can coexist seamlessly in the same line card with GE-SX multimode, GE-ZX, or copper SFP-T modules. It operates reliably in rate-negotiable or fixed 1.25 Gbps ports without bus contention, false alarms, or system log errors.

Question 3

How is the module engineered to withstand harsh temperature and electromagnetic conditions in outdoor telecom sites and industrial edge nodes?

Accepted Answer

Designed as an enhanced small form-factor pluggable (eSFP) device, this transceiver supports an industrial-grade operating temperature range of -40°C to +85°C, making it ideal for unconditioned outdoor telecom cabinets, pole-mounted RRU/BBU enclosures, and harsh edge-compute setups. Its die-cast zinc housing provides high-efficiency EMI shielding and ESD protection rated at 4kV contact / 8kV air discharge (IEC 61000-4-2 compliant). Thermal-cycled optoelectronic components eliminate thermal drift under extreme temperature swings, yielding an MTBF exceeding 1,000,000 hours.

Key specifications	Value
Form Factor	SFP/SFP+ Hot-Pluggable Cage
Data Rate	1.25 Gbps
Central Wavelength	1310 nm
Maximum Distance	10 km
Fiber Type	Single-Mode Fiber (SMF) (SMF)
Power Consumption	< 0.8 W
Optical Connector	Duplex LC Connector
Operating Temperature Range	-40°C ~ +85°C (industrial wide-temperature grade)
Digital Diagnostic Monitoring	Digital Diagnostic Monitoring Supported

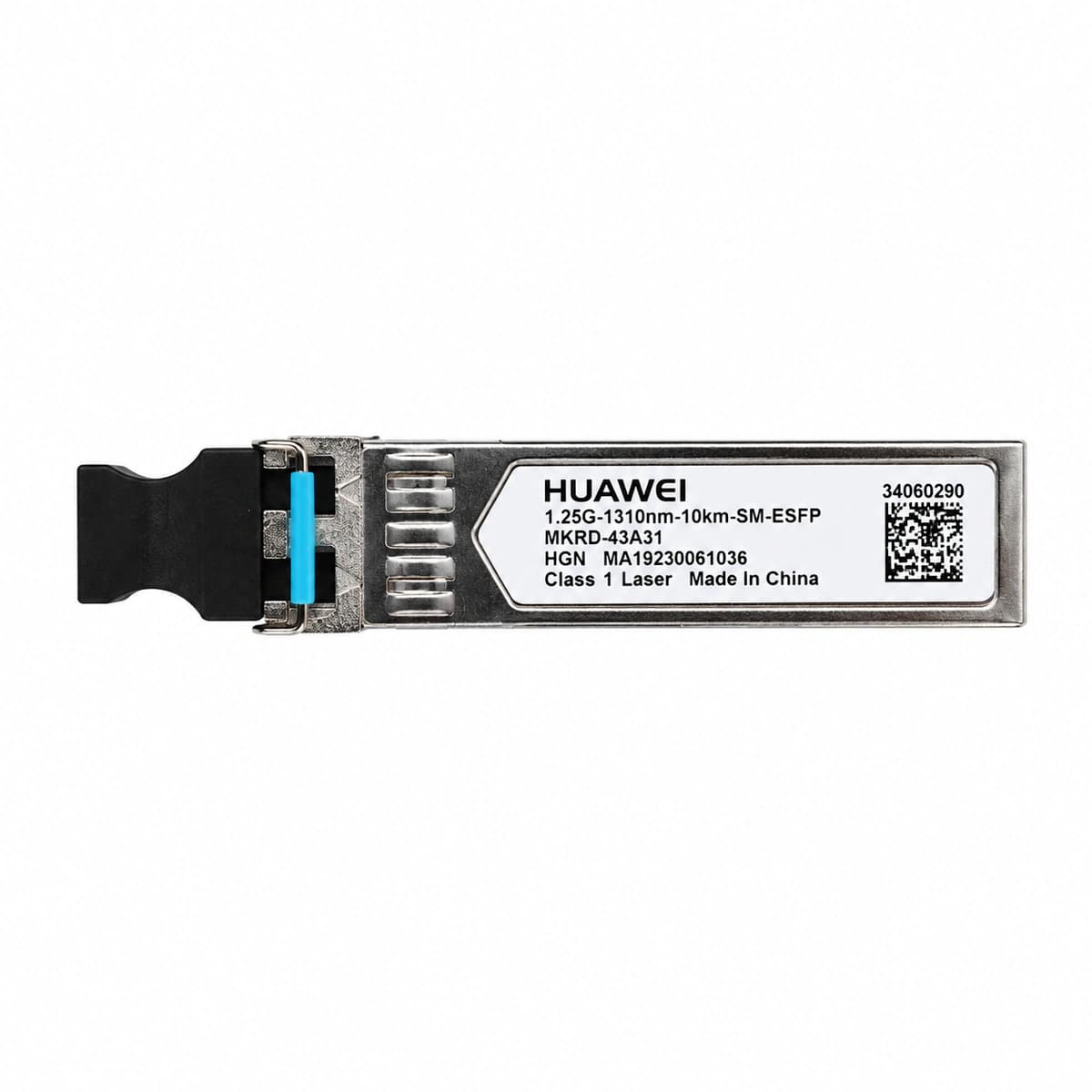

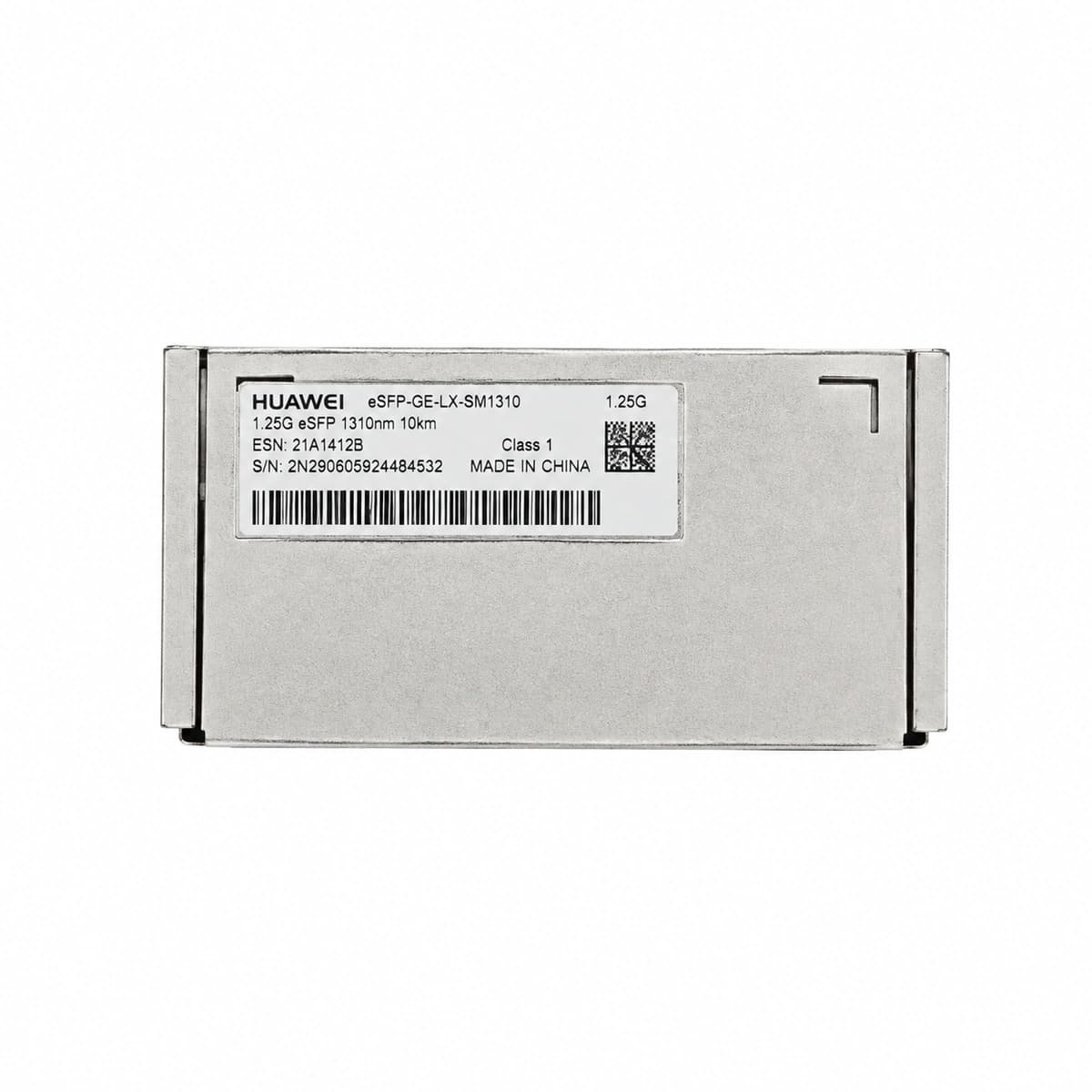

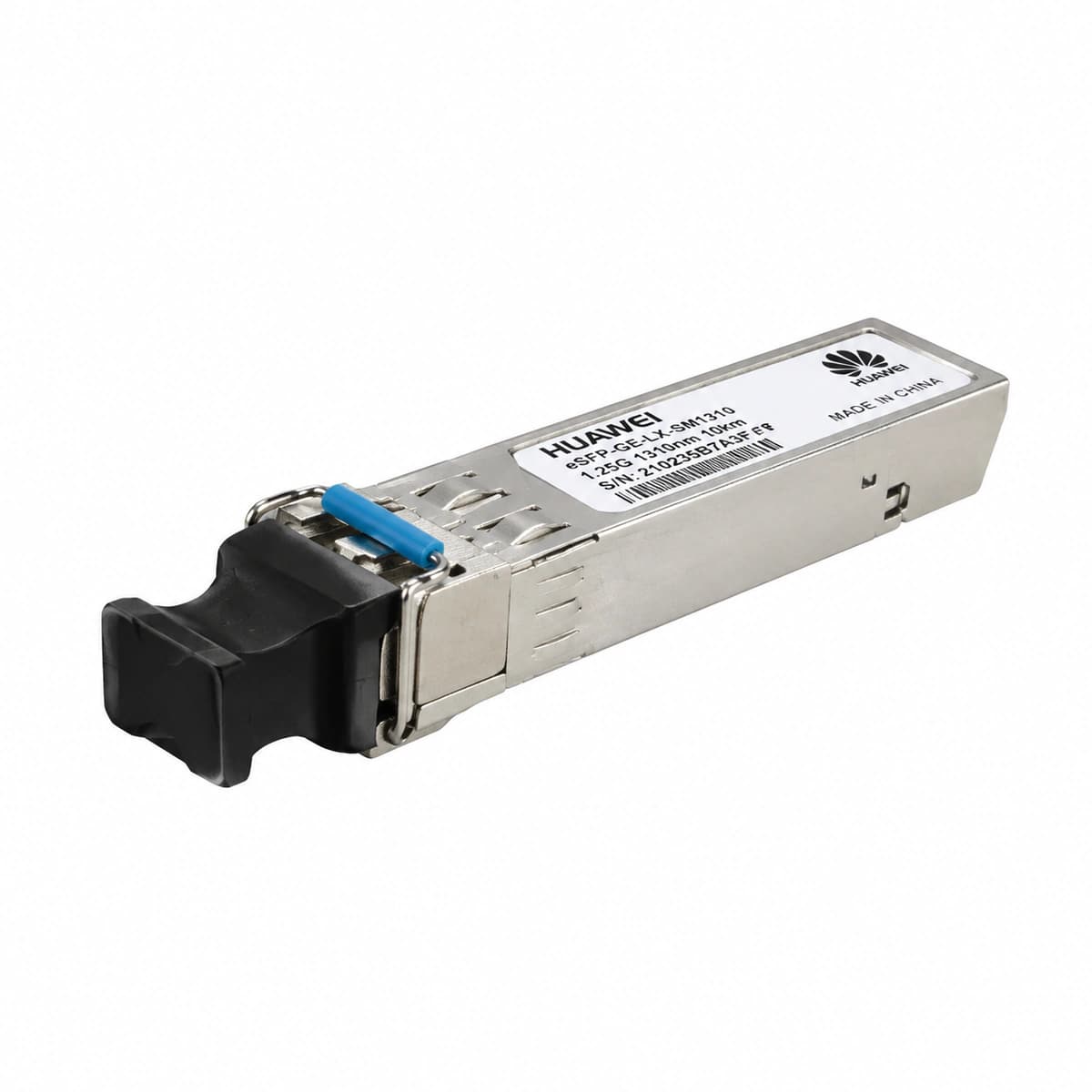

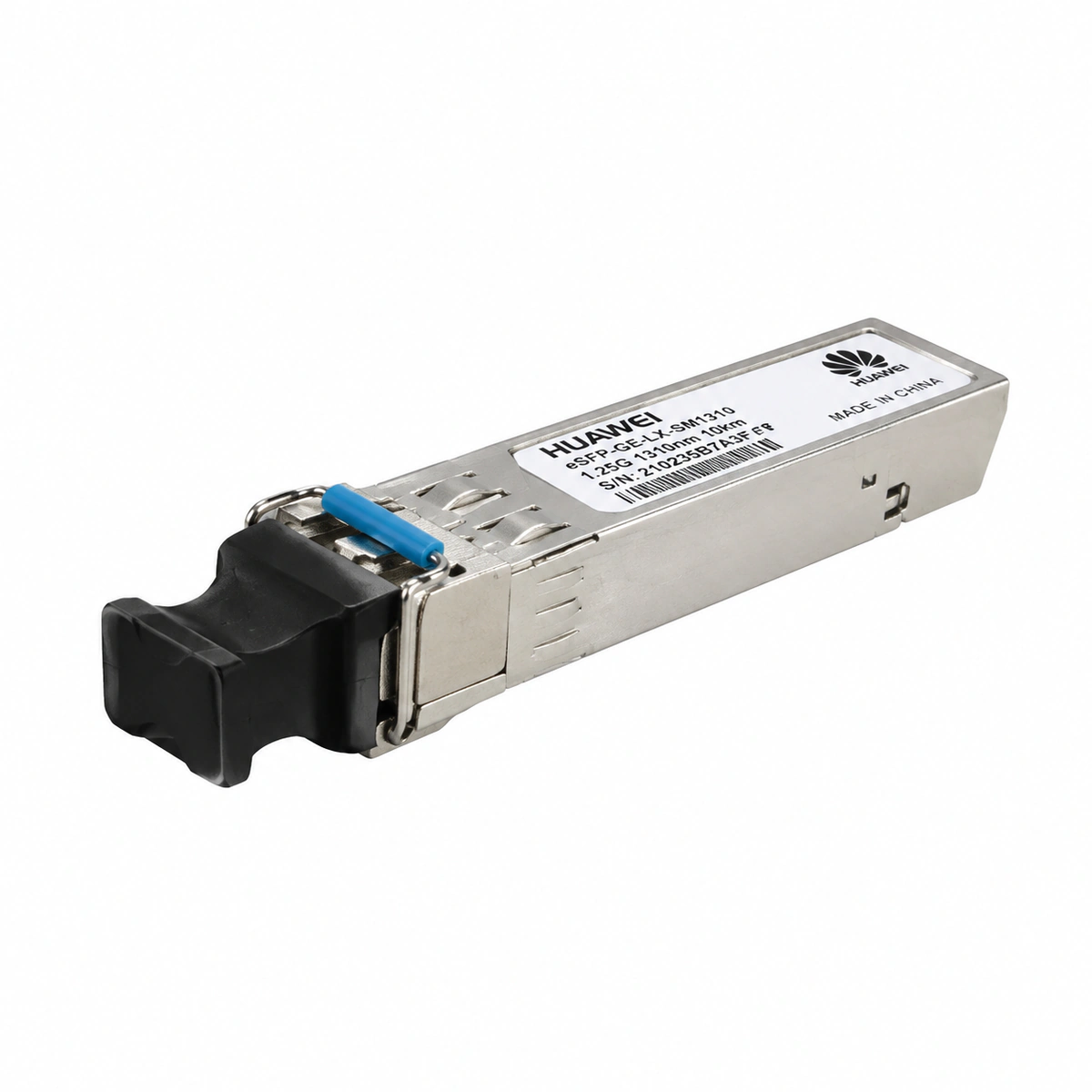

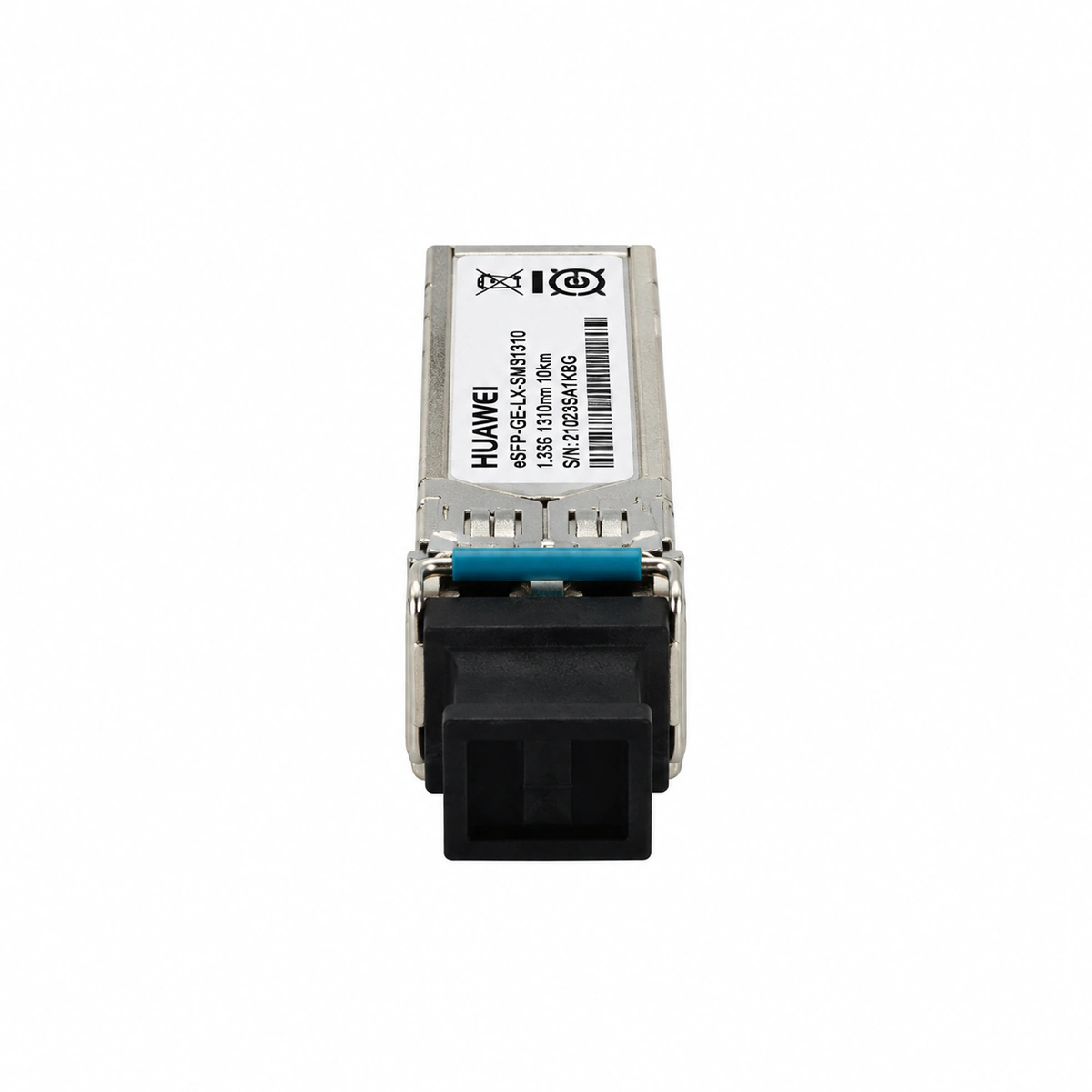

Huawei 1.25G eSFP 1310nm 10km Enhanced Single-Mode Gigabit Optical Transceiver (eSFP GE LX 1310nm Duplex LC)
