Question 1

Which Huawei host platforms support this 100G CFP2 module, and does it allow multi-rate 100GE/OTU4 operation and mixed-slot deployment?

Accepted Answer

Fully compliant with the CFP2 MSA standard, this module is engineered for seamless integration with Huawei carrier-grade platforms, including NetEngine routers (such as NE40E-X8/X16, NE9000 series with 100G CFP2 line cards) and OptiX OSN 9800, OSN 8800, and PTN 7900 transport systems. It supports dual-rate switching between 103.125 Gbps (100GE) and 111.81 Gbps (OTU4). The transceiver supports high-density mixed deployment alongside compatible line interfaces. Real-time Digital Optical Monitoring (DOM/DDM) is enabled via the MDIO management interface, allowing system operators to monitor Tx/Rx power, bias currents, supply voltage, and internal operating temperatures dynamically.

Question 2

How do the thermal management, mechanical stability, and interference shielding designs ensure continuous operation in high-density rack environments?

Accepted Answer

Engineered for mission-critical core nodes, this transceiver operates within 0°C to +70°C ambient temperatures (-40°C to +85°C storage) and withstands 5% to 95% non-condensing humidity. It features a rugged die-cast aluminum alloy shell with an integrated mechanical heat sink and retention latch/screw mechanism to prevent optical misalignment caused by chassis vibration and repetitive thermal cycles. Fully qualified under Telcordia GR-468-CORE standards, it provides superior ESD protection and EMI containment. The module maintains an intrinsic pre-FEC Bit Error Rate (BER) better than 1x10^-12, backed by an MTBF metric exceeding 1,000,000 operational hours.

Question 3

What communication protocol is used between the rectifier module and the power cabinet, and what key interface and electrical features are supported?

Accepted Answer

According to the official user manual, the rectifier module supports CAN bus communication, interfacing with the monitoring unit (e.g., SMU02C) and parallel communication ports on the lithium battery cabinet to achieve real-time monitoring of module status and load, voltage regulation, current regulation, load sharing, and smart meter support. In terms of cabinet distribution interfaces, the DC cabinet includes -48V busbars, RTN+ busbars (with optional expansion busbars), a DC signal detection board, and a cabinet ground bar (PE); the DC power distribution provides NT4, NT3, NT2, and NT00 branch fuse protection, while the lithium battery cabinet provides 10x 125 A/1P DC distribution and integrates a UIM03F1 user interface module. The module features full digital control, hot-swapping capability, built-in temperature-controlled variable-speed fan cooling, and long-term output short-circuit protection with automatic recovery once the fault clears.

Key specifications	Value
Form Factor	CFP/CFP2 Hot-Pluggable Interface
Data Rate	100 Gbps
Central Wavelength	1310 (4x25G LAN-WDM) nm
Maximum Distance	10 km
Fiber Type	Single-Mode Fiber (SMF) (SMF)
Optical Connector	Duplex LC Connector
Power Consumption	< 6.0 W
Operating Temperature Range	0°C ~ +70°C
Digital Diagnostic Monitoring	Full support for MDIO diagnostics

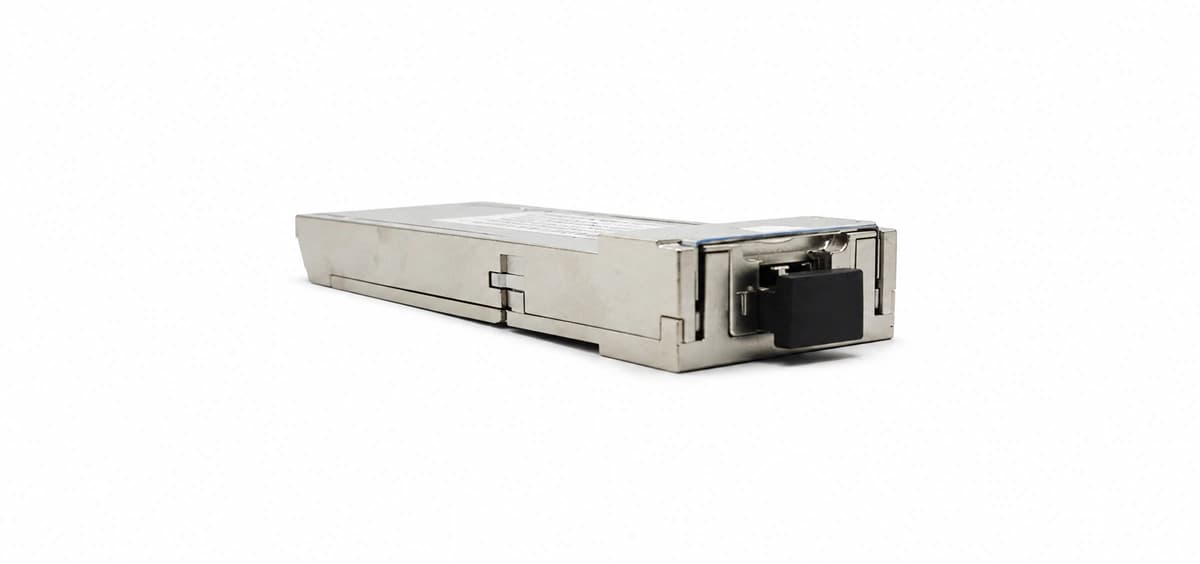

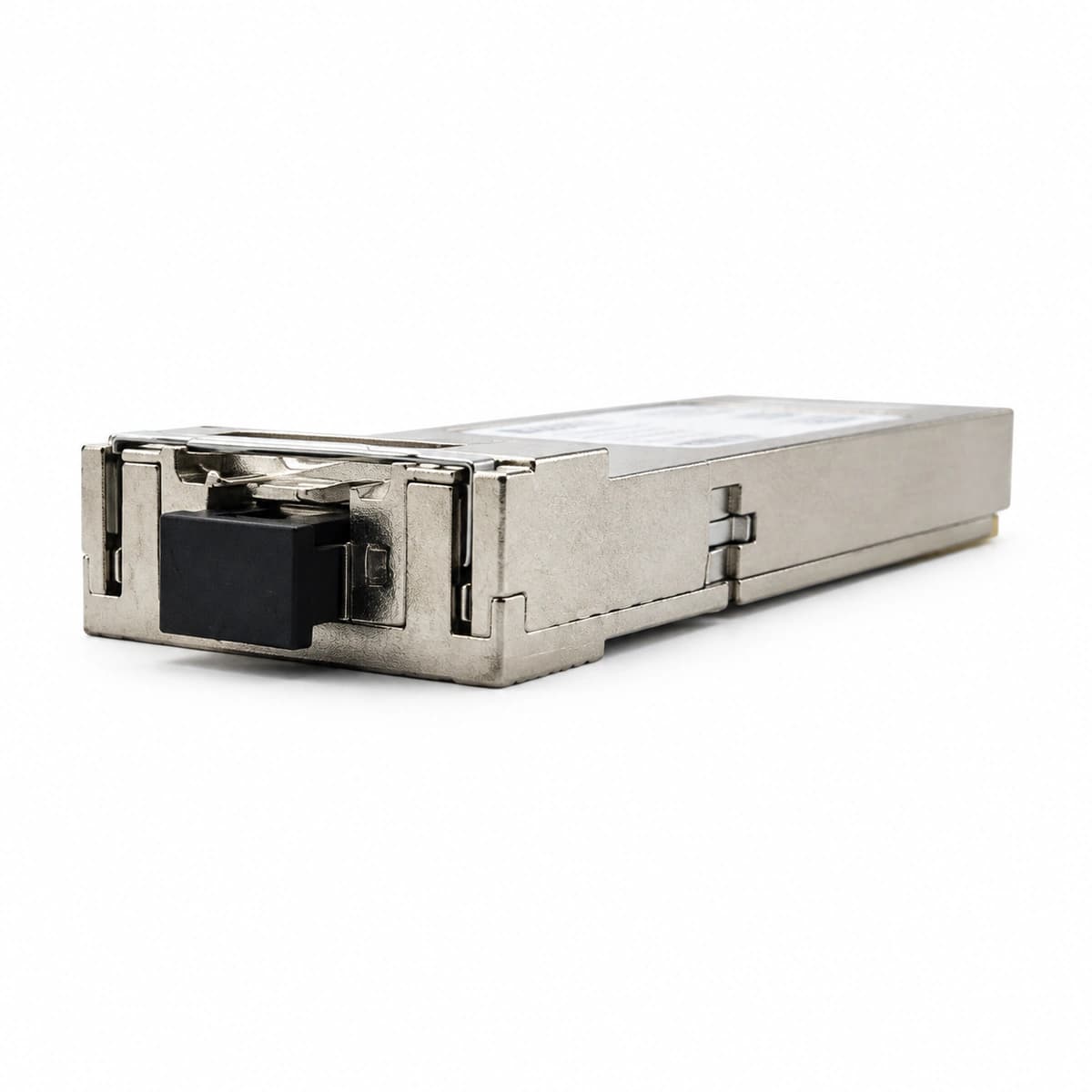

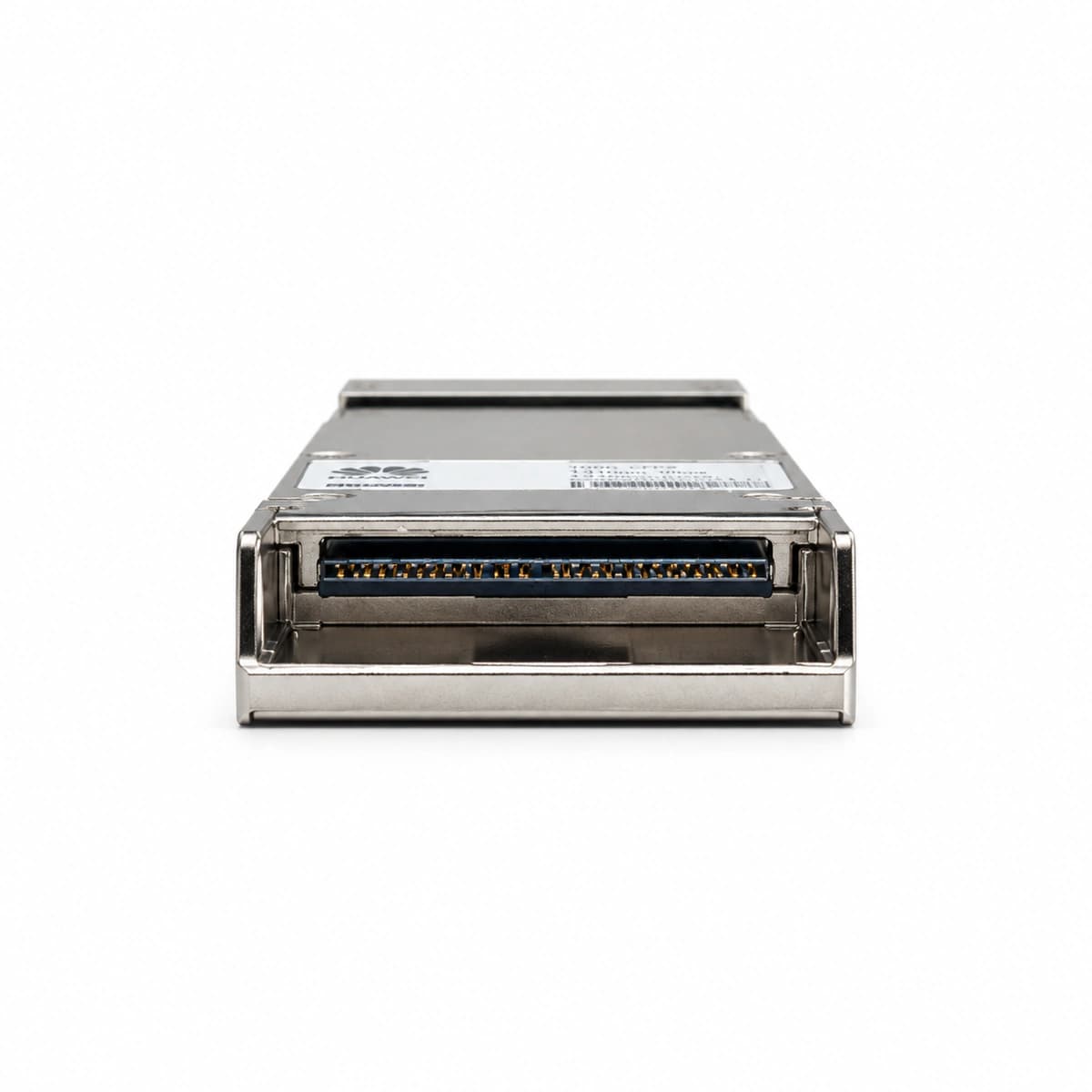

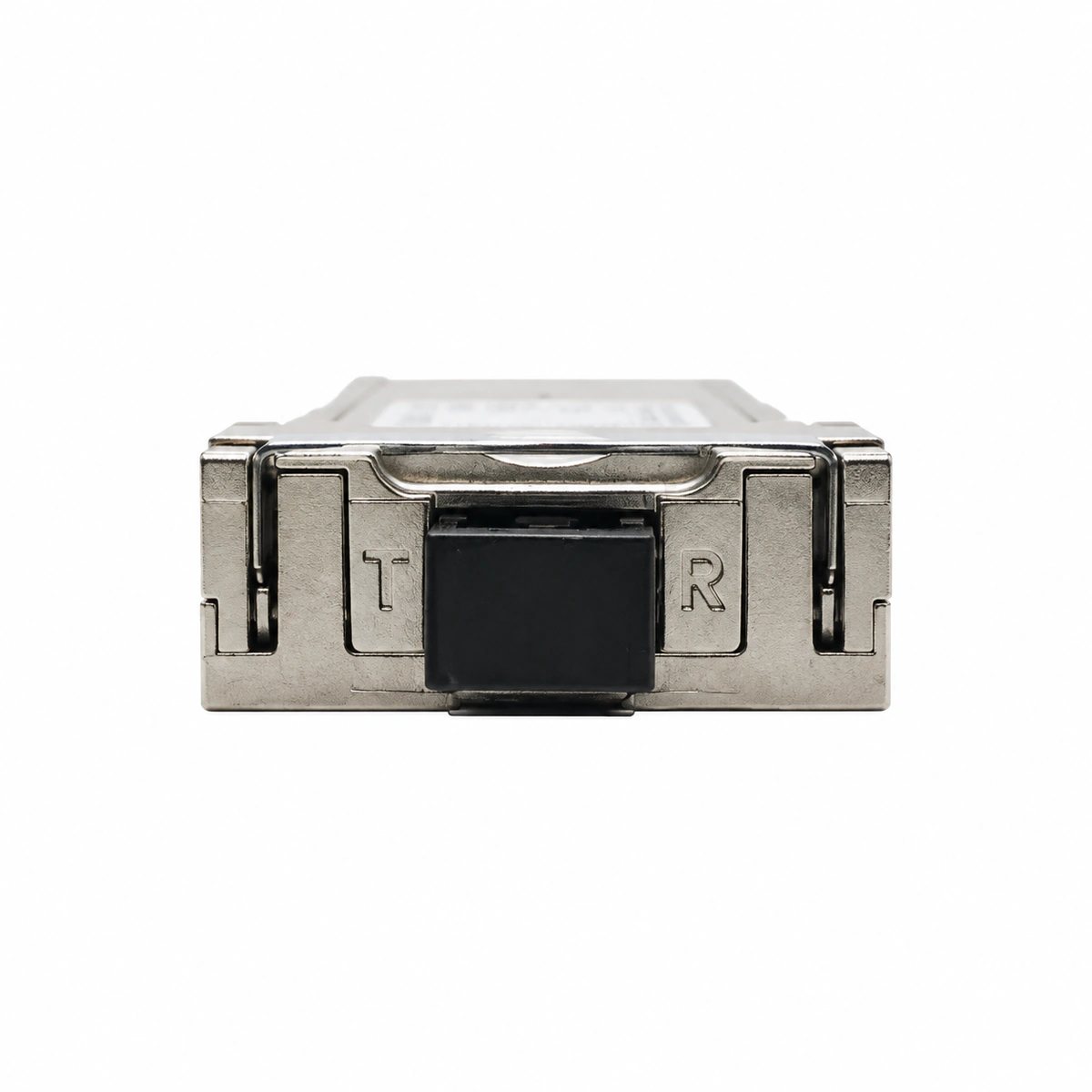

Huawei 100G CFP2 1310nm 10km Single-Mode Optical Transceiver Module (4x25G Duplex LC)
