Question 1

What are the specific optical/electrical performance, power consumption, and link budget parameters of the Huawei HW-OPT-40G-CFP-10KM?

Accepted Answer

The HW-OPT-40G-CFP-10KM complies fully with the IEEE 802.3ba 40GBASE-LR4 and CFP MSA standards. It utilizes 4-channel LAN-WDM optical multiplexing (center wavelengths: 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm), operating at 10.3125 Gbps per lane to deliver an aggregate rate of 41.25 Gbps. Optical launch power per lane ranges from -7.0 dBm to +2.3 dBm, with receiver sensitivity better than -13.7 dBm (OMA), providing a 6.7 dB power budget for 10 km reach over standard G.652 single-mode fiber (SMF). Powered by a 3.3V DC rail, its typical operational power consumption remains below 8.0W, and it features an MDIO management interface for real-time DOM telemetry.

Question 2

Which Huawei chassis platforms support this CFP module, and can it interoperate with 40G QSFP+ LR4 ports across platforms?

Accepted Answer

The module is natively compatible with Huawei NetEngine core routers (including NE40E-X3/X8/X16, NE80E, NE5000E) and CX600 metro routers deployed with 40GE CFP line cards (such as LPUF-40 and LPUS-40 series). Because it adheres to the standard 40GBASE-LR4 specification and identical LAN-WDM wavelength spacing, it is 100% interoperable with standard 40G QSFP+ LR4 transceivers over duplex LC single-mode patch cords without protocol conversion. The module supports hot-swapping and features dual mechanical retention screws to ensure reliable electrical contact and mechanical stability in high-vibration rack environments.

Question 3

What engineering design features ensure the HW-OPT-40G-CFP-10KM's thermal dissipation, ESD protection, and EMC reliability in harsh telecom environments?

Accepted Answer

To address severe thermal loads in core chassis, the module is engineered with an integrated heavy-duty die-cast metal housing and top-mounted thermal fins, optimizing heat transfer inside high-velocity forced-air chassis and maintaining die stability across 0°C to +70°C operating conditions. Internally, dedicated driver stages and high-impedance decoupling isolate signal channels. The perimeter features nickel-plated beryllium copper EMI grounding fingers to suppress 40Gbps RF leakage and resist ESD events. It also complies with Class 1 Eye Safety standards and incorporates real-time DOM failure prediction, alerting the network OS to temperature spikes, bias drift, or optical degradation.

Key specifications	Value
Form Factor	CFP/CFP2 Hot-Pluggable Interface
Data Rate	41.25 Gbps
Central Wavelength	1310 (4x10G LAN-WDM) nm
Maximum Distance	10 km
Fiber Type	Single-Mode Fiber (SMF) (SMF)
Optical Connector	Duplex LC Connector
Power Consumption	< 8.0 W
Operating Temperature Range	0°C ~ +70°C

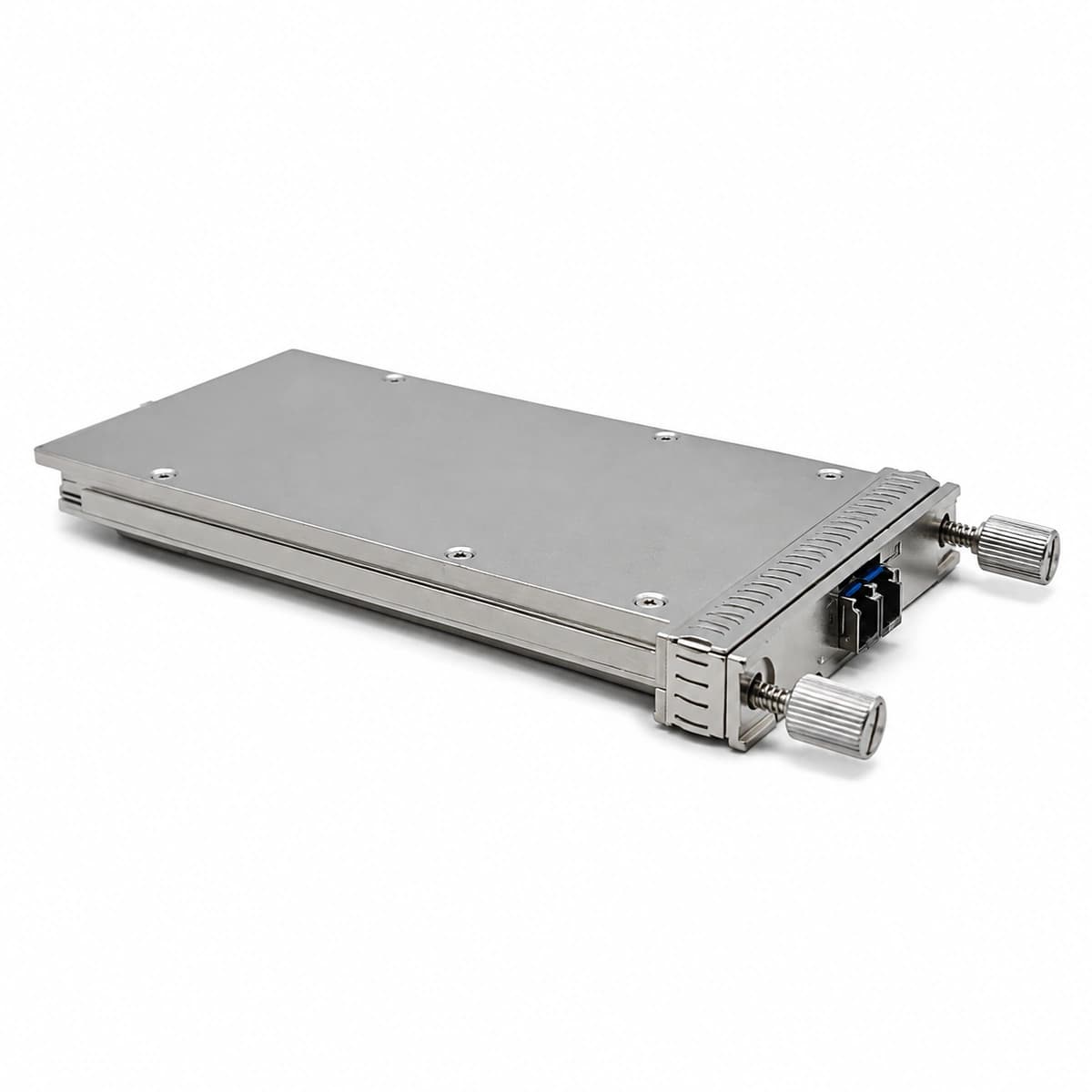

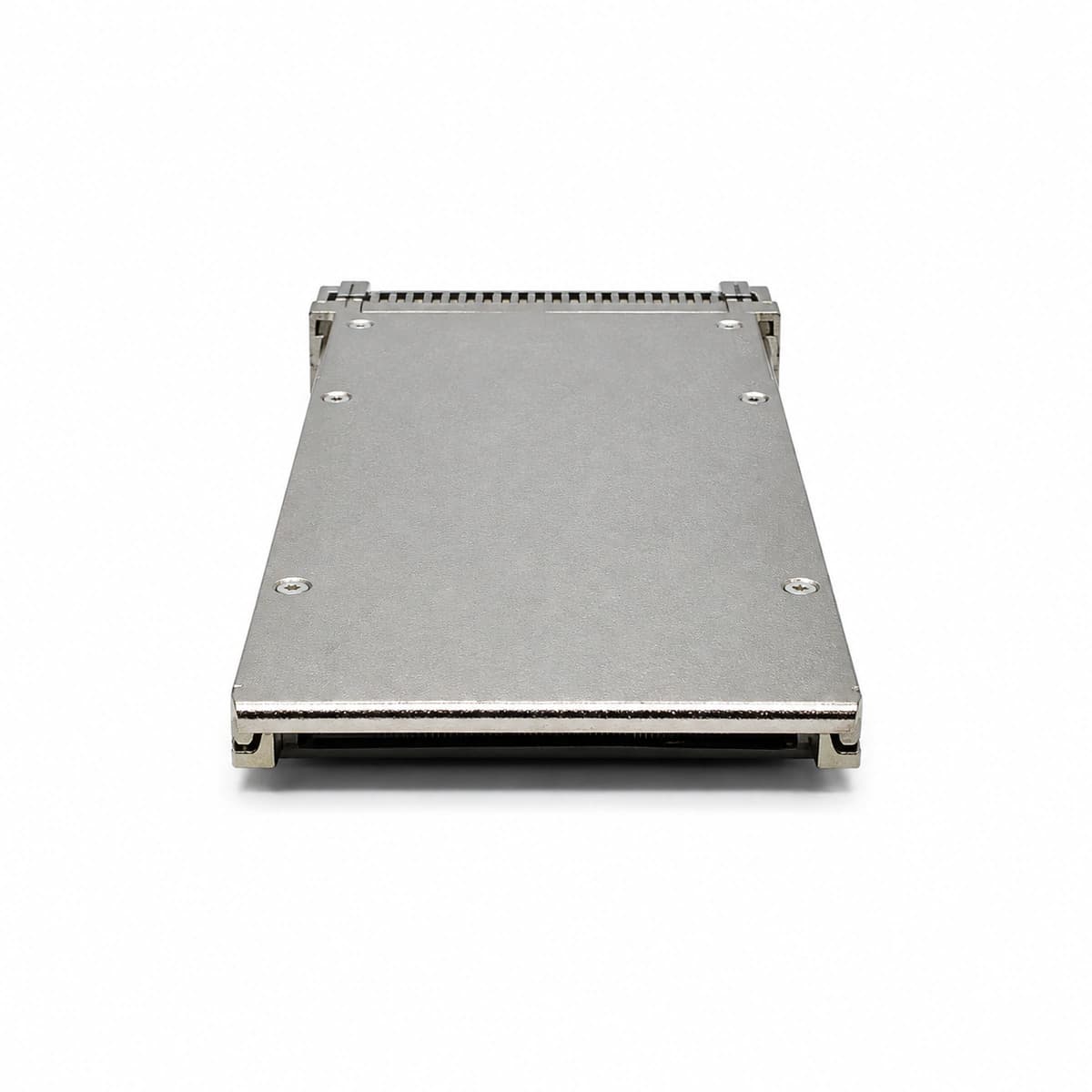

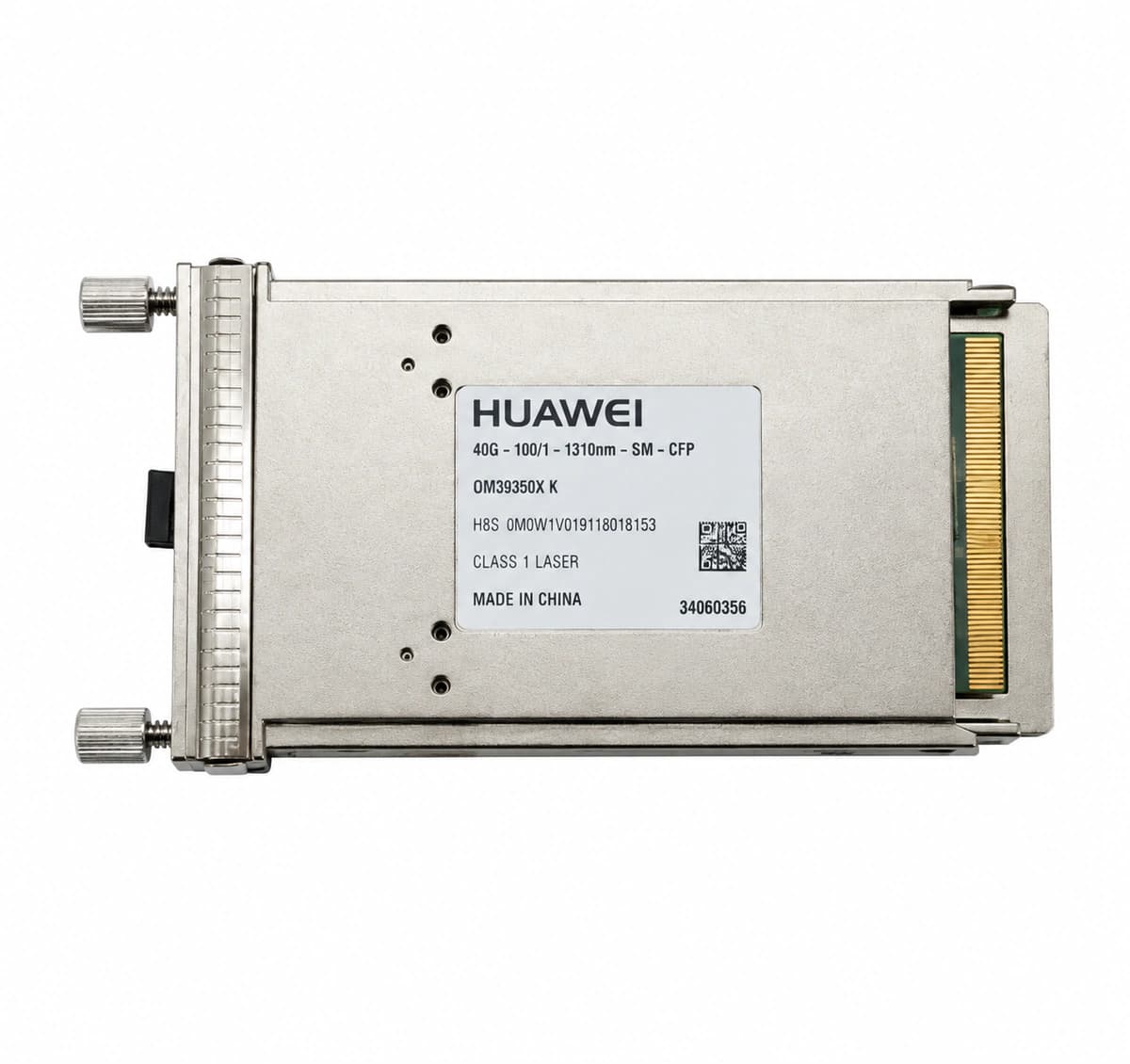

Huawei 40G CFP 1310nm 10km LR4 Single-Mode Optical Transceiver Module (40GBASE-LR4 4x10G Duplex LC)
