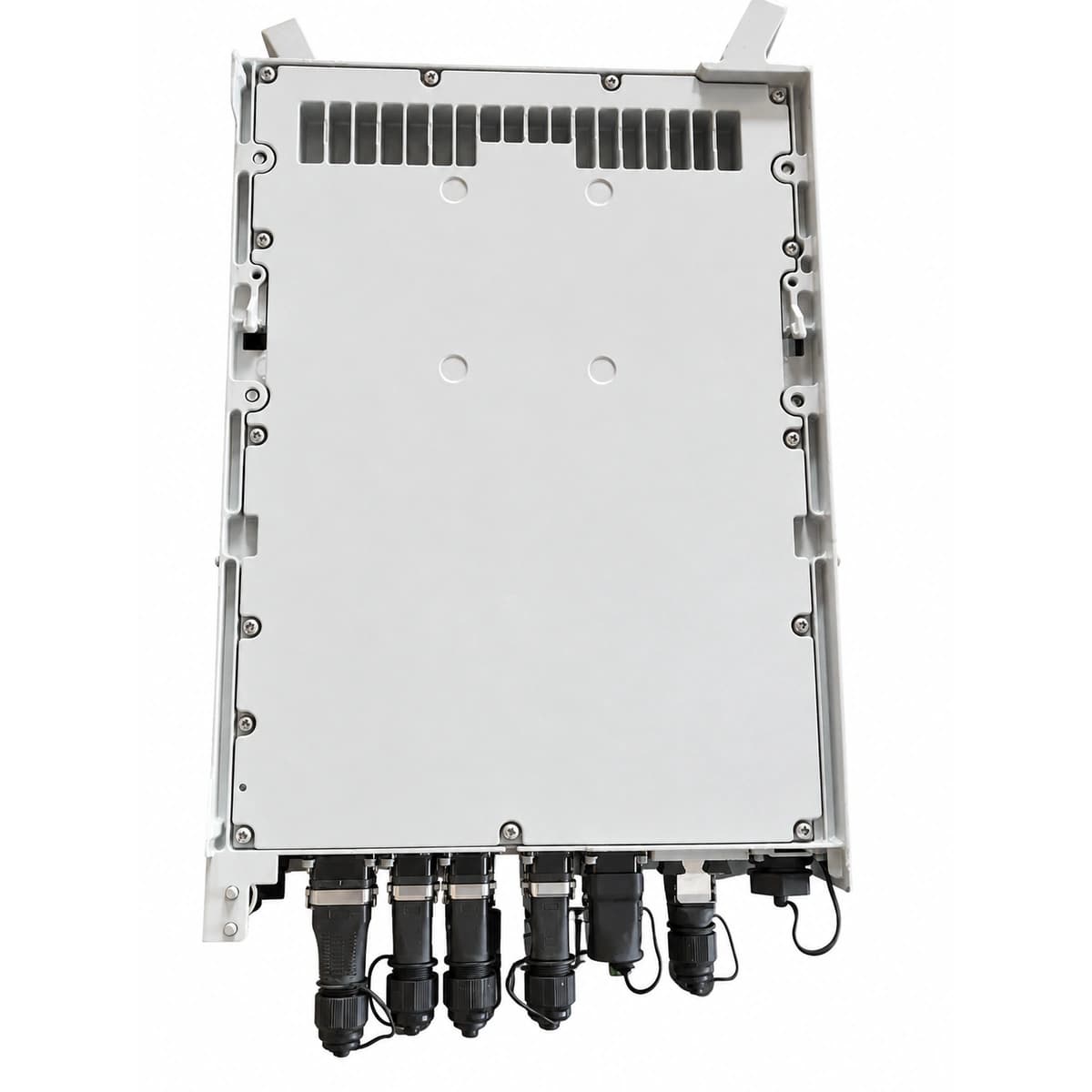

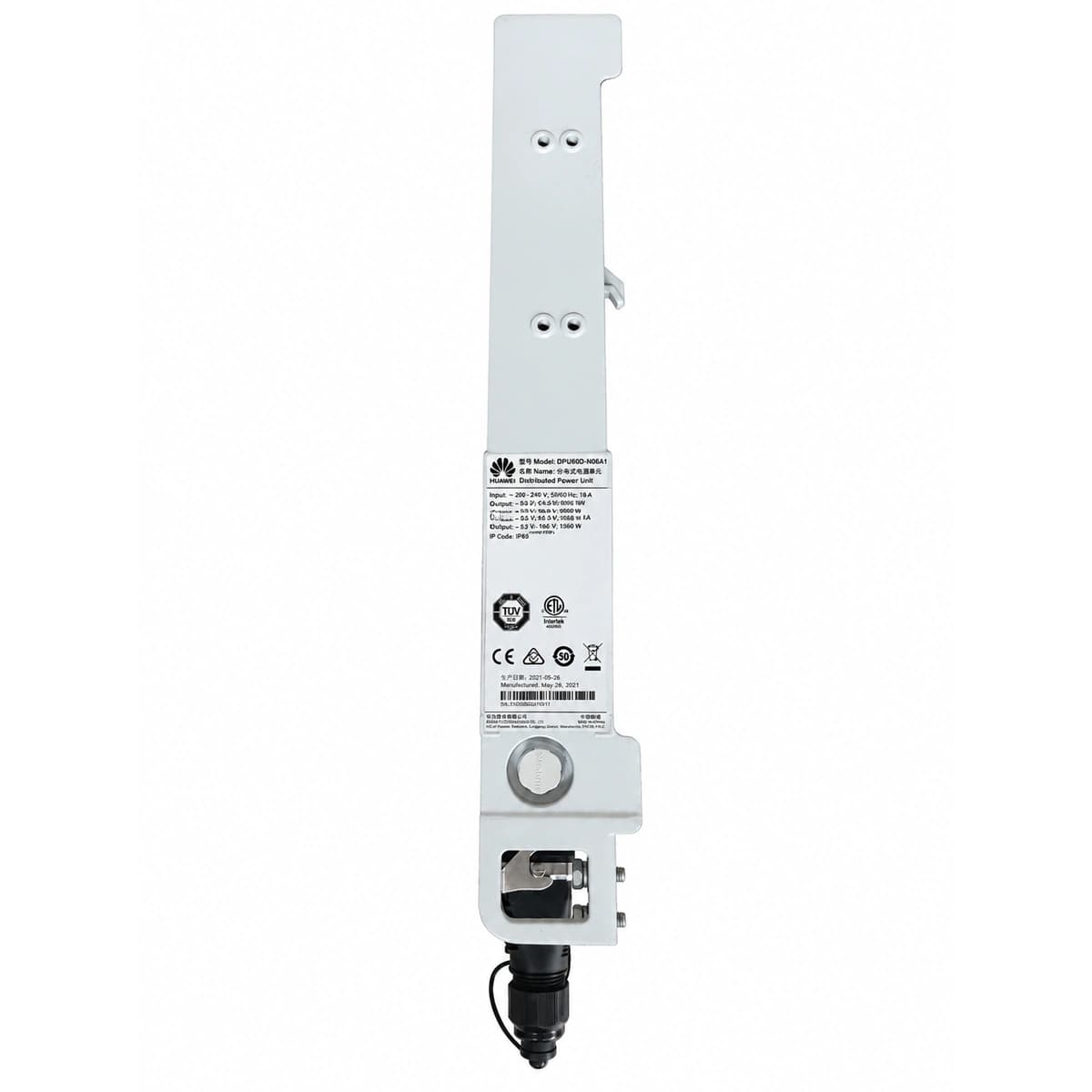

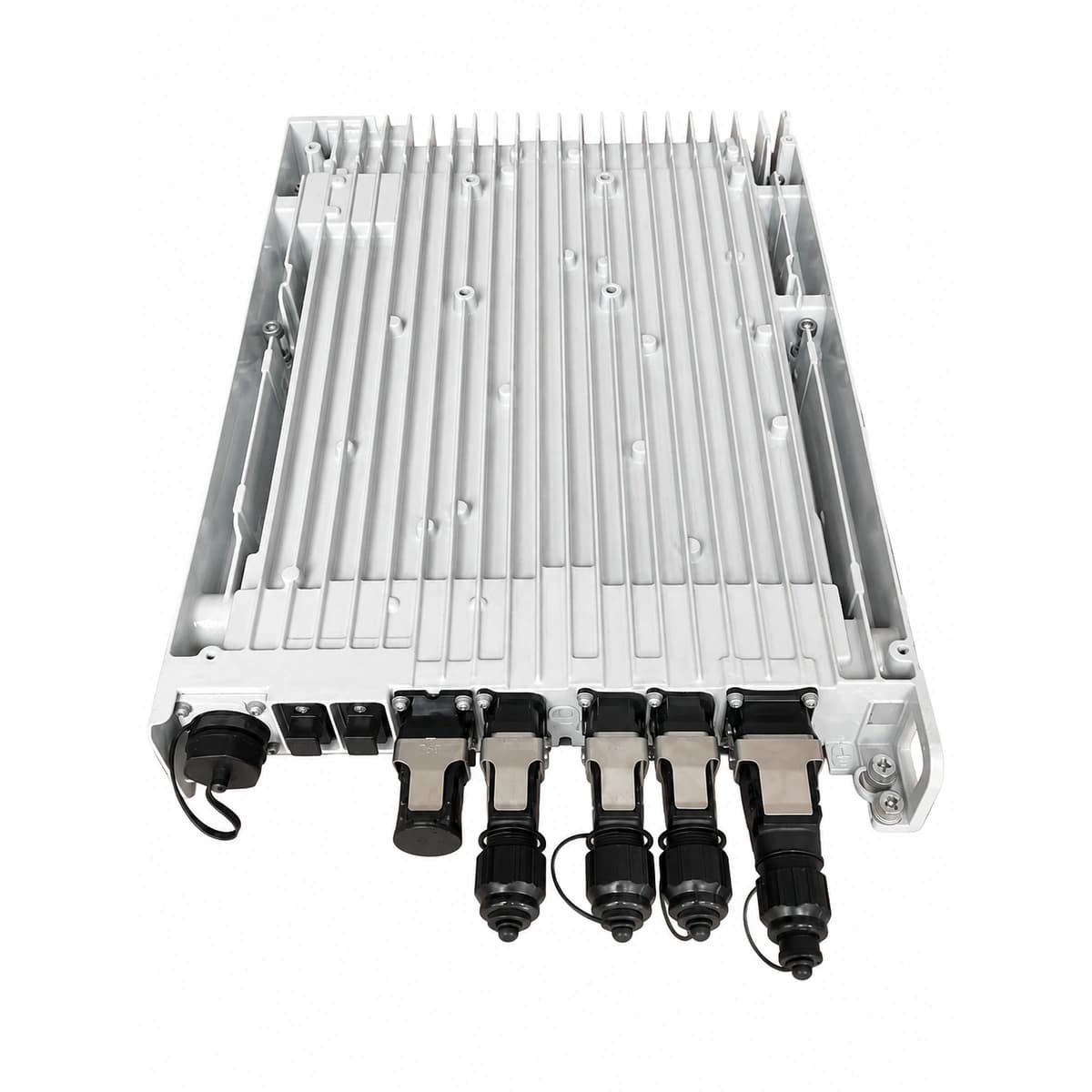

The Huawei DPU60D-N06A1 is a high-performance outdoor blade power supply unit engineered for minimalist telecom sites, delivering stable 60A -48V DC power.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

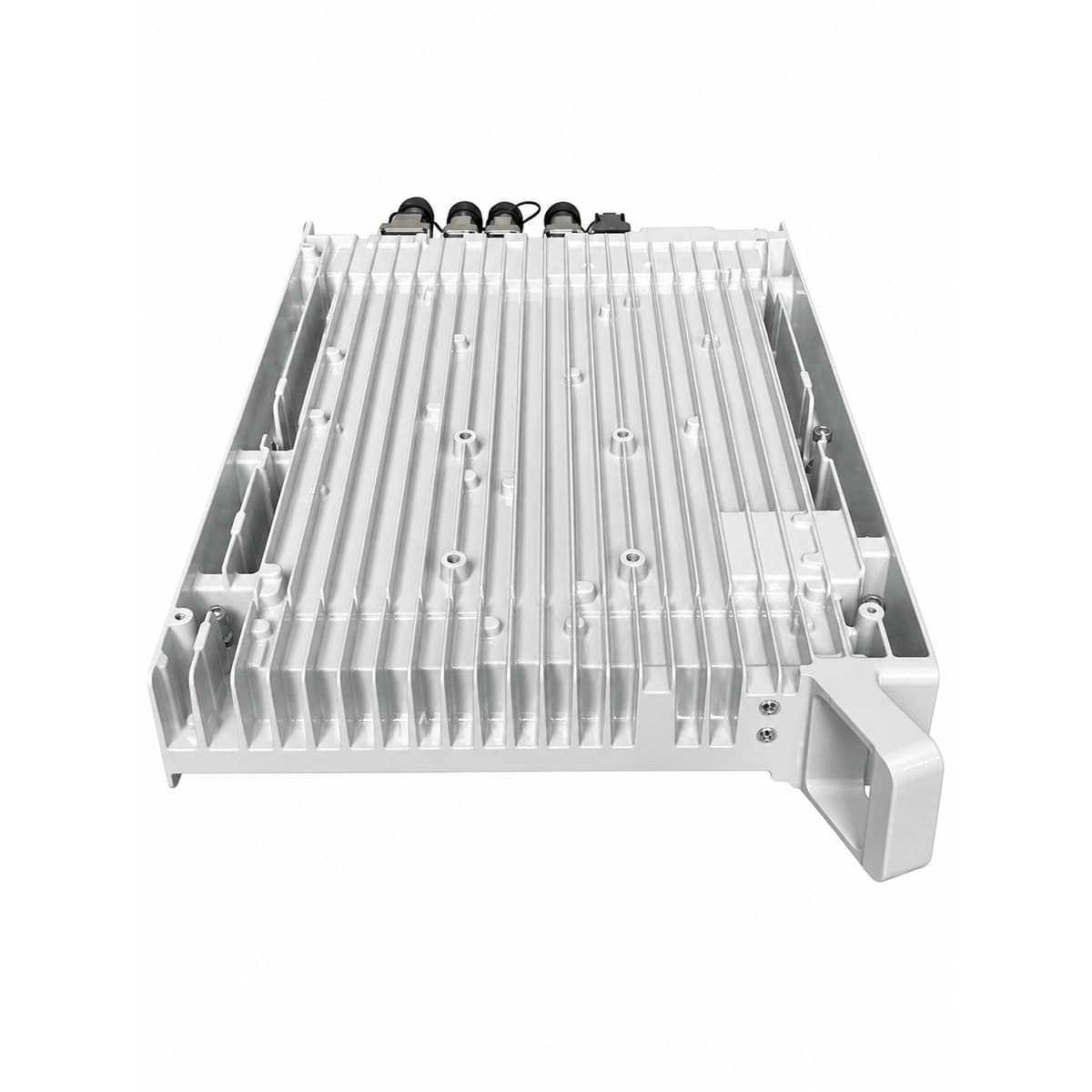

It features a fully sealed, fanless natural cooling design for zero maintenance and high reliability. It supports direct lithium battery integration for rapid site deployment.
Effectively resolves traditional outdoor cabinet pain points such as fan failures, high noise, excessive power consumption, and spatial limitations in harsh environments.
Widely deployed in 5G macro sites, pole-mounted micro sites, highway ETC gantries, smart city light poles, and off-grid outdoor telecom installations.
| Key specifications | Value |
|---|---|
| Rated Output Current | 60A |
| DC Output Voltage | -48VDC (-42V ~ -58V) |
| Cooling System | Fully Sealed Natural Cooling |
| Form Factor | Outdoor Blade Power System (Pole/Wall mountable, Natural Cooling) |
| Application Scenario | Outdoor Minimalist Site Deployment |
| Battery Support | Direct Lithium Battery Mount |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
