Question 1

What are the core optical specifications, optical power budget, and electrical power metrics of the Huawei GPON OLT Class C+ module (HW-OPT-GPON-OLT-C-PL)?

Accepted Answer

Compliant with ITU-T G.984.2 Class C+ standards, the Huawei HW-OPT-GPON-OLT-C-PL is an SFP BiDi transceiver equipped with an SC/UPC optical interface. It integrates a 1490nm continuous-mode DFB transmitter delivering an optical launch power of +3.0 to +7.0 dBm, paired with a 1310nm burst-mode APD-TIA receiver boasting a sensitivity of < -30.0 dBm (BER @ 1x10^-10) and an overload threshold > -12.0 dBm. This delivers a robust minimum 32 dB optical link budget, supporting standard 20km reaches at 1:64 or 1:128 optical splitting ratios. Operating on a 3.3V DC power rail with a current draw under 400mA, power consumption is constrained to under 1.5W. It features SFF-8472 compliant Digital Diagnostic Monitoring (DDM/DOM), reporting real-time metrics including optical Tx/Rx power, laser bias current, internal supply voltage, and operating temperature.

Question 2

Which Huawei OLT chassis and service boards support HW-OPT-GPON-OLT-C-PL, and can it coexist with legacy Class B+ modules in mixed deployment?

Accepted Answer

HW-OPT-GPON-OLT-C-PL is natively compatible with Huawei SmartAX MA5600T platforms (MA5680T, MA5683T, MA5608T) and next-generation SmartAX MA5800 series (MA5800-X2/X7/X15/X17, EA5800). It operates reliably across standard GPON line cards, including GPBD (8-port), GPFD (16-port), GPHF, GPUF, and Combo PON cards (such as CGHF and CGID in GPON operational mode). Because optical transceivers operate independently at the physical layer, Class C+ transceivers can be mixed with Class B+ optics within the same line card. The OLT manages ranging, Dynamic Bandwidth Allocation (DBA), and link budgets per-port independently, allowing operators to execute targeted ODN link upgrades on loss-heavy or high-split branches without requiring wholesale module replacement.

Question 3

What environmental tolerance, thermal management, and circuit protection mechanisms are engineered into the Huawei Class C+ OLT transceiver?

Accepted Answer

The HW-OPT-GPON-OLT-C-PL features an all-metal zinc alloy shielded enclosure optimized for passive thermal dissipation and EMI suppression within high-density 16-port OLT cards. It operates across a commercial case temperature range of 0°C to +70°C (with extended storage limits from -40°C to +85°C) and handles non-condensing relative humidity from 5% to 95%. The electrical interface integrates robust TVS diode arrays offering ESD resilience compliant with IEC 61000-4-2 (6kV contact, 8kV air discharge). The optical engine complies with FDA 21 CFR 1040.10 and IEC 60825-1 Class 1 eye-safety regulations. Rated for an MTBF exceeding 1,000,000 hours, it ensures long-term operational integrity in demanding outdoor telecommunication cabinets and central office environments.

Key specifications	Value
Form Factor	SFP Hot-Pluggable Optical Transceiver (ITU-T G.984.2 Class C+)
Data Rate	Downstream 2.488Gbps / upstream 1.244Gbps
Central Wavelength	Tx 1490nm / Rx 1310nm
Maximum Distance	20 km
Fiber Type	Single-mode single-fiber (BiDi)
Power Consumption	< 1.5 W
Optical Connector	SC/UPC
Transmitter Power	+3.0 ~ +7.0 dBm
Operating Temperature Range	0°C ~ +70°C
Receiver Sensitivity	< -30.0 dBm

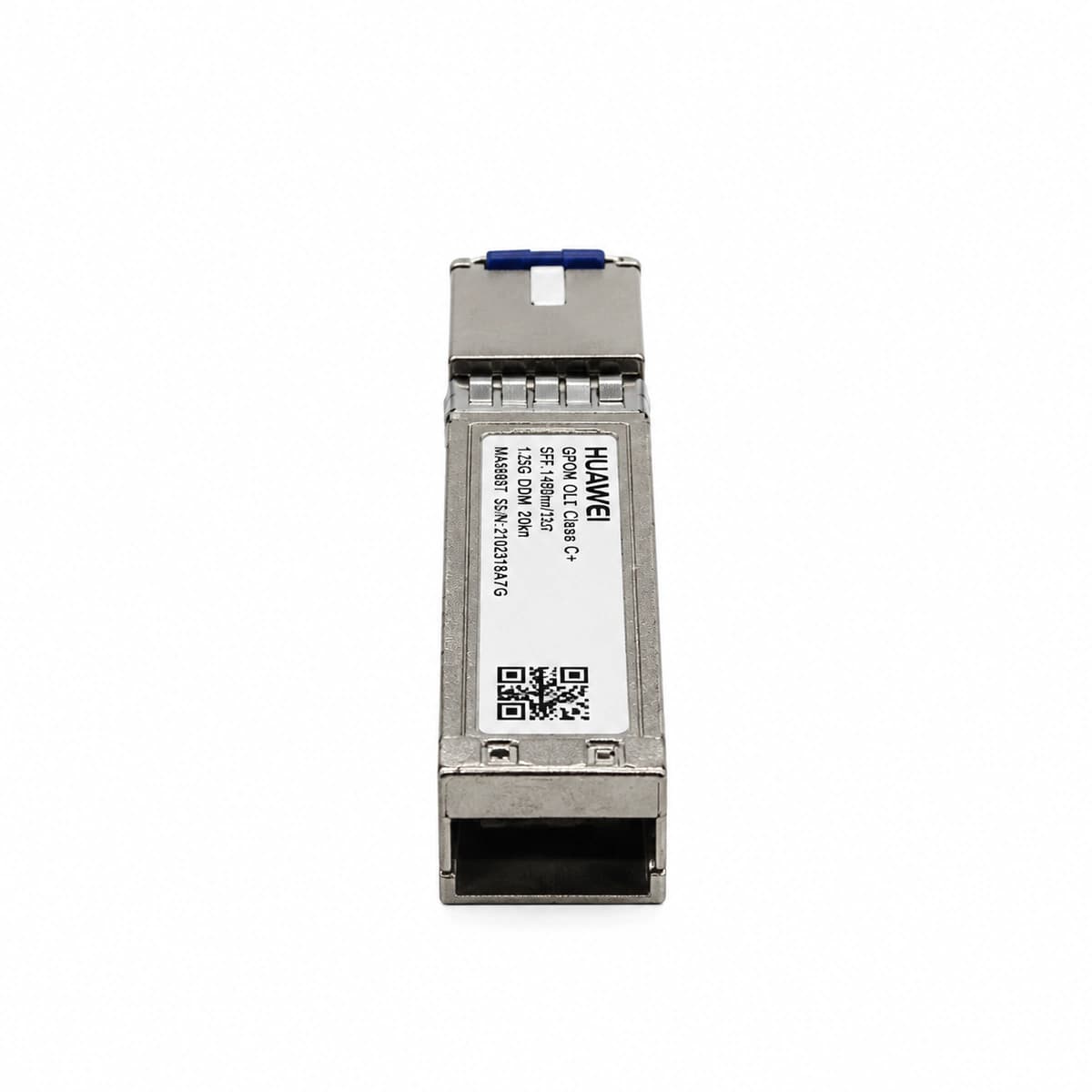

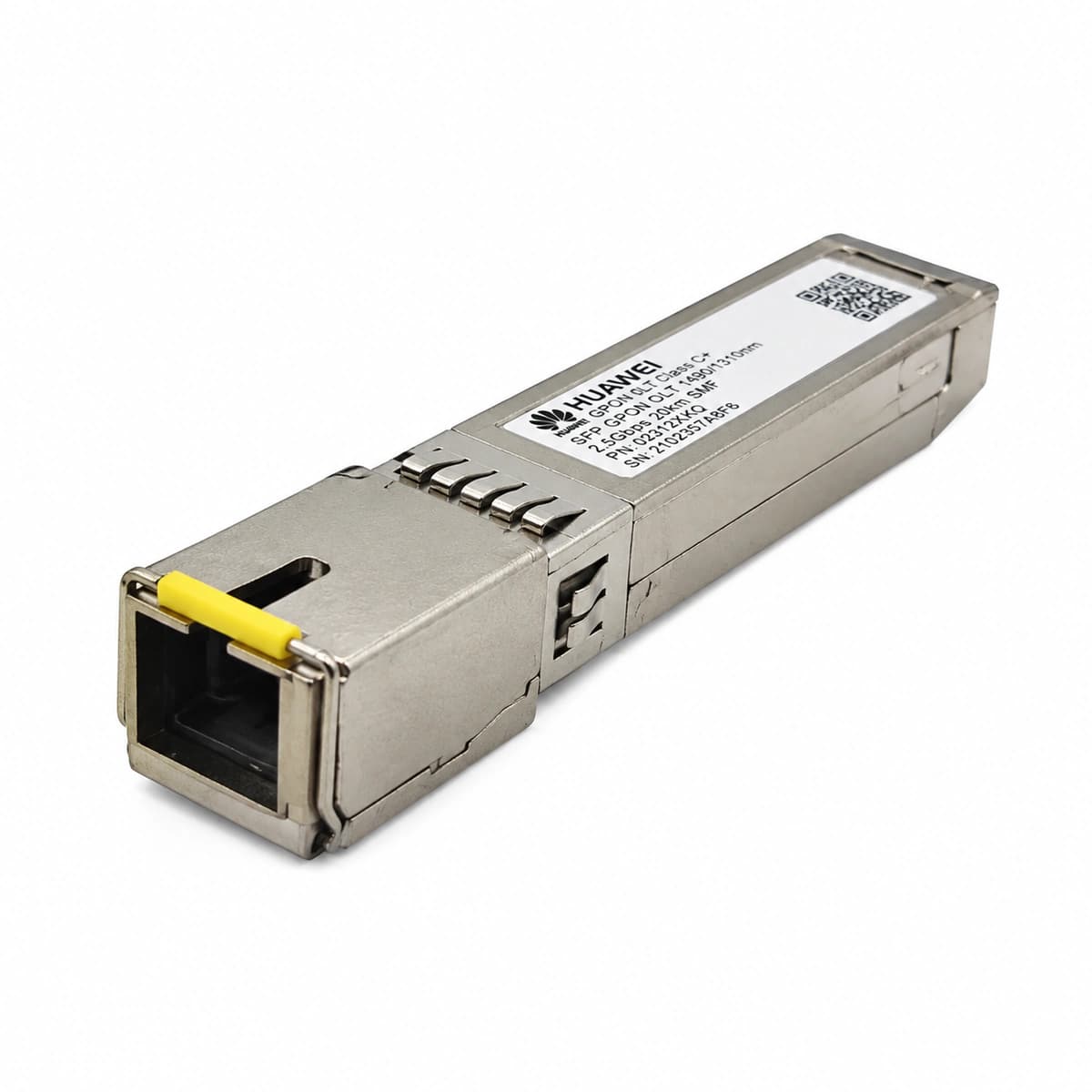

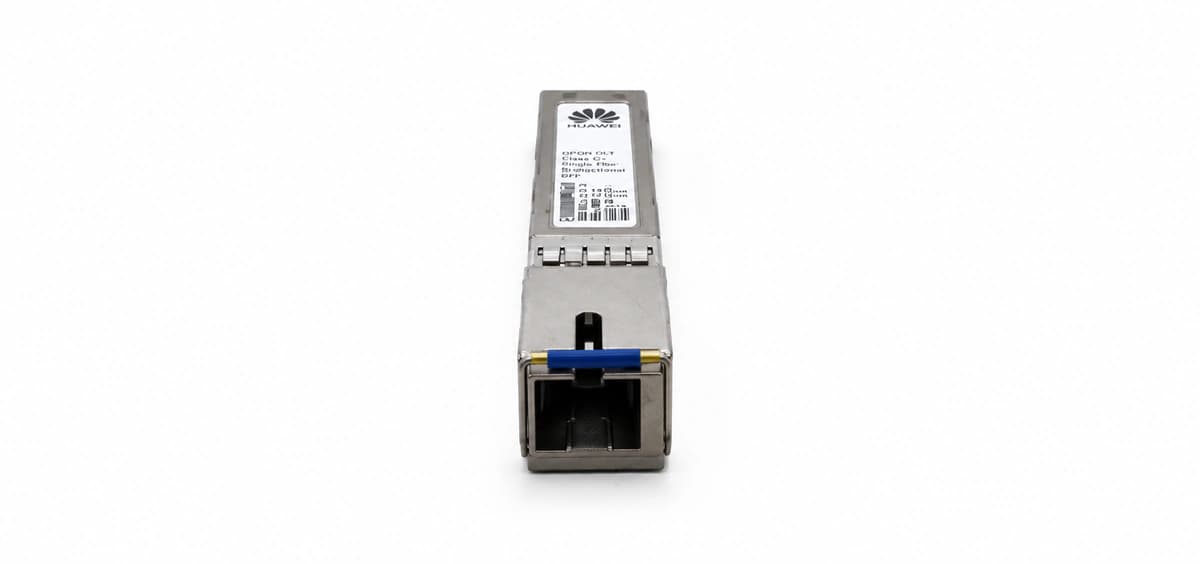

Huawei GPON OLT Class C+ Standard BiDi Optical Transceiver Module (SC/UPC)
