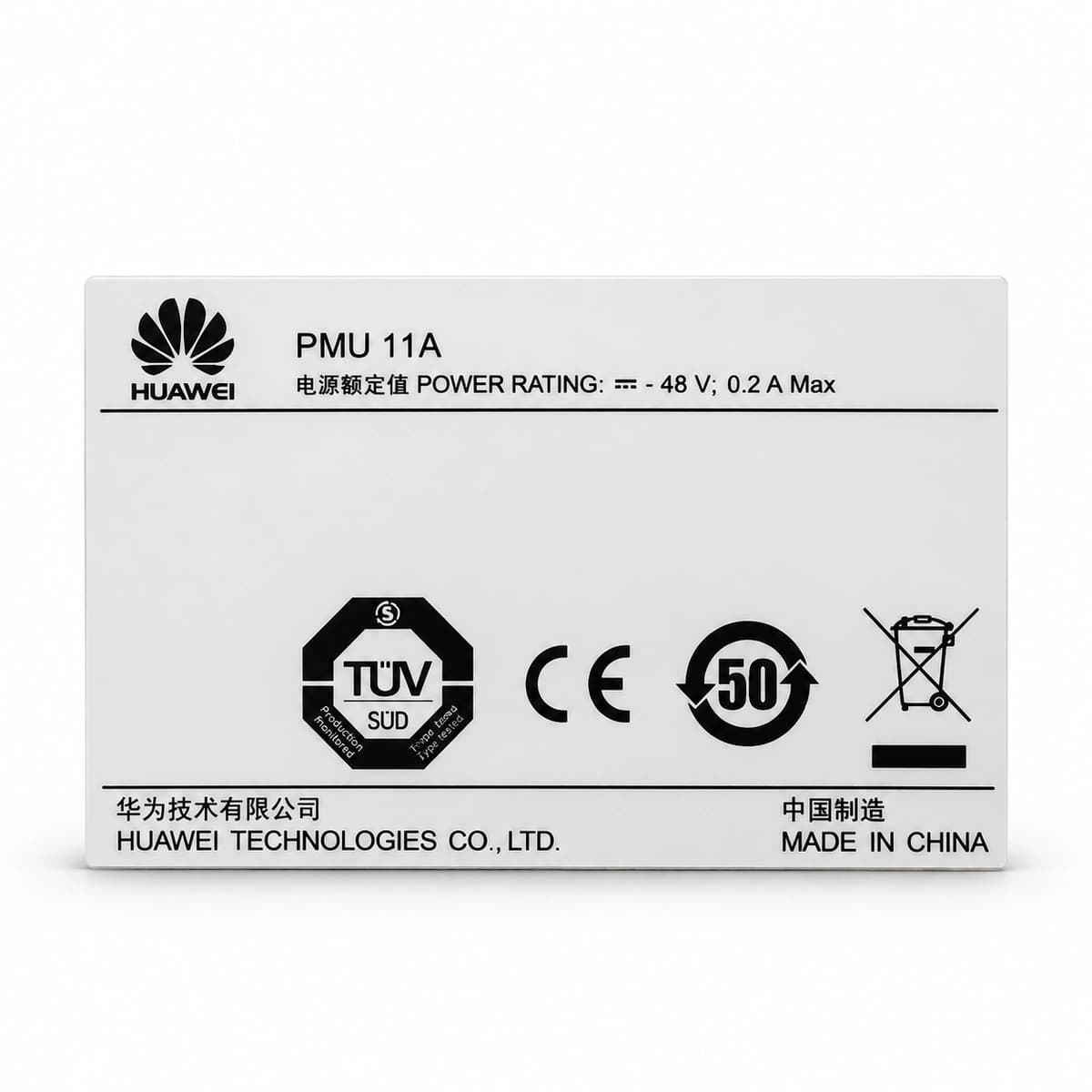

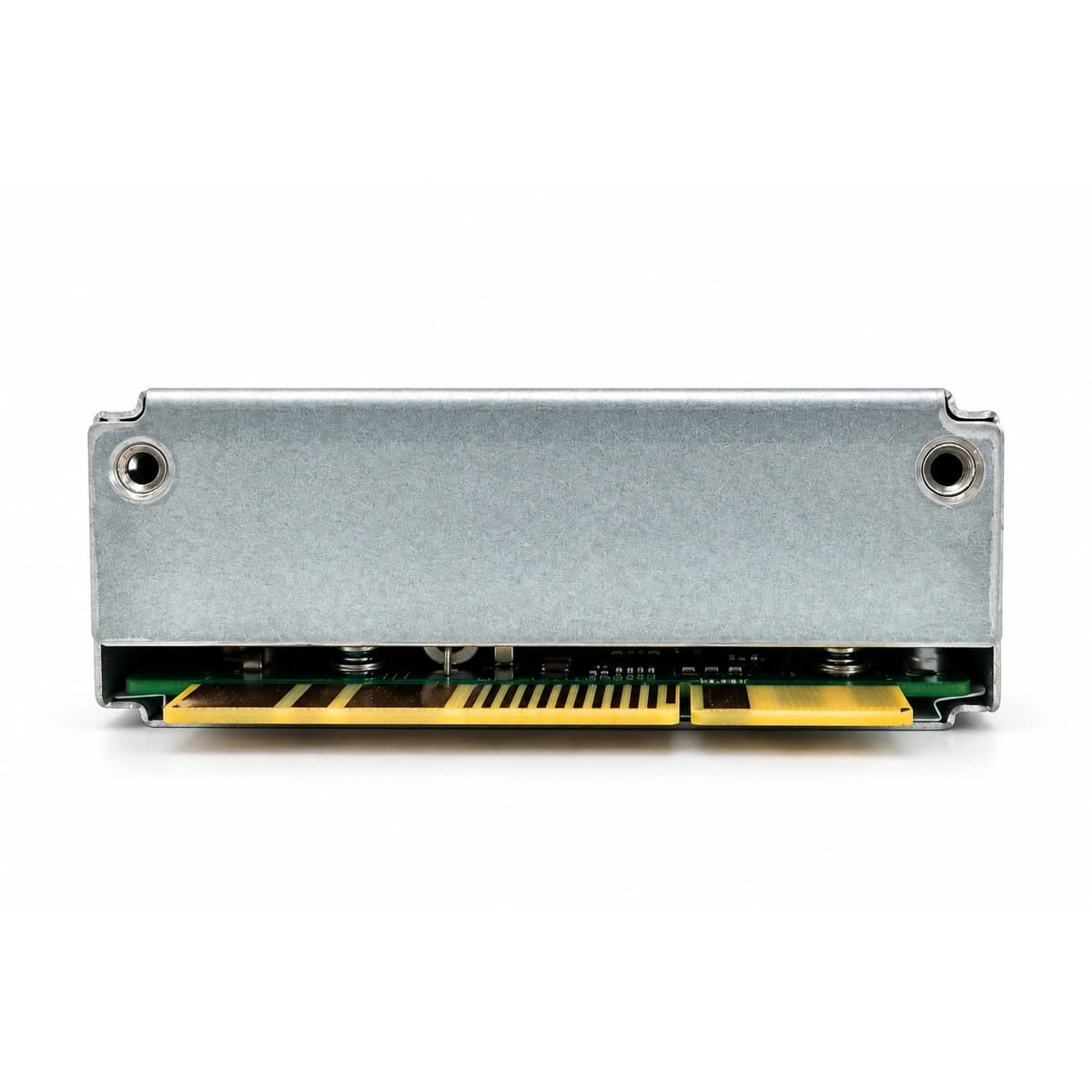

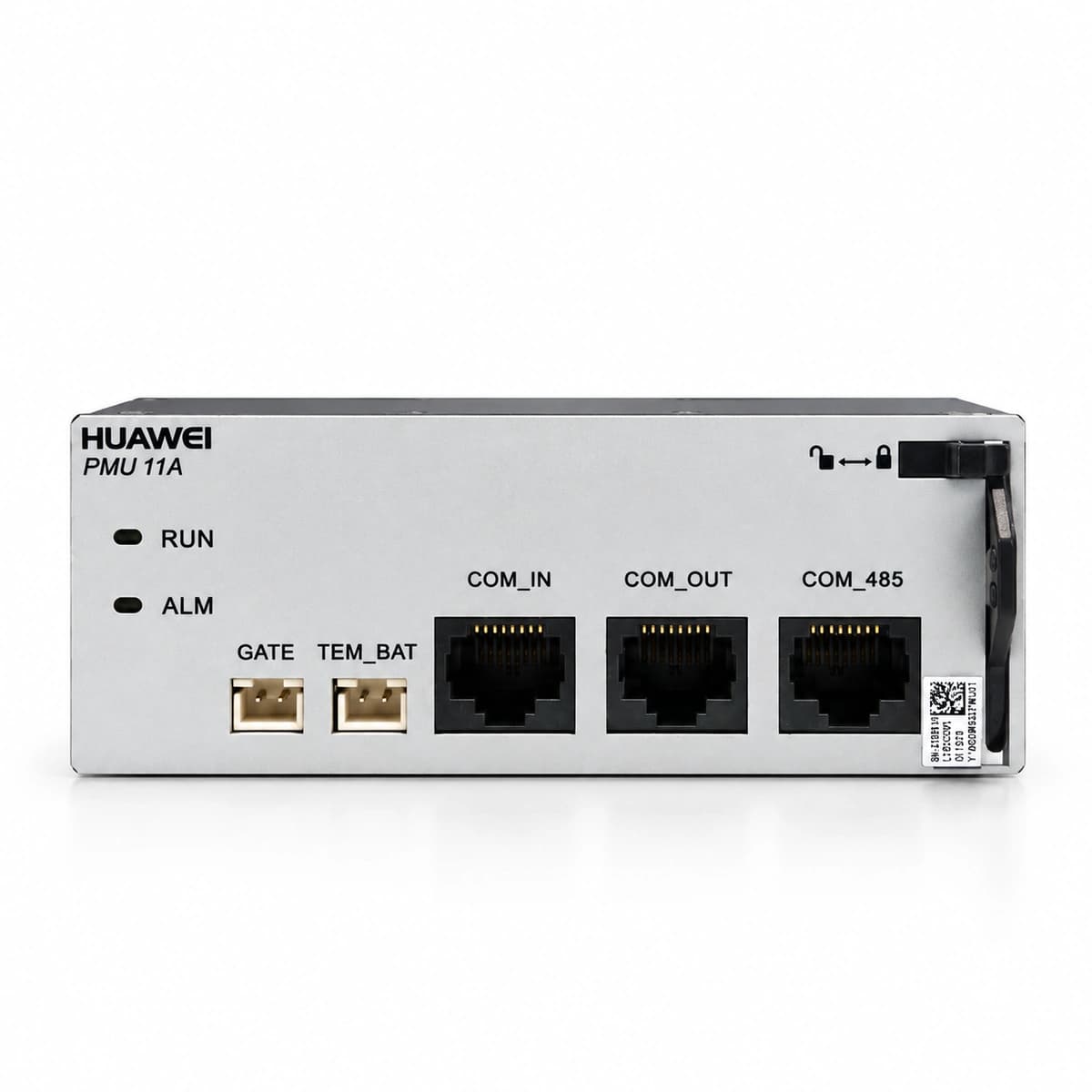

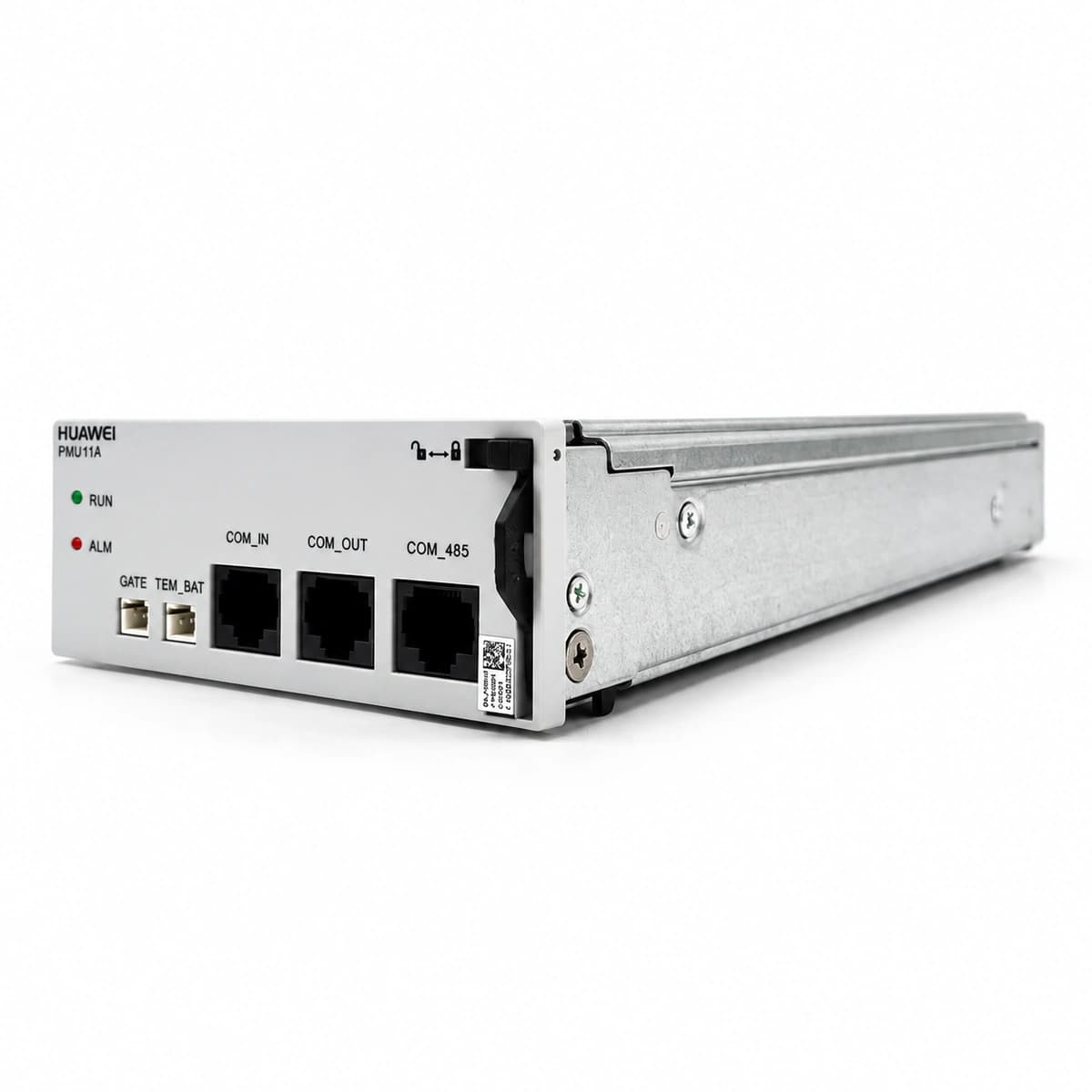

The Huawei PMU11A is a carrier-grade power environment and battery data acquisition module engineered for -48V DC telecom power systems. It provides precision analog and digital sampling, leveraging dual CAN bus and RS485 communication interfaces to transmit battery midpoint voltage, charge/discharge currents, ambient metrics, and dry-contact states to the system controller.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Architecturally, the PMU11A serves as the peripheral data acquisition node within Huawei telecom power enclosures (such as the TP48 series and APM30 cabinets). It integrates multi-channel precision analog-to-digital converters (ADCs), optocoupler-isolated digital inputs (dry contacts), precision NTC temperature sensor front-ends, and galvanically isolated transceivers complying with IEC 60950-1 and ETSI EN 300 386 carrier-grade standards.
It eliminates the risk of catastrophic battery bank thermal runaway, unmonitored cell imbalance, and premature battery degradation by providing real-time data for automated float/boost charge control and temperature compensation, while preventing blind spots caused by unmonitored cabinet doors, flooding, or surge protection failures.
Tailored for Huawei NetEco-managed -48V DC power frameworks, APM30/APM5930 outdoor telecom cabinets, cellular 4G/5G macro and micro base stations, optical transmission nodes, and enterprise remote edge sites.
| Key specifications | Value |
|---|---|
| System Nominal Voltage | 48V DC |
| Communication Interfaces | CAN Bus, RS485 |
| Operating Temperature Range | -40°C ~ +75°C |
| Digital/Dry Contact Inputs | Multiple Optocoupler-Isolated Dry Contact Alarm Inputs |
| Battery Intelligent Management | SOH/SOC Monitoring, Temp Compensation & Multi-level LVD |
| Hot-Swappable Support | Yes (Live Hot-Pluggable / Plug-and-Play without Power Interruption) |
| Non-Volatile Log Capacity | 10,000+ Cyclic Event Records |
| Unit Power Consumption | < 8W (Ultra-Low Standby Design) |
| Industrial EMC Level | EN 55032 Class A / IEC 61000-4 Level 4 |
| Relative Humidity Tolerance | 5% to 95% RH (Non-Condensing) |
