RICEWIND BPD1500 -48VDC 1500W High-Capacity Outdoor Telecom Cabinet DC Air Conditioner (IP55)
The RICEWIND BPD1500 is an industrial-grade outdoor telecom cabinet air conditioner delivering 1500W of sensible cooling capacity under -48VDC power input with IP55 ingress protection.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- Rated Cooling Capacity
- 1500W (High Sensible Ratio, Rapid Cabinet Hot-Spot Elimination)
- Power Supply System
- -48VDC Nominal (Rated Current 9.0A, Maximum Current 13.5A) V DC
- Rated Input Power
- 430W (Powerful 320 m³/h Centrifugal Forced Circulation)
- Dimensions (H×W×D)
- 750 x 450 x 200 mm (With Flange 784x484x200 mm, 24 kg)
- Ingress Protection (IP Rating)
- IP55 Industrial Weatherproof Enclosure / Heavy Powder Coating
- Communication Interface
- RS485 Digital Telemetry + Dual 4-20mA Temp/Humidity Current Loops
What this product is
What this product is

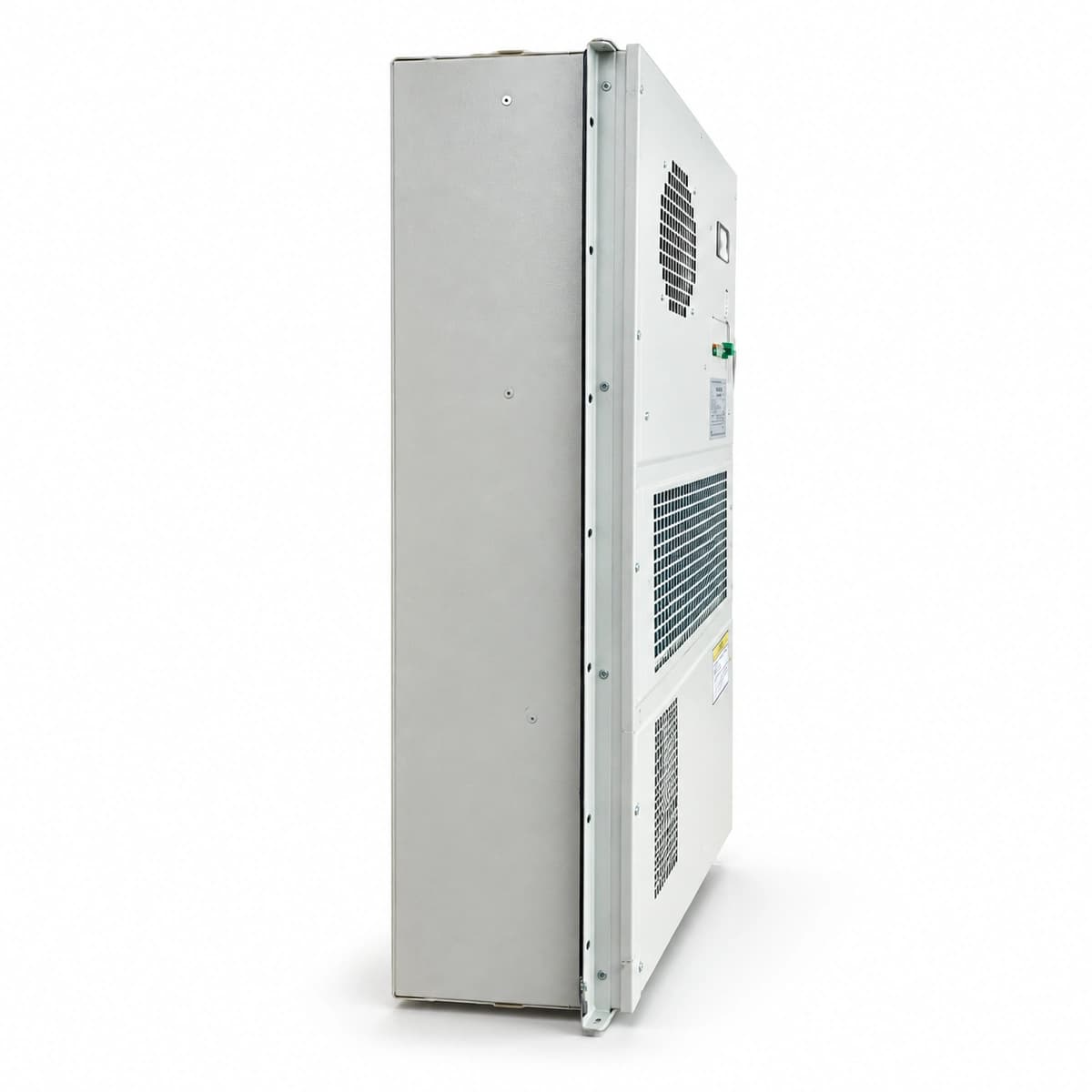

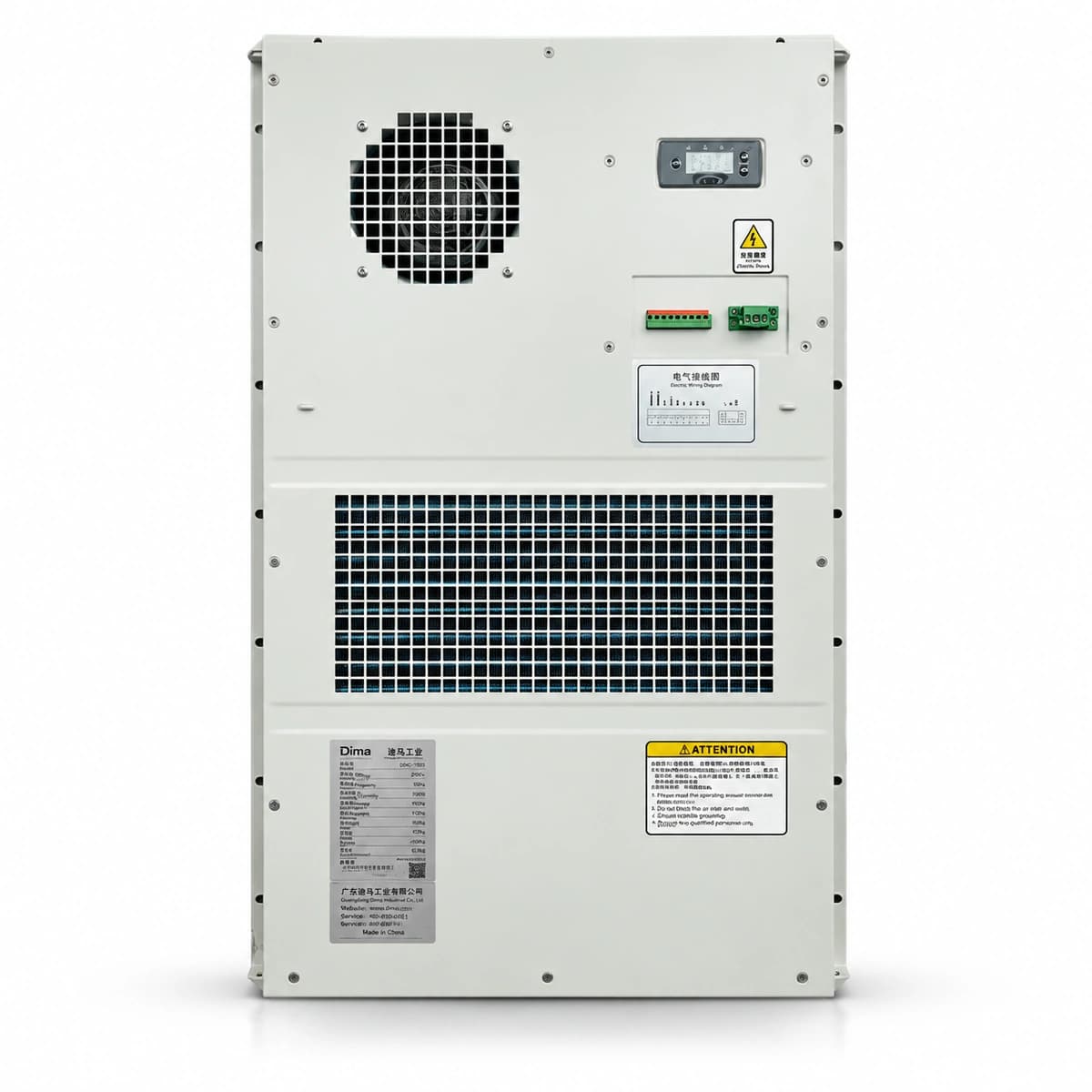

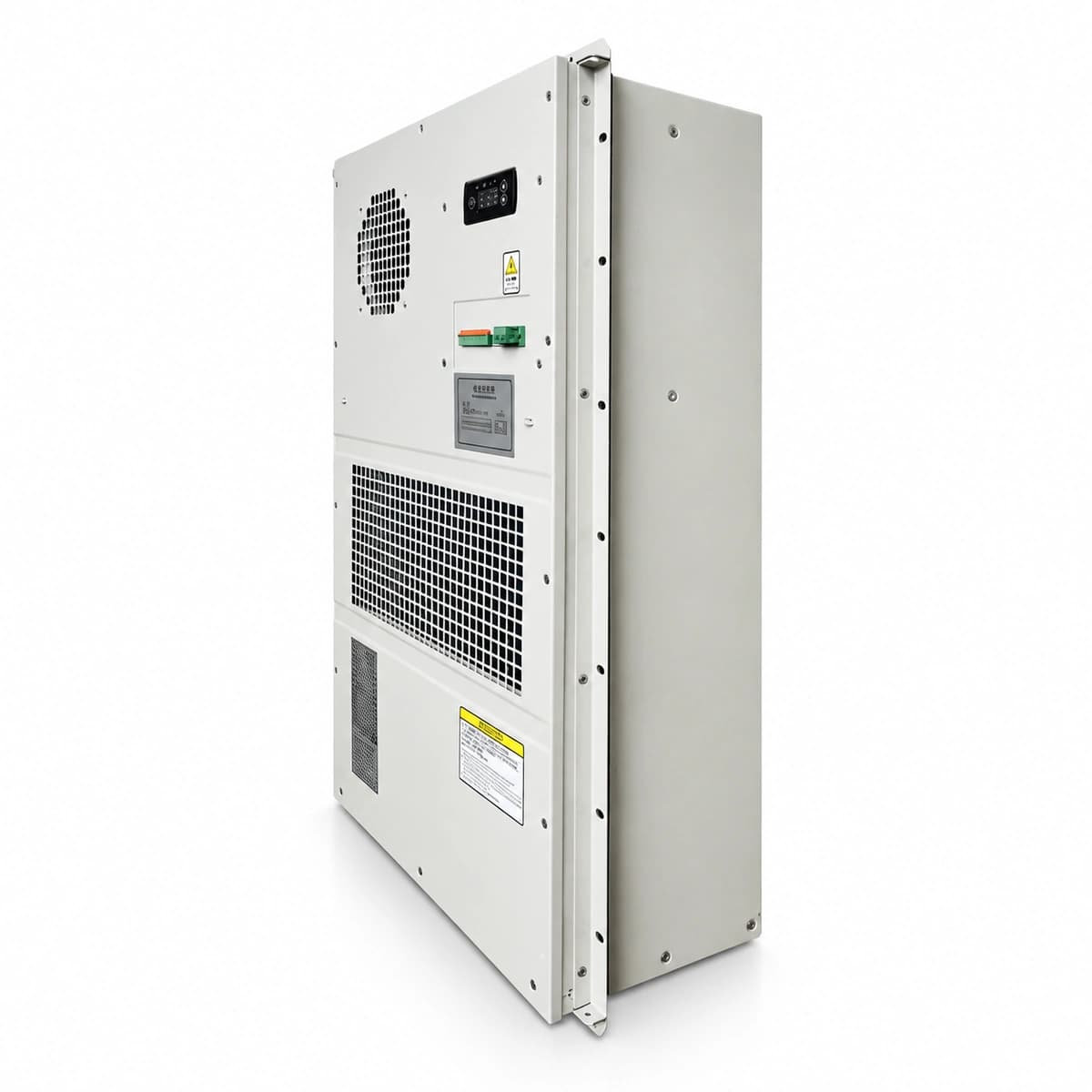

A ruggedized outdoor enclosure DC air conditioning unit designed for door or side-mount flange installation.
What problem it solves
Eliminates solar radiation heat buildup and equipment thermal shutdown while maintaining a hermetic IP55 seal against environmental dust, rain, and humidity.
Who and where it is for
5G telecom outdoor cabinets, solar hybrid base stations, traffic management field boxes, and energy storage battery compartments.
Core advantages
- 1500W rated sensible cooling capacity with high-efficiency compressor consuming only 430W
- Dual completely isolated airflow circuits providing verified IP55 ingress protection
- Integrated RS485 Modbus-RTU telemetry interface for remote temperature and alarm monitoring
- Heavy-duty operational temperature range spanning -40°C to +55°C with anti-corrosion coating
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Cooling Capacity | 1500W (High Sensible Ratio, Rapid Cabinet Hot-Spot Elimination) |
| Power Supply System | -48VDC Nominal (Rated Current 9.0A, Maximum Current 13.5A) V DC |
| Rated Input Power | 430W (Powerful 320 m³/h Centrifugal Forced Circulation) |
| Dimensions (H×W×D) | 750 x 450 x 200 mm (With Flange 784x484x200 mm, 24 kg) |
| Ingress Protection (IP Rating) | IP55 Industrial Weatherproof Enclosure / Heavy Powder Coating |
| Communication Interface | RS485 Digital Telemetry + Dual 4-20mA Temp/Humidity Current Loops |
Applications
01
Outdoor Telecom Wireless Base Station Sites
02
Smart Traffic and Highway Surveillance Enclosures
03
Solar Energy Storage and Remote Power Cabinets
04
Industrial Automation & Edge Computing Field Shelters
