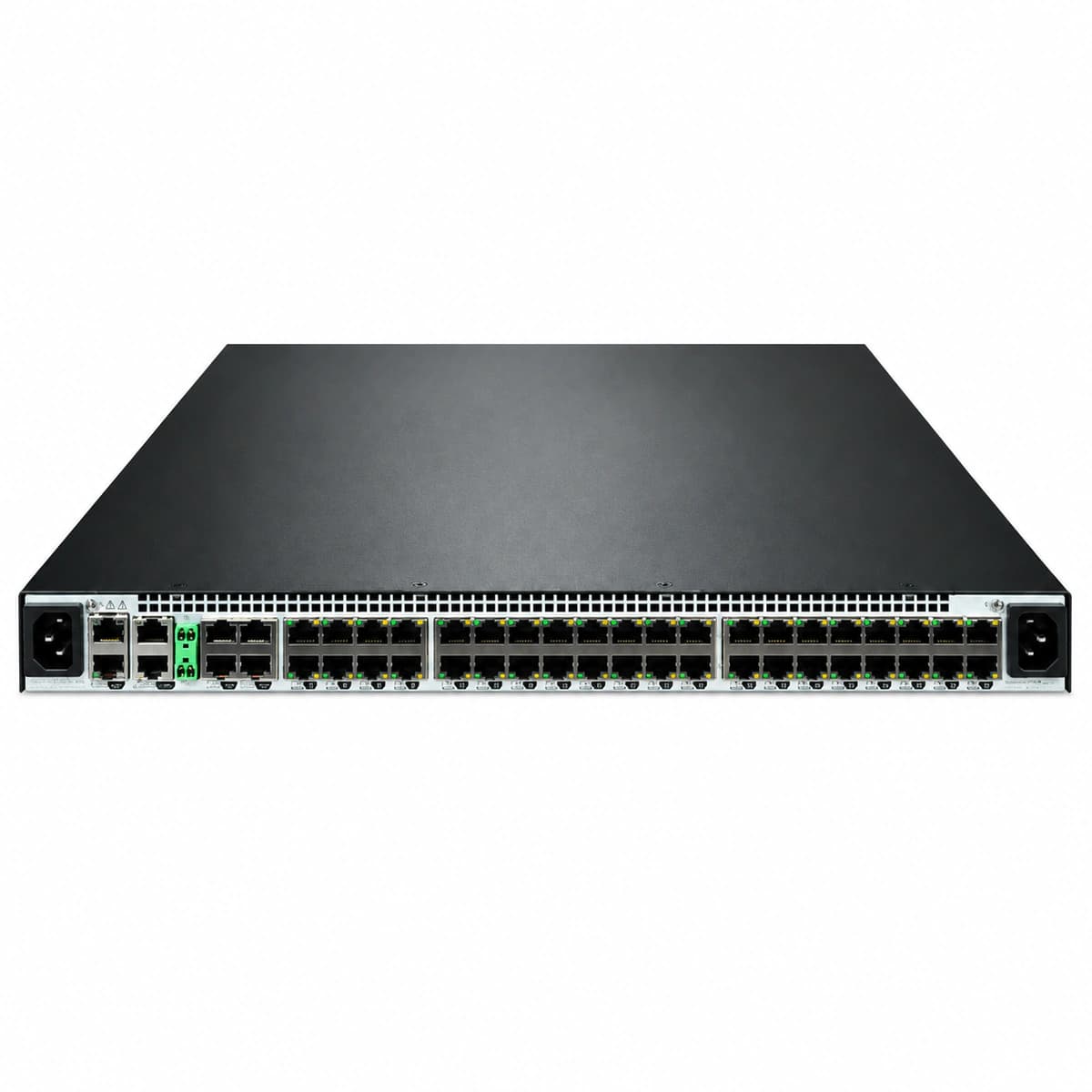

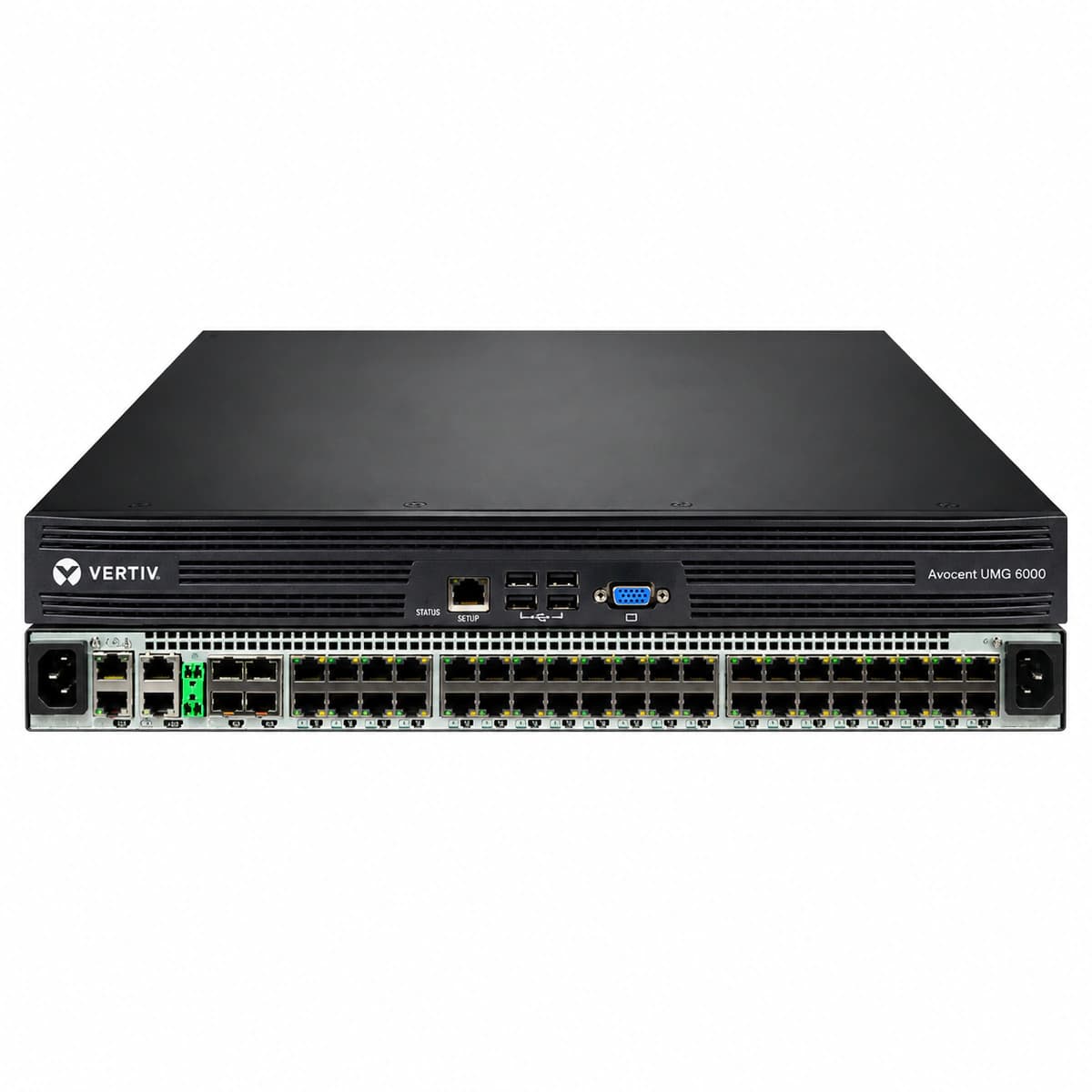

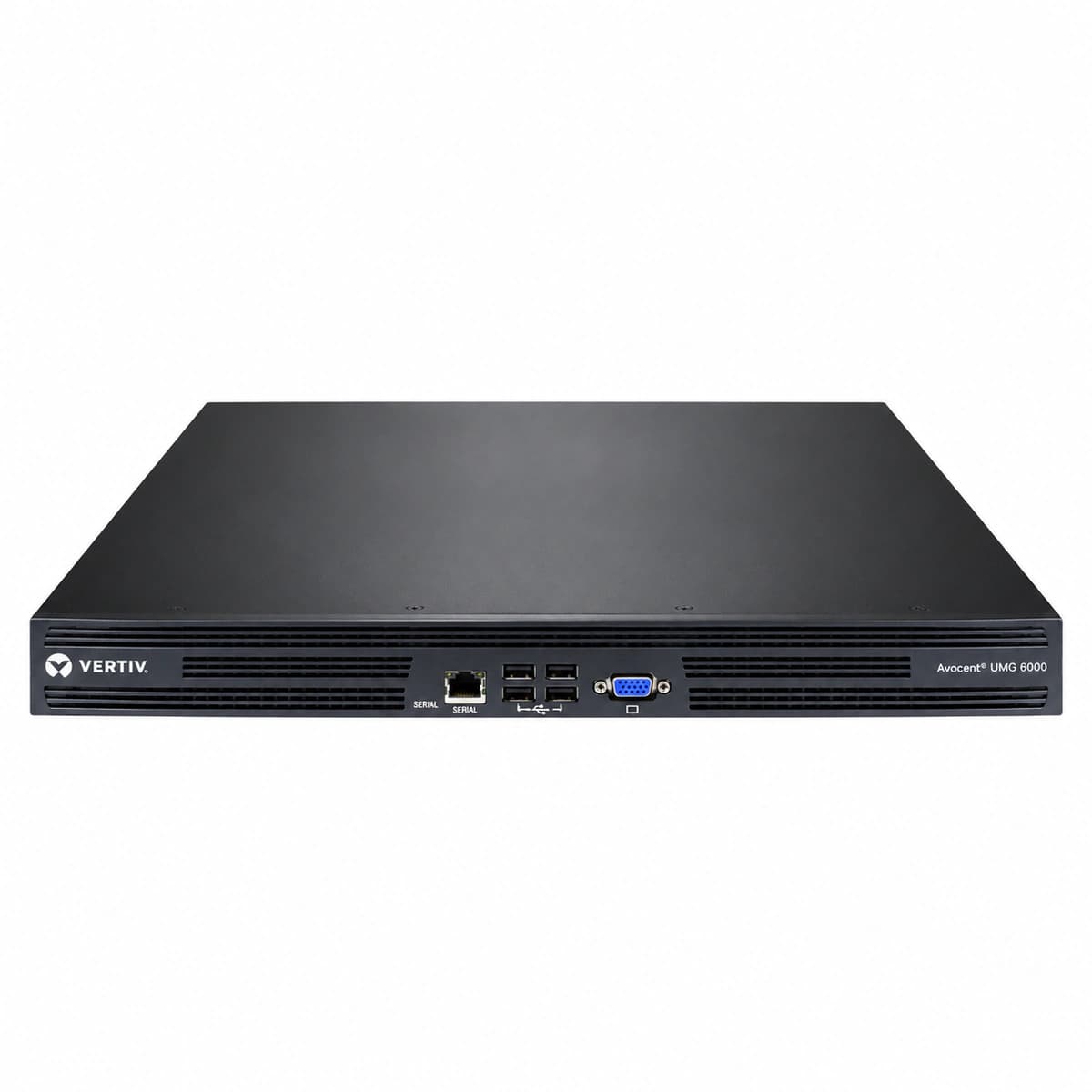

The Vertiv Avocent UMG 6000 is an enterprise 1U Universal Management Gateway featuring 40 multi-functional target ports consolidating digital KVM, serial console, and service processor (IPMI/iLO/iDRAC) access, backed by dual GbE, dual SFP, and dual redundant AC power.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
The Vertiv Avocent UMG 6000 is an enterprise 1U Universal Management Gateway featuring 40 multi-functional target ports consolidating digital KVM, serial console, and service processor (IPMI/iLO/iDRAC) access, backed by dual GbE, dual SFP, and dual redundant AC power.
Resolves data center sprawling rack management, remote out-of-band disconnection, rack footprint constraints, and secure network isolation.
Enterprise data centers, carrier core central offices, CCTV security hubs, broadcast 4K production, financial trading desks, and industrial control rooms.
| Key specifications | Value |
|---|---|
| Multi-Functional Target Ports | 40x RJ45 (Auto-Sensing KVM/Serial/IPMI) |
| Network Interfaces | 2x GbE RJ45 + 2x SFP Cages + 4x Mgmt Ports |
| Power Redundancy Architecture | 1+1 Dual Redundant AC Supplies (Dual C14) |
| Local User Console Ports | 1x VGA + 4x USB-A + 1x Setup Port |
| Environmental Sensor Ports | Sensor Block (Temp/Humidity/Relays) |
| Chassis Form Factor | 19-Inch Rackmount |
| Non-Volatile Log Capacity | 10,000+ Cyclic Event Records |
| Unit Power Consumption | < 8W (Ultra-Low Standby Design) |
| Industrial EMC Level | EN 55032 Class A / IEC 61000-4 Level 4 |
| Relative Humidity Tolerance | 5% to 95% RH (Non-Condensing) |
