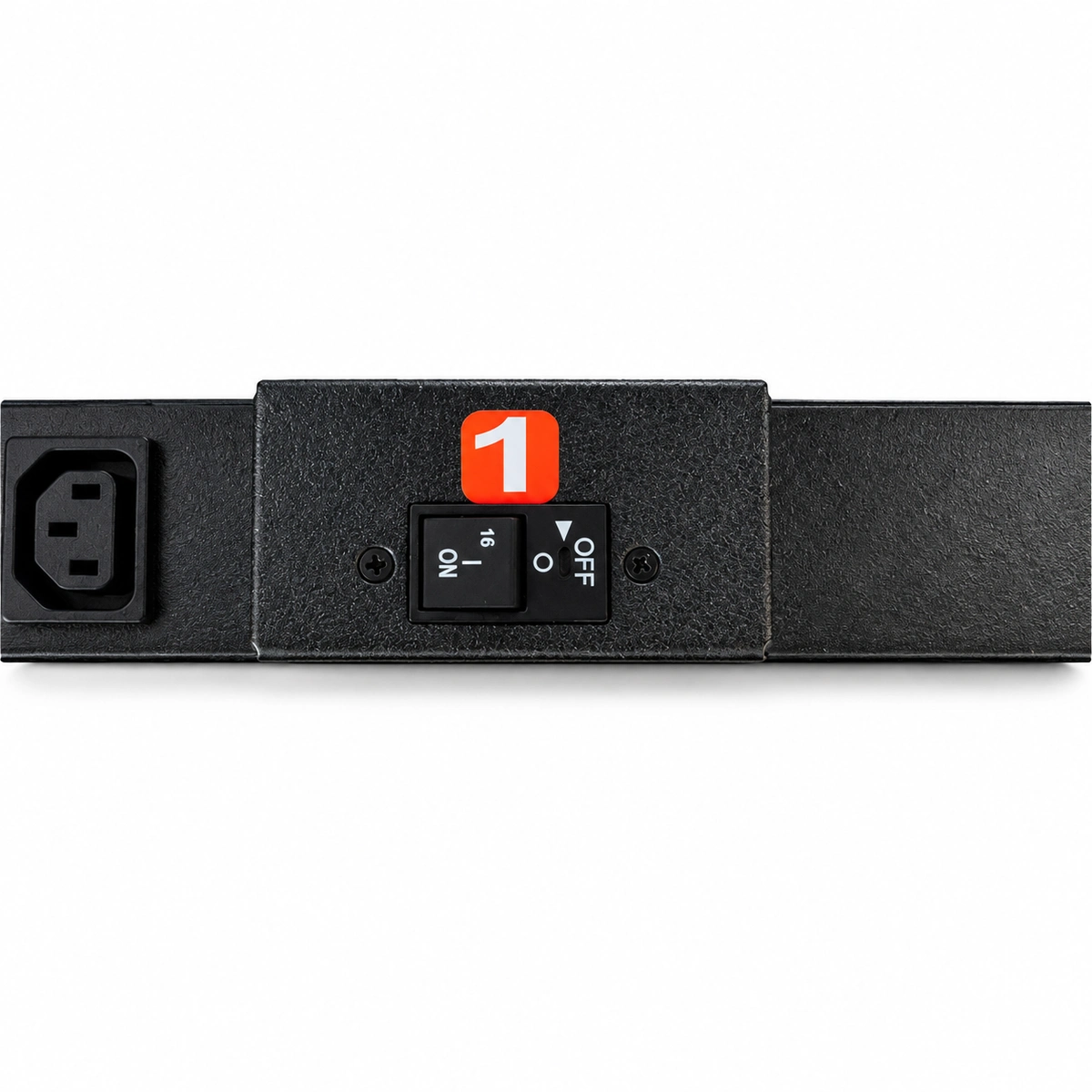

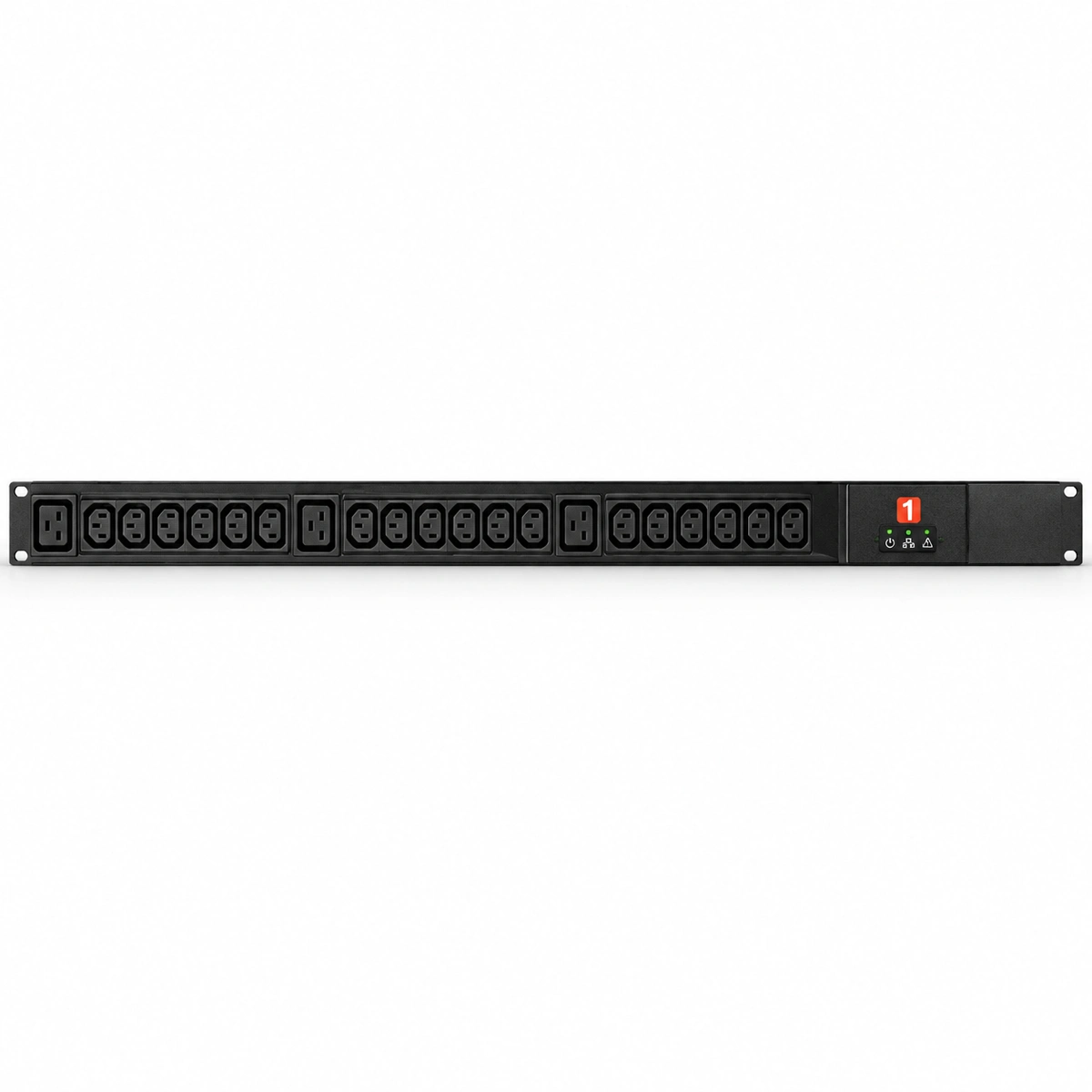

The Vertiv Geist PDU is an industrial-grade intelligent rack power distribution unit engineered for high-density data centers and edge compute infrastructure, supporting single-phase and three-phase AC input (16A to 63A, up to 22kW+) with unit-level, branch-level, and outlet-level power metering and remote switching.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

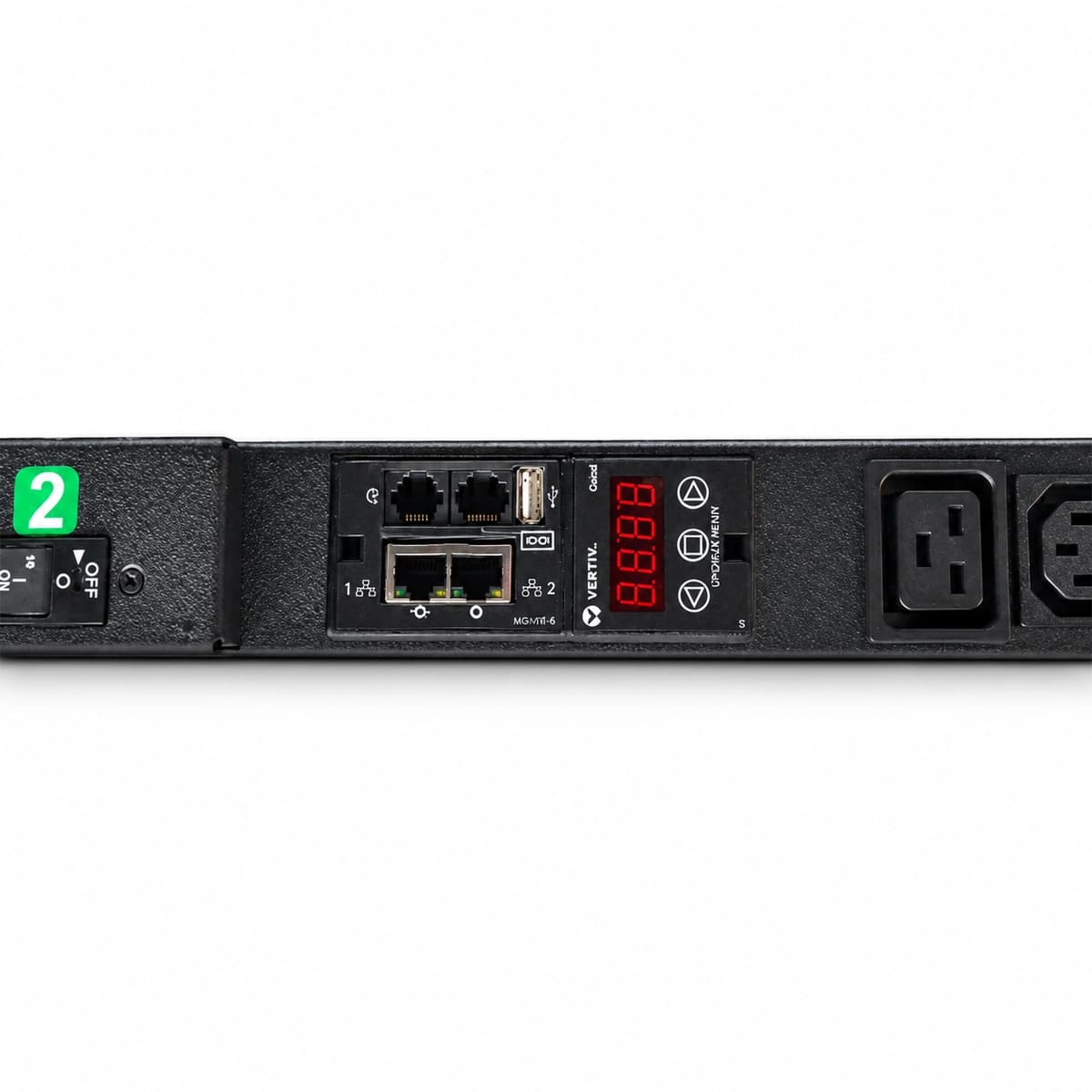

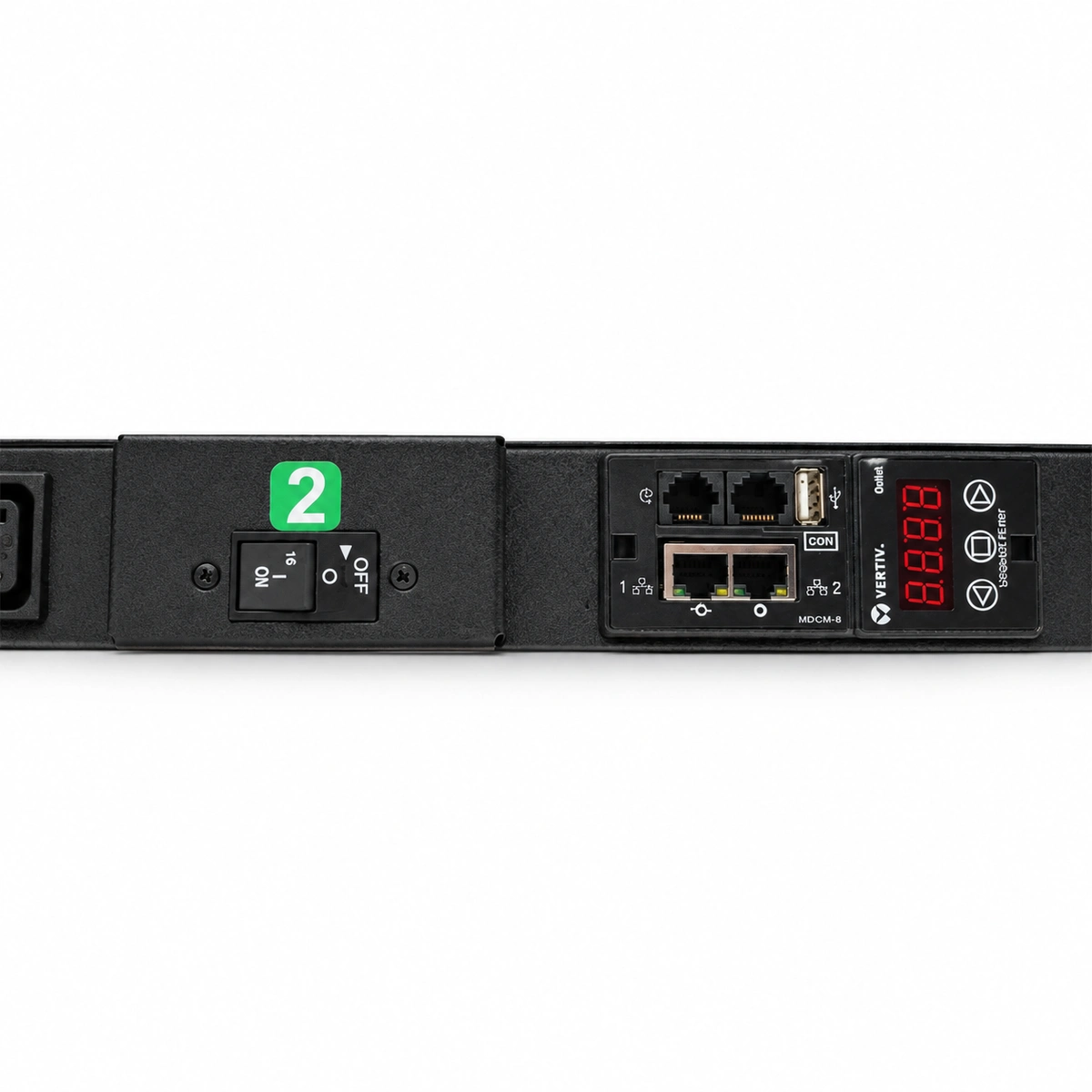

The Vertiv Geist PDU integrates high-precision True RMS energy metering microprocessors, dedicated digital signal processors (DSP), and advanced transient voltage surge suppression networks. Its logical architecture features an isolated, hot-swappable communication controller (IMD) coupled via internal bus lines to an array of current transformers (CTs) and bi-stable relay drivers, supporting dual Gigabit Ethernet fault-tolerant daisy-chaining and external environmental sensor buses.
Eliminates rack downtime caused by monitoring hardware failures or technology obsolescence, prevents inrush current trip hazards via sequential outlet cycling, rectifies undetected localized thermal hotspots, and eliminates phase imbalance across high-density computing clusters.
Hyperscale cloud data centers, 5G telecom edge nodes, financial colocation facilities, high-density AI/HPC server cabinets, and mission-critical industrial automation enclosures.
| Key specifications | Value |
|---|---|
| Rated Output Voltage | -48VDC (-42V ~ -58V) |
| Maximum Efficiency | ≥ 96.0% |
| Operating Temperature Range | -40°C ~ +75°C |
| Cooling System | Forced Air Cooling with Intelligent Speed Fan |
| Protection Features | Over-voltage, Short-circuit, Over-temperature, Surge |
| Hot-Swappable Support | Yes (Live Plug-and-Play Support) |
| THD | ≤ 5% (Total Harmonic Distortion) |
| Power Factor & THD | ≥ 0.99 at Rated Load |
| Standard Compliance | CE, UL, RoHS, IEC 60950, EN 300 386 |
