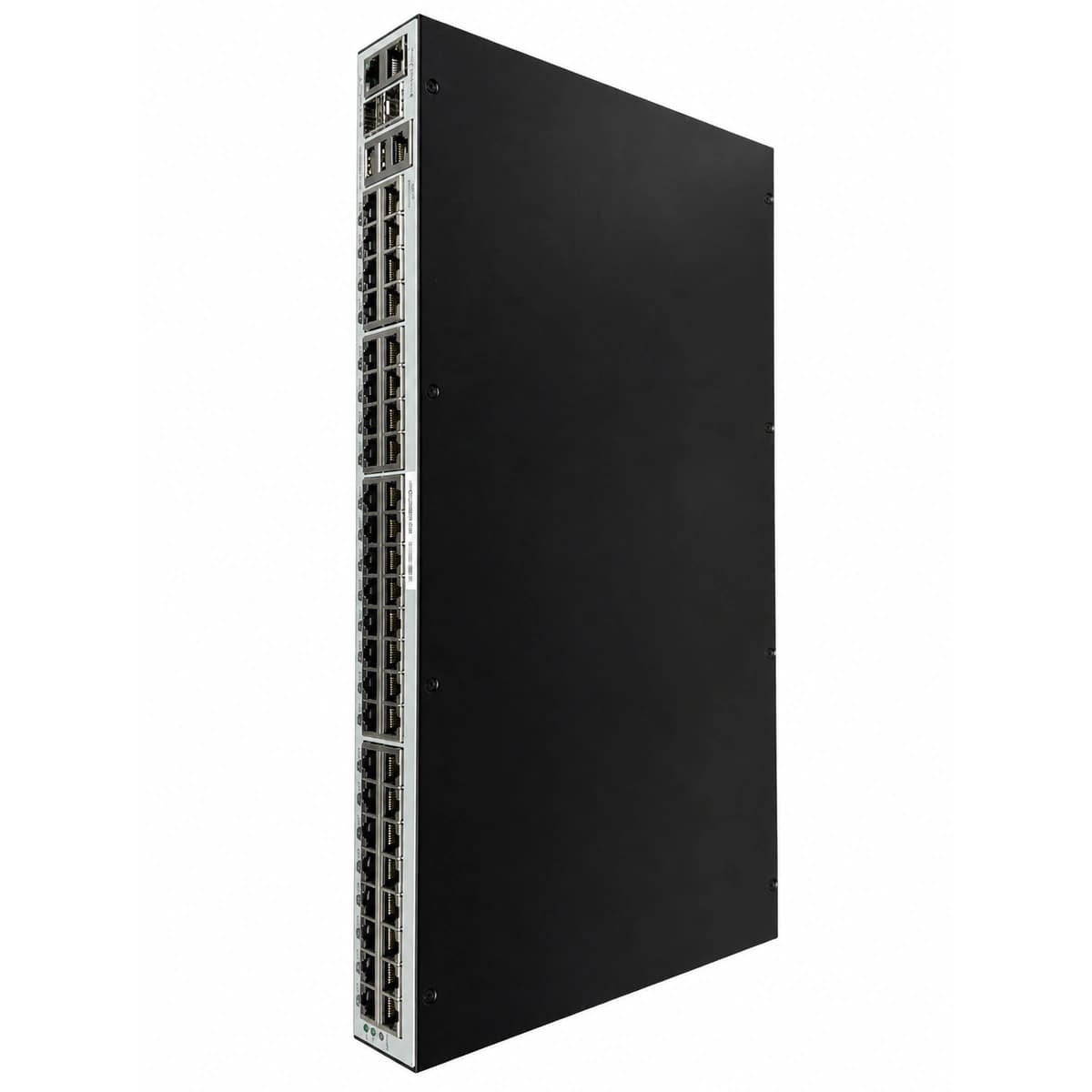

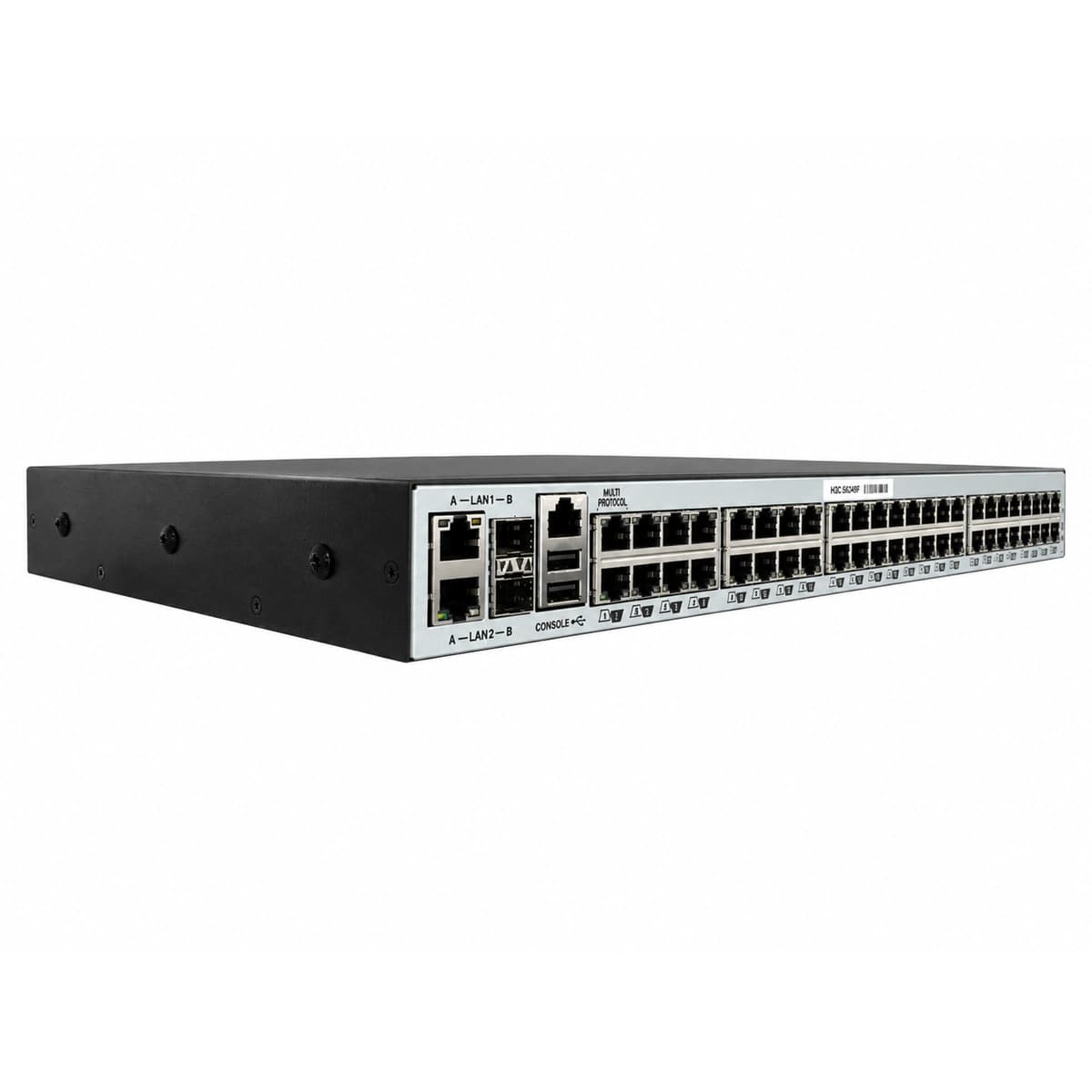

The Vertiv KVM8048 is a carrier-class 48-port KVM over IP matrix switch engineered for mission-critical hyperscale data centers and command centers. Supporting multiple concurrent remote users, non-blocking hardware-accelerated HD video over IP, virtual media redirection, and dual redundant power feeds, it guarantees uninterrupted BIOS-level access.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
The Vertiv KVM8048 is a carrier-class 48-port KVM over IP matrix switch engineered for mission-critical hyperscale data centers and command centers. Supporting multiple concurrent remote users, non-blocking hardware-accelerated HD video over IP, virtual media redirection, and dual redundant power feeds, it guarantees uninterrupted BIOS-level access.
Resolves power grid instability, excessive OPEX energy dissipation, battery degradation, and rack footprint constraints.
5G cellular cell sites, core telecom DC plants, AI data centers, transport networks, and critical industrial DC UPS.
| Key specifications | Value |
|---|---|
| Target Server Ports | 48x RJ45 High-Density Server Ports |
| Concurrent Remote User Sessions | 4 to 8 Independent IP Concurrent Users |
| Power Supply Architecture | Internal Dual Redundant AC Supplies (Dual C14) |
| Virtual Media & CAC Support | True Virtual Media (ISO Mounting) & CAC Reader |
| Physical Dimensions | 44 (1U) × 434 × 340 mm |
| Network Interfaces | Dual 10/100/1000Mbps Auto-Sensing Failover |
| Non-Volatile Log Capacity | 10,000+ Cyclic Event Records |
| Unit Power Consumption | < 8W (Ultra-Low Standby Design) |
| Industrial EMC Level | EN 55032 Class A / IEC 61000-4 Level 4 |
| Relative Humidity Tolerance | 5% to 95% RH (Non-Condensing) |
Vertiv
The Vertiv Avocent CFP185KMM is a 1U integrated rackmount LCD KVM console drawer featuring an 18.5-inch widescreen LED display, precision touchpad, and modular rear bay supporting direct integrated CAT5 KVM switches.
The Vertiv Avocent HMX3080R is a high-performance IP matrix KVM receiver delivering pixel-perfect DVI-D video, CD-quality audio, RS-232, and transparent USB 2.0 extension over Gigabit IP networks, featuring dual RJ45 and dual SFP interfaces for mission-critical command centers.
The Vertiv Avocent HMX5200R is a premium dual-head IP matrix KVM receiver supporting dual DVI digital outputs (up to 1920x1200 dual screen), transparent USB 2.0, and high-fidelity audio over SFP fiber and copper Gigabit networks.
The Vertiv Avocent HMX6200T is a flagship 4K IP matrix KVM transmitter delivering dual DisplayPort 4K@60Hz uncompressed video encoding, high-speed transparent USB, and digital audio over dual 10G SFP+ optical uplinks for ultra-high-resolution command centers.
