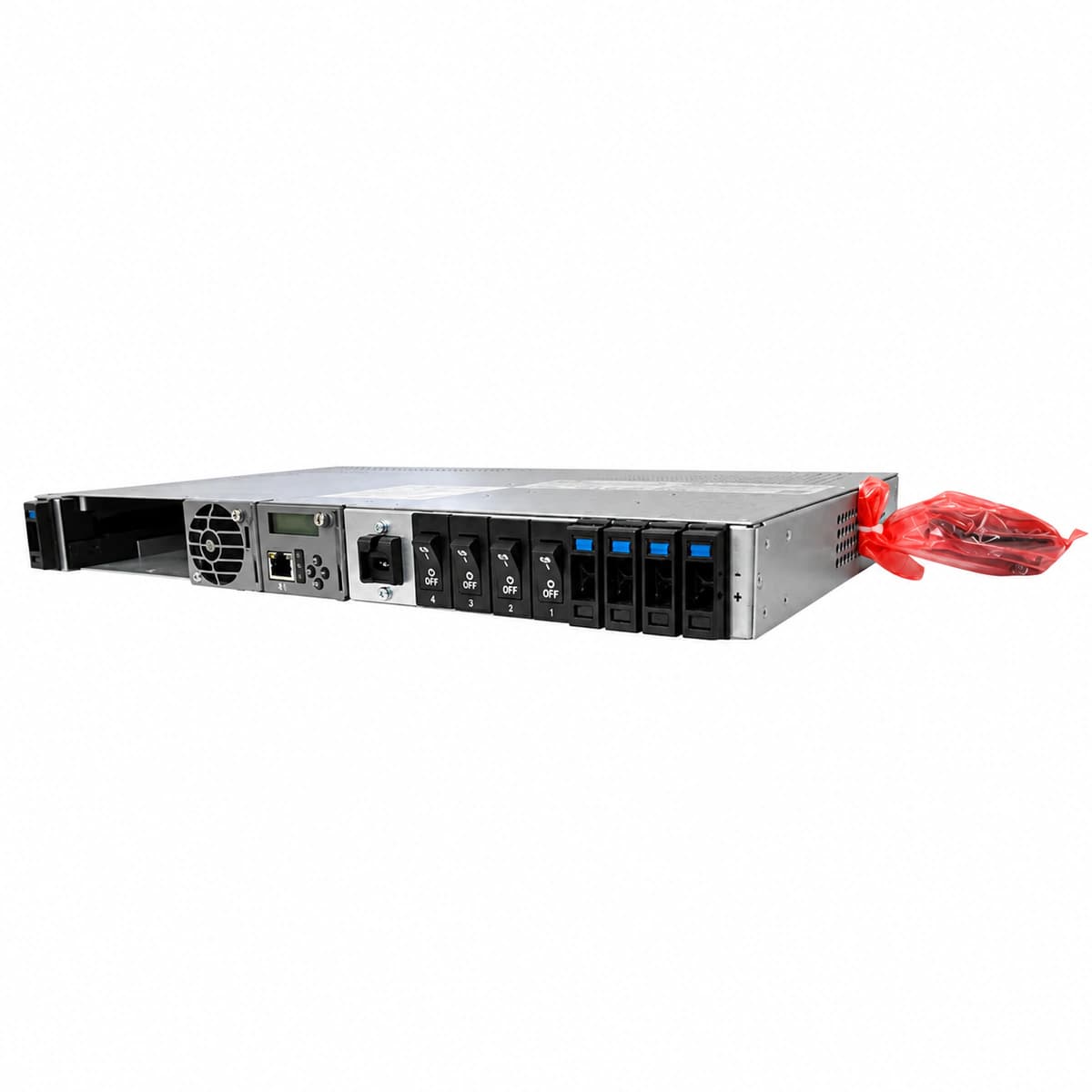

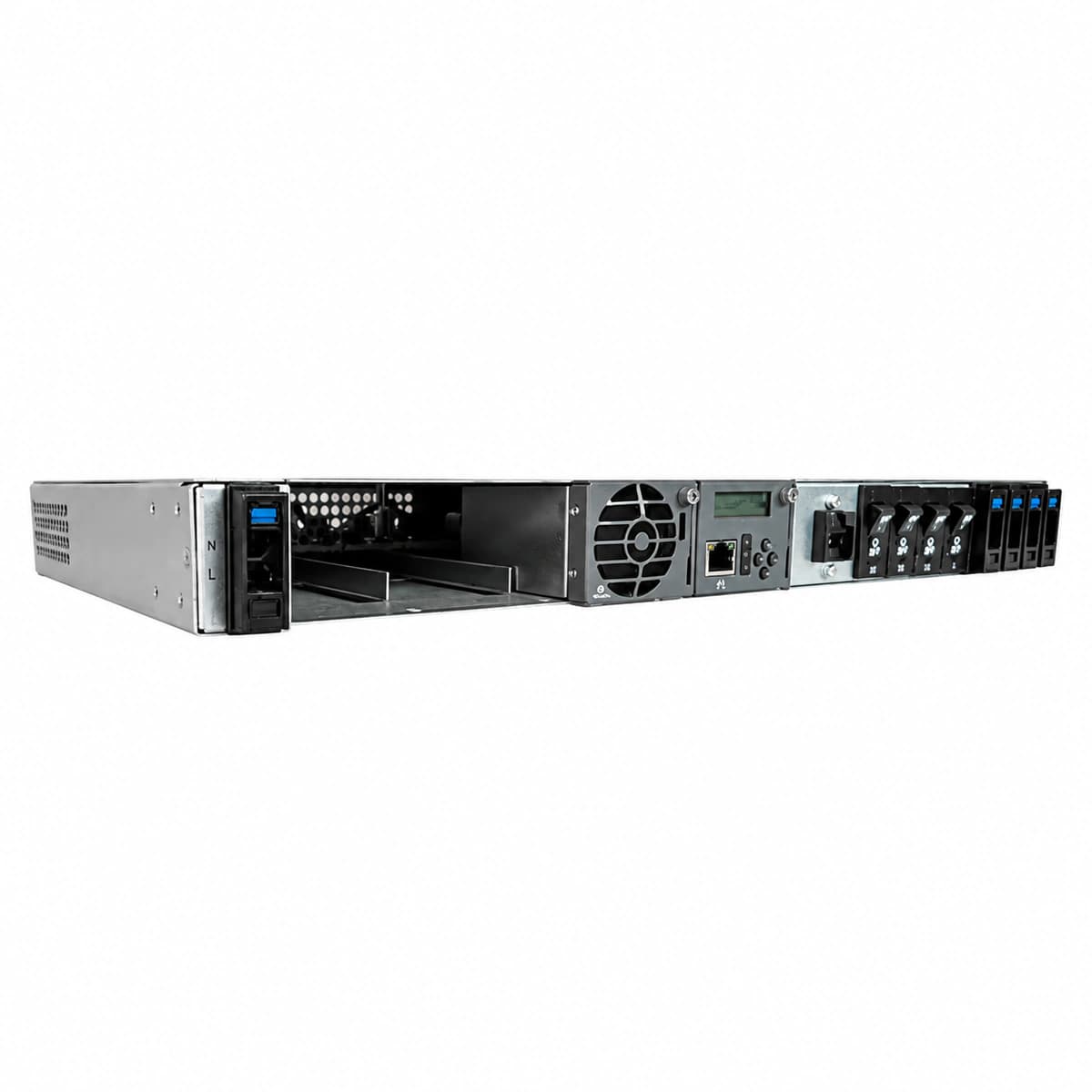

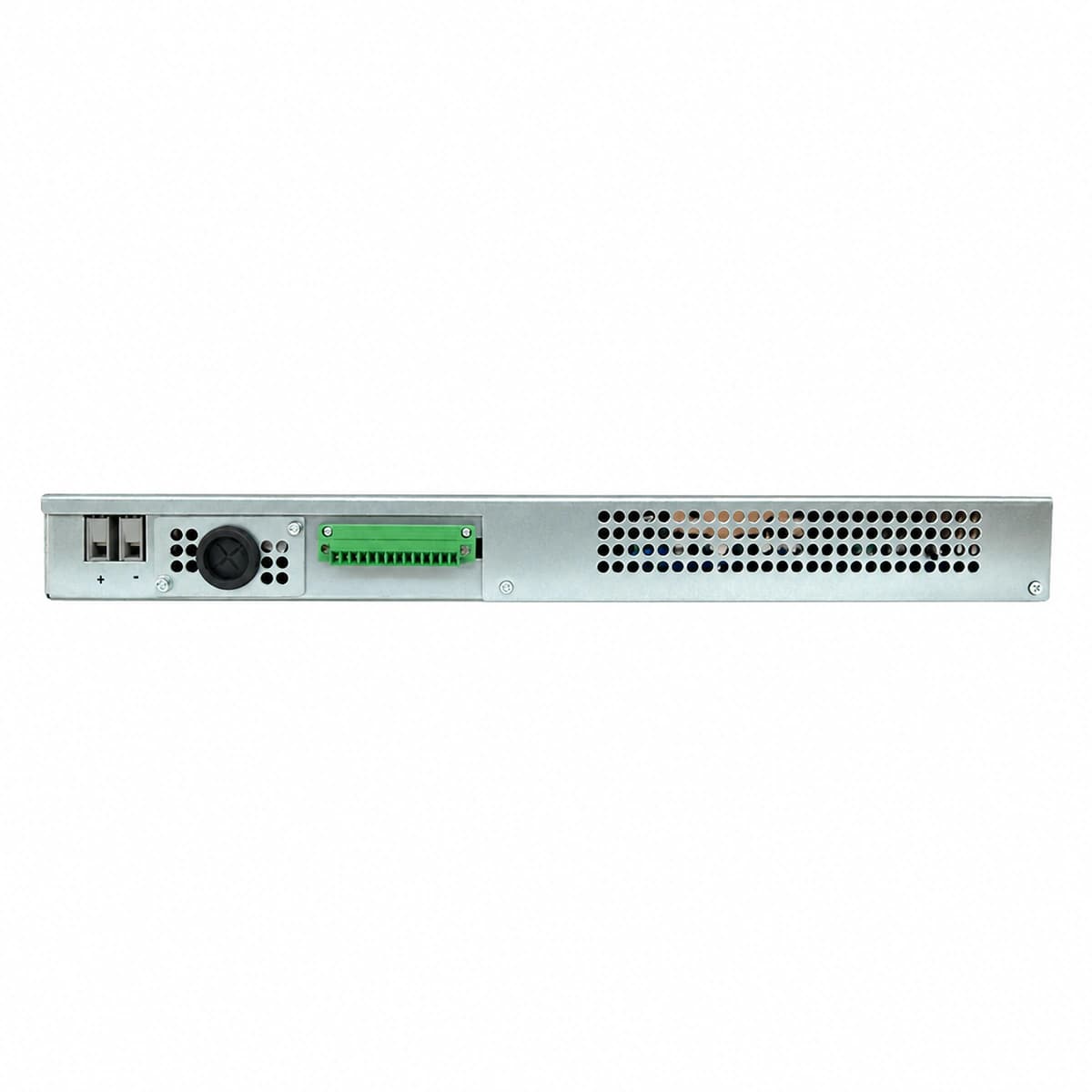

The NetSure 2100-A31-S3 is a high-reliability, high-power-density 1U minimalist embedded telecom DC power system engineered by Vertiv for space-constrained edge computing nodes and indoor access networks.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
The system features a standard 1U height factor, integrating advanced rectifier modules and the M221S intelligent controller, offering high-efficiency power conversion, robust distribution, and full remote management.
Effectively resolves tight rack space constraints, high energy consumption, complex distribution management, and equipment burn risks from battery miswiring, ensuring uninterrupted network uptime.
Widely deployed in indoor macro base stations, distributed micro-sites, edge data centers, enterprise transmission rooms, and various wireless access network (RAN) telecom cabinets.
| Key specifications | Value |
|---|---|
| Rated System Output Capacity | 48V 60A/100A |
| Monitoring Unit | M221S Intelligent Controller |
| Battery Protection | Battery Reverse Polarity Protection |
| Brand Origin | Vertiv |
| Application | Indoor Telecom Power System |
| Form Factor & Rack Size | 44 (1U) × 482 × 290 mm |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
