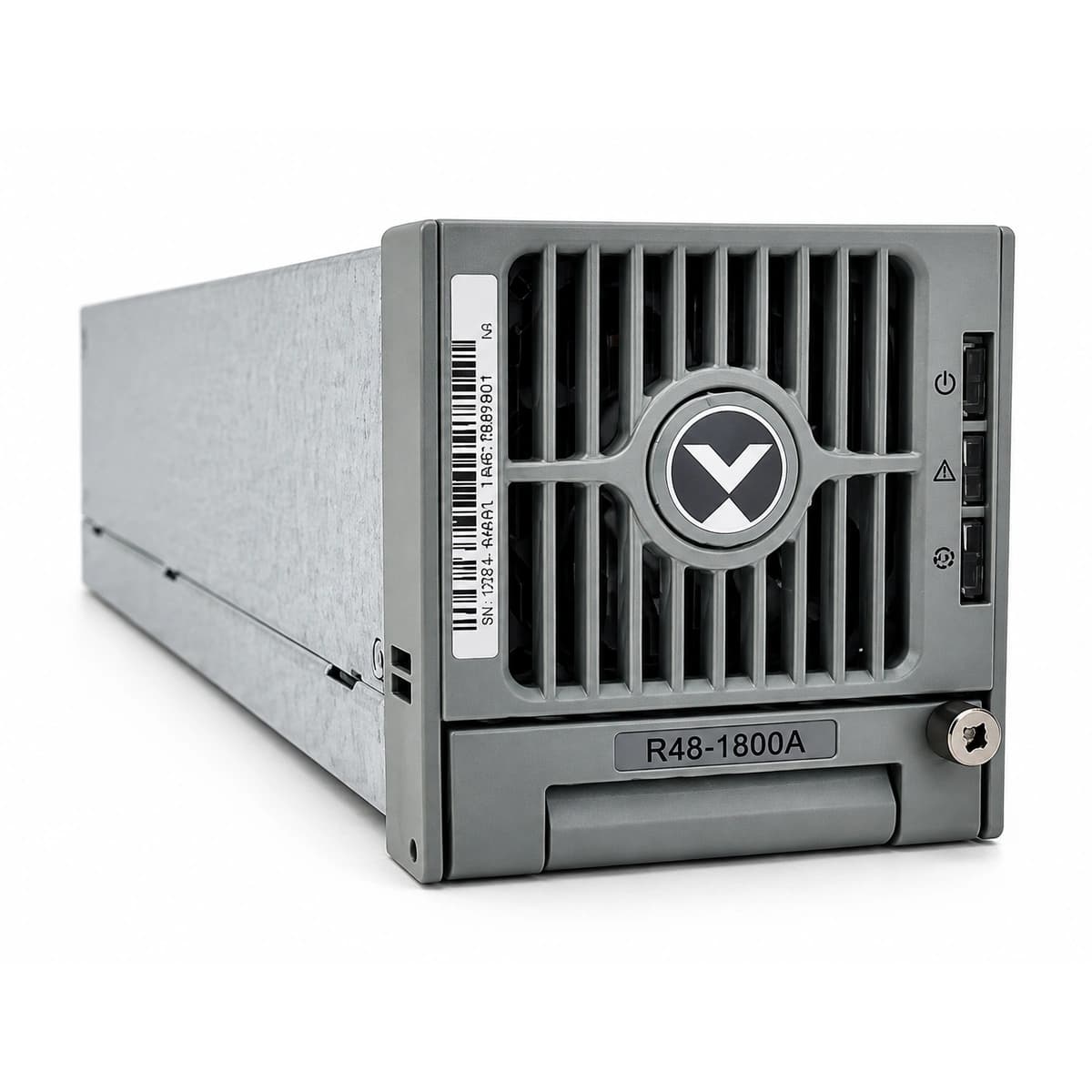

Vertiv R48-1800A Genuine Telecom Hardware Shot 1
VertivModel: R48-1800A

Vertiv R48-1800A Reliable Compact High-Frequency Telecom Rectifier Module (-48V 37.5A 1800W)

The Vertiv R48-1800A is a carrier-grade, highly reliable, and compact switch-mode rectifier module engineered for telecommunications and industrial DC power plants. Delivering a nominal output of -48V DC (adjustable from -42V to -58V DC) with a maximum current of 37.5A and 1800W rated power, it operates across an ultra-wide AC input range of 85V AC to 290V AC to ensure uninterrupted power in demanding utility conditions.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
Rated Output Voltage
-48VDC (-42V ~ -58V)
Maximum Output Current
37.5A
Rated Output Power
1800W
Maximum Efficiency
≥ 92.5%
AC Input Voltage
85V AC ~ 290V AC
Operating Temperature Range
-40°C ~ +70°C

What this product is

What this product is

Electrically, the Vertiv R48-1800A incorporates a two-stage conversion architecture: an active front-end EMI and PFC stage to optimize power factor and minimize harmonic distortion (THD), followed by an isolated high-frequency DC-DC resonant converter stage. Complete with embedded DSP microprocessor monitoring, integrated blind-mate power connectors, and safety compliance with IEC/EN 60950 and EN 300 386 EMC, it provides stabilized telecom-grade DC energy.

What problem it solves

This rectifier eliminates power outages caused by unstable and swinging electrical grids in remote installations, dynamically handling severe low-voltage sags down to 85V AC without system dropouts. It protects downstream critical loads against damaging surges, avoids high-temperature thermal shutdowns common in sealed outdoor cabinets, and slashes operational downtime through live hot-swap maintenance without interrupting the live DC bus.

Who and where it is for

Ideal for 3G/4G/5G macro and micro base transceiver stations (BTS), outdoor telecom power cabinets, broadband optical line terminal (OLT) installations, private enterprise networks, critical industrial control systems, and modular NetSure DC power subracks.

Core advantages

  • Wide Input Voltage Range: Integrated Boost APFC circuit handles 85V-300V grid fluctuations, ensuring continuous base station operation.
  • Industrial Thermal Design: -40°C to +70°C wide temperature operation with intelligent speed fans eliminates unexpected thermal shutdowns.
  • Seamless Hot-Pluggable Architecture: Live hot-swappable design allows fault module replacement without interrupting DC bus power.
  • Digital Intelligent Control: Microprocessor-based control with real-time NetSure monitoring integration, compliant with EN 300 386 standards.

Technical specifications

Key specificationsValue
Rated Output Voltage-48VDC (-42V ~ -58V)
Rated Output Power1800W
Maximum Output Current37.5A
AC Input Voltage85V AC ~ 290V AC
Maximum Efficiency≥ 92.5%
Operating Temperature Range-40°C ~ +70°C
Cooling SystemForced Air Cooling with Intelligent Speed Fan
Hot-Swappable SupportYes (Live Hot-Pluggable / Plug-and-Play without Power Interruption)

Applications

01

Modular telecom DC power subracks (e.g., Vertiv NetSure series) in cellular base stations

02

Broadband fiber access nodes and central office transmission network distribution panels

03

Industrial SCADA, substation telemetry, and automated process control -48V backup systems

04

Edge computing micro-datacenters and enterprise telecom equipment racks

Frequently asked questions
