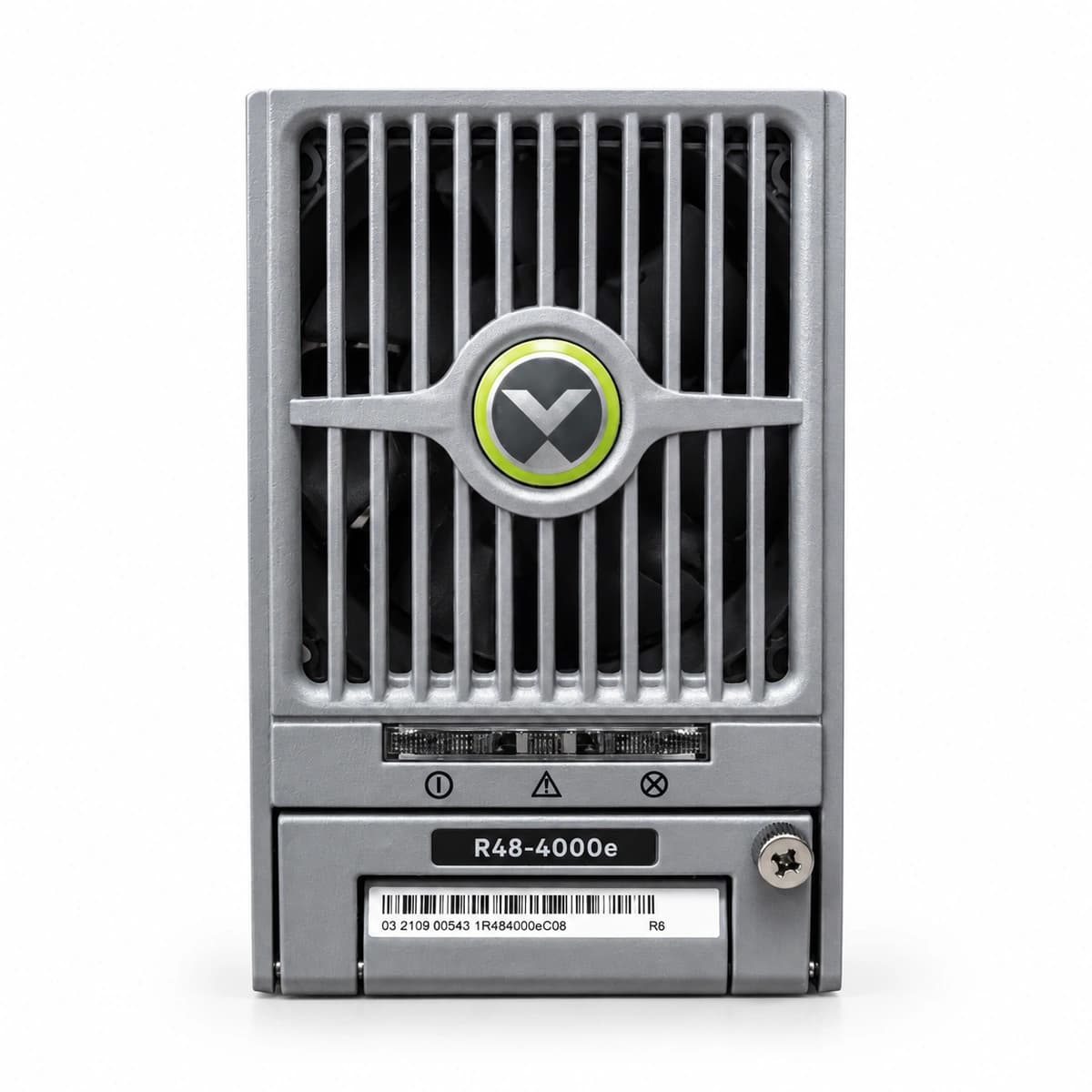

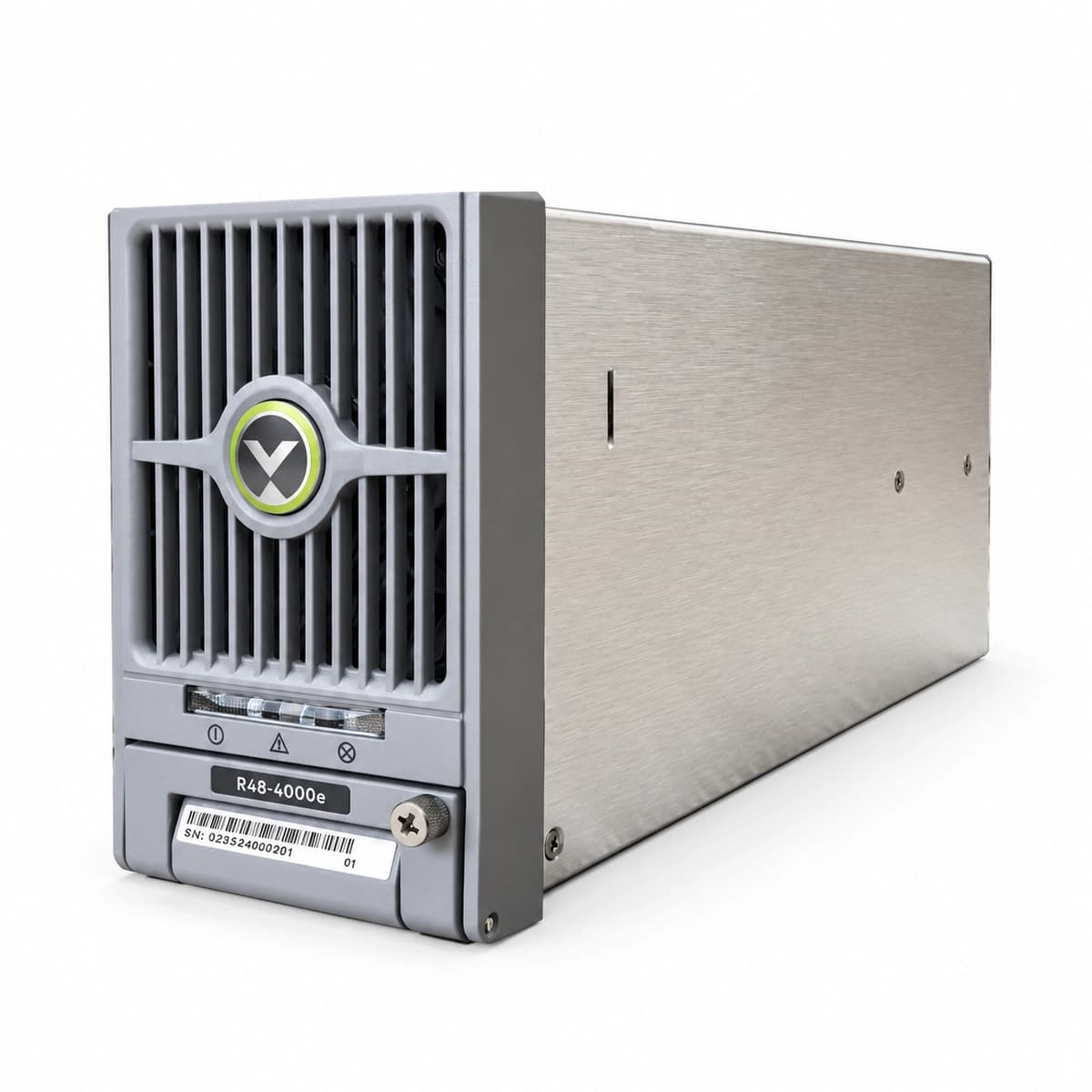

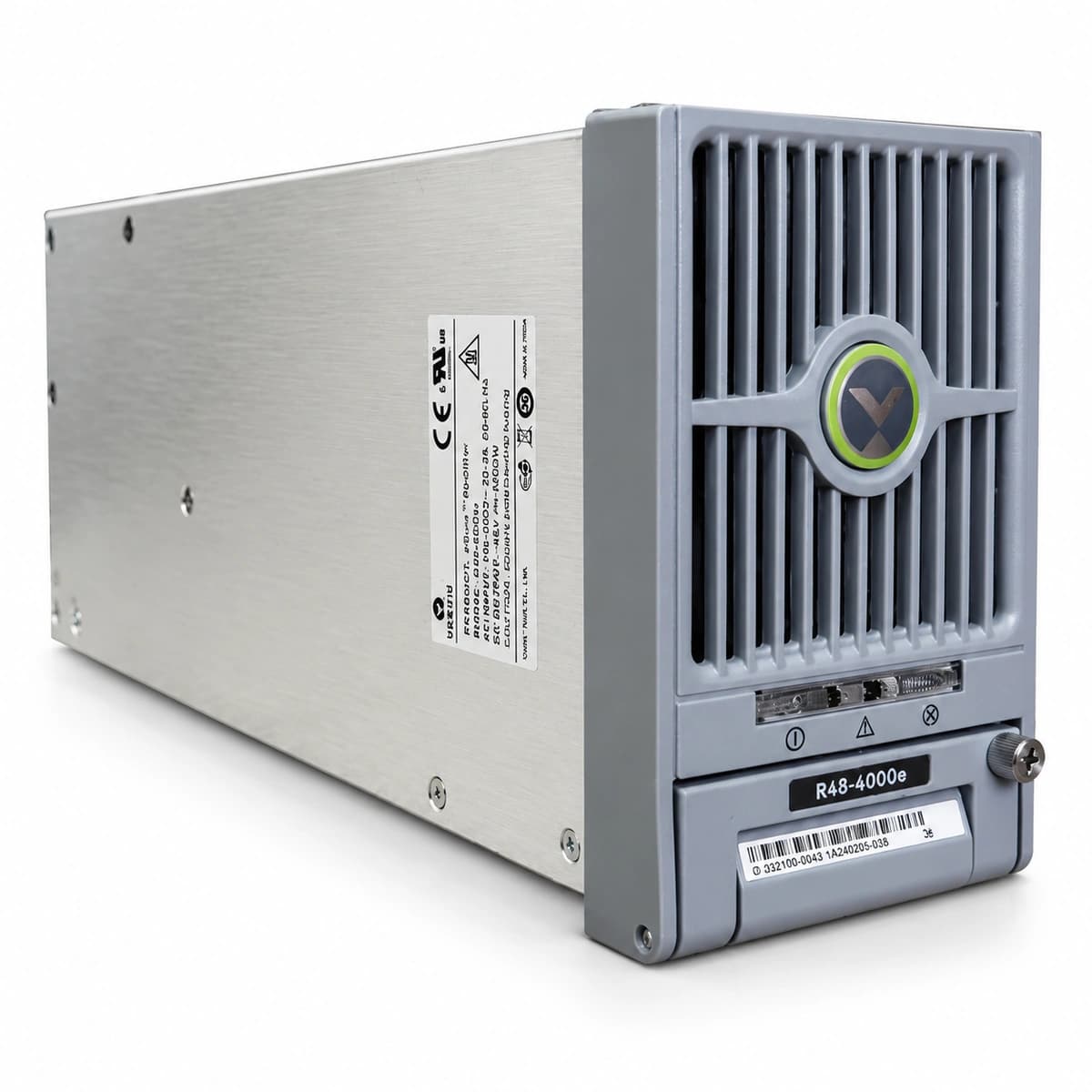

Vertiv R48-4000e Genuine Telecom Hardware Shot 1
VertivModel: R48-4000e

Vertiv R48-4000e High-Density Carrier-Grade High-Power Telecom Rectifier Module (-48V 83.3A 4000W)

The Vertiv R48-4000e is a high-density, carrier-grade switch-mode telecom rectifier module rated at -48V DC, 83.3A with a maximum output capacity of 4000W. Designed for converting utility AC (85V AC to 300V AC) to regulated DC power with a peak efficiency exceeding 96.0%, it delivers robust, uninterrupted power for high-capacity telecom central offices and enterprise data hubs.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
Rated Output Voltage
-48VDC (-42V ~ -58V)
Maximum Output Current
83.3A
Rated Output Power
4000W
Maximum Efficiency
≥ 96.0%
AC Input Voltage
85V AC ~ 300V AC
Operating Temperature Range
-40°C ~ +75°C

What this product is

What this product is

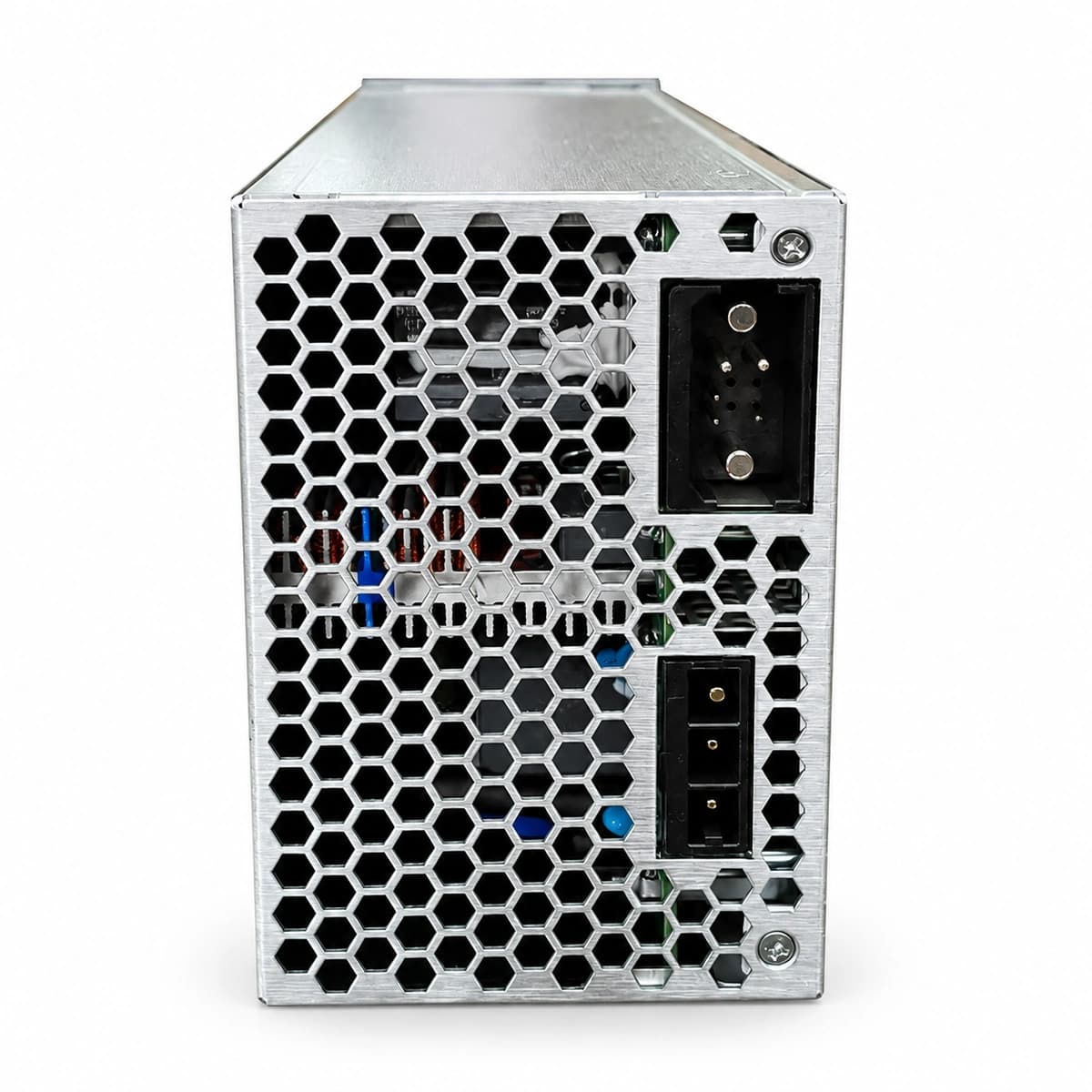

Architecturally, the R48-4000e utilizes full DSP-controlled conversion. The front-end power factor correction stage ensures near-unity power factor (>0.99) and low total harmonic distortion (THD <5%), feeding a resonant LLC full-bridge DC-DC converter for minimal switching losses. It connects to the subrack via an integrated blind-mate interface handling DC power, AC input, alarms, and dual CAN bus communications, compliant with international telecom EMC and safety standards.

What problem it solves

It eliminates equipment vulnerability caused by AC utility sags and surges through a wide operating voltage window; cuts operational expenditure (OPEX) and cooling overhead via high-efficiency conversion (≥96.0%); maximizes subrack power density to reclaim costly rack units in space-constrained sites; and prevents system-level service outages via live hot-swappable active load sharing.

Who and where it is for

Ideal for 5G macro core central offices, mobile switching centers (MSCs), high-density data center telecom rows, fiber optical transmission terminals, and Vertiv NetSure 701/801 series power cabinets demanding N+1 or N+M carrier-grade redundancy.

Core advantages

  • Bridgeless PFC and LLC resonant topology yield up to 96.0% peak efficiency, reducing data center PUE.
  • Delivers 4000W (-48V/83.3A) high-density output, minimizing rack footprint and slot occupation.
  • Supports live hot-swappable operation and CAN bus intelligent current sharing for zero downtime.
  • Wide input voltage range and robust EMC protection withstand harsh grid surges and fluctuations.

Technical specifications

Key specificationsValue
Rated Output Voltage-48VDC (-42V ~ -58V)
Maximum Output Current83.3A
Rated Output Power4000W
AC Input Voltage85V AC ~ 300V AC
Maximum Efficiency≥ 96.0%
Operating Temperature Range-40°C ~ +75°C
Cooling SystemForced Air Cooling with Intelligent Speed Fan
Hot-Swappable SupportYes (Live Hot-Pluggable / Plug-and-Play without Power Interruption)

Applications

01

Carrier 5G/4G central switching centers, telecom aggregation nodes, and transmission core sites

02

Enterprise and colocation data center -48V DC power distribution cabinets and top-of-rack solutions

03

Capacity upgrades, expansion, and spare-part maintenance in Vertiv NetSure 701 and 801 systems

04

Rail transit signaling stations, electric utility substations, and industrial SCADA emergency DC power
