Vertiv S48-3000 Pure White Background Hardware Shot 5
VertivModel: S48-3000

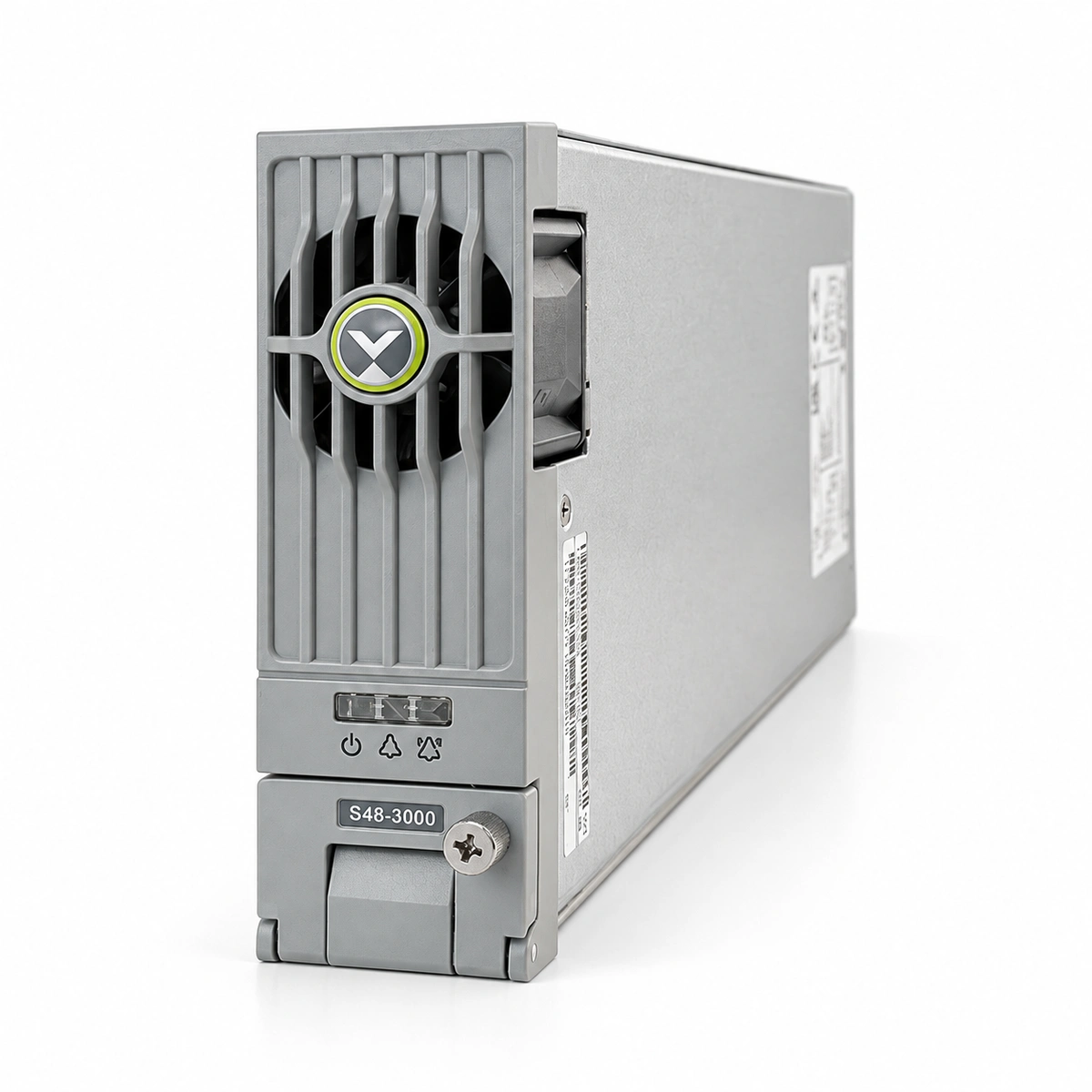

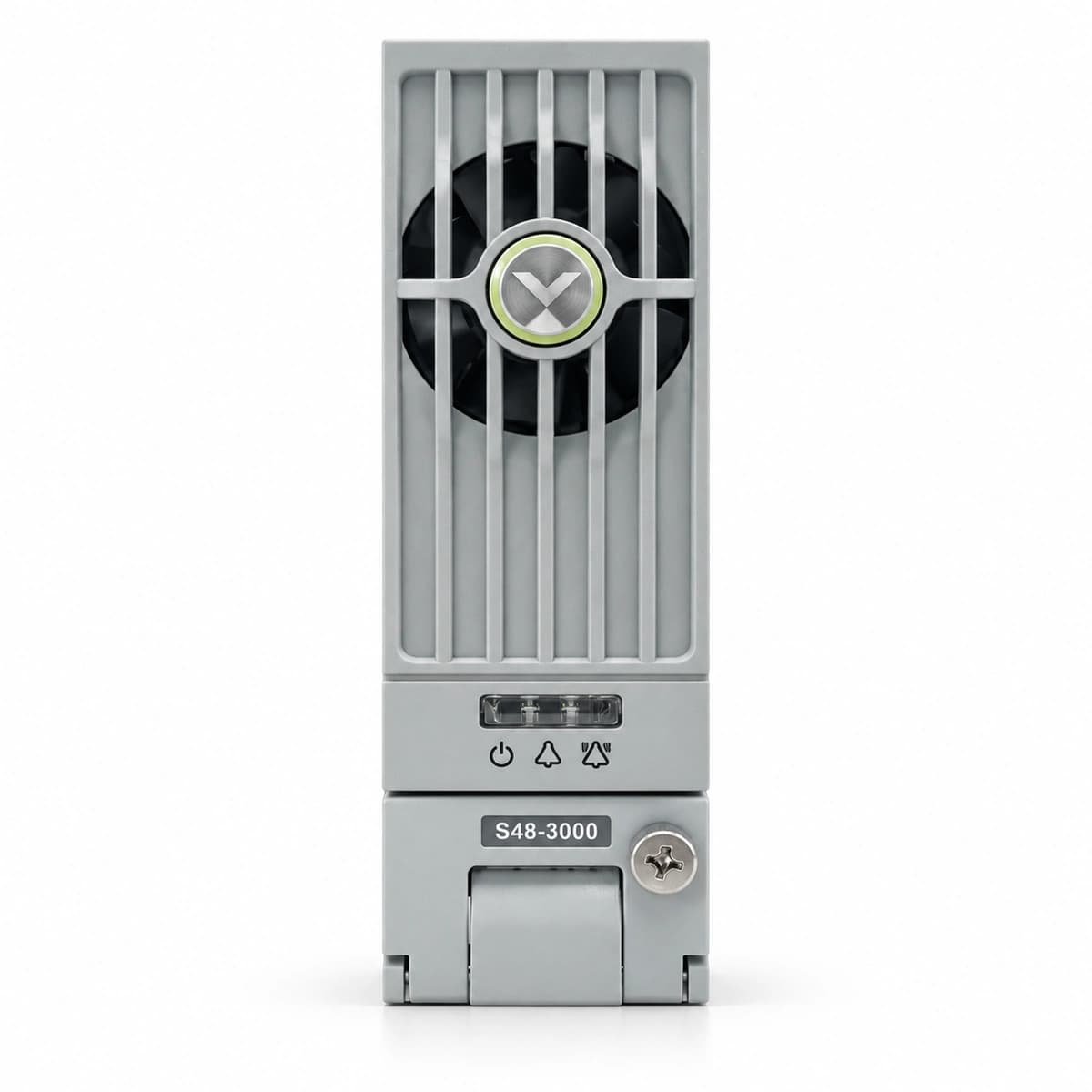

Vertiv S48-3000 Solar-Hybrid Dual-Input Telecom Power Rectifier Module (48V 3000W)

The Vertiv S48-3000 is a carrier-grade, high-efficiency solar-hybrid switch-mode rectifier module delivering a nominal -48V DC output (adjustable from -42V to -58V DC) and 3000W rated power (up to 60A output current). Engineered for telecom power and renewable energy integration, it seamlessly accommodates an ultra-wide AC input range (85V AC to 300V AC) as well as MPPT solar inputs with peak conversion efficiencies exceeding 96.0%.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
Rated Output Voltage
-48VDC (-42V ~ -58V)
Maximum Output Current
60A
Rated Output Power
3000W
Maximum Efficiency
≥ 96.0%
AC Input Voltage
85V AC ~ 300V AC / MPPT Solar Input
Operating Temperature Range
-40°C ~ +75°C

What this product is

What this product is

Architecturally, the S48-3000 integrates an active power factor correction (APFC) circuit, a flexible high-voltage DC-DC stage compatible with MPPT solar controllers, and an isolated resonant LLC DC-DC converter. It is built with an independent front-to-back airflow channel, conformal-coated industrial-grade printed circuit boards, and complete CAN bus telemetry, fully compliant with global telecom safety standards such as IEC/EN 60950 and Telcordia GR-1089-CORE.

What problem it solves

It eliminates the high fuel dependencies, elevated maintenance overhead, and carbon footprints of diesel-generator-dependent telecom towers in weak or off-grid areas. Moreover, its wide input voltage envelope prevents field rectifier burnouts from severe mains surges, while full hot-plug support removes the risk of DC system downtime during scheduled field maintenance.

Who and where it is for

Ideal for cellular 4G/5G macro sites, hybrid solar-diesel-battery telecom installations, off-grid microwave relay stations, and mission-critical telecom outdoor power cabinets requiring flexible solar and AC grid rectified -48V DC power.

Core advantages

  • Integrated MPPT and AC dual-input architecture enables smart multi-energy scheduling, drastically reducing diesel generator dependency for remote sites.
  • Advanced APFC circuit and wide input voltage range (85V-300V AC) withstand severe grid fluctuations and surges, preventing overvoltage breakdown.
  • Delivers 3000W rated power with peak conversion efficiency exceeding 96.0%, effectively minimizing telecom site energy consumption and carbon footprint.
  • Supports hot-swappable technology and sealed dustproof air ducts, complying with IEC/EN safety and EMC Class B standards for maintenance-free reliability.

Technical specifications

Key specificationsValue
AC Input Voltage85V AC ~ 300V AC / MPPT Solar Input
Rated Output Voltage-48VDC (-42V ~ -58V)
Maximum Output Current60A
Rated Output Power3000W
Maximum Efficiency≥ 96.0%
Operating Temperature Range-40°C ~ +75°C
Cooling SystemForced Air Cooling with Intelligent Speed Fan
Hot-Swappable SupportYes (Live Hot-Pluggable / Plug-and-Play without Power Interruption)

Applications

01

Hybrid renewable solar-grid telecom power systems deployed at remote cell sites

02

5G wireless macro base station outdoor power retrofit projects for carbon reduction

03

Off-grid mountain microwave repeater stations and border surveillance power enclosures

04

Railway signaling and utility communications equipment rooms requiring carrier-grade -48V DC
