ZTEModel: DPS3000H-48
ZTE DPS3000H-48 Embedded DC Power System Subrack Shelf (-48V 200A 4-Slot)

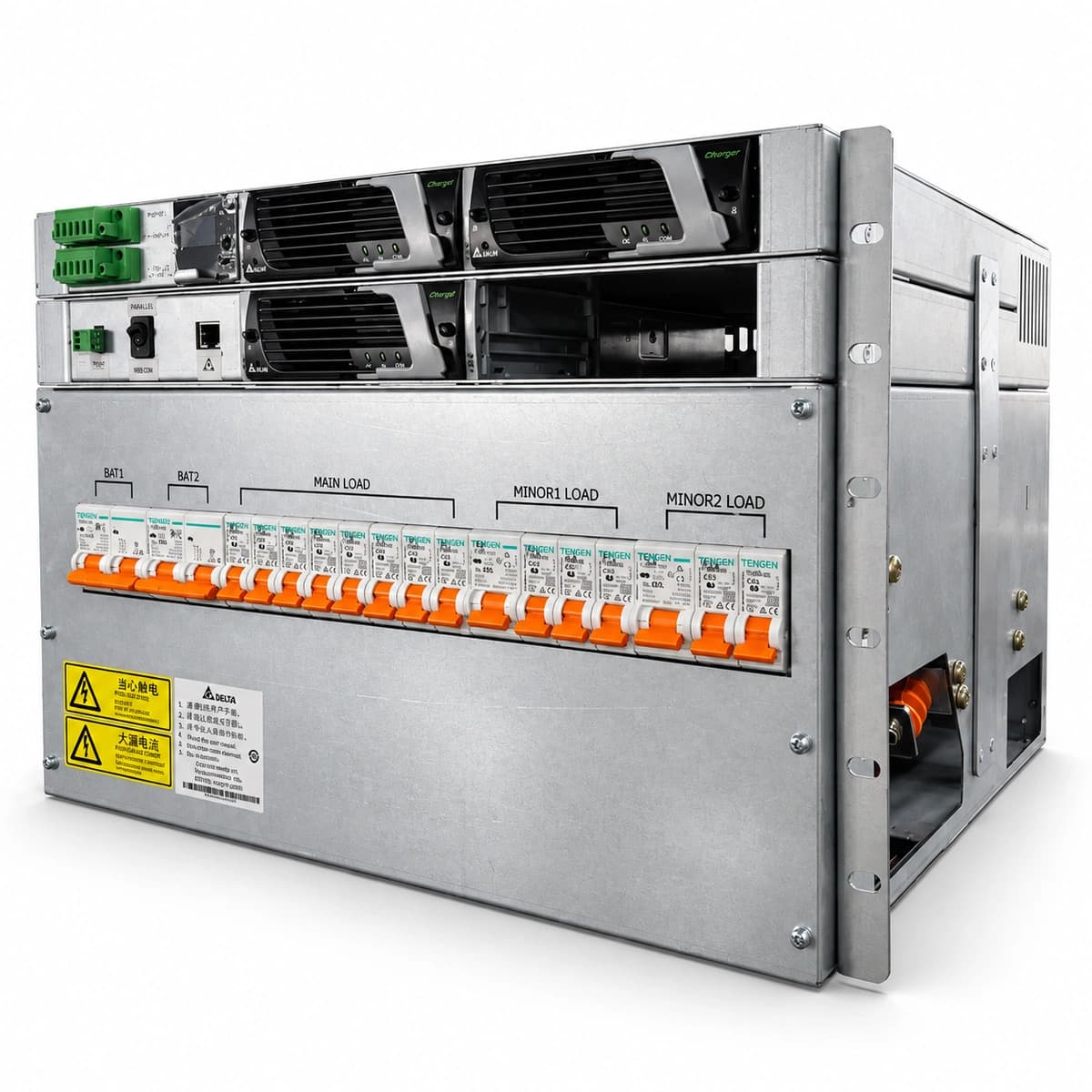

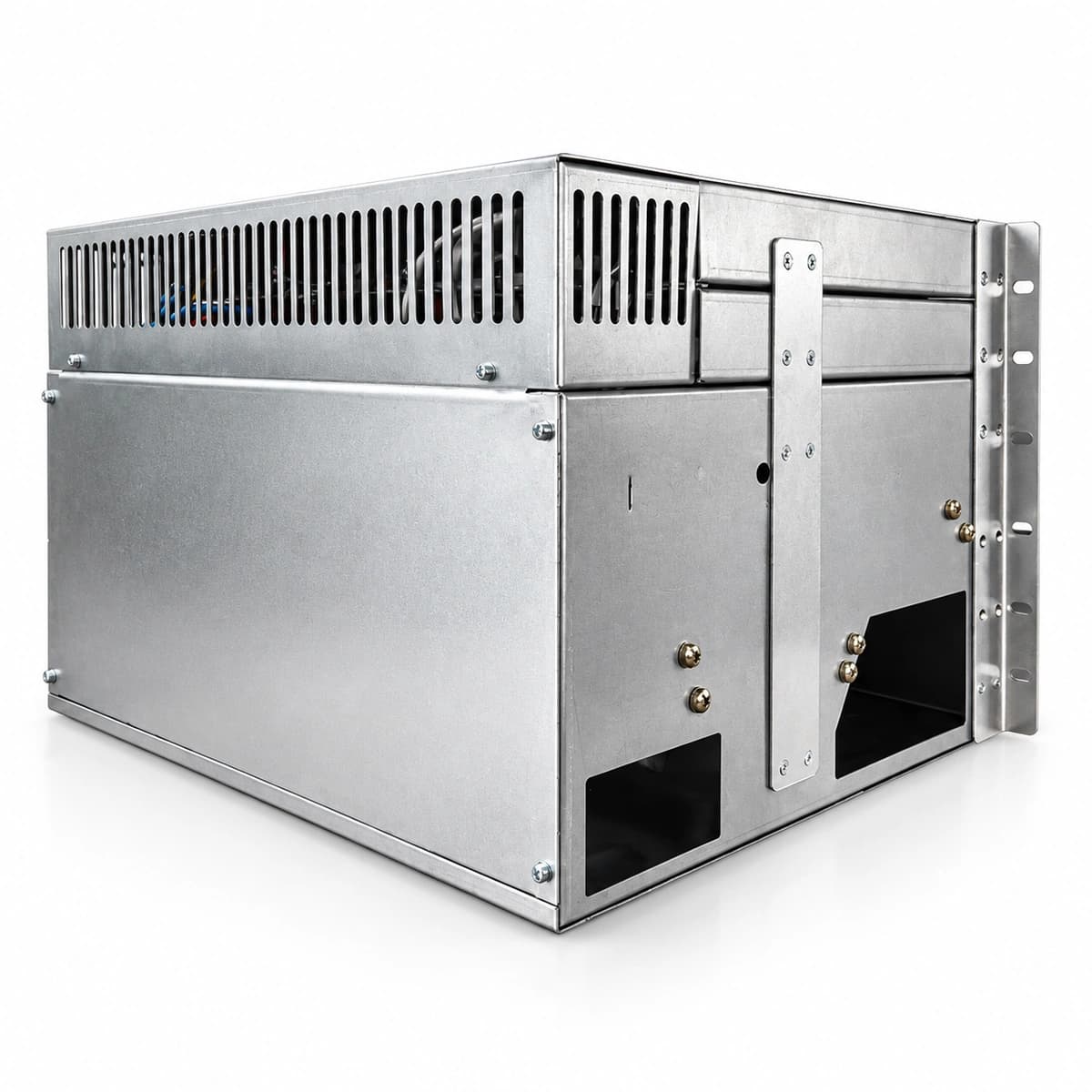

The ZTE DPS3000H-48 is an industrial 19-inch rack-mount embedded DC power system subrack designed for mission-critical telecom installations. Engineered with a nominal output rating of -48V DC and accommodating up to four 50A hot-pluggable rectifier modules, it delivers a total carrier-grade DC output capacity of up to 200A with integrated AC/DC distribution units.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- System Nominal Voltage
- 48V DC
- Maximum System Capacity
- 200A (4x 50A Rectifier Slots)
- AC Input Voltage
- 80V AC ~ 300V AC
- Power Distribution Units
- Battery Breakers & Multiple Load Outputs
- Operating Temperature Range
- -40°C ~ +75°C
- Hot-Swappable Support
- Yes (Live Hot-Pluggable / Plug-and-Play without Power Interruption)
What this product is
What this product is

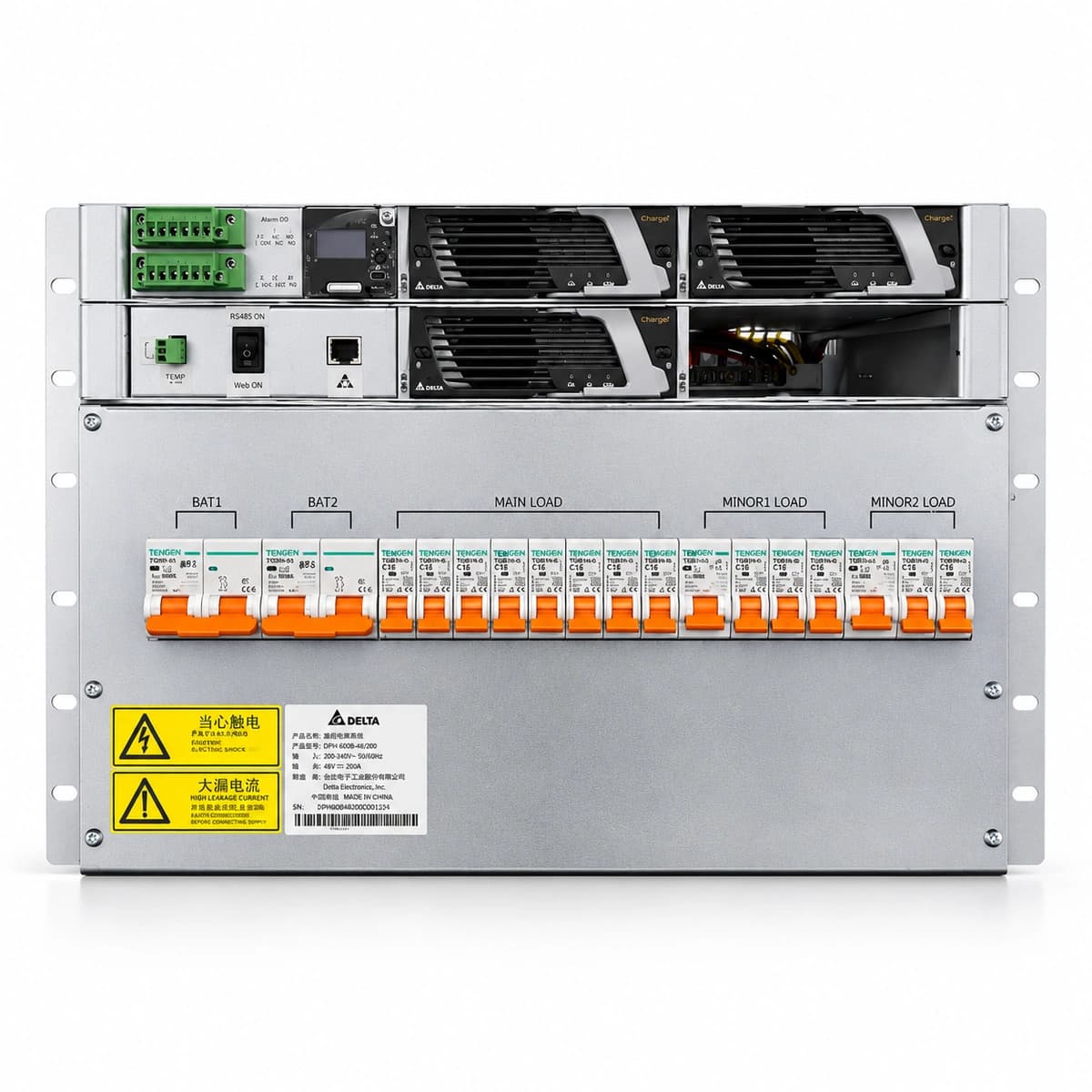

Architecturally, the DPS3000H-48 combines AC mains distribution, -48V DC distribution busbars, dual battery disconnect protection circuits, and an advanced supervision controller slot with four 50A rectifier bays. The internal topology utilizes isolated resonant conversion topologies supervised by real-time DSP logic, supporting full SNMP/RS485 telemetry and multi-stage low voltage disconnect (LVD) safeguards.
What problem it solves
Eliminates systemic power loss and brownout interruptions caused by unstable rural grids by operating down to 80V AC without dropping the load. It protects external lead-acid or lithium battery banks from destructive deep-discharge cycles through programmable electronic LVD contractors and eliminates network downtime via live hot-swappable module redundancy.
Who and where it is for
Engineered for 4G/5G cellular base stations, optical line terminal (OLT) aggregation centers, railway signaling communication shelters, and industrial automation supervisory control nodes.
Core advantages
- Wide AC input range (80V-300V) ensures continuous, reliable power in severe grid fluctuation environments.
- Supports 4-slot 200A hot-swappable rectifier configuration for seamless, zero-downtime capacity expansion.
- Integrated high-precision Low Voltage Disconnect (LVD) safeguards backup batteries against permanent deep-discharge damage.
- Advanced DSP digital control and RS485/SNMP intelligent network management enable remote O&M and centralized monitoring.
Technical specifications
| Key specifications | Value |
|---|---|
| System Nominal Voltage | 48V DC |
| Maximum System Capacity | 200A (4x 50A Rectifier Slots) |
| AC Input Voltage | 80V AC ~ 300V AC |
| Power Distribution Units | Battery Breakers & Multiple Load Outputs |
| Operating Temperature Range | -40°C ~ +75°C |
| Hot-Swappable Support | Yes (Live Hot-Pluggable / Plug-and-Play without Power Interruption) |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
Applications
01
4G/5G macro cell towers and distributed antenna system (DAS) primary power feeds
02
FTTx/FTTH optical transport hub sites and central office edge nodes
03
Railway wayside signaling, train dispatch control, and telemetry communication shelters
04
High-reliability industrial SCADA RTU cabinets and substation power backup
Frequently asked questions
Continue exploring
ZTE

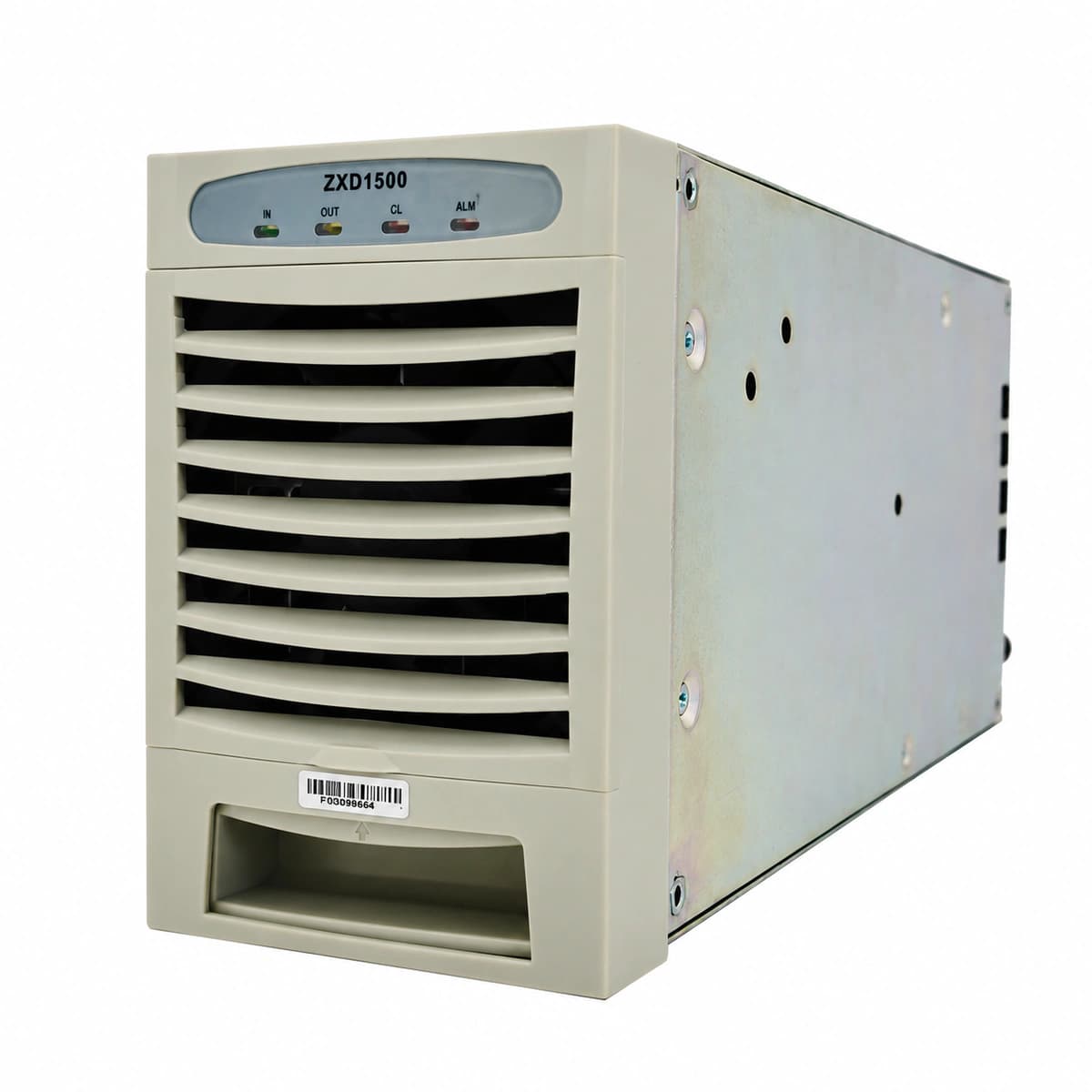

ZTE ZXD1500 (V4.0) Classic Telecom Rectifier Module (-48V 30A)
Equipped with advanced power electronic conversion, intelligent telemetry control, wide operating tolerance, and hot-swappable modular architecture.

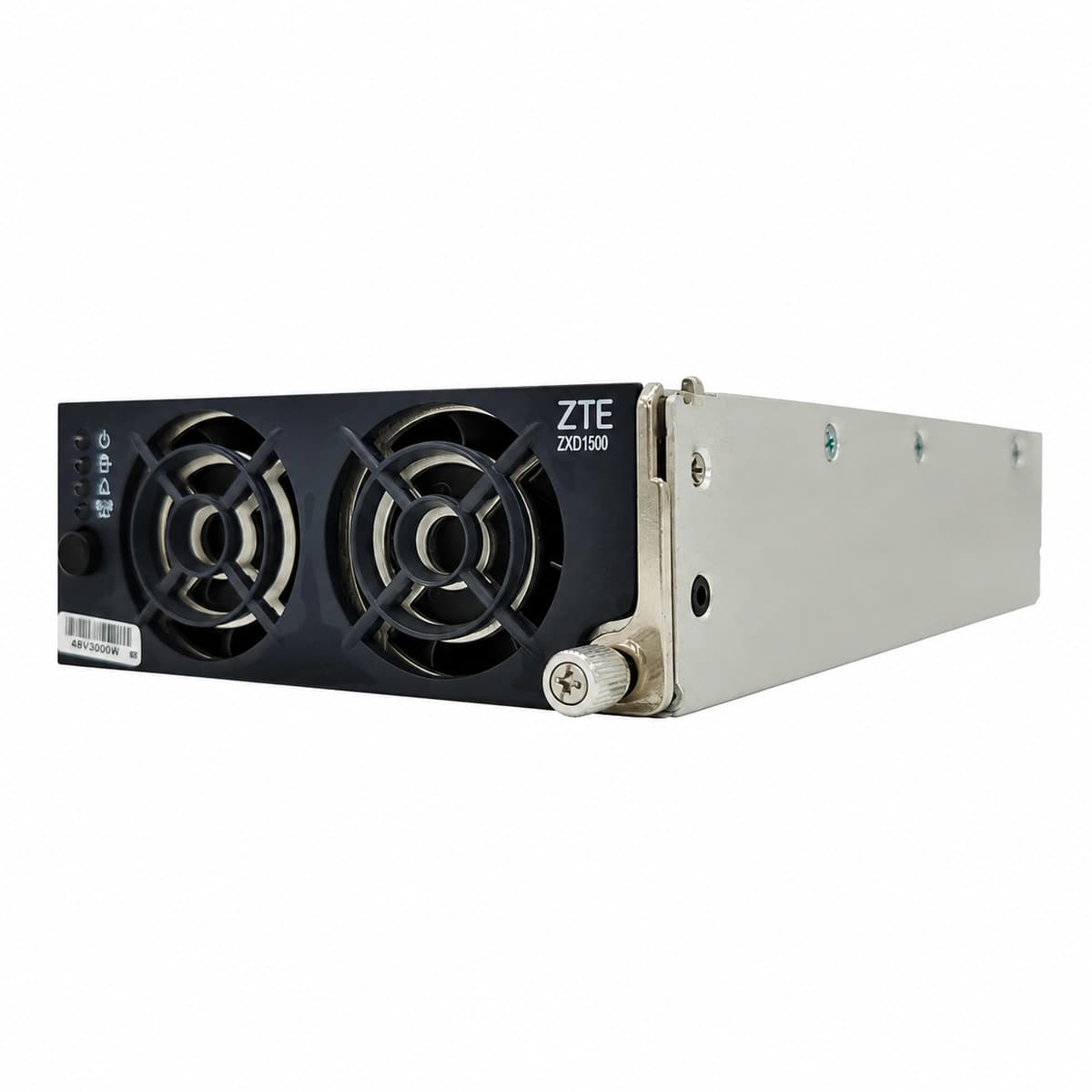

ZTE ZXD1500 (V5.0) R03 Enhanced Digital Telecom Rectifier (-48V 30A)
Equipped with advanced power electronic conversion, intelligent telemetry control, wide operating tolerance, and hot-swappable modular architecture.

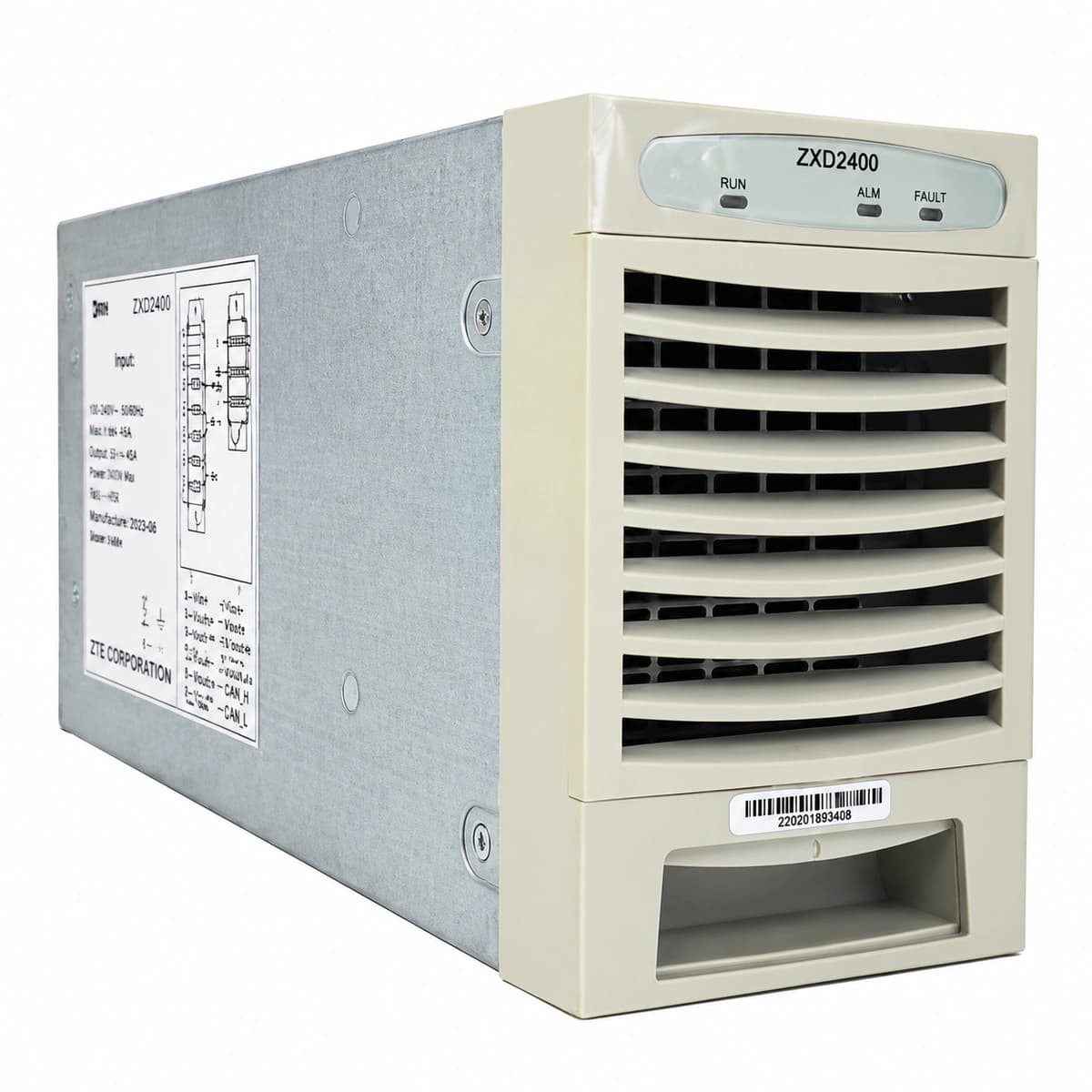

ZTE ZXD2400 (V4.6) High-Capacity Telecom Switch-Mode Rectifier (-48V 50A 2400W)
