Question 1

What are the core switching throughput and precision clock synchronization metrics of the ZTE FS0 Fabric Switch Board?

Accepted Answer

The ZTE FS0 board (SKU: ZTE-BBU-FS0-BOARD) functions as the central switching fabric and timing hub for ZTE ZXSDR B8200 and B8300 BBU chassis. In terms of switching architecture, it provides a full line-rate, non-blocking backplane crossbar bus supporting massive intra-chassis IQ and control-plane data forwarding between baseband processing boards. For timing, the FS0 integrates a high-precision hardware phase-locked loop (PLL), compliant with IEEE 1588v2 (PTP) nanosecond-grade packet timing, Synchronous Ethernet (SyncE), and external GNSS (GPS/BDS) 1PPS+ToD reference feeds per ITU-T G.8262/G.8273.2 telecom standards. Even under peak full-duplex traffic loading, typical board power consumption remains under 40W, optimizing thermal dissipation across the chassis.

Question 2

How does the ZTE FS0 board handle chassis slot compatibility and redundancy mechanisms in ZXSDR B8200 and B8300 systems?

Accepted Answer

Engineered specifically for ZTE modular BBU architectures, the ZTE FS0 board features mechanical form factors and backplane connector pinouts strictly compatible with designated control/switch slots in ZXSDR B8200 and B8300 indoor subracks. For carrier-grade high availability, the platform supports dual FS0 boards in a 1+1 Active/Standby redundancy topology. Real-time state replication and heartbeat telemetry over dedicated inter-slot lines allow sub-50ms failover without dropped calls or frame loss if a fault occurs. Additionally, the FS0 incorporates hot-swappable inrush current limiters and ESD rail protection, ensuring uninterrupted operation of adjacent baseband cards during field servicing.

Question 3

How does the ZTE FS0 board ensure operational reliability against thermal stress and harsh electromagnetic environments?

Accepted Answer

To sustain continuous 24/7 mission-critical operation in remote site shelters, the ZTE FS0 operates across an extended temperature window of -10°C to +55°C, optimized for chassis-driven forced-air cooling profiles. The PCB design adheres to strict signal-integrity standards, utilizing high-grade dielectric materials and continuous ground shielding to resist high-frequency backplane noise and RF intermodulation interference. All external I/O and sync ports conform to IEC 61000-4-5 surge and transient overvoltage suppression standards. With an MTBF exceeding 350,000 operational hours, the FS0 board delivers extreme resilience inside compact outdoor telecom enclosures.

Key specifications	Value
Board Type	Core high-speed switching matrix and clock synchronization control board for the BBU chassis
Port Density & Specs	Full-line-rate non-blocking backplane high-speed data switching bus
Supported Chassis	Master control slot of the ZTE ZXSDR B8200 / B8300 indoor baseband unit
Subscriber Capacity	IEEE 1588v2 precision network clock and GPS/BeiDou satellite nanosecond-level clock synchronization
Power Consumption & Auto Sleep	< 40 W
Non-Volatile Log Capacity	10,000+ Cyclic Event Records
Unit Power Consumption	< 8W (Ultra-Low Standby Design)
Operating Temperature Range	-10 ~ +55°C
Industrial EMC Level	EN 55032 Class A / IEC 61000-4 Level 4
Relative Humidity Tolerance	5% to 95% RH (Non-Condensing)

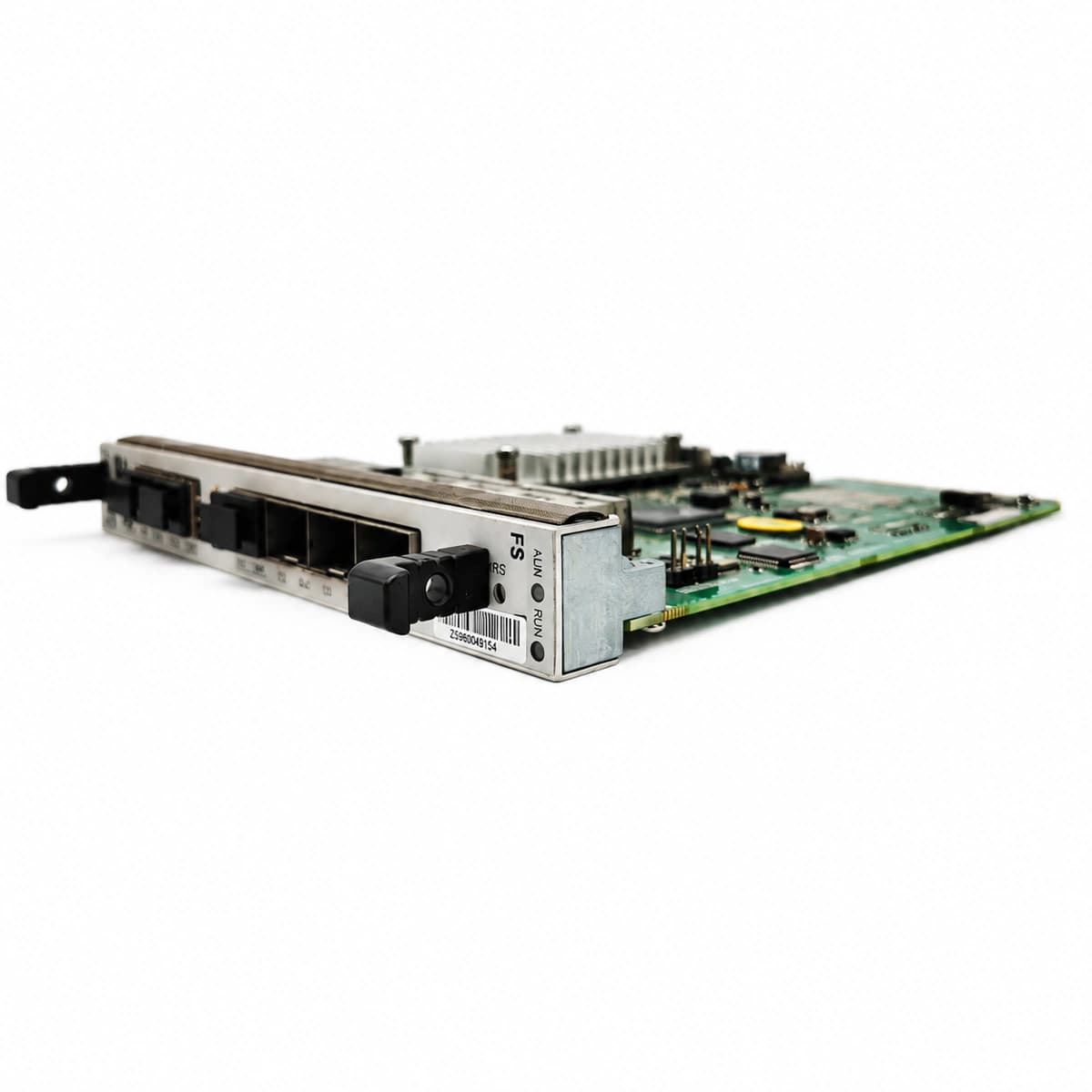

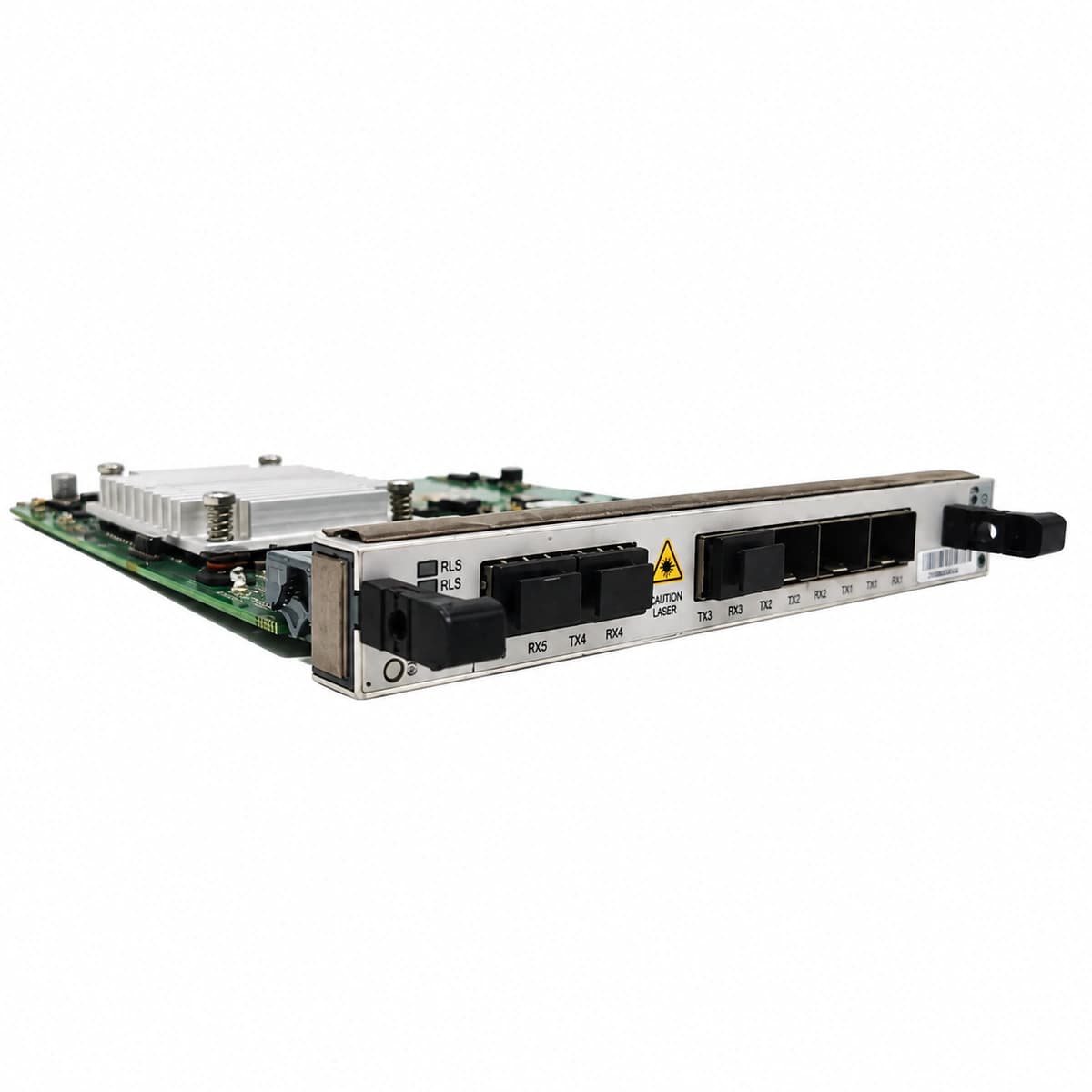

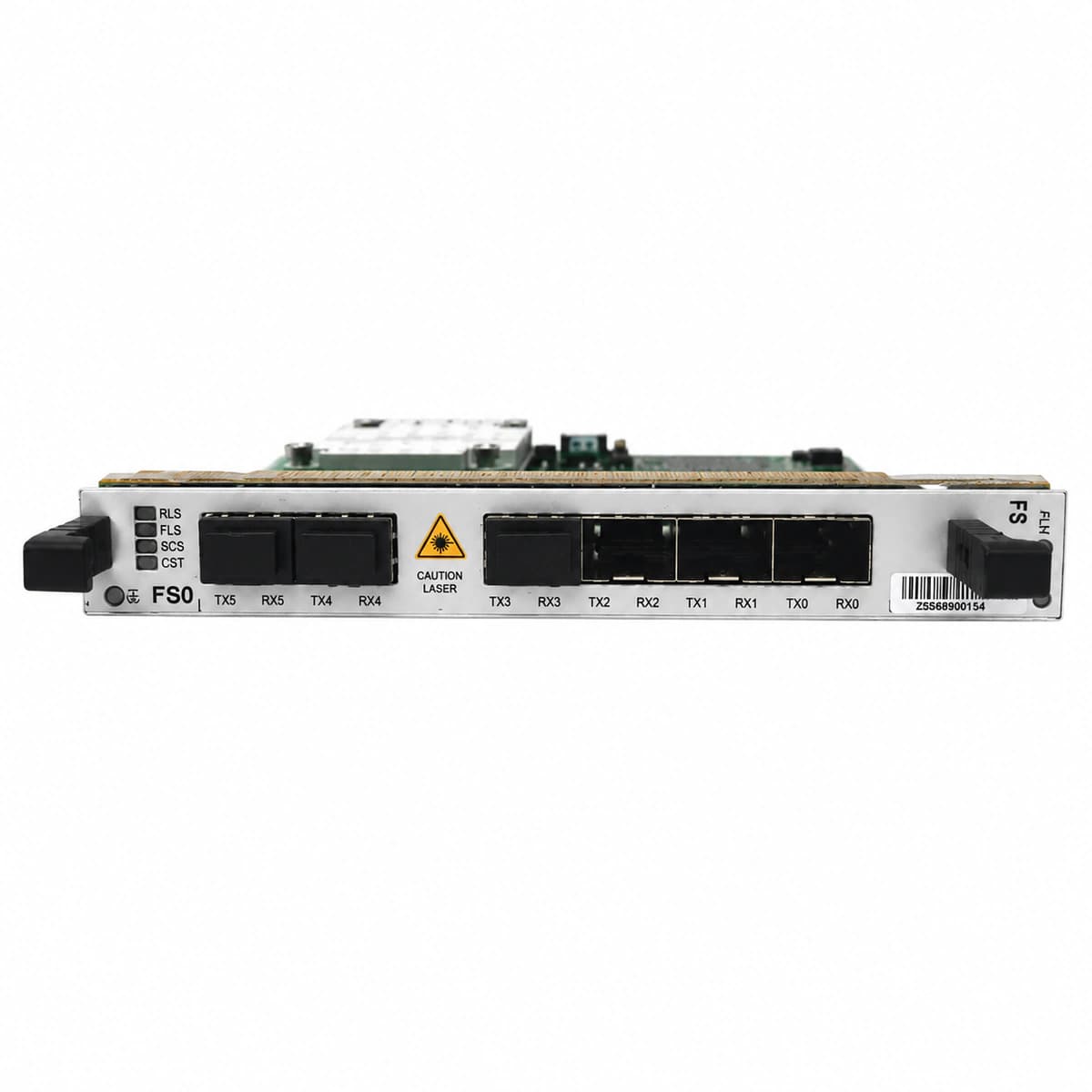

ZTE FS0 Fabric Switch & Control Board (For ZXSDR B8200/B8300 BBU)
