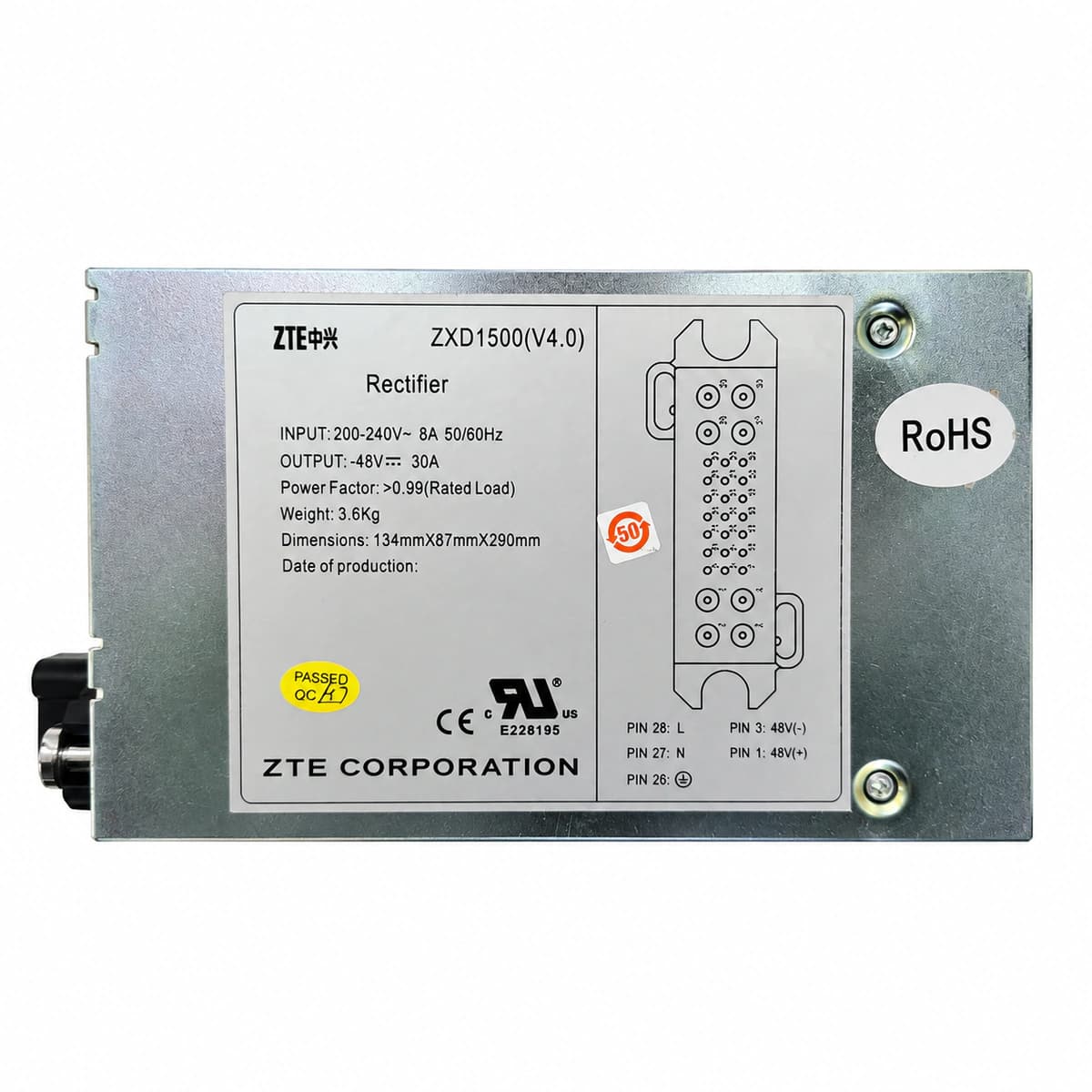

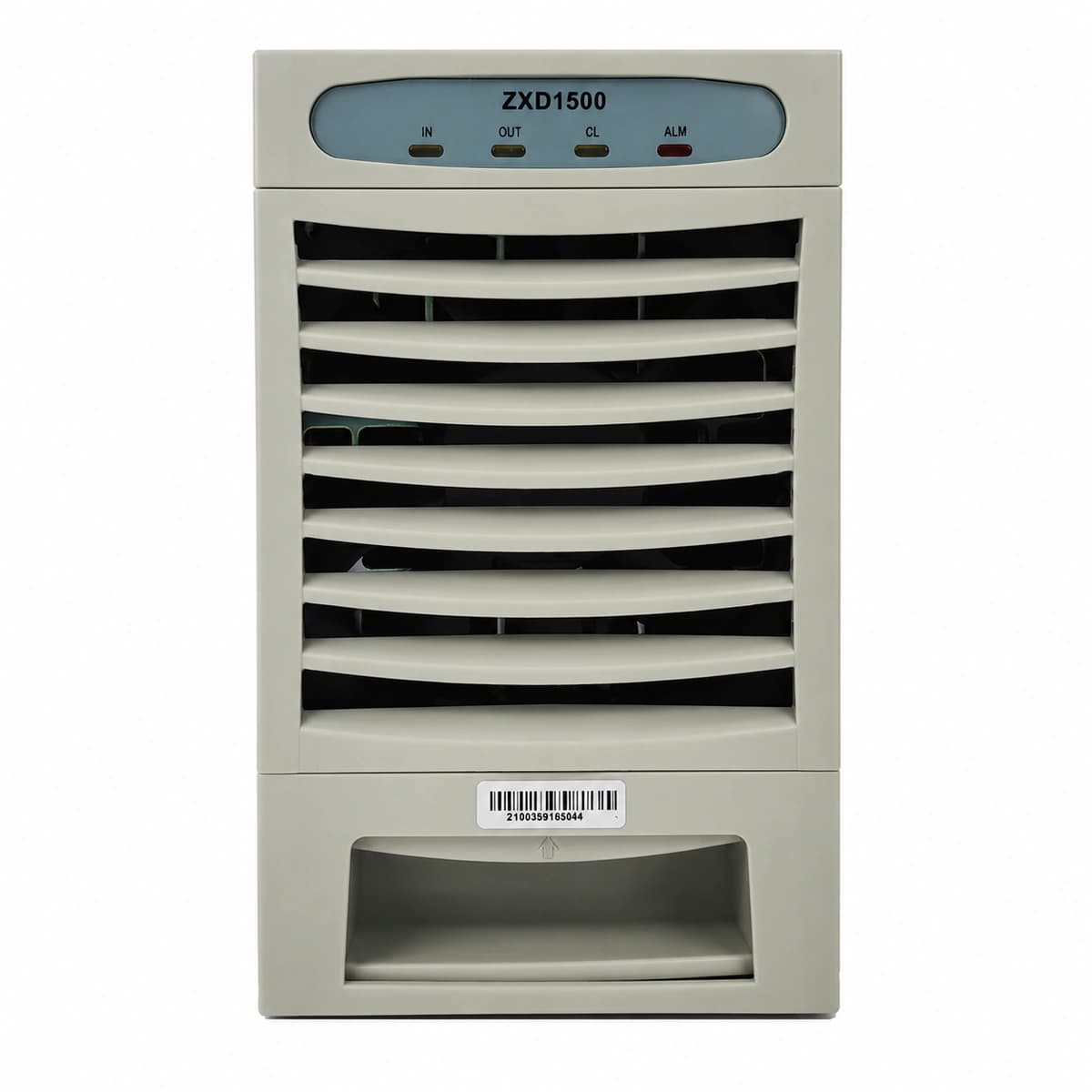

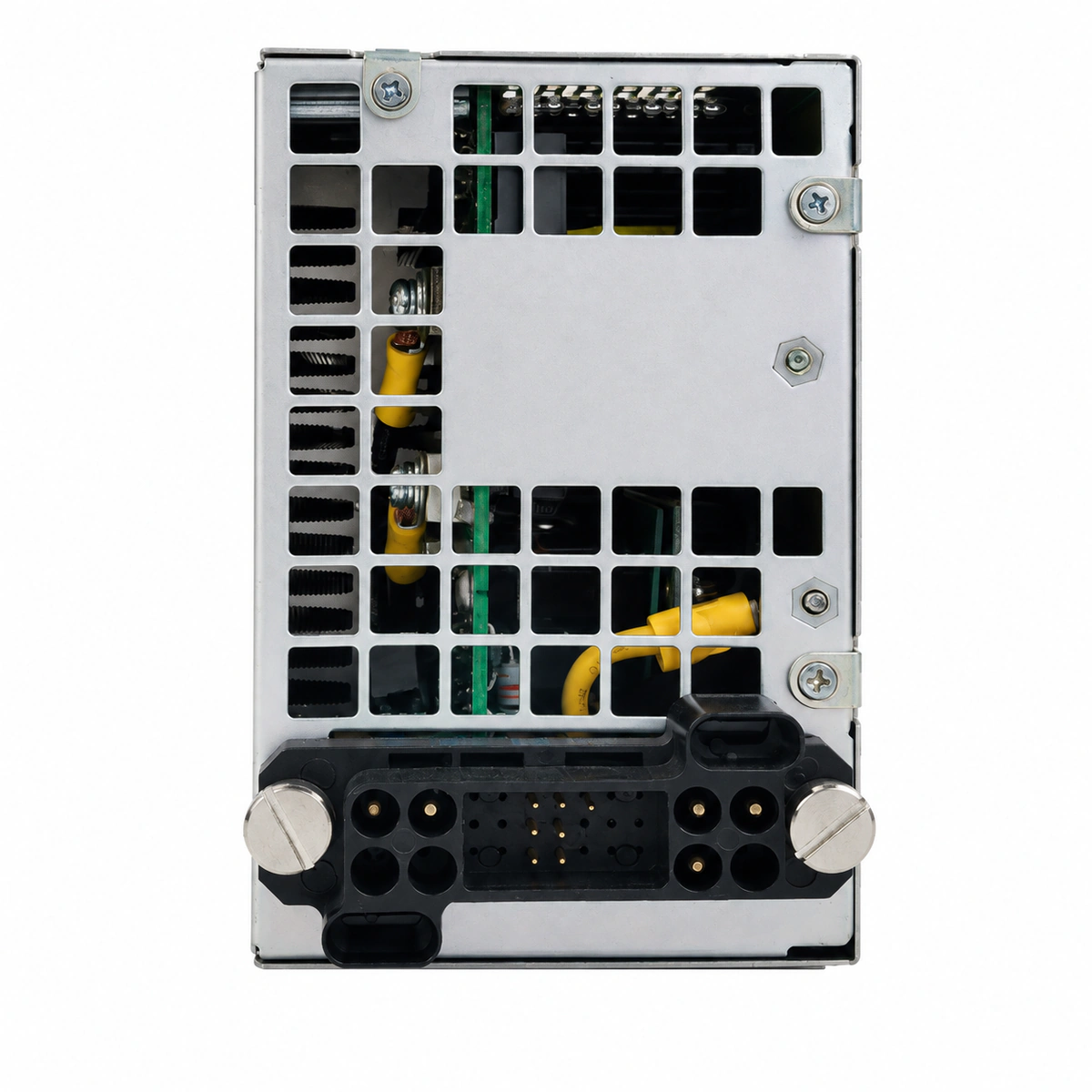

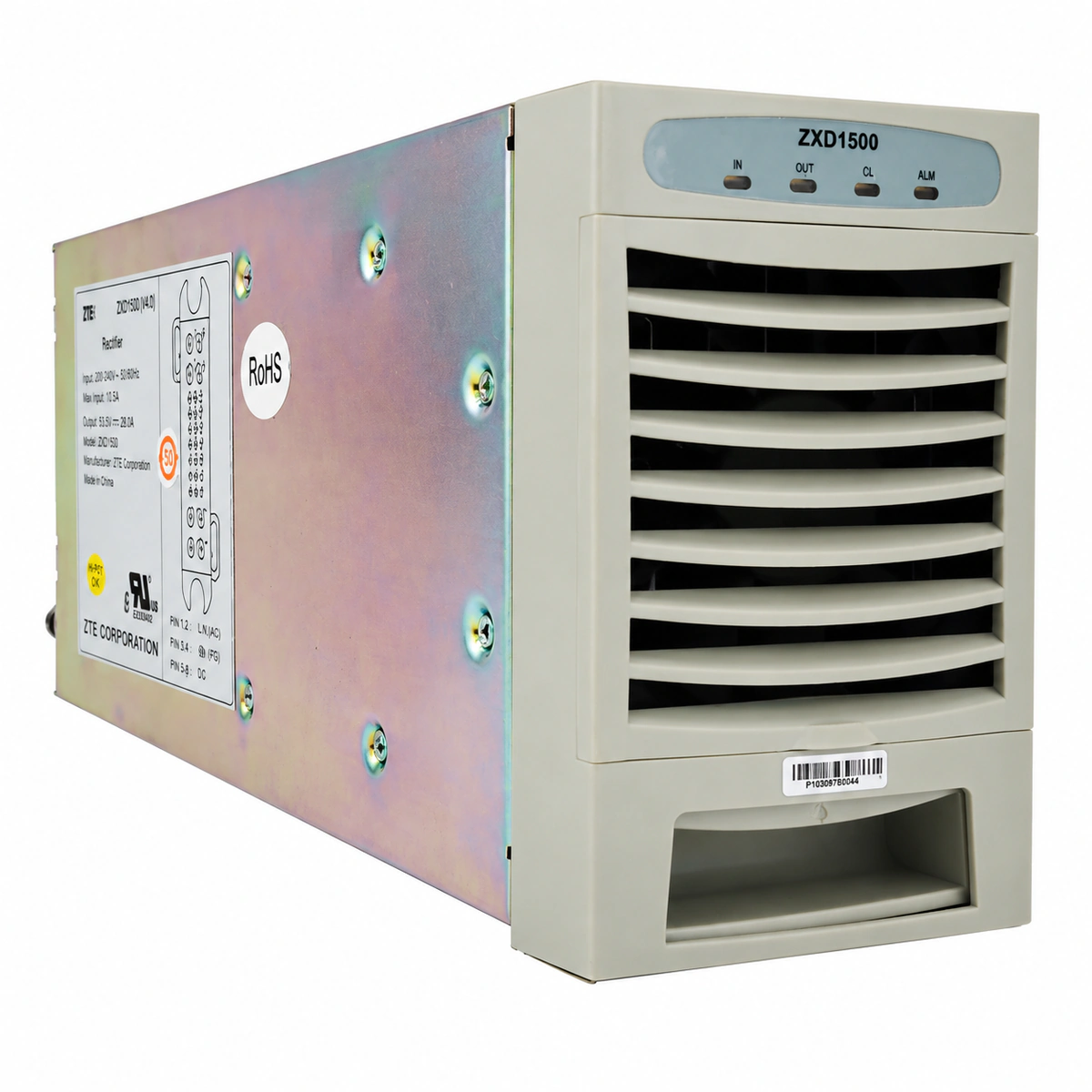

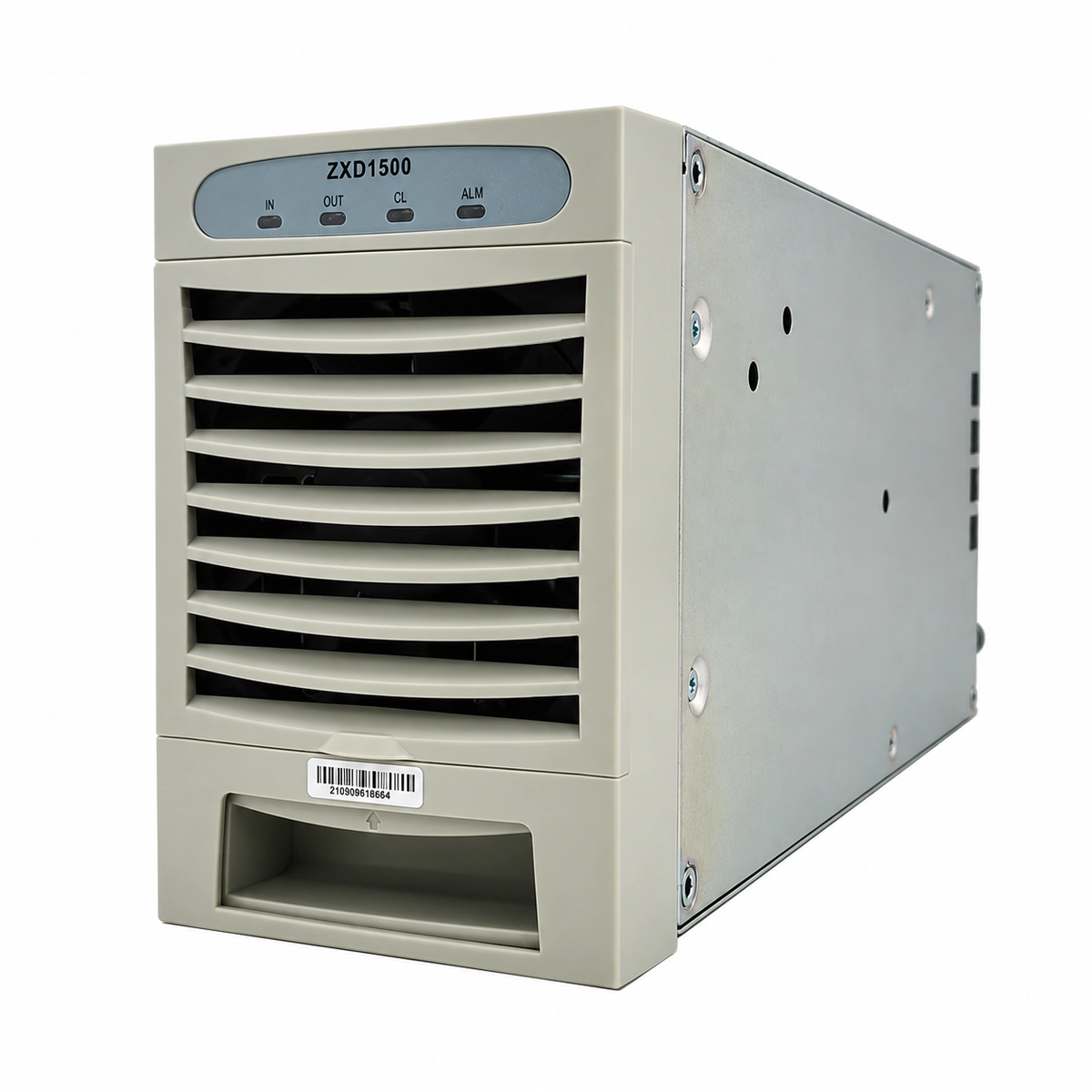

The ZTE ZXD1500 is a reliable switch-mode AC/DC telecom rectifier utilizing phase-shifted full-bridge topology and active PFC to supply clean -48V DC power with automated battery charging management.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Industrial-grade hot-pluggable telecom rectifier module for ZTE ZXDU58 and ZXDU68 power systems.
Protects cellular transmission nodes and optical switches from grid brownouts with clean regulated -48V DC power.
Cellular remote radio units, enterprise telecom cabinets, transit communication rooms, and utility power plants.
| Key specifications | Value |
|---|---|
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
| DC Output Voltage | -48VDC (-42V ~ -58V) V DC |
| Rated Output Current | 30 A |
| Power Conversion Efficiency | ≥ 90.0% |
| Physical Dimensions | 134 × 87 × 290 mm |
| AC Input Voltage | 85 ~ 300 V AC |
| Operating Temperature Range | -25°C ~ +65°C |
