The ZXD2400 is a high-efficiency power system designed for telecommunication facilities and industrial infrastructure.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

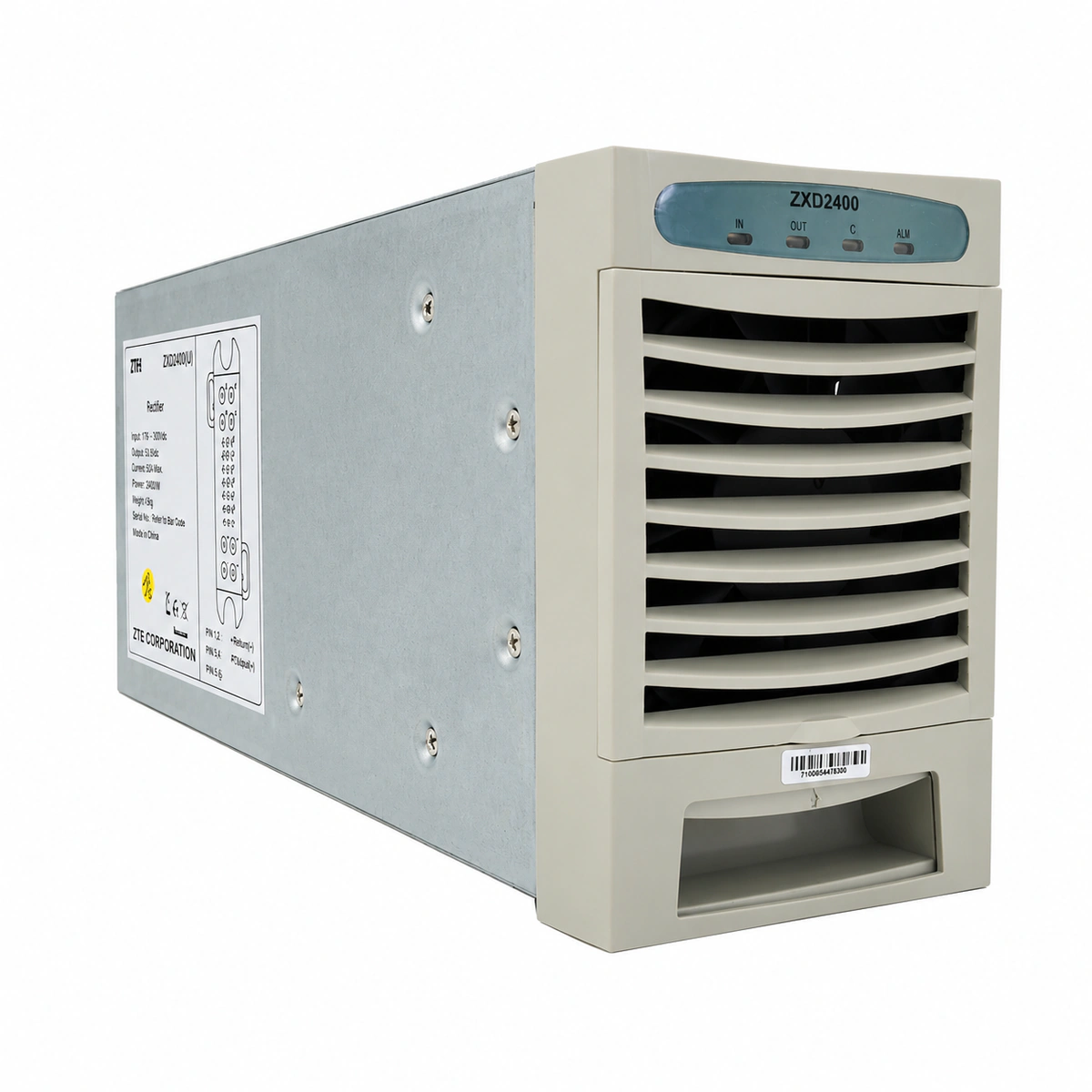

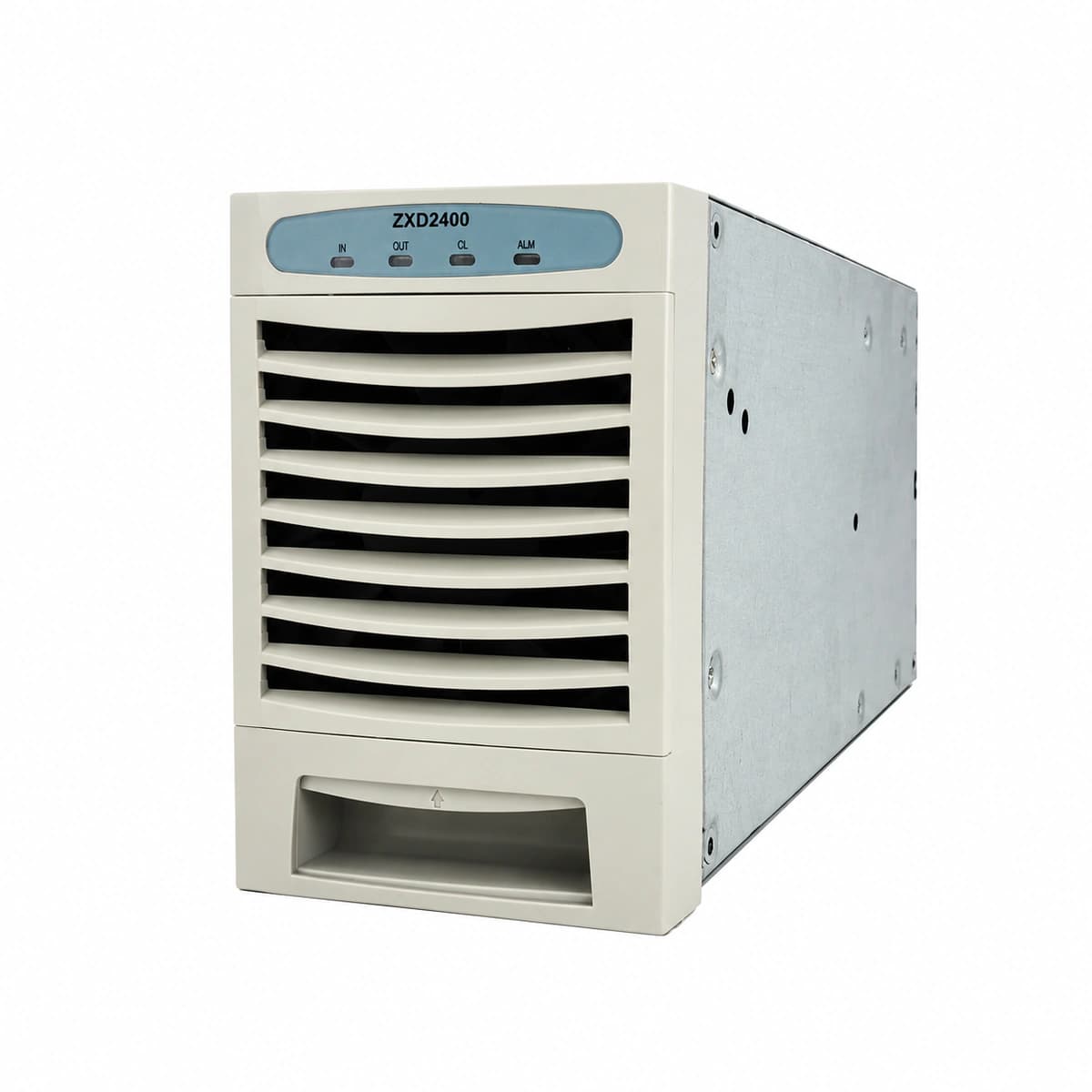

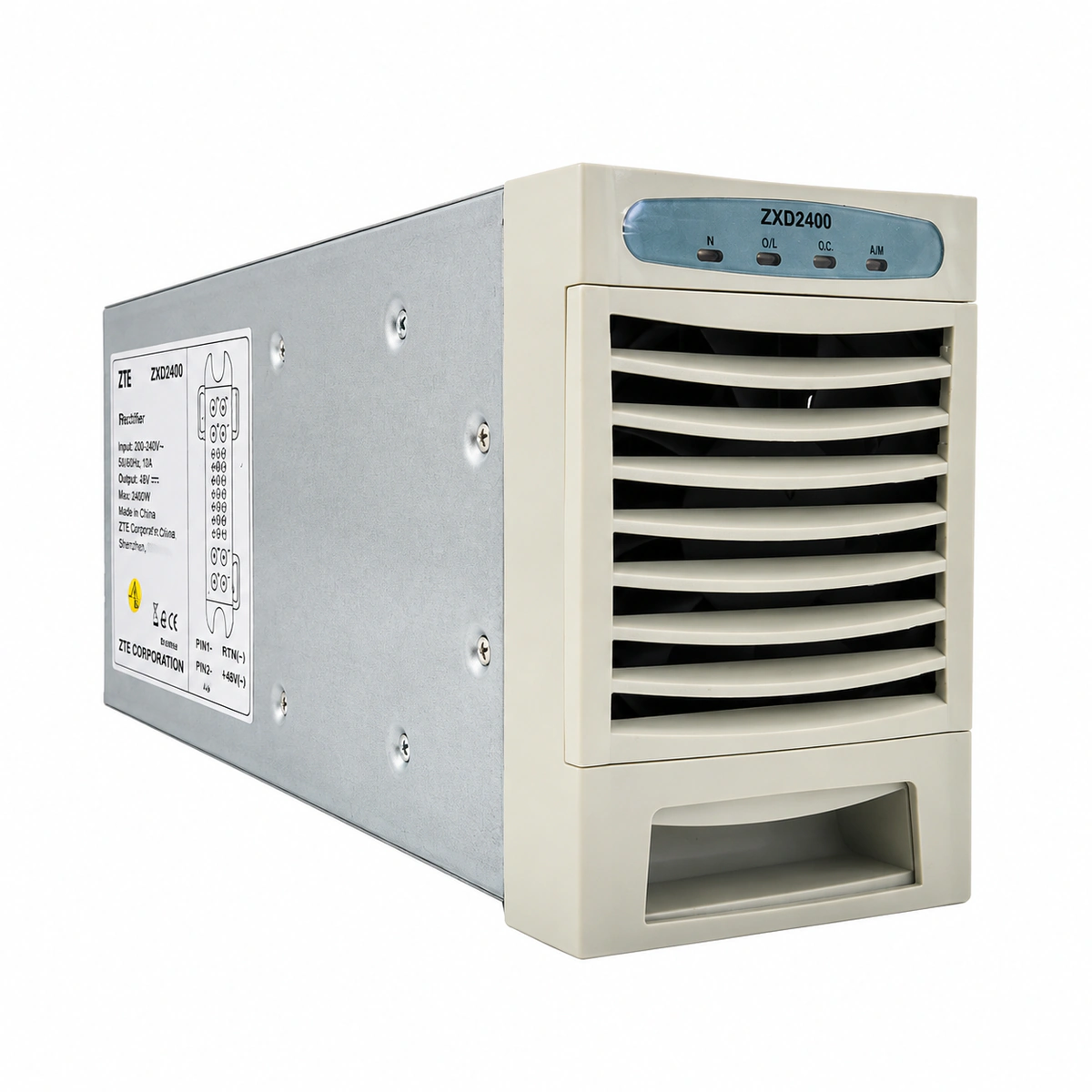

ZTE ZXD2400 Switch Mode Telecom Rectifier Module -48V 50A features a modular architecture and high-reliability components for simplified maintenance and monitoring.
Resolves power conversion inefficiency, confined space constraints, and complex battery lifecycle management.
Suitable for telecom base stations, data centers, edge computing aggregation nodes, and industrial DC applications.
| Key specifications | Value |
|---|---|
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
| AC Input Voltage | 80VAC ~ 300VAC (wide-range adaptive) |
| DC Output Voltage | -48VDC (-42V ~ -58V) |
| Rated Output Current | 50A (adjustable current limit) |
| Rated System Output Capacity | 2400W |
| Power Conversion Efficiency | ≥ 92.5% |
| Cooling Method | Forced-air cooling with front-intake, rear-exhaust stepless variable-speed fan |
