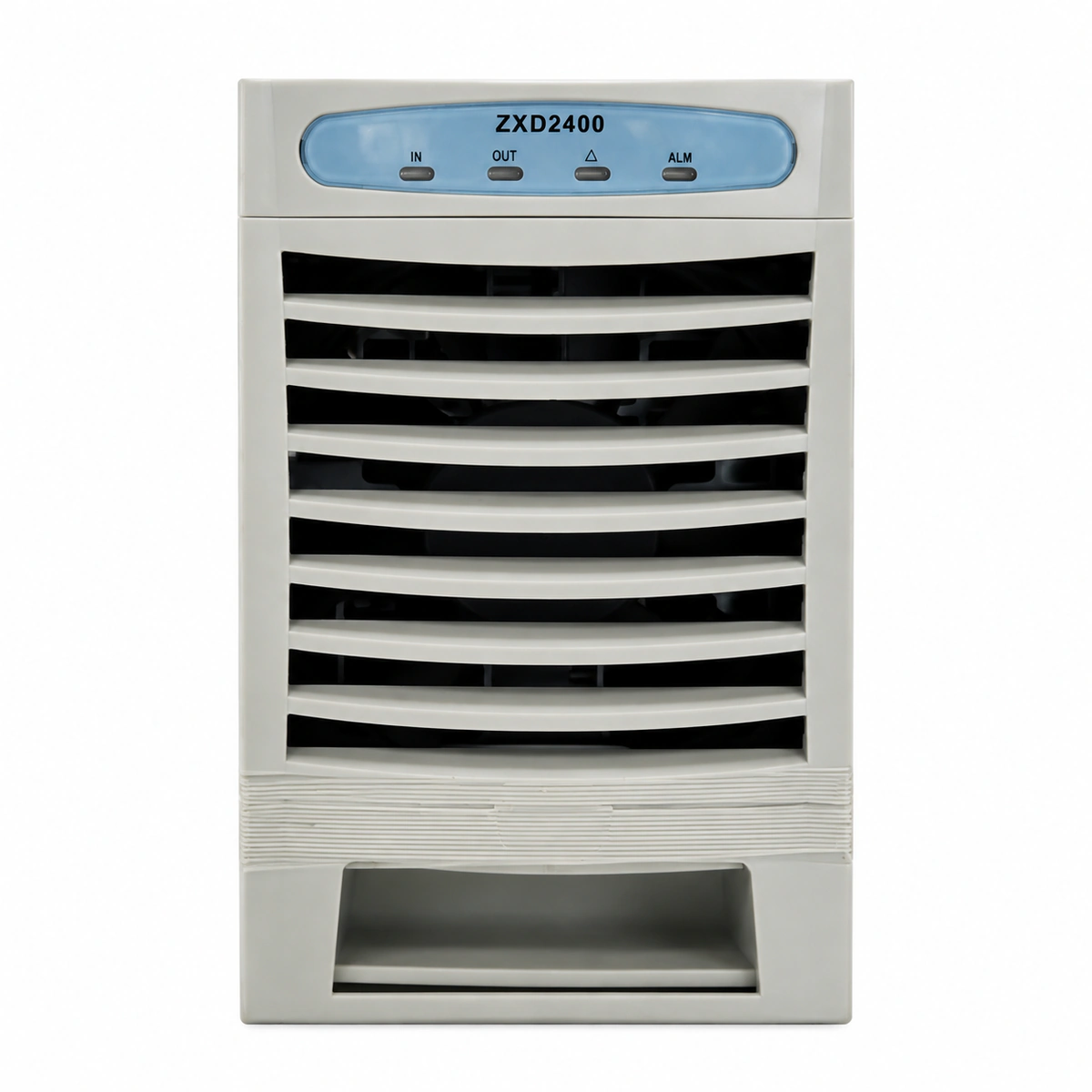

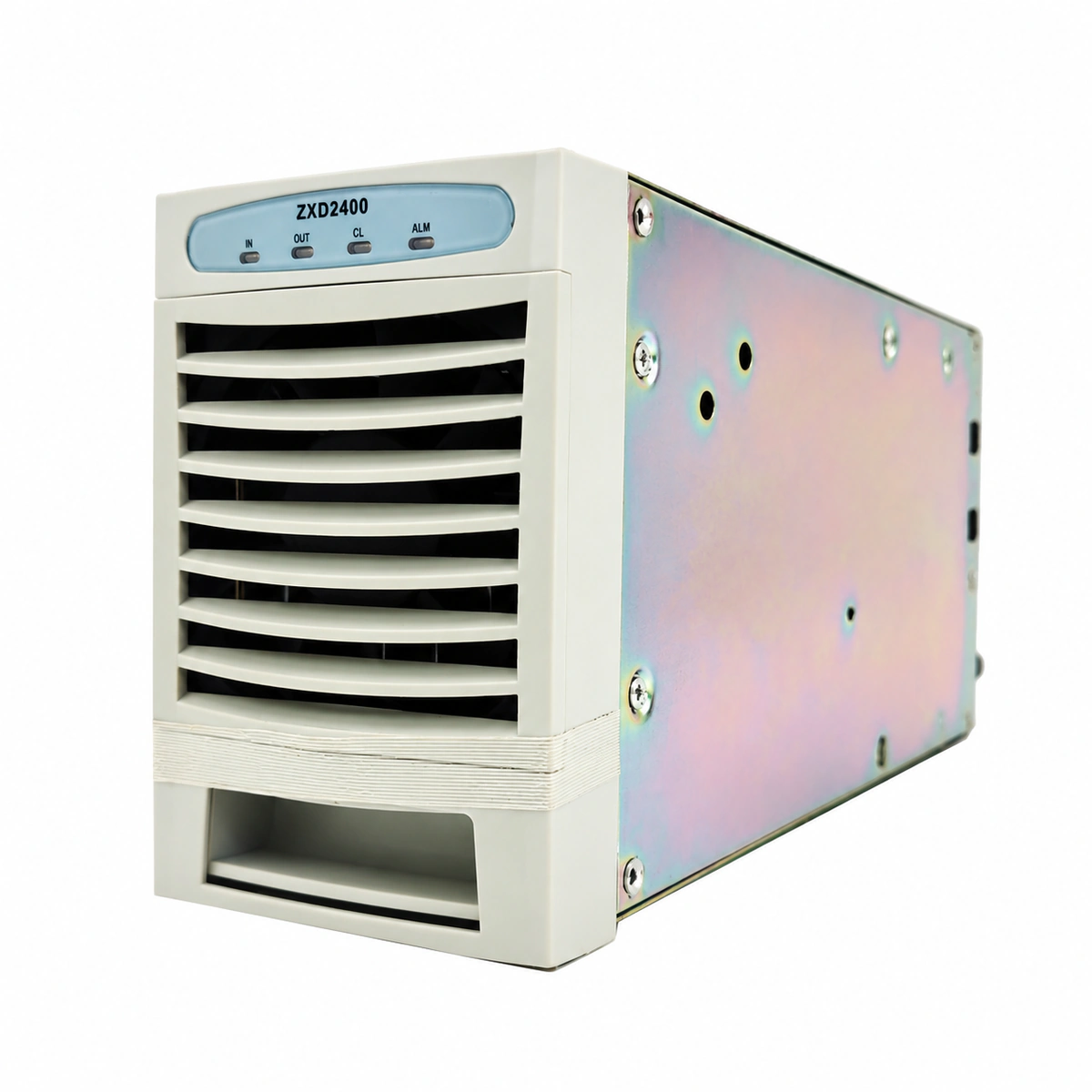

ZTE ZXD2400 (V4.1) is an industry-standard 2400W switch-mode telecom rectifier delivering -48VDC/50A with active PFC and high-reliability soft-switching design.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Telecom-grade power infrastructure module designed for ZTE power architecture.
Eliminates grid power anomalies and brownout hazards across mission-critical communication centers.
Cellular wireless sites, optical broadband hubs, edge computing racks, and industrial private networks.
| Key specifications | Value |
|---|---|
| AC Input Voltage | 85VAC ~ 290VAC (Nominal 220VAC) VAC |
| DC Output Voltage | -48VDC (-42V ~ -58V) V DC |
| Cooling Method | Built-in dual temperature-controlled fans with forced-air cooling |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
| Power Conversion Efficiency | ≥ 92.5% |
| Physical Dimensions | 134 × 87 × 290 mm |
| Operating Temperature Range | -25°C ~ +65°C |
