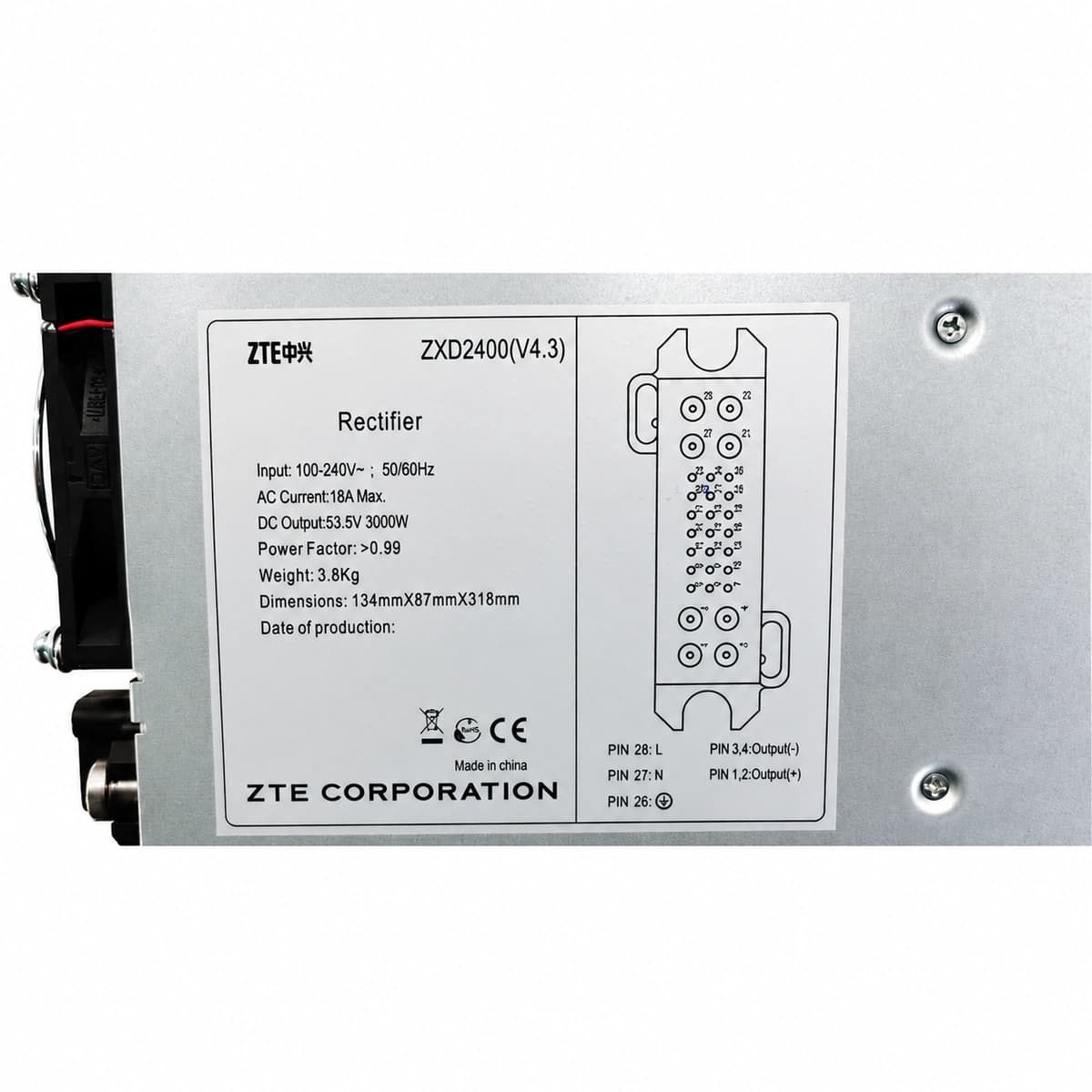

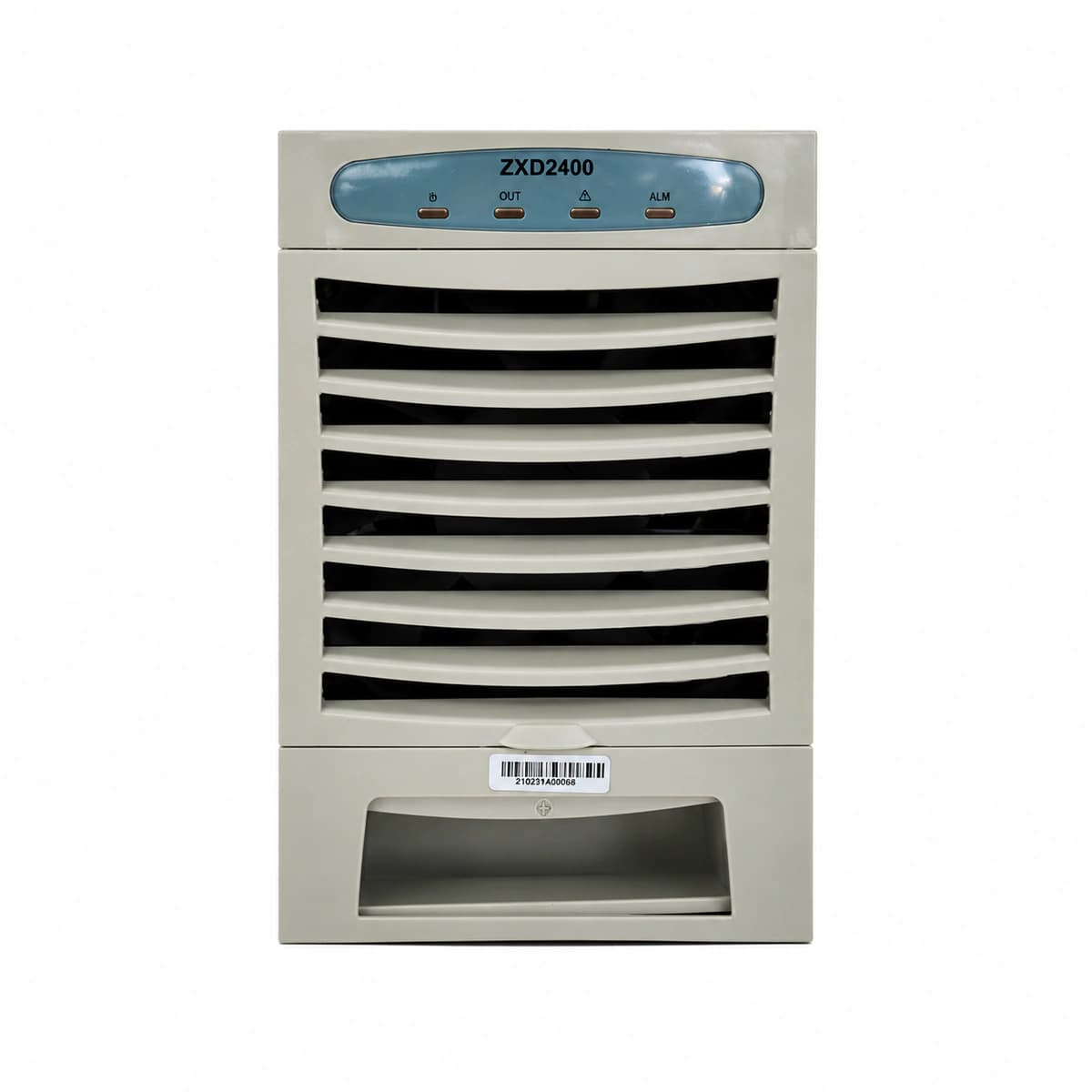

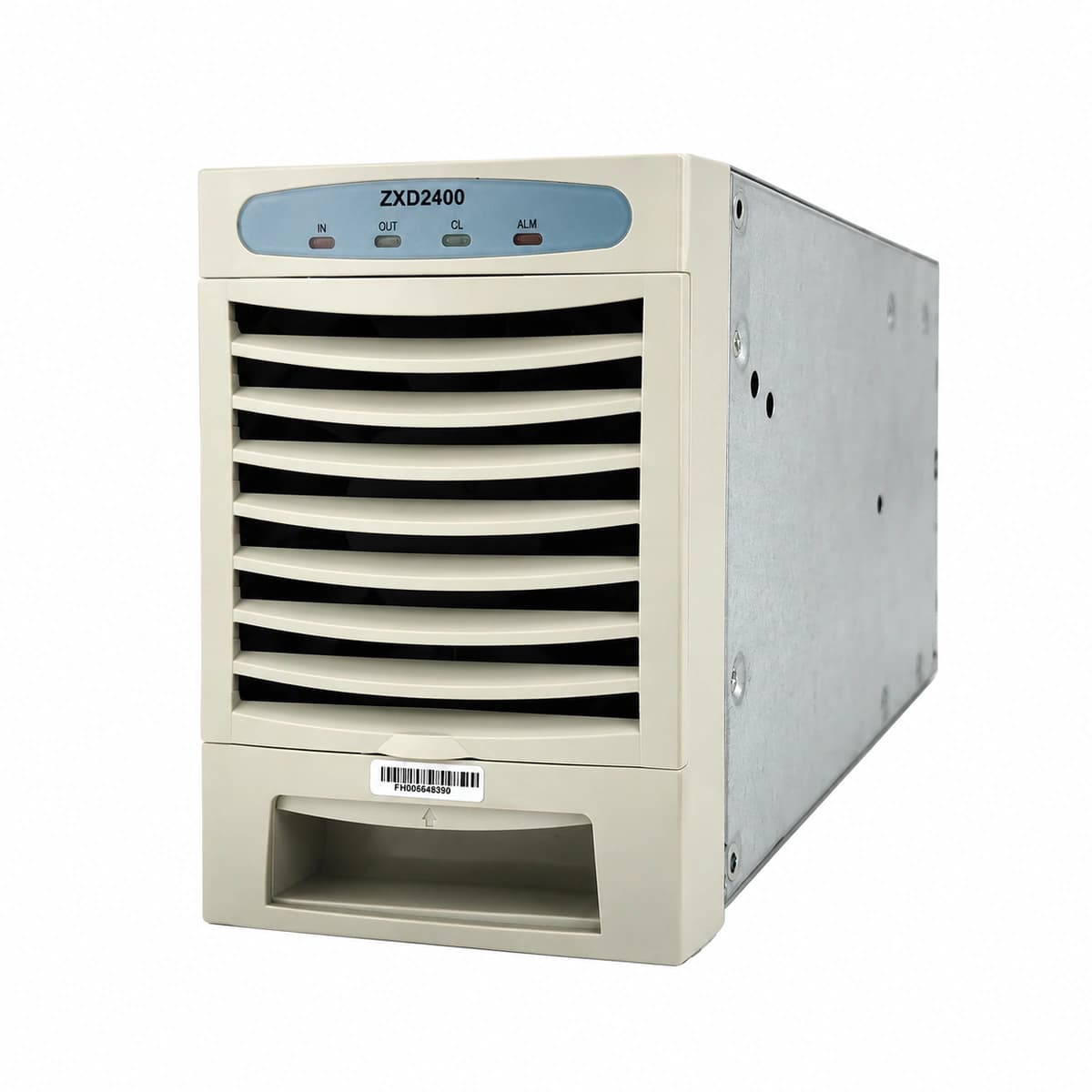

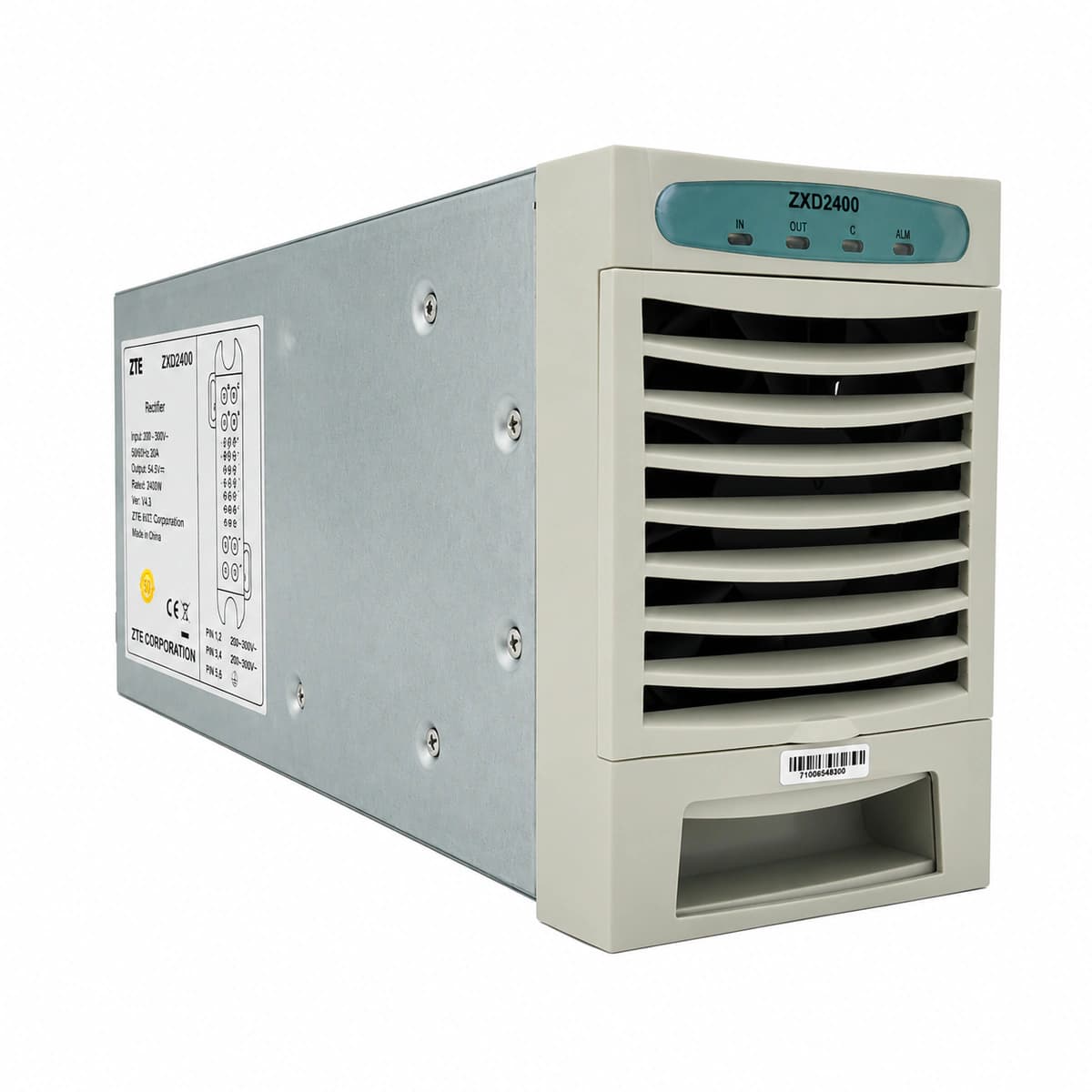

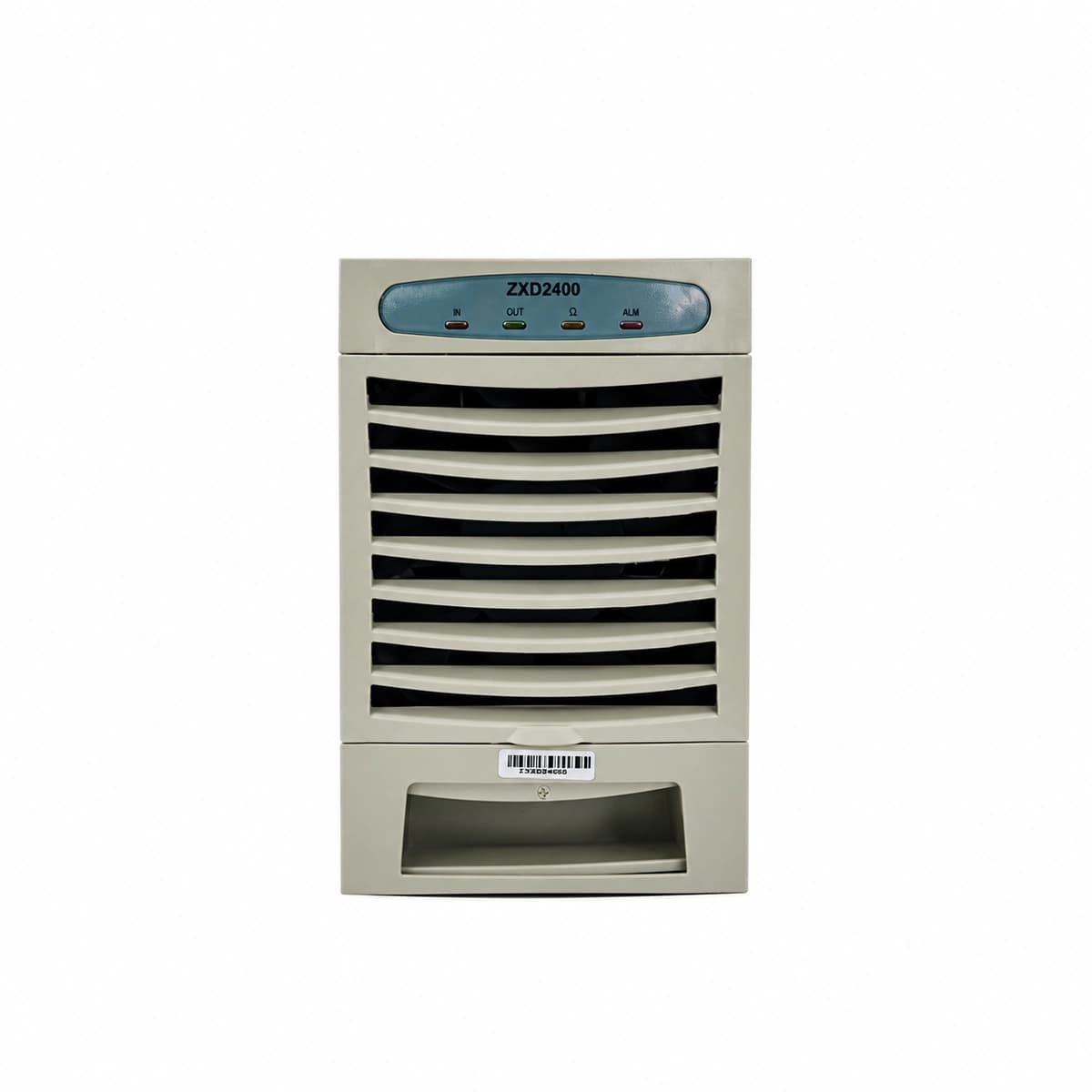

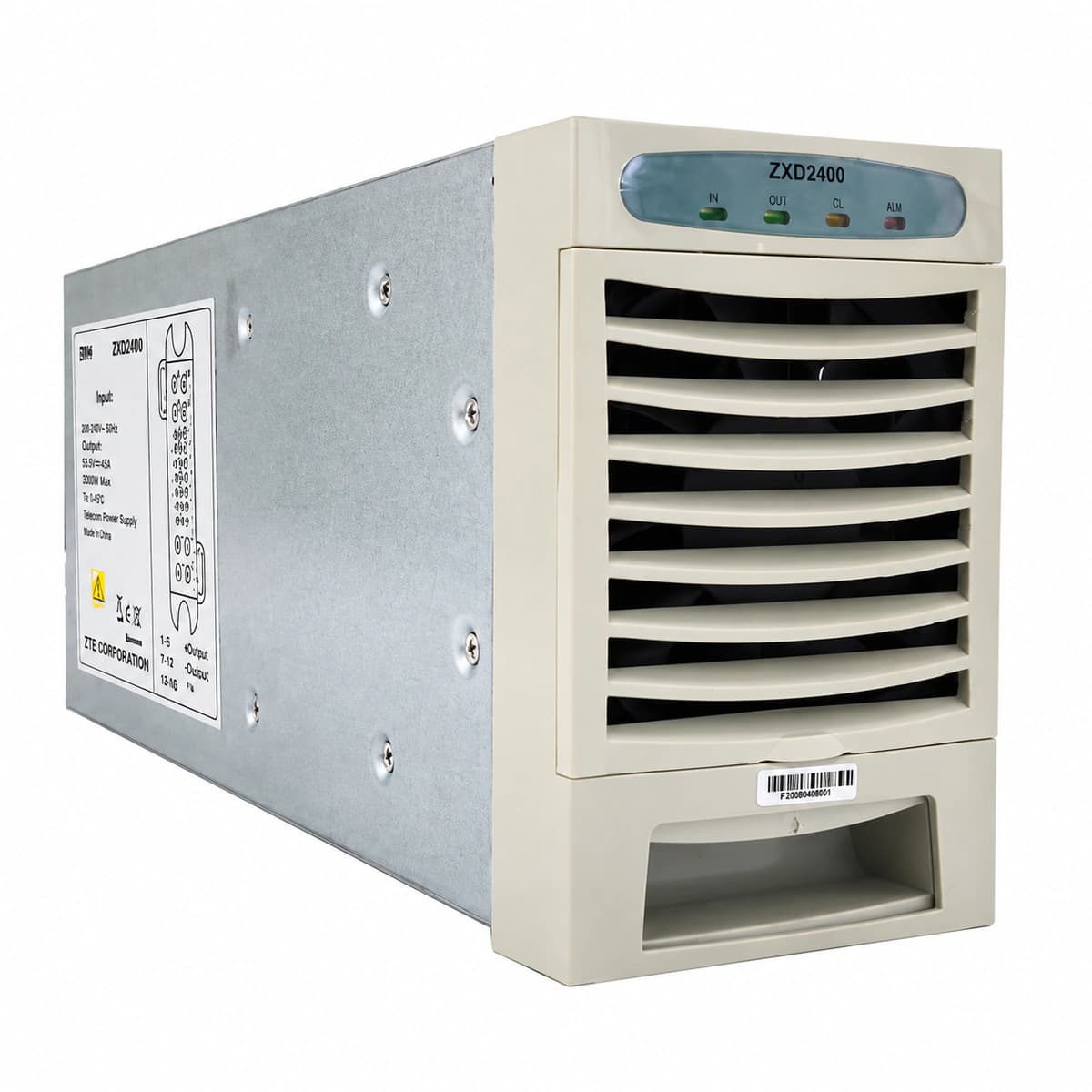

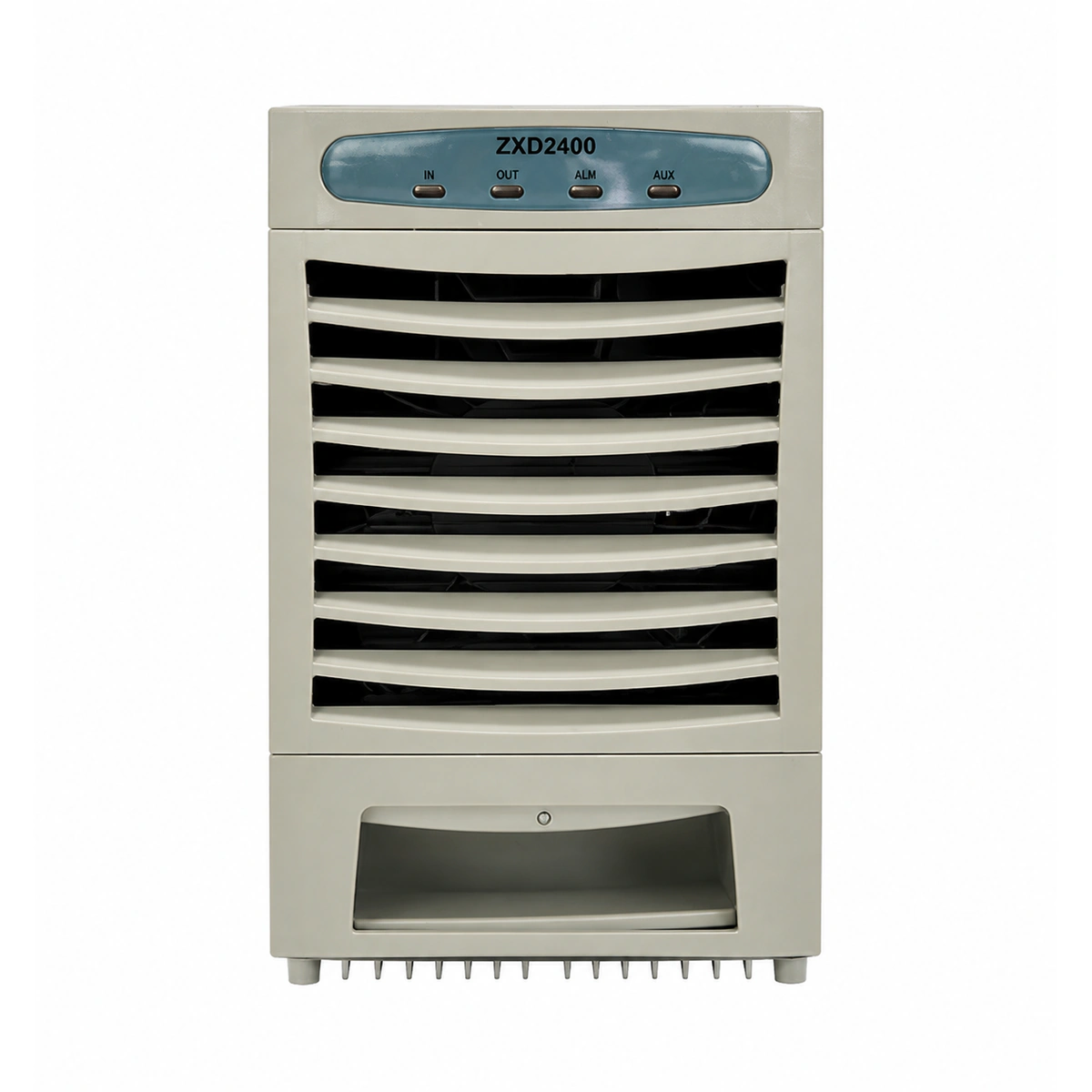

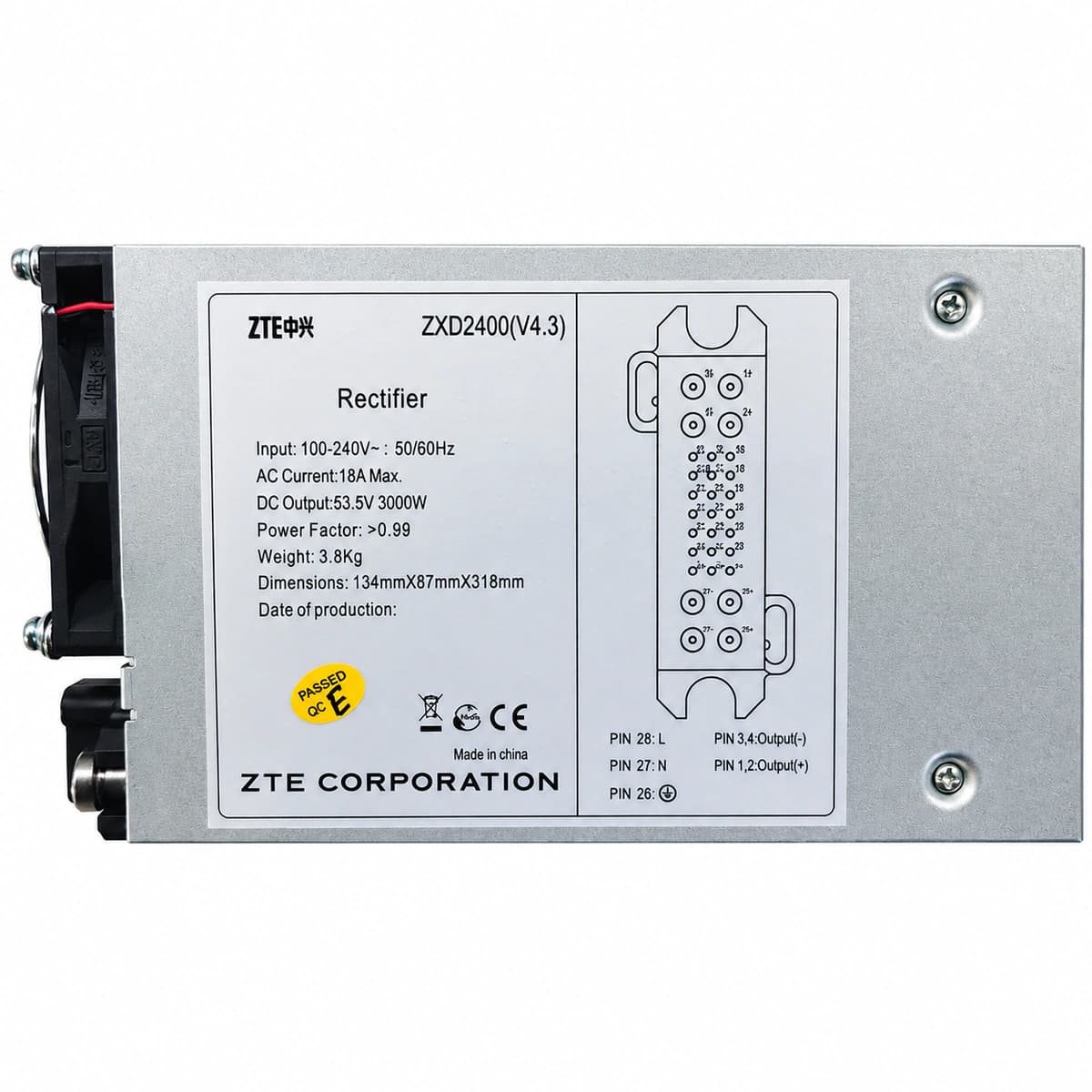

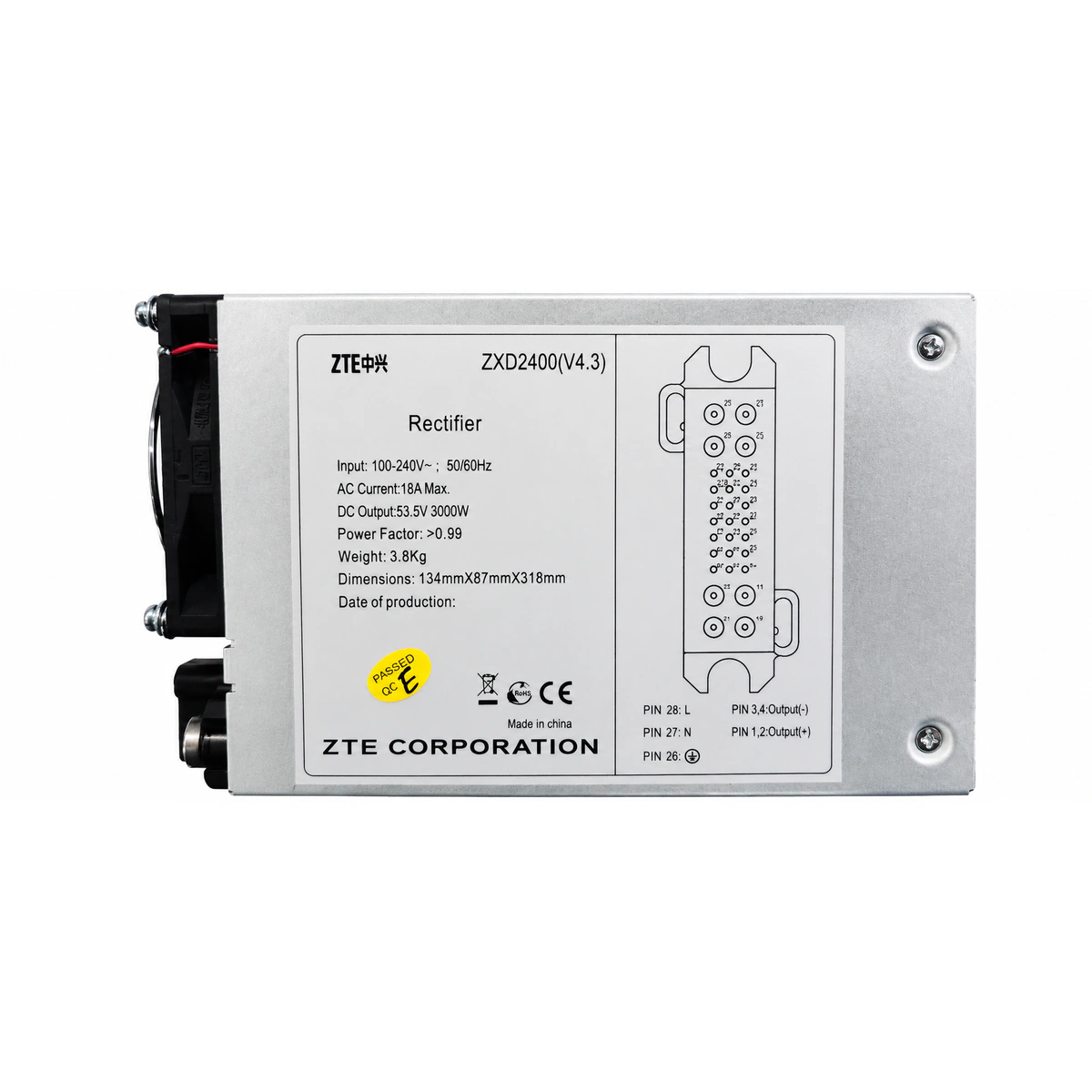

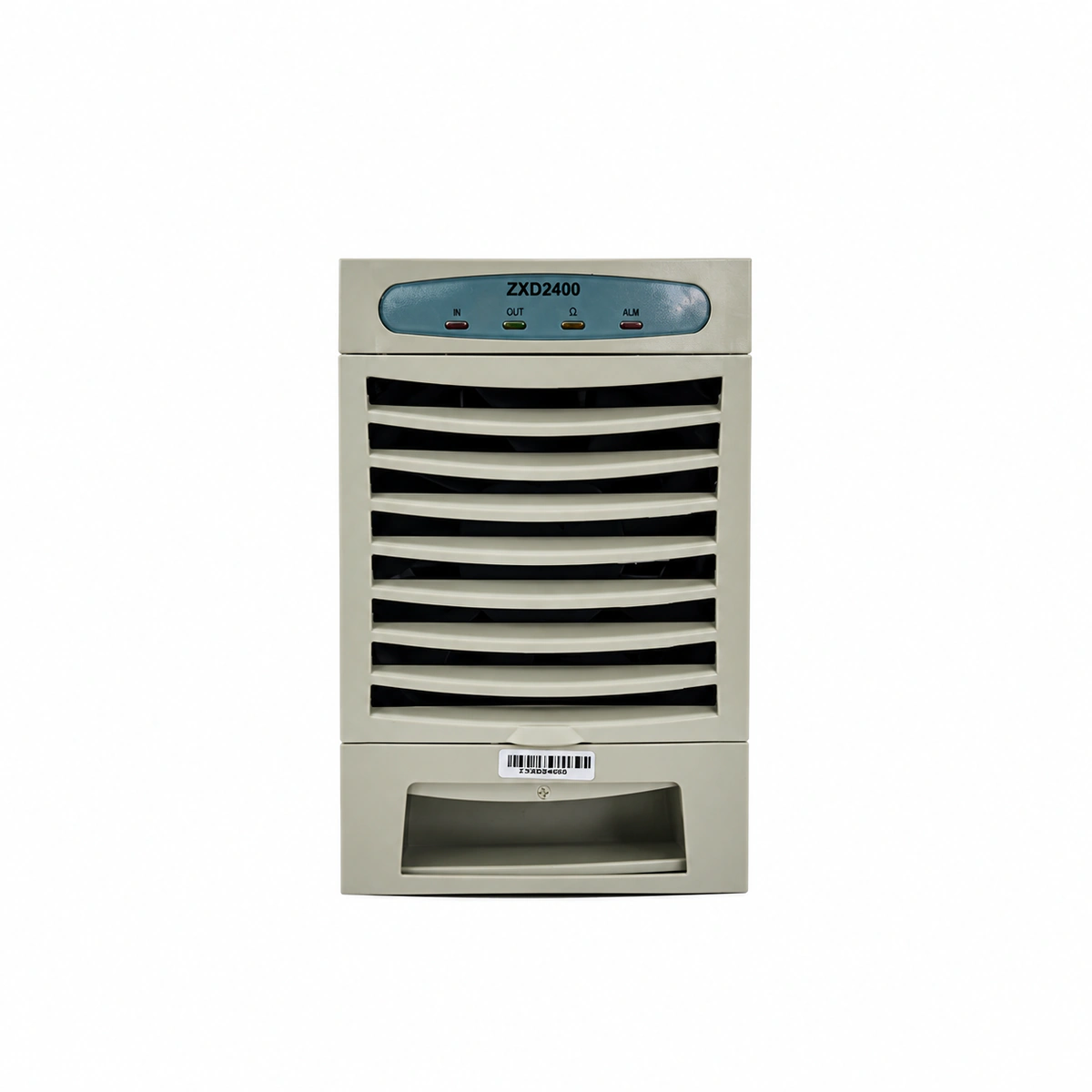

The ZTE ZXD2400 (V4.3) is an industry-benchmark -48V 50A telecom switch-mode rectifier delivering 2400W rated power, renowned for exceptional field reliability and high MTBF.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
This unit installs into classic ZTE ZXDU58 and ZXDU68 telecom power shelves, serving as a core DC power engine across 3G, 4G, and 5G cellular stations worldwide.
Solves power reliability in unstable power regions through a field-proven architecture that offers immense fault tolerance and longevity.
Ideal for telecom macro towers, aggregation sites, transmission relay nodes, private enterprise networks, and maintenance replacement in ZTE systems.
| Key specifications | Value |
|---|---|
| Rated DC Output Current | -48VDC (-42V ~ -58V) |
| Rated Output VA / Wattage | 2400W |
| AC Input Voltage | 80V to 300V AC (Nominal 220VAC) |
| Operating Efficiency Rating | ≥ 92.5% |
| Cooling & Form Factor | Front-to-Back Forced Air / Hot-Swap |
| Nominal DC Output Voltage | -48VDC (-42V ~ -58V) |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
