Question 1

What are the core electrical specifications, input voltage tolerance, and efficiency ratings of the ZTE ZXD3000 (ZTE-REC-ZXD3000-60A) rectifier module?

Accepted Answer

The ZTE ZXD3000 is a 1U high-density telecom rectifier delivering a rated output power of 3000W and a continuous output current of 60A at a nominal -48VDC (adjustable from -42VDC to -58VDC). It features an ultra-wide AC input range of 85VAC to 295VAC, delivering full 3000W capacity between 176VAC and 295VAC (with linear derating from 176VAC down to 85VAC). Built with active PFC and soft-switching topologies, it achieves a power factor of ≥0.99, THD ≤5%, and a peak conversion efficiency of 96.5% (≥96% nominal), drastically minimizing heat dissipation and operational PUE across telecom central offices and edge data centers.

Question 2

How does the ZXD3000 integrate into power subracks, and what are its hot-swapping and active load-sharing capabilities?

Accepted Answer

Engineered in an ultra-compact 1U form factor (41.5mm H x 132mm W x 300mm D), the ZXD3000 natively integrates into ZTE ZXDU68-series power subracks (such as ZXDU68 S601 and ZXDU68 B201) as well as standardized -48V high-density DC distribution shelves. It features true live hot-plugging capability and intelligent active digital current sharing with an imbalance rate under ±5% across parallel modules. Equipped with high-speed CAN bus communications, the module dynamically interfaces with the Central Supervision Unit (CSU) for auto-addressing, real-time telemetry, remote voltage/current-limit trim, and intelligent modular sleep scheduling for optimized low-load system efficiency.

Question 3

What protection mechanisms and environmental ruggedization standards ensure the ZXD3000's reliability in extreme conditions?

Accepted Answer

The ZXD3000 is hardened for harsh mission-critical environments, operating within an ambient temperature range of -40°C to +75°C (delivering full 3000W output up to +55°C, with linear thermal derating up to +75°C). Cooling is managed by an internal intelligent speed-regulated brushless DC fan with front-to-back airflow. Electrical survivability is fortified by AC input over/under-voltage disconnect with hysteresis, output hardware over-voltage clamp/latch, output short-circuit/over-current self-recovery, and over-temperature shutdown. The AC port conforms to IEC 61000-4-5 surge immunity standards, supporting a demonstrated MTBF exceeding 300,000 operational hours.

Key specifications	Value
Overall System Efficiency	Up to 96.2% (Gold Standard)
Ingress Protection Rating	IP20 (Indoor Dust & Finger Proof)
Acoustic Noise	≤ 55 dBA (at 25°C ambient load)
Dielectric Withstand Voltage	3000VAC Input to Ground (< 5mA)
AC Input Voltage	85VAC ~ 295VAC
DC Output Voltage	-48VDC (-42V ~ -58V)
Rated Output Current	60A
Rated System Output Capacity	3000W
Power Conversion Efficiency	≥ 96.0%
Physical Dimensions	132 × 85 × 290 mm

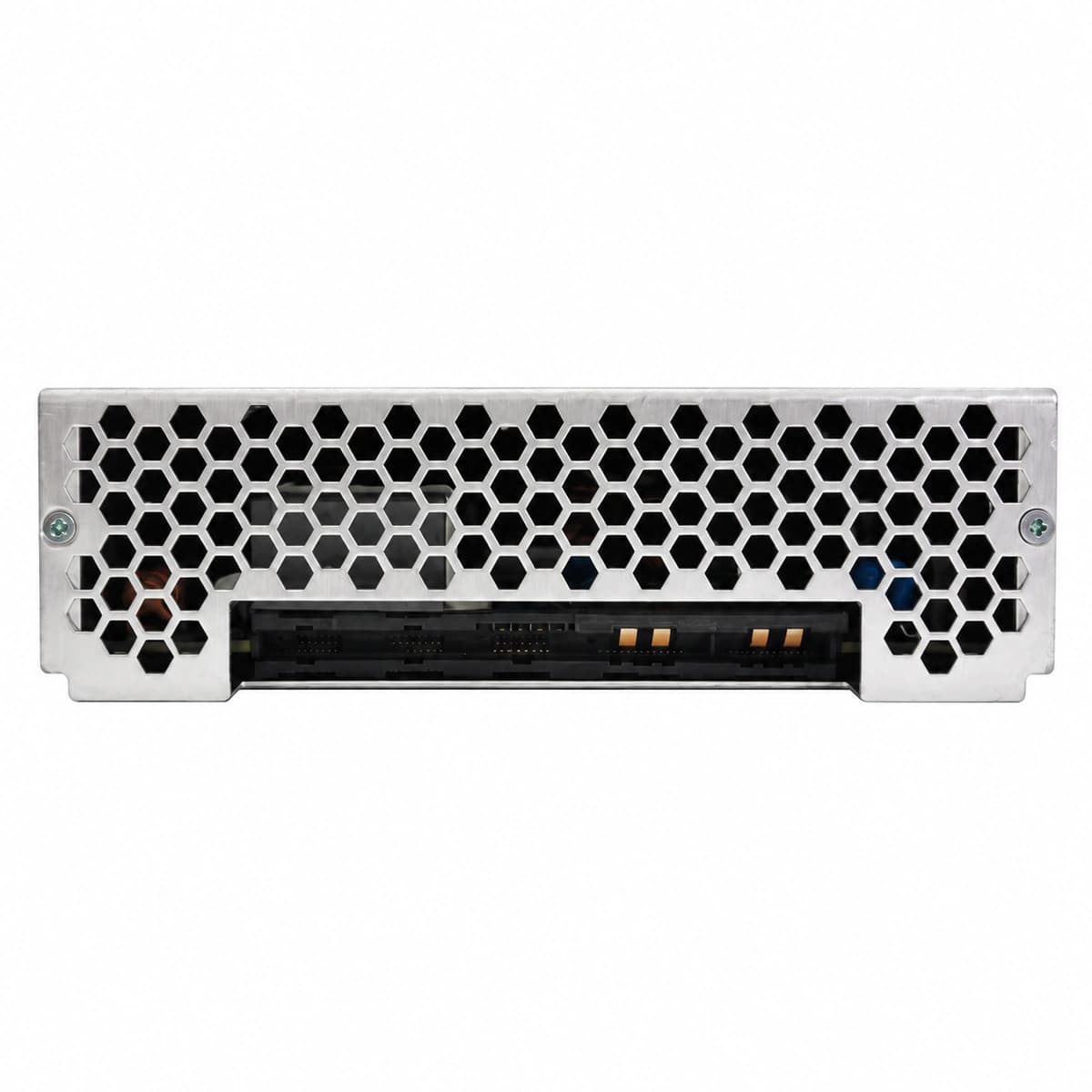

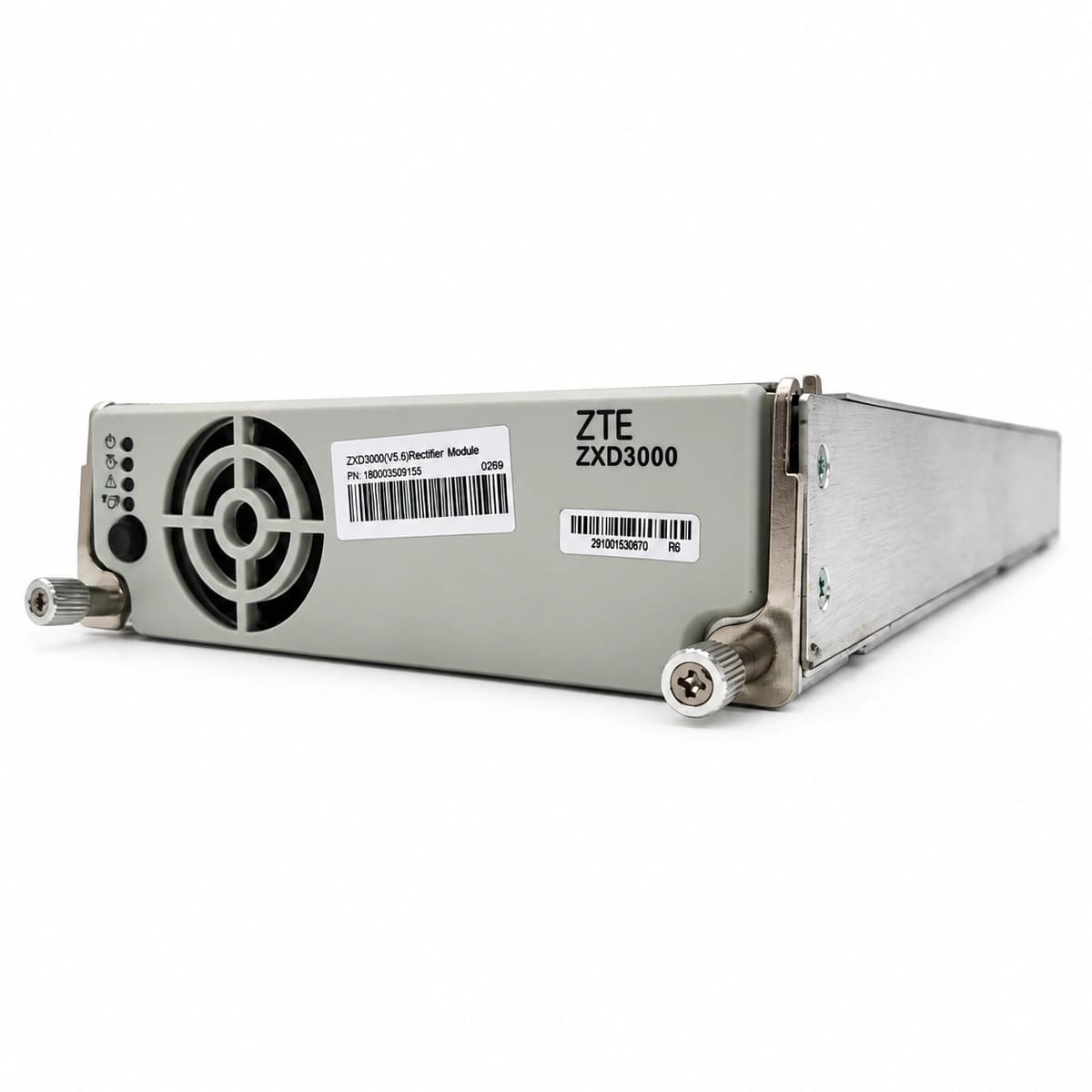

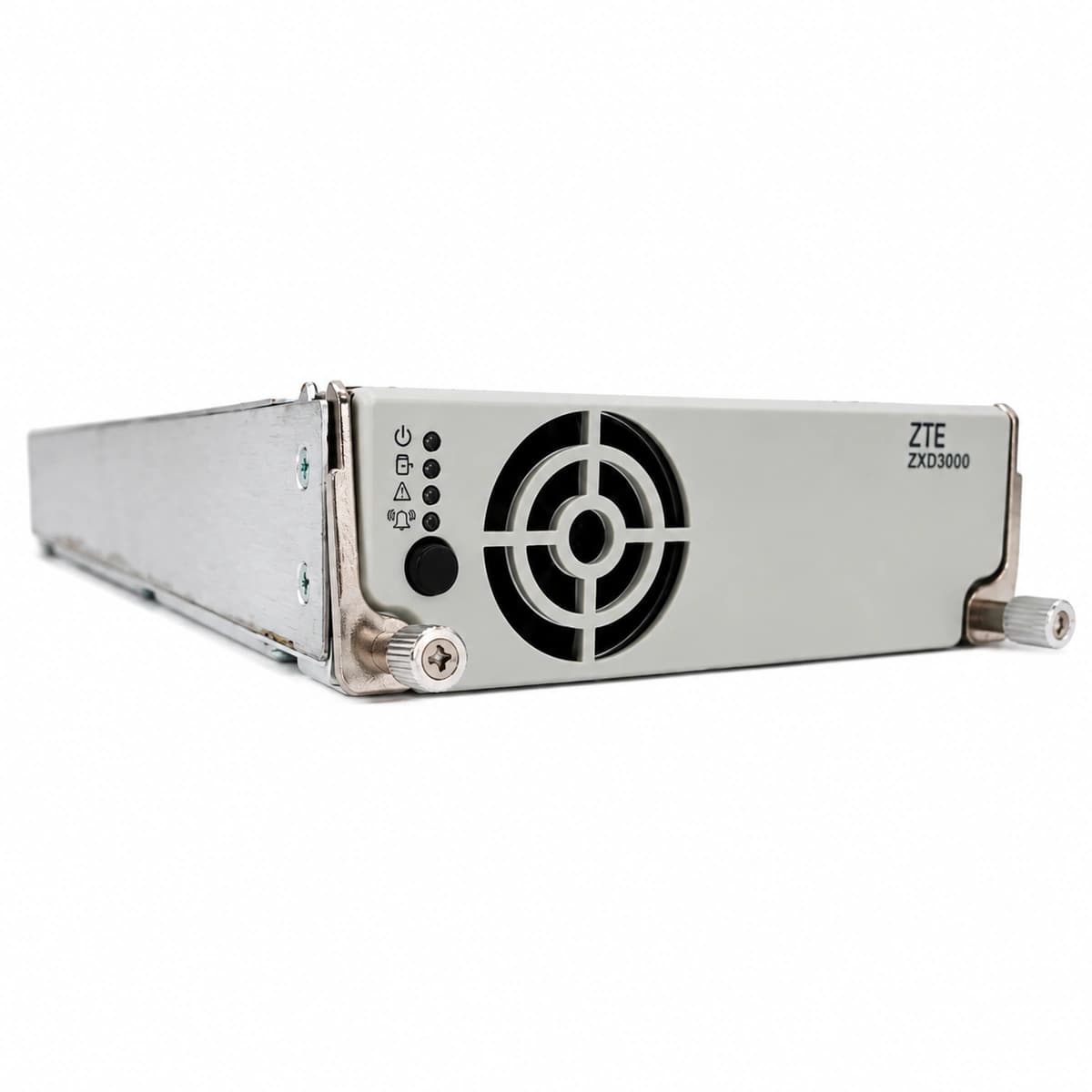

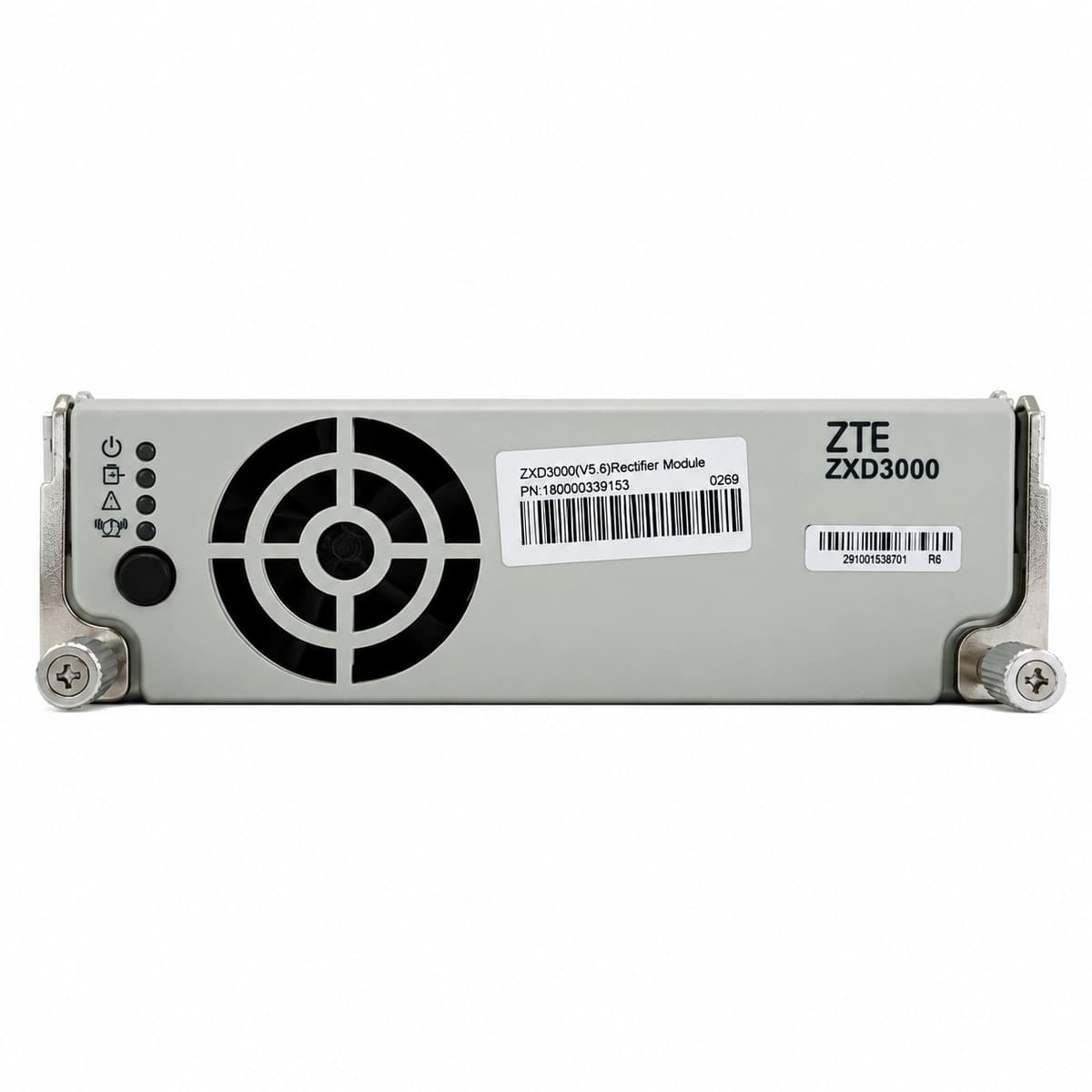

ZTE ZXD3000 High Efficiency Telecom Rectifier Module (48V 60A 3000W)

Talk to RICEWIND

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Telecom 4G/5G macro cellular base stations and distributed remote power sites

Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups

Utility power grid dispatch centers and high-voltage substation DC switchgear rooms

Railway transit signaling, automated train control, and communications equipment rooms
