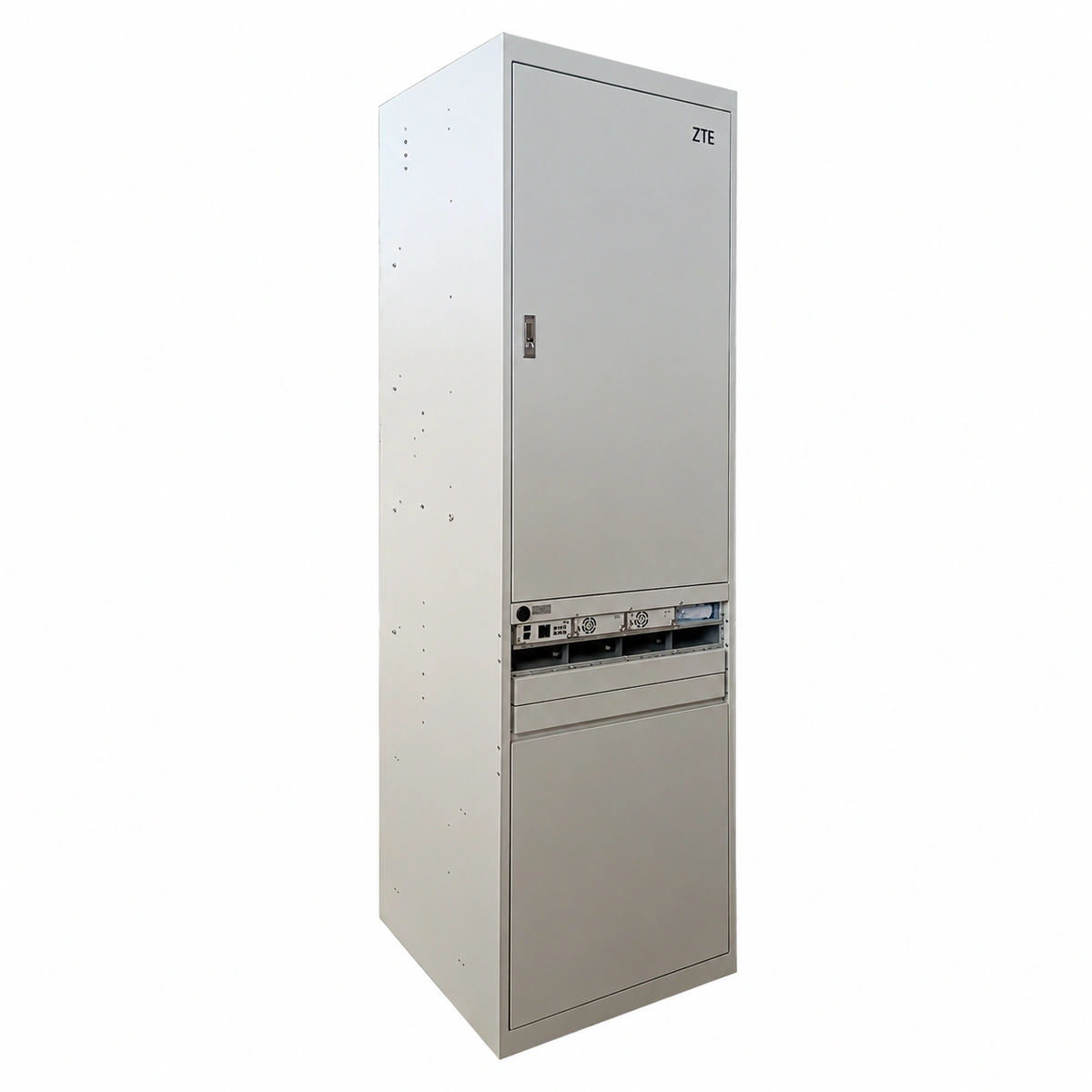

ZXDU60 S301 Official Product View 2
ZTEModel: ZXDU60 S301

ZTE ZXDU60 S301 Indoor Integrated Telecom DC Power Cabinet System (48V 300A)

ZTE ZXDU60 S301 is an indoor floor-standing telecom DC power cabinet system delivering up to 300A (-48VDC) capacity, equipped with 6 ZXD3000 rectifier slots and CSU centralized monitoring.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
Physical Form Factor
19-Inch Rackmount
Battery Connection & Distribution
Dual high-capacity battery inputs with parallel protection
System Monitoring Unit
CSU500B / CSU501 intelligent central monitoring unit
AC Input Voltage
80V~300V AC (three-phase five-wire / single-phase compatible)
System Output Capacity
300A (-48V DC)
Rectifier Module Slots
6 slots

What this product is

What this product is

ZTE ZXDU60 S301 is an indoor floor-standing telecom DC power cabinet system delivering up to 300A (-48VDC) capacity, equipped with 6 ZXD3000 rectifier slots and CSU centralized monitoring.

What problem it solves

ZTE ZXDU60 S301 integrated telecom power cabinet provides 300A output with intelligent rectifier cyclic sleep control and comprehensive battery management.

Who and where it is for

ZTE ZXDU60 S301 is an indoor floor-standing telecom DC power cabinet system delivering up to 300A (-48VDC) capacity, equipped with 6 ZXD3000 rectifier slots and CSU centralized monitoring.

Core advantages

  • Supports 6 ZXD3000 rectifier slots with a 300A max output, ensuring high-reliability power for large telecom base stations.
  • Features 80V~300V ultra-wide AC input and 3-phase/1-phase compatibility to ensure stable operation in unstable grids.
  • Equipped with CSU500B/CSU501 intelligent monitoring units for precise battery management and comprehensive protocol access.
  • Includes dual high-capacity battery inputs with parallel protection in an integrated indoor floor-standing cabinet design.

Technical specifications

Key specificationsValue
Physical Form Factor19-Inch Rackmount
Battery Connection & DistributionDual high-capacity battery inputs with parallel protection
System Monitoring UnitCSU500B / CSU501 intelligent central monitoring unit
Overall System EfficiencyUp to 96.2% (Gold Standard)
Ingress Protection RatingIP20 (Indoor Dust & Finger Proof)
Acoustic Noise≤ 55 dBA (at 25°C ambient load)
Dielectric Withstand Voltage3000VAC Input to Ground (< 5mA)
AC Input Voltage80V~300V AC (three-phase five-wire / single-phase compatible)
System Output Capacity300A (-48V DC)
Rectifier Module Slots6 slots

Applications

01

Telecom 4G/5G macro cellular base stations and distributed remote power sites

02

Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups

03

Utility power grid dispatch centers and high-voltage substation DC switchgear rooms

04

Railway transit signaling, automated train control, and communications equipment rooms
