ZTE ZXDU68 B301 2.1m Outdoor Telecom Power Cabinet System (48V 300A IP55)
The ZTE ZXDU68 B301 is an industrial-grade 2.1m outdoor integrated telecom DC power cabinet system delivering sustained -48V 300A output with an IP55 dual-compa
ZTEModel: ZXDU68 B301 2.1m Outdoor
ZTE ZXDU68 B301 2.1-Meter Outdoor Integrated Telecom Power Cabinet (-48V 300A IP55)

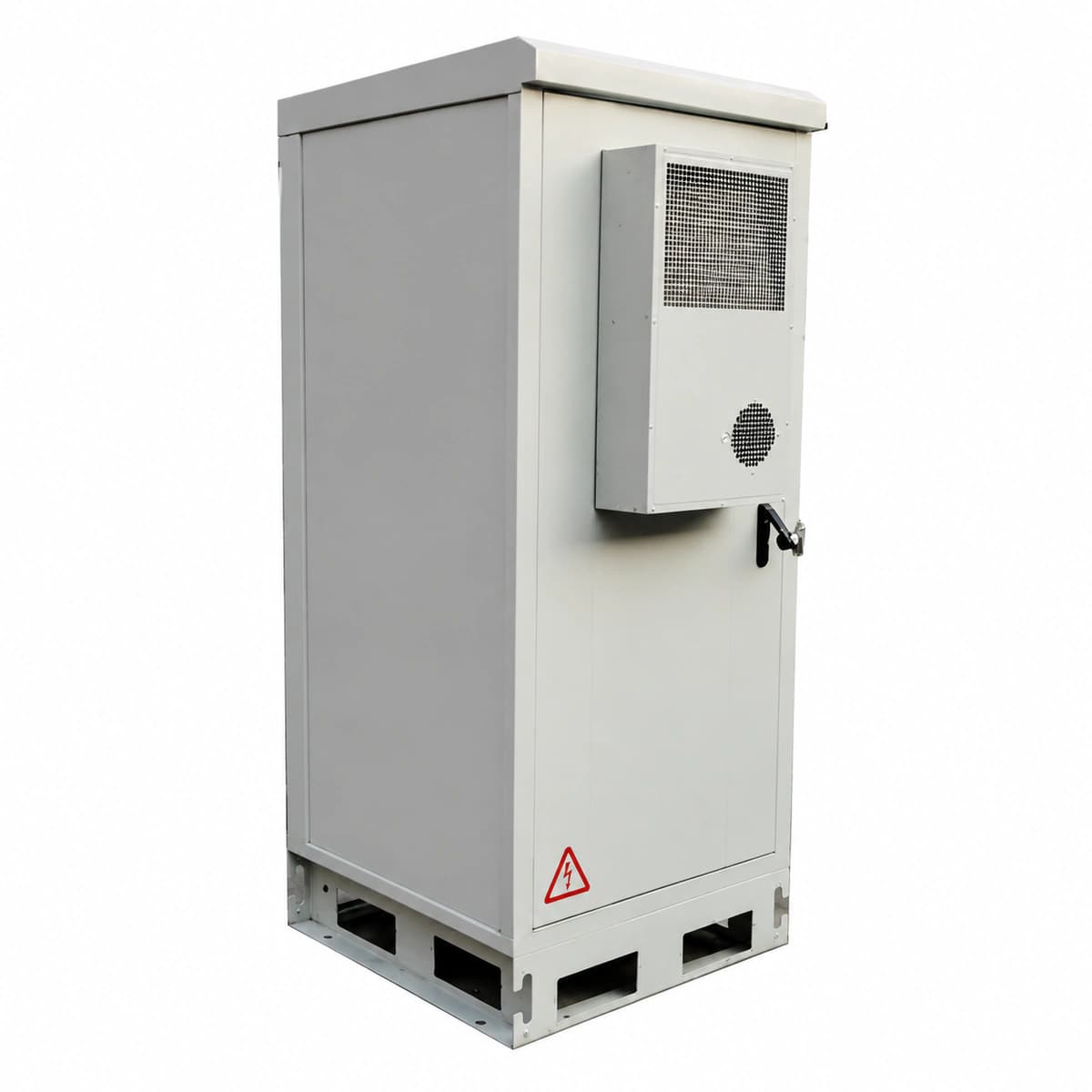

The ZTE ZXDU68 B301 2.1m Outdoor Cabinet is a large-scale integrated outdoor telecom power station rated at -48V 300A, featuring heavy-duty dual-wall IP55 thermal insulation, battery compartments, and ZXD3000 high-efficiency rectifiers.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- System Output Capacity
- 300 A
- Nominal Output Voltage
- -48VDC (-42V ~ -58V) VDC
- Output Voltage Range
- -48VDC (-42V ~ -58V) VDC
- AC Input Voltage
- 80 ~ 300 VAC (three-phase input)
- Rectifier Module Slots
- 6 slots
- Power Conversion Efficiency
- 96.0%
What this product is
What this product is
2.1-meter standalone outdoor pad-mount integrated telecom DC power shelter cabinet.
What problem it solves
Replaces traditional brick-and-mortar shelter buildings with a zero-civil-work, standalone weatherproof power cabinet for remote telecom sites.
Who and where it is for
5G macro tower sites, highway ITS junction nodes, coastal island wireless repeaters, and border communication hubs.
Core advantages

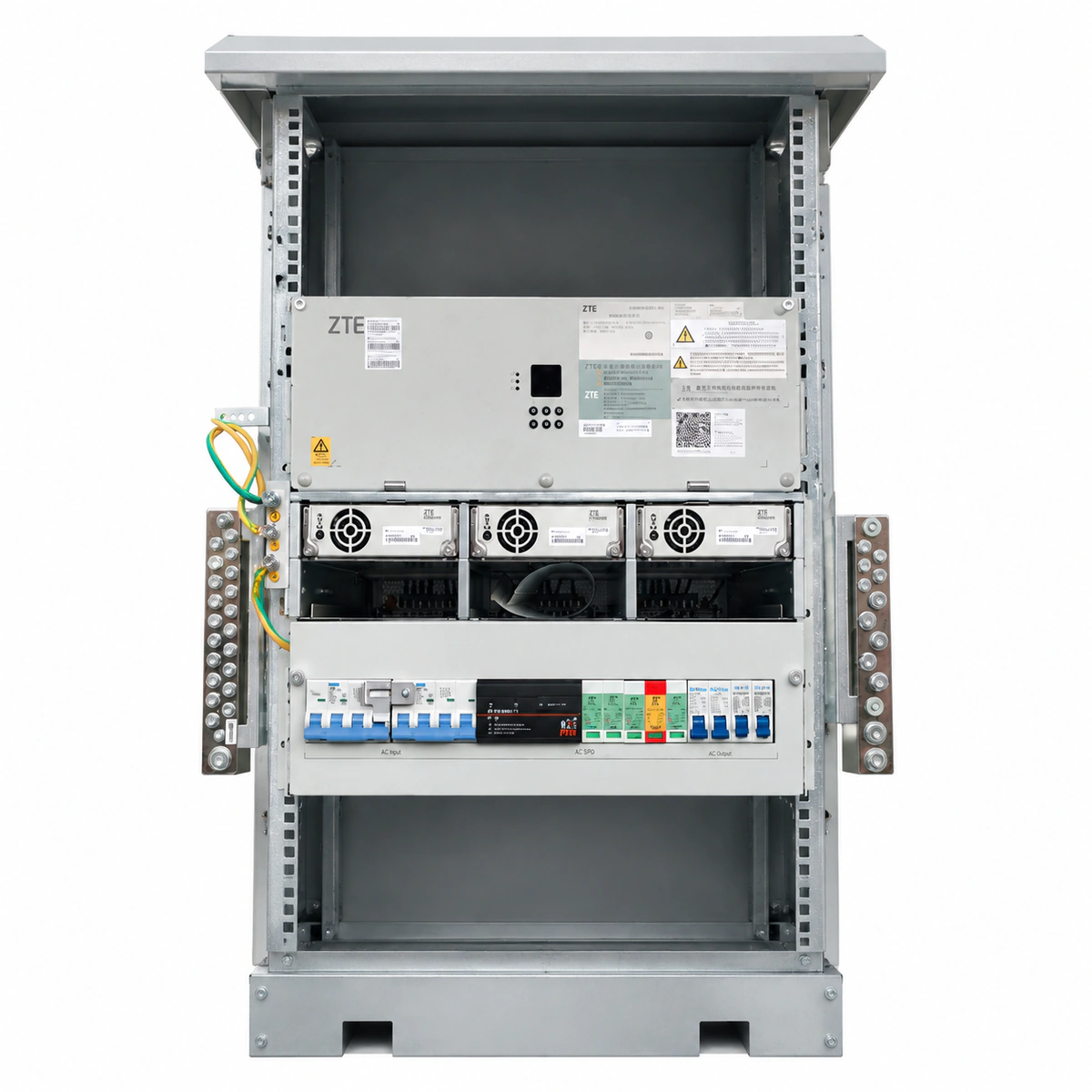

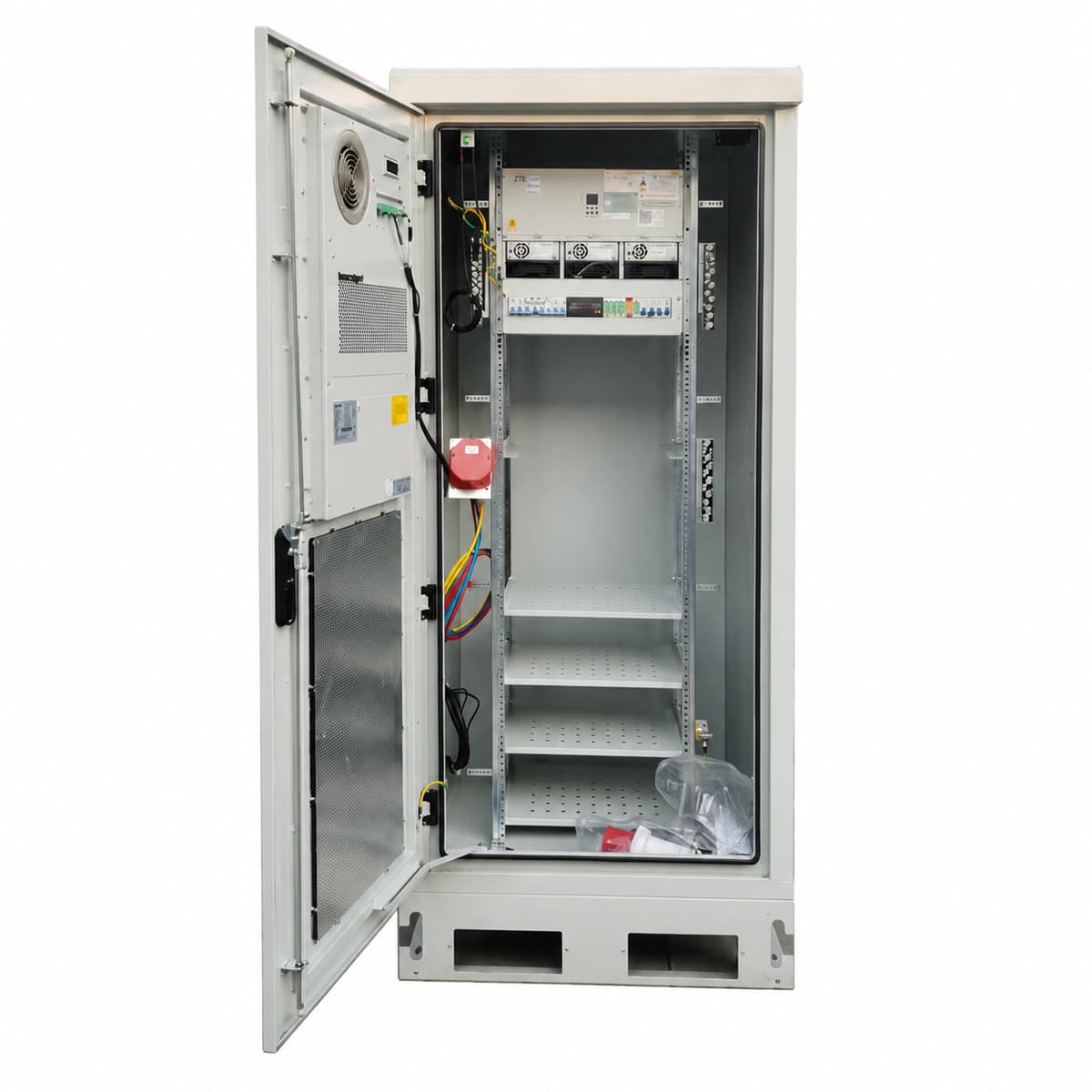

- Massive 2.1-meter chassis integrates DC plant, distribution, and battery shelving
- IP55 weatherproofing with double-wall thermal insulation structure
- Robust 300A DC output capacity with hot-swappable ZXD3000 rectifiers
- Three-point anti-vandal lock system protects mission-critical field assets
Technical specifications
| Key specifications | Value |
|---|---|
| System Output Capacity | 300 A |
| Nominal Output Voltage | -48VDC (-42V ~ -58V) VDC |
| Output Voltage Range | -48VDC (-42V ~ -58V) VDC |
| AC Input Voltage | 80 ~ 300 VAC (three-phase input) |
| Rectifier Module Slots | 6 slots |
| System Monitoring Controller | CSU502A with network management and remote communication |
| Power Conversion Efficiency | 96.0% |
| Ingress Protection (IP Rating) | IP55 Outdoor Ingress Protection Dust & Waterproof (with Dual-Layer Thermal Insulated Battery Compartment) |
| Physical Dimensions | 2100 × 750 × 750 mm (2.1 m large outdoor cabinet) |
| Operating Temperature Range | -40°C ~ +55°C (suitable for extreme cold and heat) |
Applications
01
Telecom 4G/5G macro cellular base stations and distributed remote power sites
02
Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups
03
Utility power grid dispatch centers and high-voltage substation DC switchgear rooms
04
Railway transit signaling, automated train control, and communications equipment rooms
