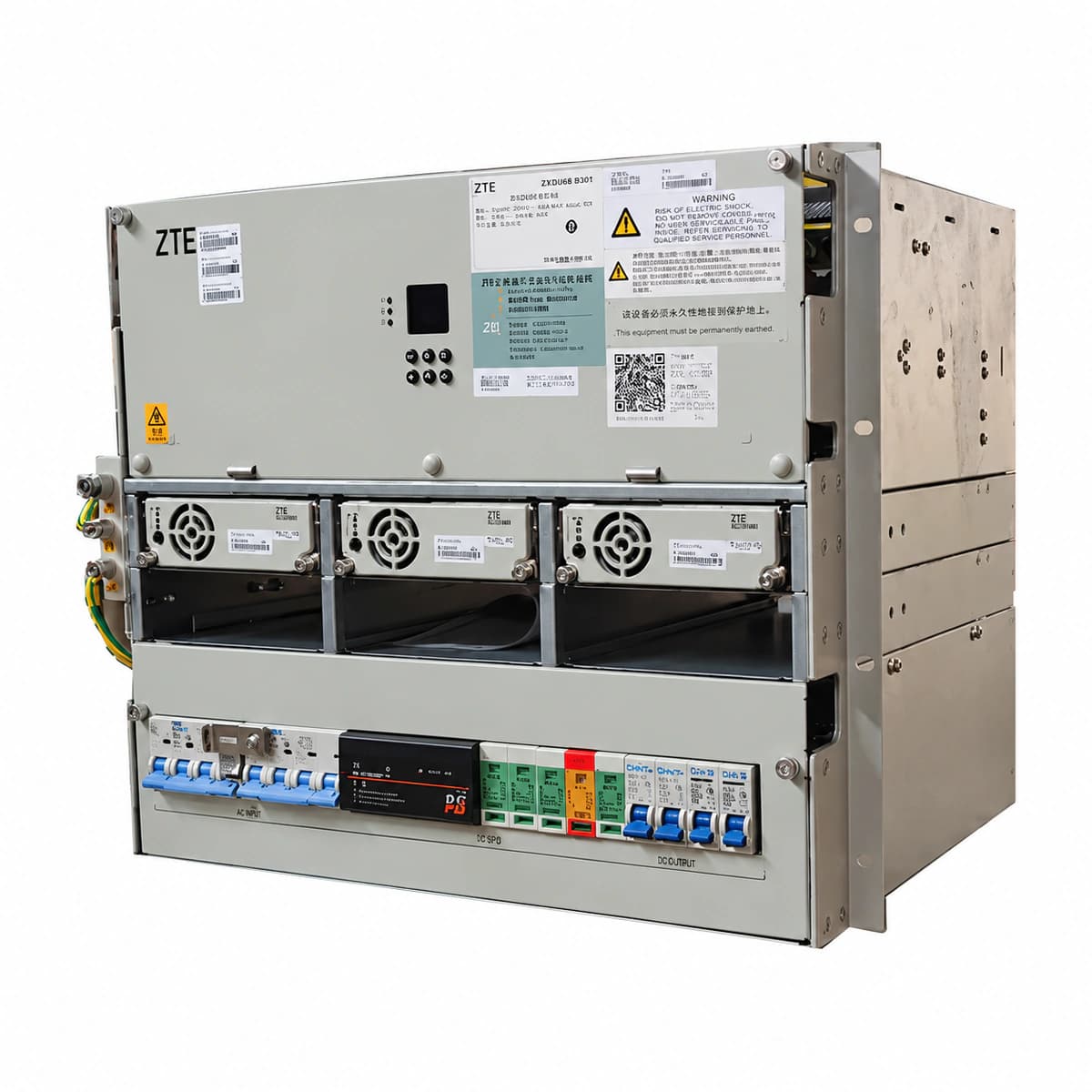

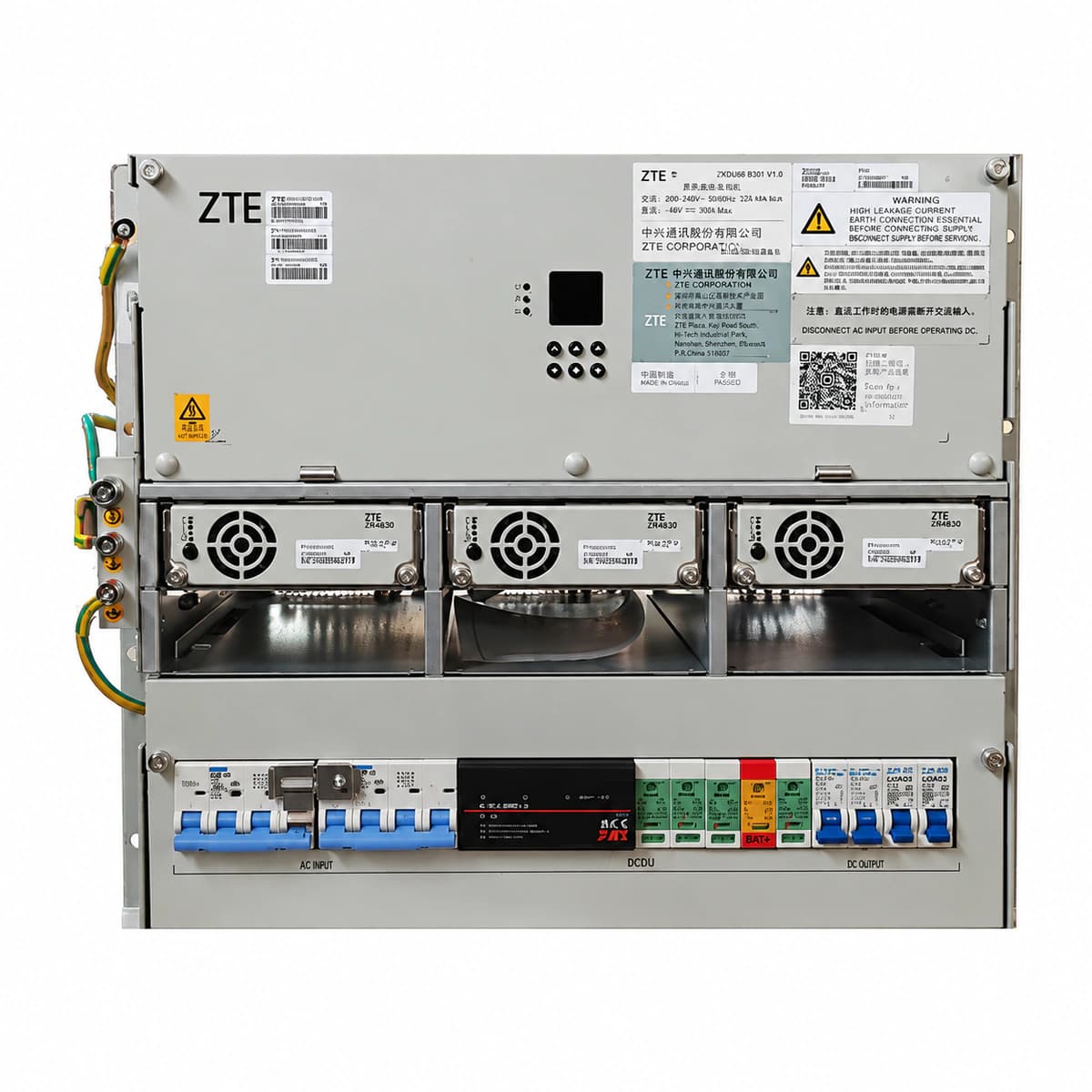

The ZTE ZXDU68 B301 is a heavy-duty embedded telecom DC power system providing up to 300A at -48V DC, holding up to six hot-swappable ZXD3000 rectifiers and a digital CSU controller.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
High-capacity 300A subrack DC power plant configured with ZTE ZXD3000 high-efficiency rectifier modules.
Powers high-density telecom aggregation equipment with full N+1 modular redundancy and dynamic eco-sleep technology.
Central office telecom shelters, metropolitan data networks, and enterprise IT aggregation racks.
| Key specifications | Value |
|---|---|
| Nominal Output Voltage | -48VDC (-42V ~ -58V) VDC |
| Output Voltage Range | -48VDC (-42V ~ -58V) VDC |
| Power Conversion Efficiency | 96.0% |
| Form Factor & Protection | IP20 rack-embedded design |
| System Monitoring Controller | CSU502A / CSU500B ZTE centralized monitoring unit |
| Physical Dimensions | 264 × 482 × 360 mm (6U 19-inch) |
| AC Input Voltage | 80 ~ 300 VAC (three-phase five-wire 380V / single-phase compatible) |
| Operating Temperature Range | -25°C ~ +65°C |
| System Output Capacity | 300 A |
| Rectifier Module Slots | 6 Slots |
