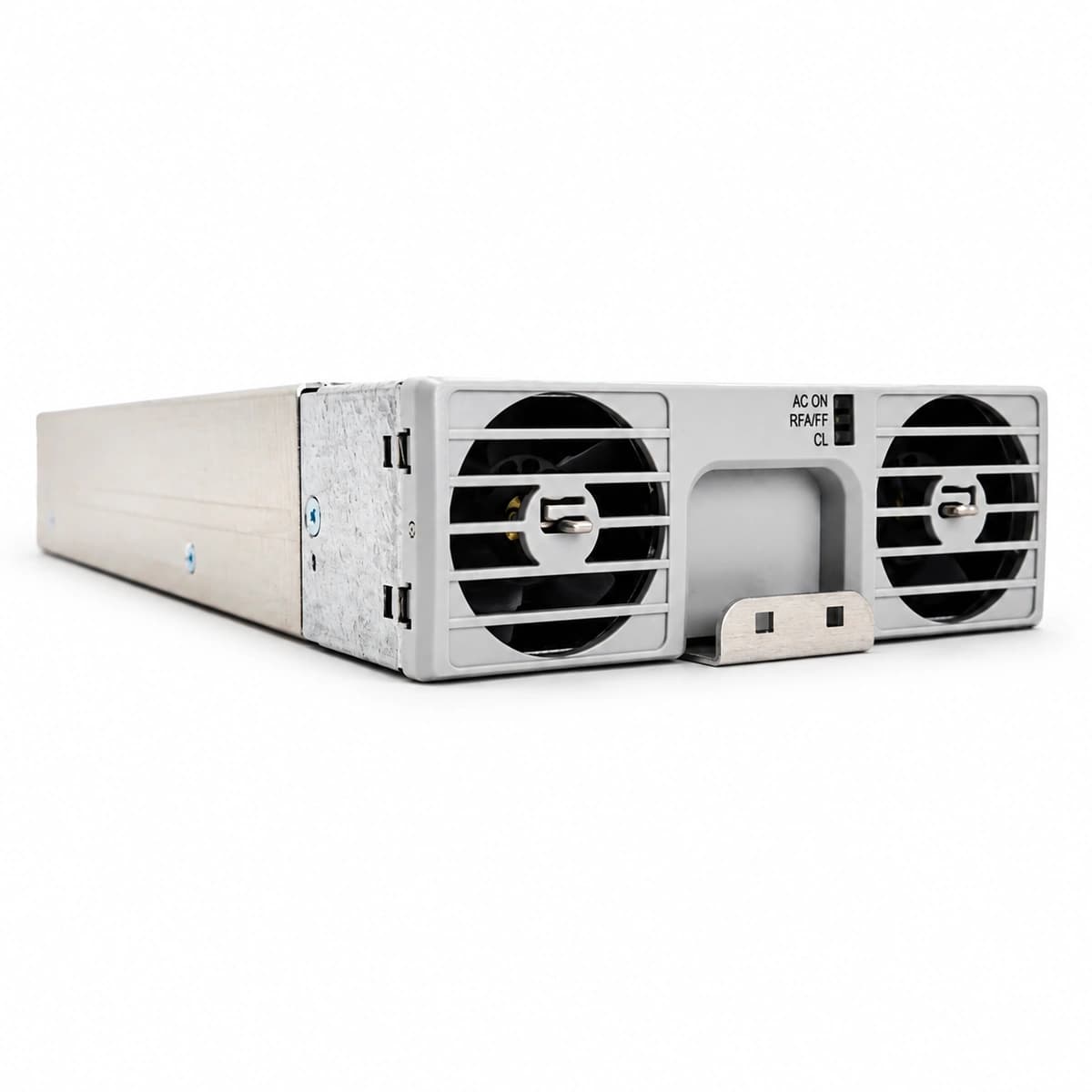

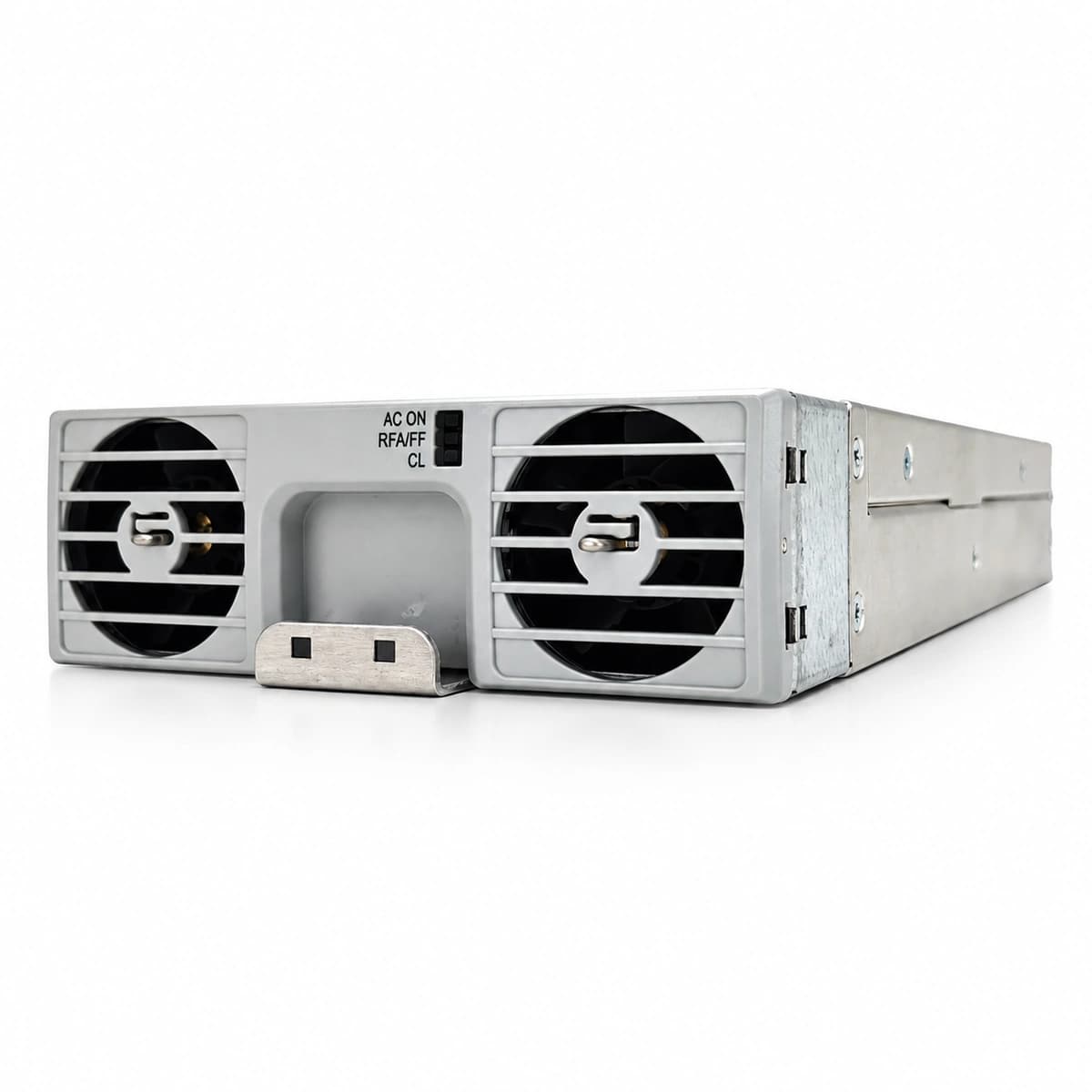

The Delta ESR4840AC is an industrial-grade, high-frequency telecom rectifier module designed to convert standard AC utility power into a regulated nominal 54V DC (adjustable 43V~58V DC) output with a maximum current of 40A and a rated power of 2000W.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Architecturally, the ESR4840AC comprises a continuous conduction mode (CCM) active power factor correction (PFC) boost stage followed by a high-frequency isolated LLC resonant DC-DC converter. Internal microcontrollers handle high-speed autonomous control loops for low THD (<5%), high power factor (>0.99), robust galvanic isolation, and digital telemetry interfacing with system-level supervisory units via an internal communications bus.
It addresses critical telecom network vulnerabilities, including sudden AC brownouts, high-voltage surges, and thermal overload in outdoor enclosures. By providing continuous operation down to 80V AC (with linear derating) and featuring hardware-level overvoltage clamping and intelligent fan diagnostic control, it prevents system bus outages, battery overcharging, and premature component degradation in poor-grid environments.
Tailored for 4G/5G macro and micro base stations, broadband fixed-access telecom shelters, edge computing racks, railway signaling control racks, and industrial 48V DC backup battery-charging plants requiring seamless parallel expansion.
| Key specifications | Value |
|---|---|
| AC Input Voltage | 80V AC ~ 300V AC |
| Rated Output Voltage | -48VDC (-42V ~ -58V) |
| Maximum Output Current | 40A |
| Rated Output Power | 2000W |
| Maximum Efficiency | ≥ 95.0% |
| Operating Temperature Range | -40°C ~ +75°C |
| Cooling System | Forced Air Cooling with Intelligent Speed Fan |
| Hot-Swappable Support | Yes (Live Hot-Pluggable / Plug-and-Play without Power Interruption) |
