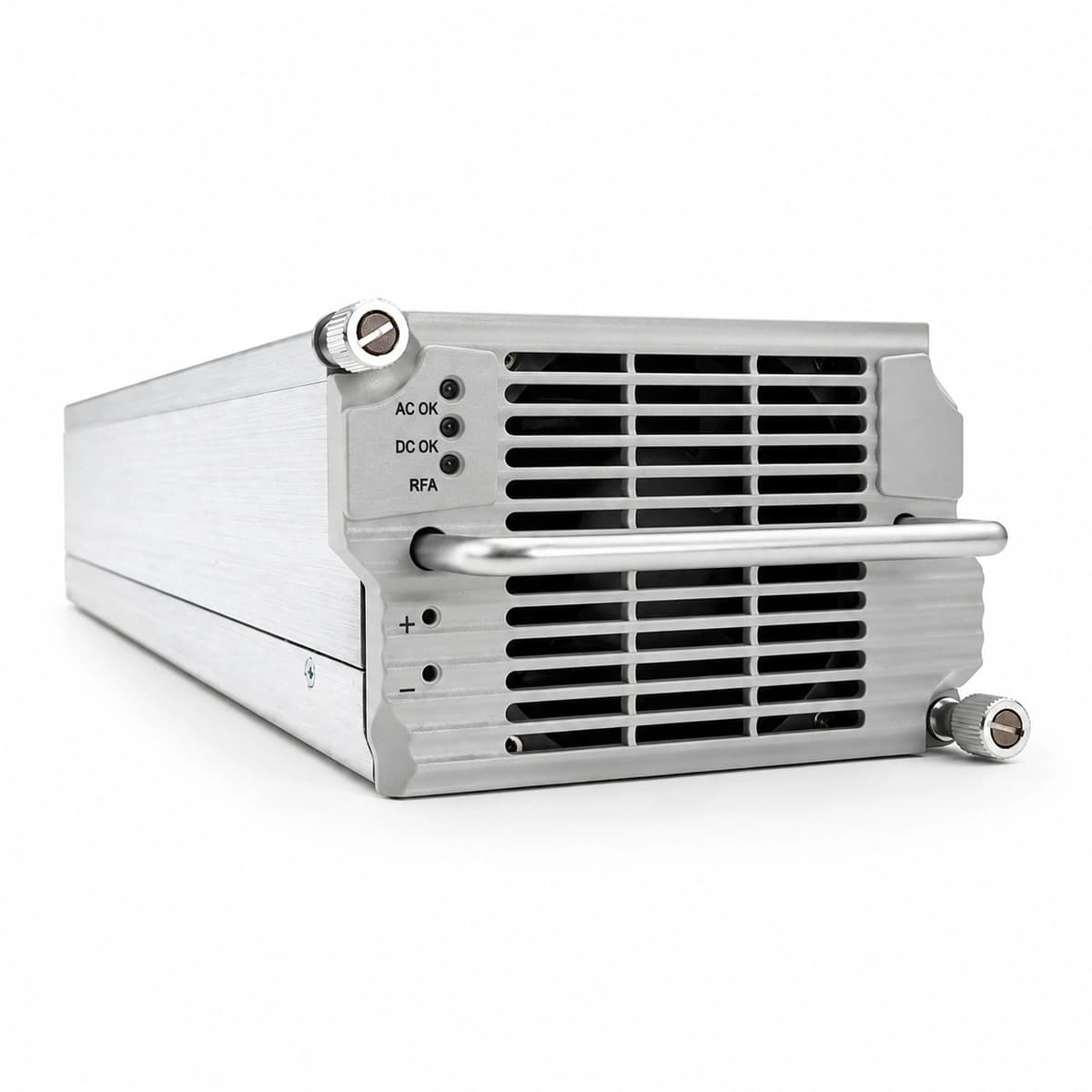

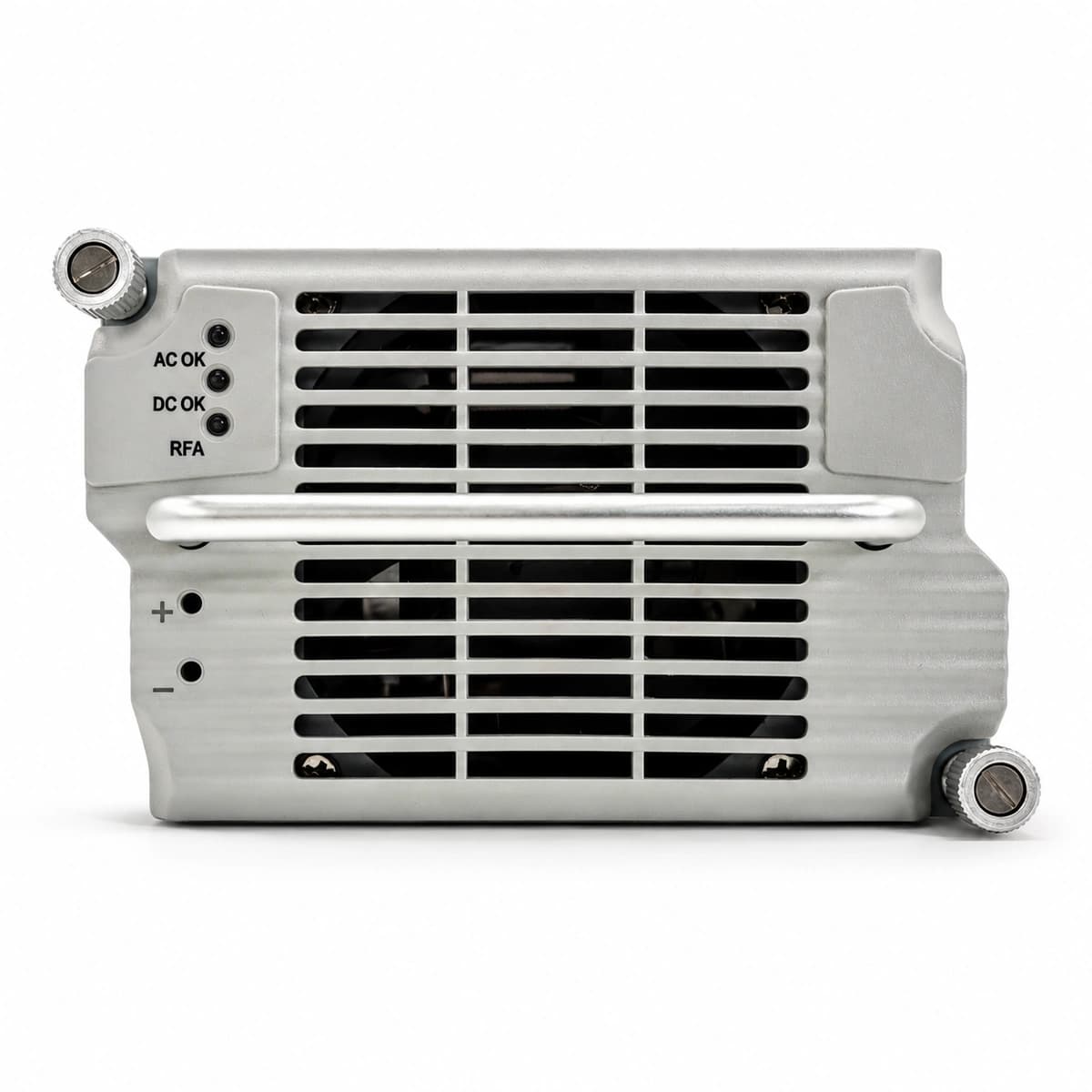

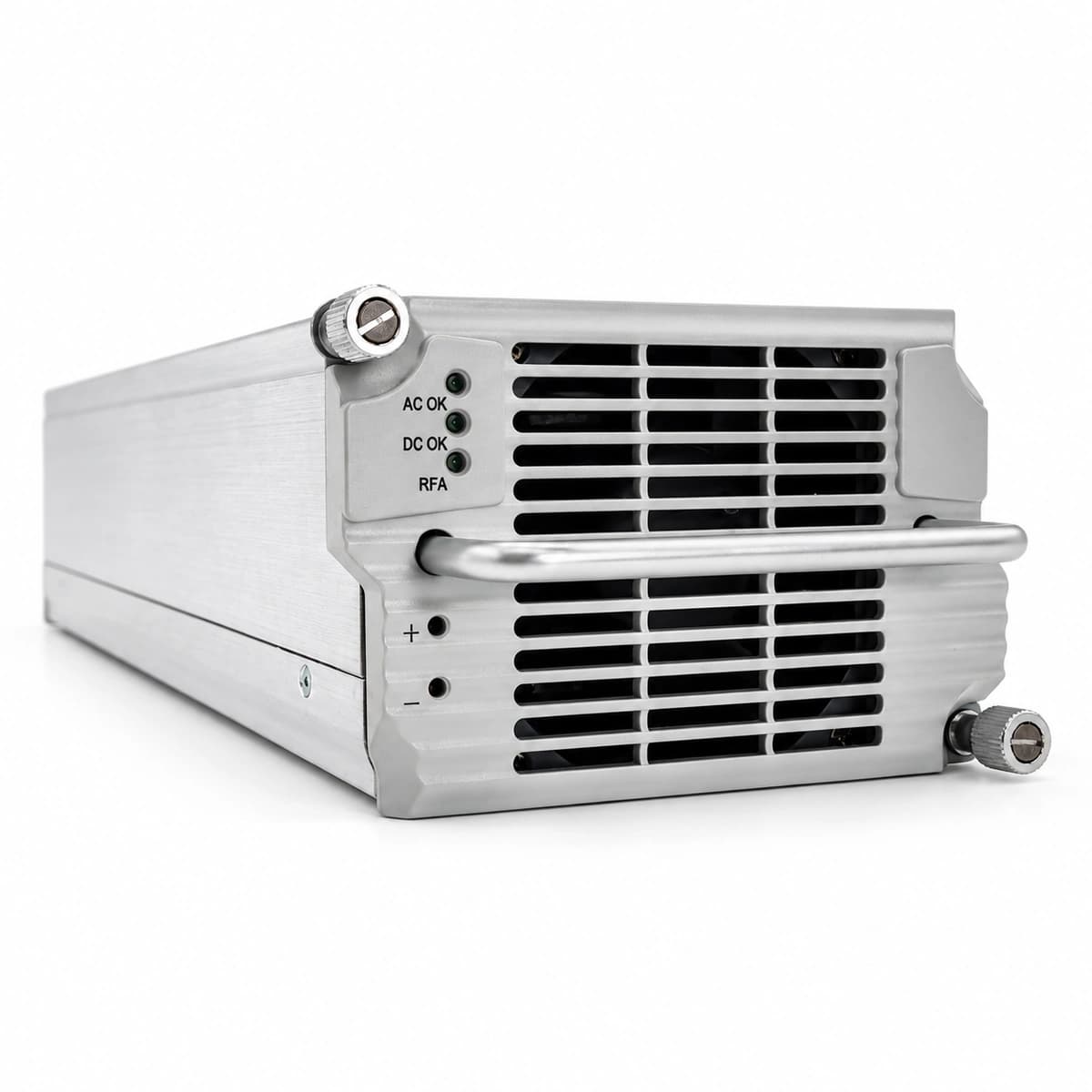

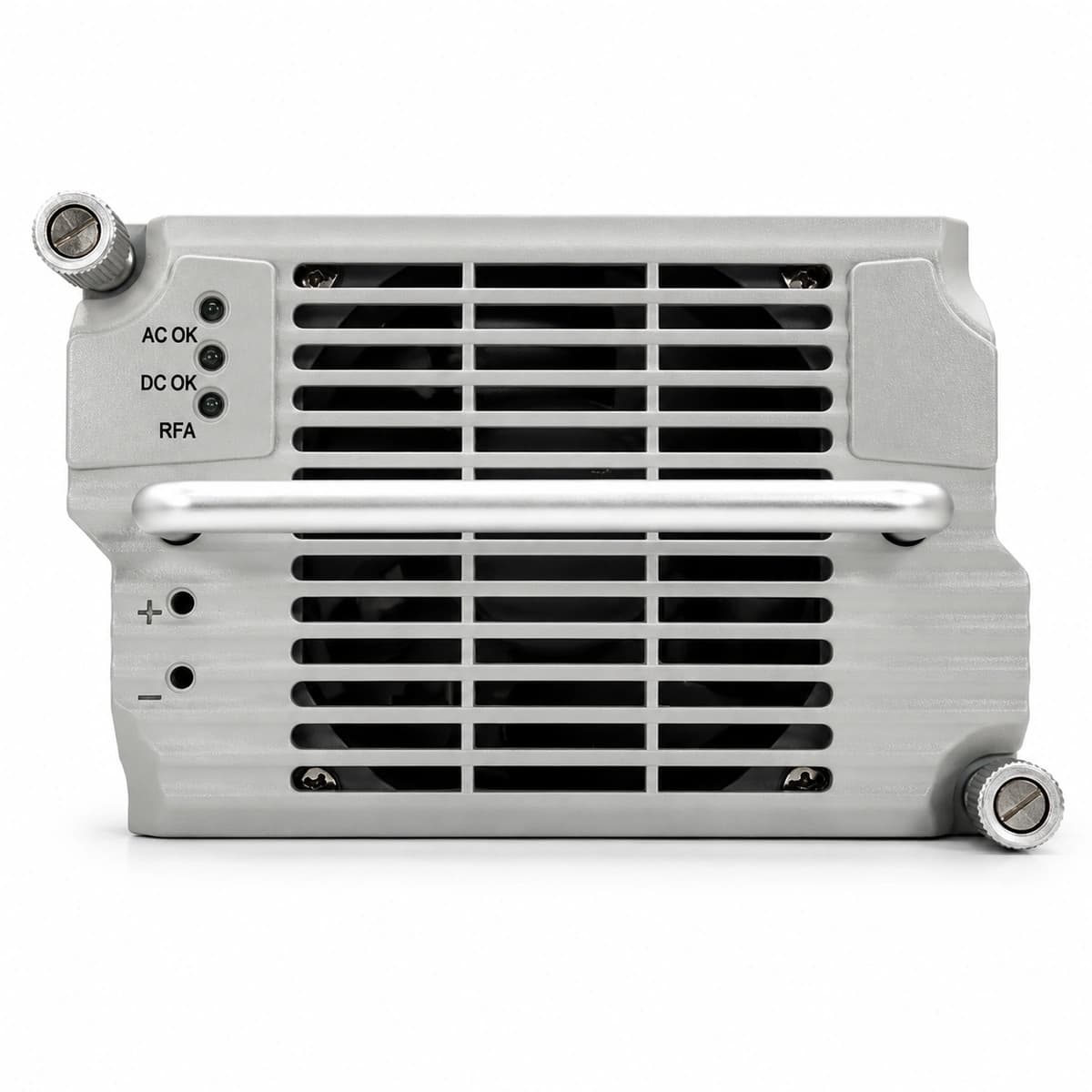

The Delta ESR4850DE is an industrial-grade, carrier-class telecom switch-mode rectifier module delivering a rated 54V DC (adjustable from 43V to 58V DC) output, 50A maximum output current, and 2900W of continuous output power. Engineered for mission-critical DC power plants, it operates over a wide single-phase AC input range of 80V AC to 300V AC.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
The ESR4850DE integrates high-performance two-stage power conversion comprising an active boost PFC stage and an isolated DC-DC resonant topology. Supervised by a high-speed DSP/microcontroller, the unit incorporates active autonomous current sharing, dual closed-loop regulation, and compliance with stringent telecom safety and EMC standards including IEC/EN 62368 and ETSI EN 300 386.
This module mitigates field vulnerabilities caused by poor grid stability, severe voltage sags, power surges, and extreme ambient thermal variations that typically induce rectifier burnout or nuisance tripping. Its dynamic power derating and intelligent thermal throttling eliminate catastrophic shutdowns, while robust autonomous bus sharing prevents circulating currents in large parallel arrays.
Ideal for 4G/5G macro and outdoor distributed base stations, telecom central offices, edge data center 48V DC buses, utility substation automation SCADA equipment, and industrial-grade battery backup charging systems.
| Key specifications | Value |
|---|---|
| AC Input Voltage | 80V AC ~ 300V AC |
| Rated Output Voltage | -48VDC (-42V ~ -58V) |
| Maximum Output Current | 50A |
| Rated Output Power | 2900W |
| Maximum Efficiency | ≥ 95.5% |
| Operating Temperature Range | -40°C ~ +75°C |
| Cooling System | Forced Air Cooling with Intelligent Speed Fan |
| Hot-Swappable Support | Yes (Live Hot-Pluggable / Plug-and-Play without Power Interruption) |
