EltekModel: Eltek Flatpack2 48/3000 HE (241115.106)

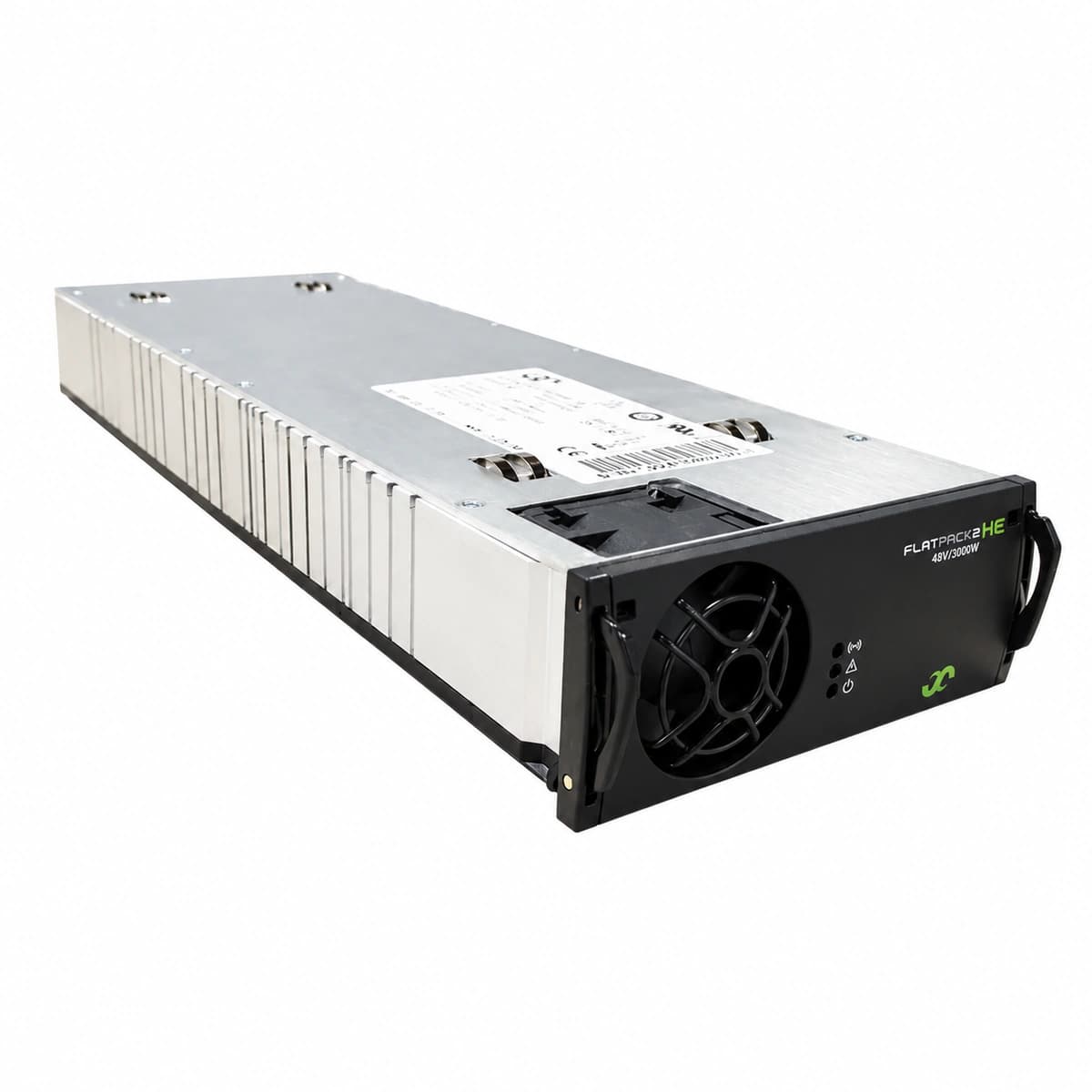

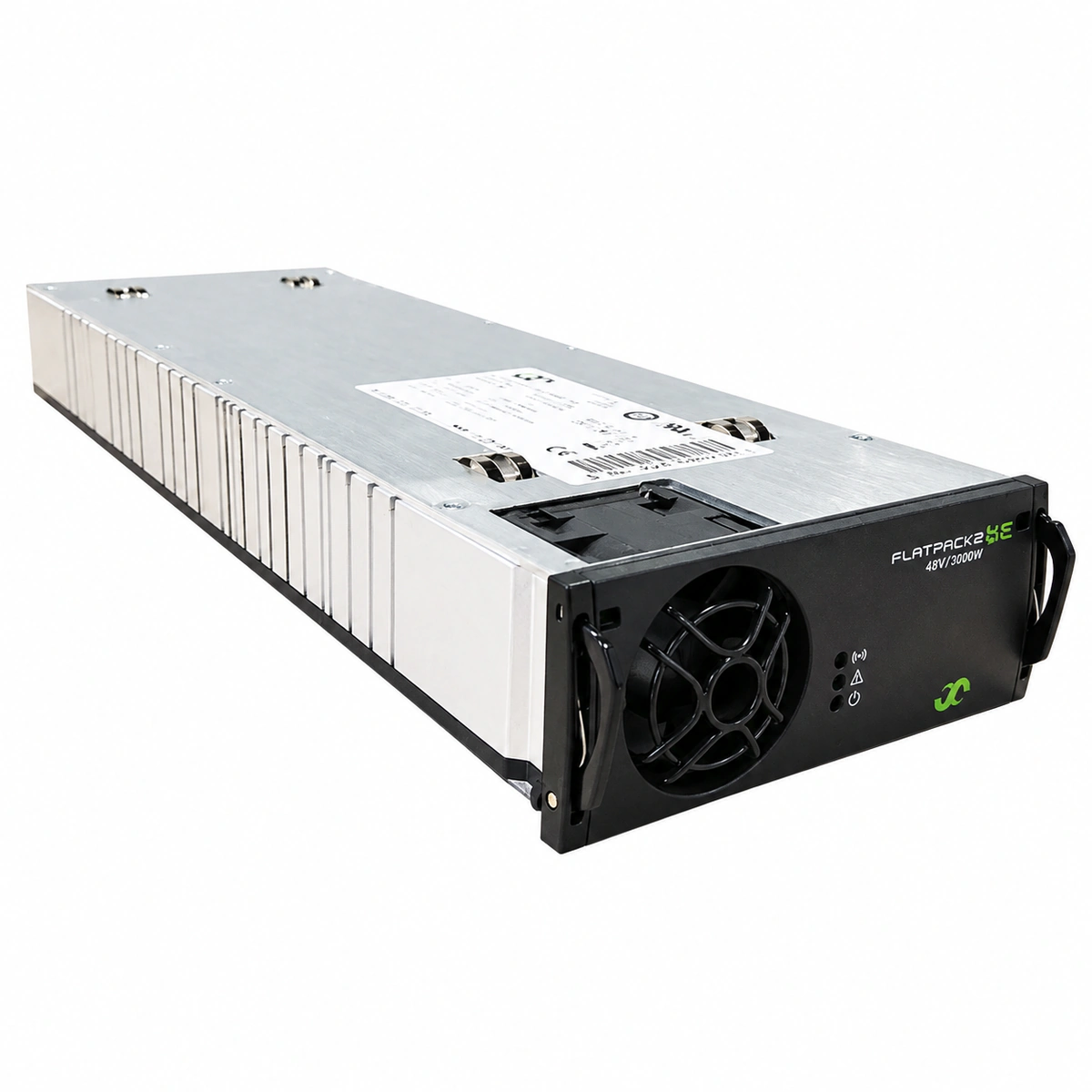

Eltek Flatpack2 48/3000 HE Rectifier Module (241115.106)
High-density 48V 3000W telecom rectifier delivering 62.5A output at 96.5% efficiency, maximizing power capacity in existing power shelves.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- Rated System Output Capacity
- 3000W (maximum output current 62.5A @ 48V)
- AC Input Voltage Tolerance
- 85V to 300V AC wide utility grid tolerance
- Power Conversion Efficiency
- ≥ 96.5%
- DC Voltage Regulation
- -48VDC (-42V ~ -58V)
- Hot-Swap Live Maintenance
- Hot-pluggable live insertion with anti-arcing
- Official Part Number
- 241115.106 (Official high-power HE part number)
What this product is
What this product is
High-density 48V 3000W telecom rectifier delivering 62.5A output at 96.5% efficiency, maximizing power capacity in existing power shelves.
What problem it solves
The Eltek Flatpack2 48/3000 HE (PN: 241115.106) brings 3000W high-density DC power to standard Flatpack2 shelves. Delivering 62.5A at 48V with over 96.5% efficiency, it significantly increases cabinet capacity without requiring extra floor space.
Who and where it is for
High-density 48V 3000W telecom rectifier delivering 62.5A output at 96.5% efficiency, maximizing power capacity in existing power shelves.
Core advantages
- Heavy-duty industrial construction engineered for demanding environments
- High power efficiency topology reducing heat dissipation and operational costs
- Full digital communication integration for centralized monitoring and telemetry
- Comprehensive multi-stage protection against overvoltage, overcurrent, and surges
- Compact modular footprint maximizing equipment density and site utilization
- Carrier-grade durability certified for high Mean Time Between Failures (MTBF)
Technical specifications
| Key specifications | Value |
|---|---|
| Rated System Output Capacity | 3000W (maximum output current 62.5A @ 48V) |
| AC Input Voltage Tolerance | 85V to 300V AC wide utility grid tolerance |
| Power Conversion Efficiency | ≥ 96.5% |
| DC Voltage Regulation | -48VDC (-42V ~ -58V) |
| Hot-Swap Live Maintenance | Hot-pluggable live insertion with anti-arcing |
| Official Part Number | 241115.106 (Official high-power HE part number) |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
Applications
01
Cellular 4G/5G macro sites and distributed antenna coverage networks
02
Mission-critical data center server rooms and edge computing facilities
03
Telecom exchange DC power plant and backup distribution systems
04
Remote industrial telemetry in energy, mining, and railway corridors
