EltekModel: Eltek Minipack 48/800 WI

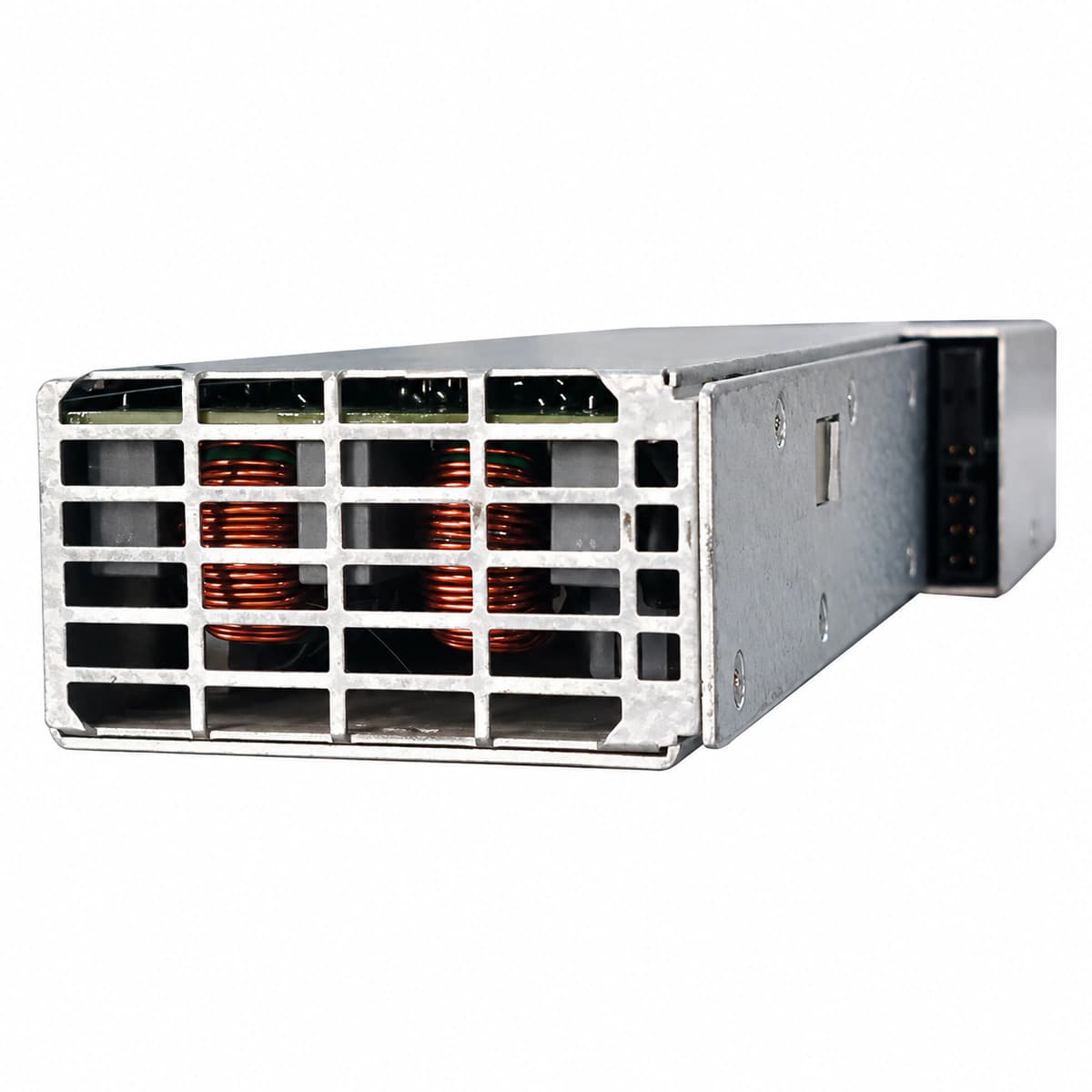

Eltek Minipack 48/800 WI (48V 800W Fanless Convection-Cooled Rectifier Module)
The Eltek Minipack 48/800 WI is a compact hot-pluggable -48V/800W telecom rectifier utilizing advanced resonant soft-switching topology and pure natural convection cooling, engineered specifically for mission-critical, fanless, ultra-silent, and dust-prone industrial deployments.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- Rated Output Power
- 800W
- DC Output Voltage
- -48VDC (-42V ~ -58V) V DC
- Rated Output Current
- 16.7A (-48V DC)
- AC Input Voltage
- 85V AC ~ 300V AC (Rated 100V~250V AC)
- Power Conversion Efficiency
- ≥ 91.0%
- Cooling Method
- Natural Convection Cooling (Ultra-Quiet Fanless)
What this product is
What this product is
A 1U ultra-compact modular DC power conversion unit featuring active Power Factor Correction (PFC) and isolated DC-DC stages, encased in a heavy-duty extruded aluminum heatsink for passive heat dissipation without rotating fans.
What problem it solves
Eliminates high failure rates caused by fan mechanical wear, dust accumulation, and acoustic noise in conventional forced-air cooling systems, ensuring uncompromised reliability in sealed outdoor enclosures and office environments.
Who and where it is for
Telecommunication access networks, wireless micro-base stations, outdoor integrated enclosures, utility substations, fiber-to-the-home/building (FTTx) central offices, and railway SCADA infrastructure.
Core advantages
- Natural convection cooling with zero fan failures, ensuring exceptional MTBF
- Ultra-wide input window of 85V to 300V AC with smart linear thermal and voltage derating
- High efficiency (>91%) and unity power factor (PF ≥ 0.99) reducing operational energy costs
- Native CAN bus integration with Smartpack and Compack digital supervisory controllers
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Output Power | 800W |
| DC Output Voltage | -48VDC (-42V ~ -58V) V DC |
| Rated Output Current | 16.7A (-48V DC) |
| Cooling Method | Natural Convection Cooling (Ultra-Quiet Fanless) |
| AC Input Voltage | 85V AC ~ 300V AC (Rated 100V~250V AC) |
| Power Conversion Efficiency | ≥ 91.0% |
| Physical Dimensions | 41.5 × 139 × 250 mm |
| Operating Temperature Range | -40°C to +75°C |
Applications
01
Compact telecom DC power plants and indoor small-cell sites
02
Hermetically sealed outdoor telecom/industrial cabinets
03
Railway signaling and electrical substation automation SCADA systems
04
Acoustically sensitive deployments including indoor enterprise and medical labs
