EltekModel: Eltek Smartpack S Controller

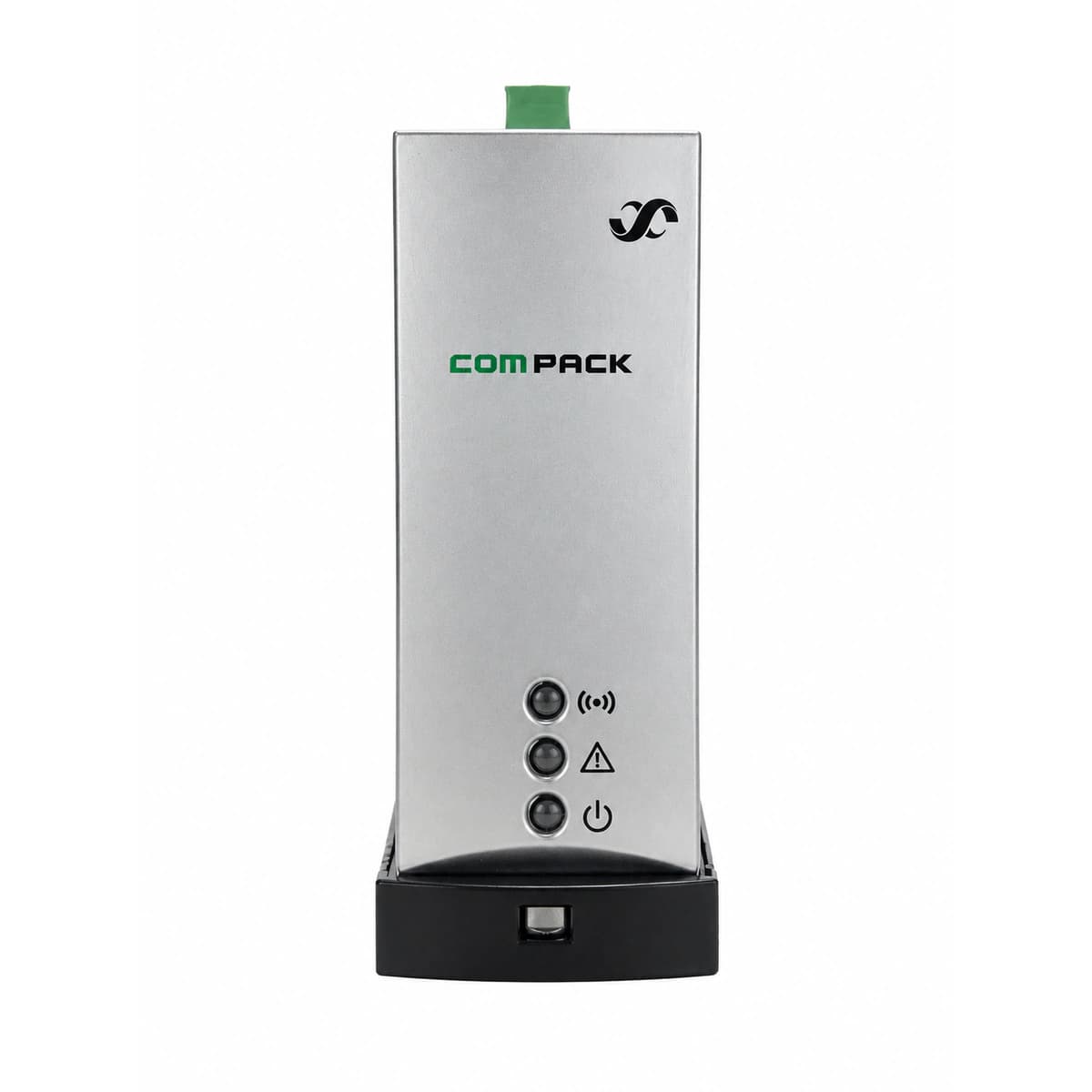

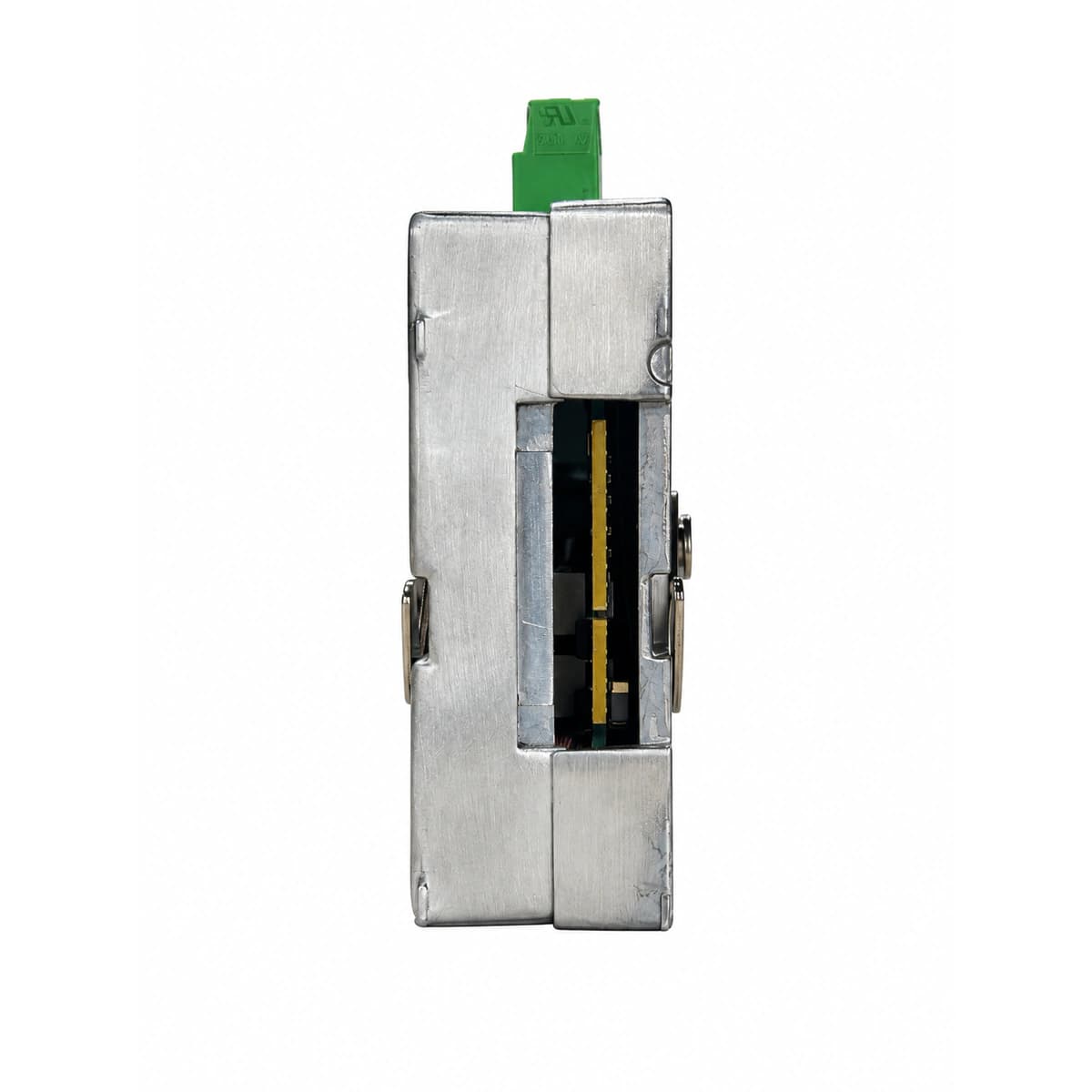

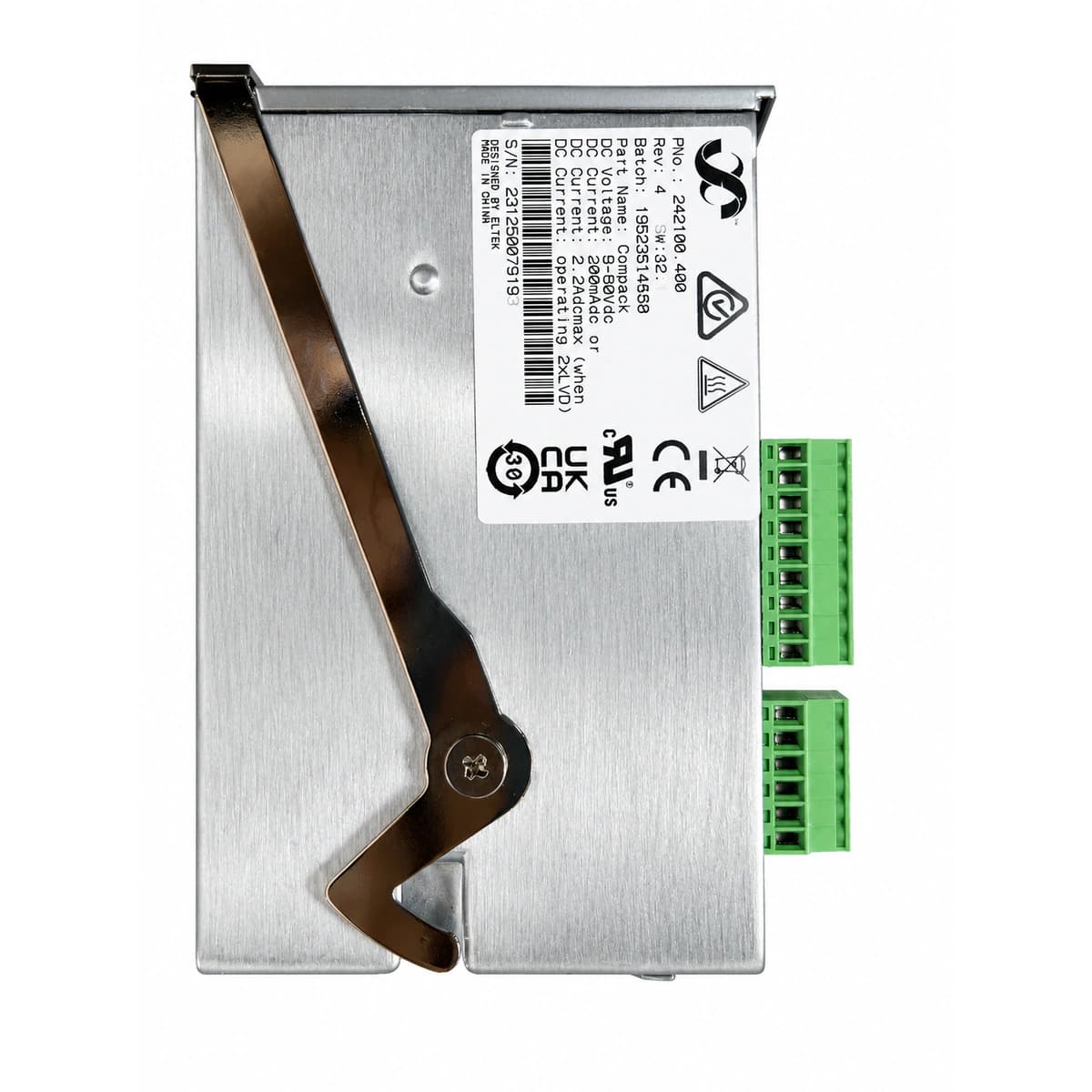

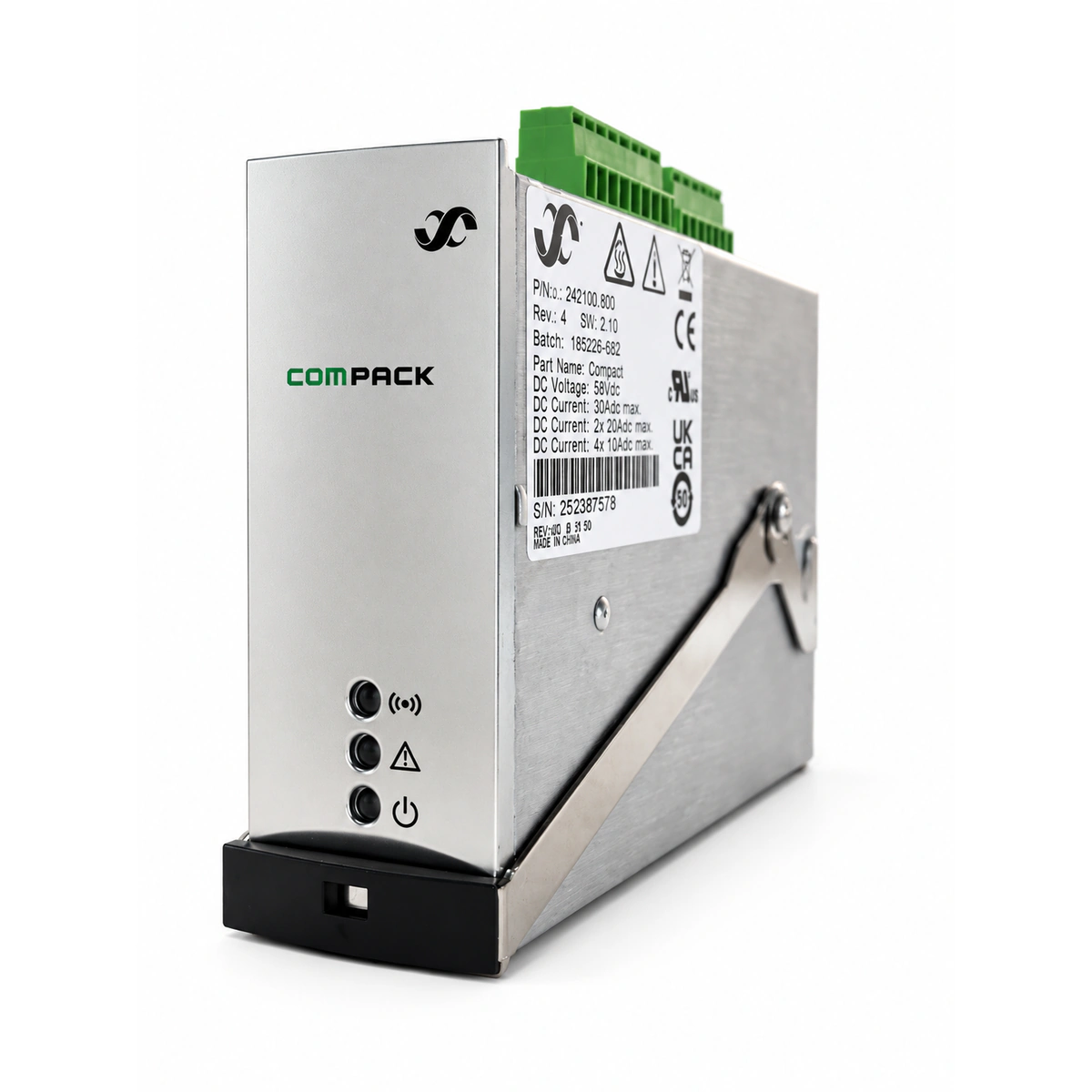

Eltek Smartpack S Controller Compact Power System Monitor (242100.400)
The Eltek Smartpack S (Part Number: 242100.400) is a high-reliability, plug-in miniature digital control unit engineered for compact telecom DC power systems, operating across a wide 18V to 60V DC supply range, utilizing a high-speed CAN bus topology to synchronize rectifiers and providing comprehensive Ethernet-based SNMPv3/Web remote administration with advanced battery lifecycle management.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- Physical Form Factor
- DIN Rail Mount or Embedded Subrack Plug-in Controller Unit
- Display Interface
- OLED High Definition Digital Display
- Supervisory Bus & Sharing
- CAN Bus High-Speed Digital Interconnection
- Remote Network Interface
- Ethernet 10/100M RJ45 (Web/SNMPv3 Supported)
- Battery Management Features
- Advanced Smart Battery Care & Auto Float Algorithm

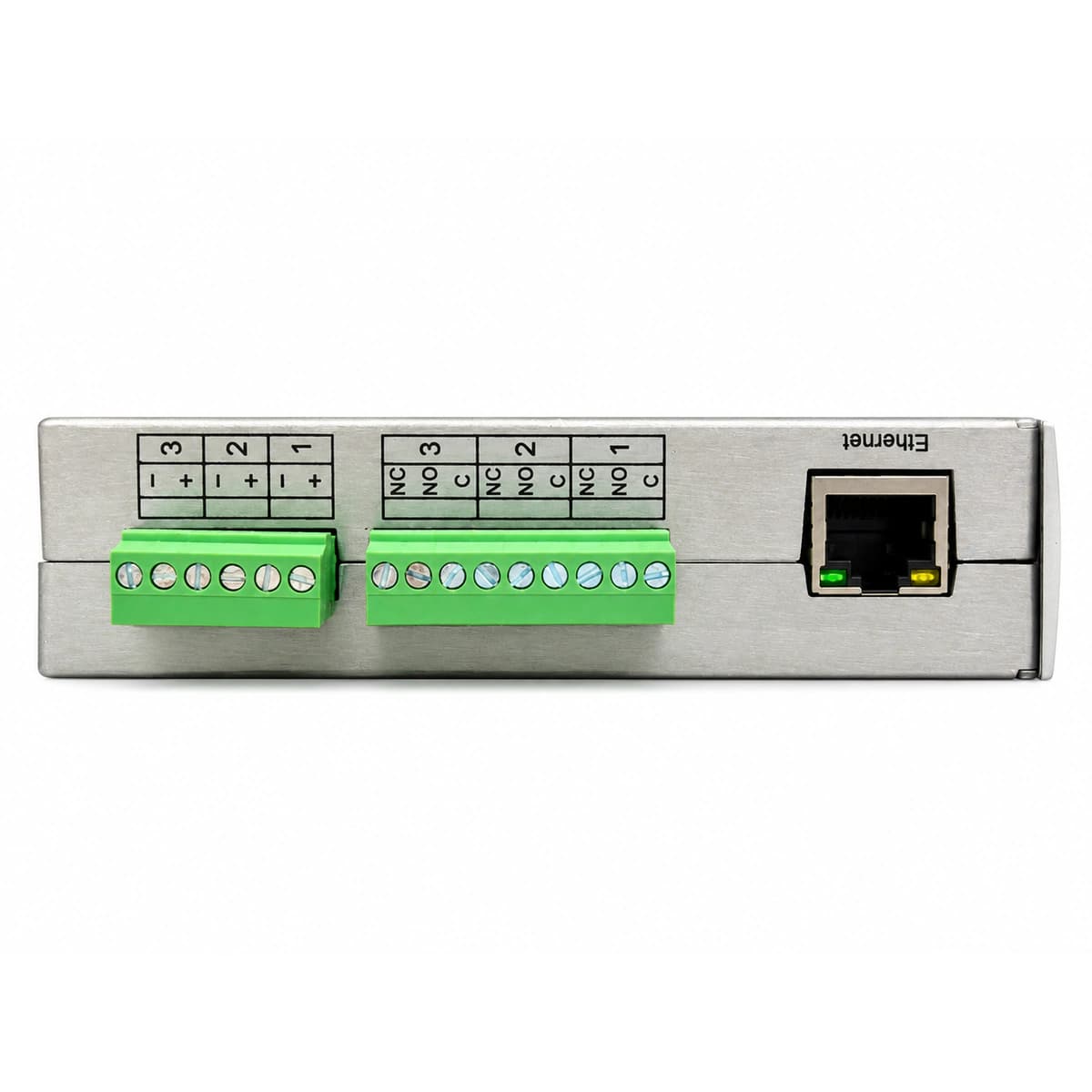

- Dry Contact I/O Channels
- 6 User-Programmable Dry Contact I/O Ports
What this product is
What this product is
Smartpack S (242100.400) is an ultra-compact, hot-pluggable 1U form-factor system controller built around an industrial micro-controller. It acts as the operational nerve center for DC power shelves, integrating a dual-wire CAN-bus system interface, a local high-visibility OLED interface, and an Ethernet networking subsystem that enables granular management of rectifiers, batteries, and distribution alarms.
What problem it solves
Eliminates physical space limitations in shallow 1U/2U indoor and outdoor cabinets; resolves cybersecurity vulnerabilities of legacy systems via modern SNMPv3 and encrypted interfaces; mitigates premature battery failure caused by improper equalization, uncompensated floating, or thermal runaway; significantly reduces on-site OPEX by offering remote diagnostics and configuration.
Who and where it is for
4G/5G mobile base station power distribution, FTTx broadband outdoor enclosures, railway signaling stations, edge-computing micro data facilities, and industrial utility 24V/48V standby backup installations.
Core advantages
- High-contrast local OLED display with intuitive keys allows comprehensive local setup without requiring a service PC
- Native 10/100M Ethernet with full support for SNMPv3, secure HTTPS Web GUI, and NTP automatic time synchronization
- State-of-the-art battery analytics including battery symmetry testing, boost charging, and dynamic temperature-compensated float control
- Ruggedized telecom hardware platform rated for -40°C to +65°C operation with 18V-60V DC adaptive auxiliary power
Technical specifications
| Key specifications | Value |
|---|---|
| Display Interface | OLED High Definition Digital Display |
| Supervisory Bus & Sharing | CAN Bus High-Speed Digital Interconnection |
| Remote Network Interface | Ethernet 10/100M RJ45 (Web/SNMPv3 Supported) |
| Battery Management Features | Advanced Smart Battery Care & Auto Float Algorithm |
| Dry Contact I/O Channels | 6 User-Programmable Dry Contact I/O Ports |
| Operating Voltage DC | 18V DC ~ 60V DC Wide Operating Range |
| Physical Form Factor | DIN Rail Mount or Embedded Subrack Plug-in Controller Unit |
| Operating Temperature Range | -40°C to +65°C |
Applications
01
Integrated 1U/2U Flatpack S and Minipack shelf monitoring in telecom shelter racks
02
Harsh outdoor cabinet installations (IP55/IP65) requiring fanless, low-power control electronics
03
Critical supervisory backbone for remote railway wayside telecom and signaling backup power
04
Substation and SCADA industrial automation 24V/48V battery bank surveillance and remote alarms
