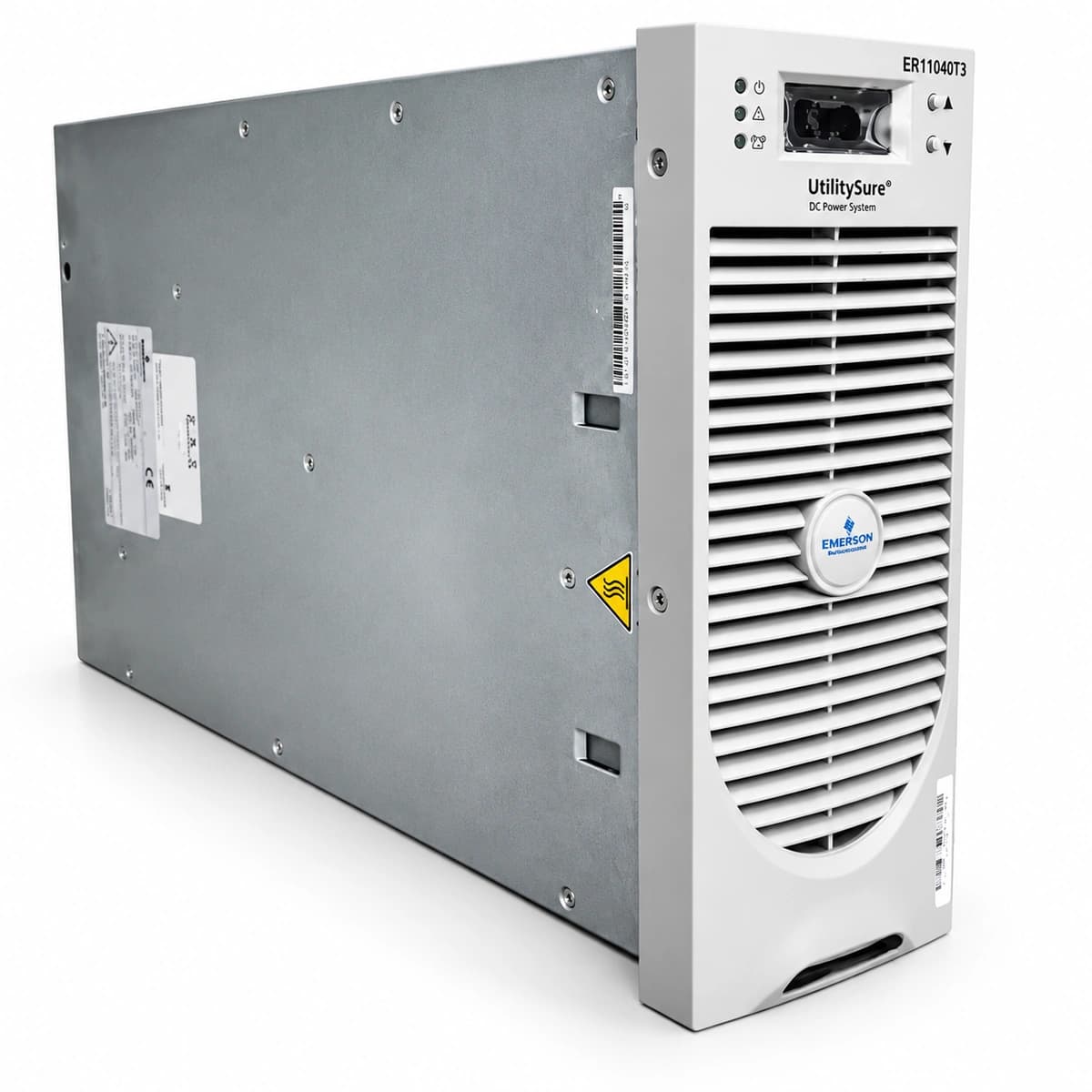

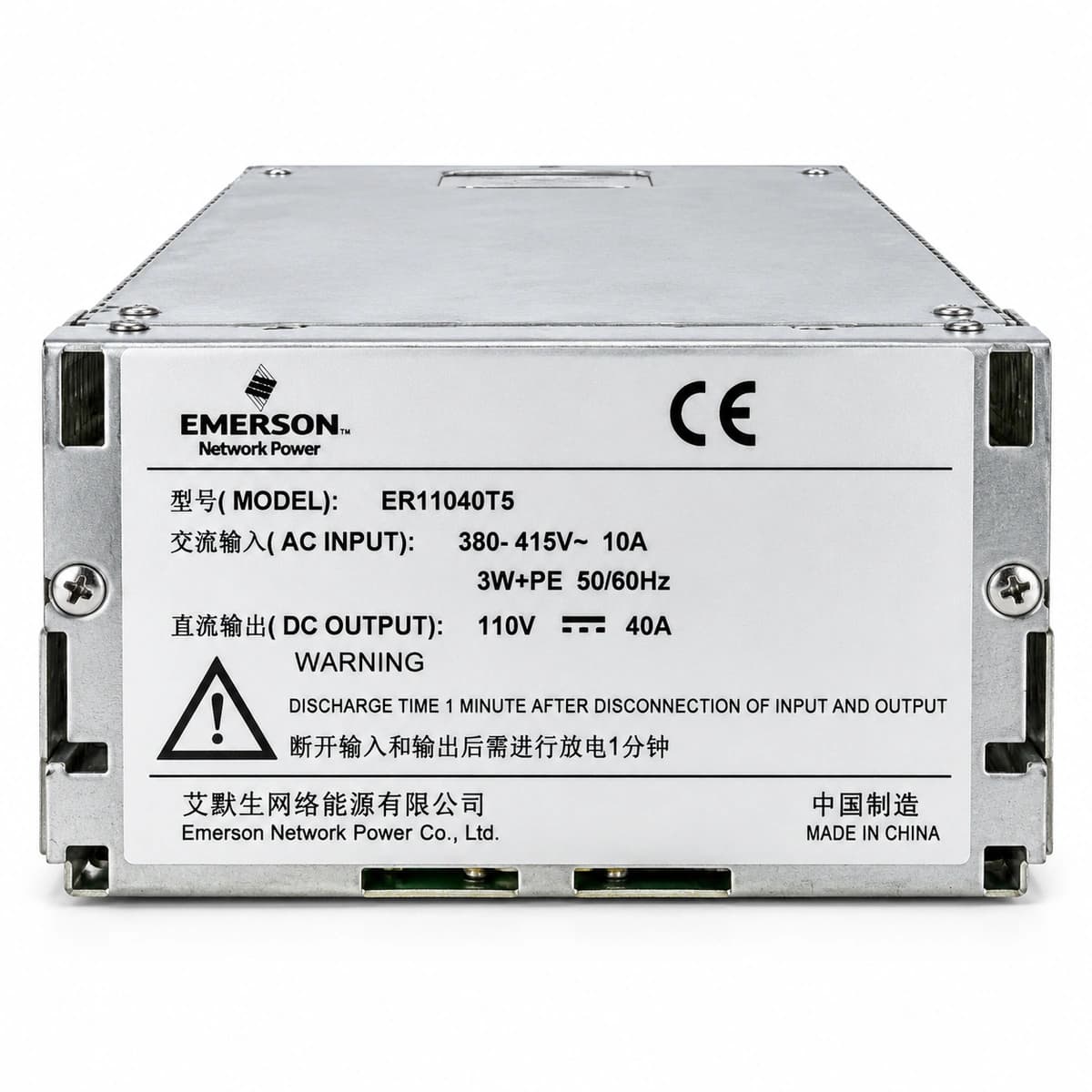

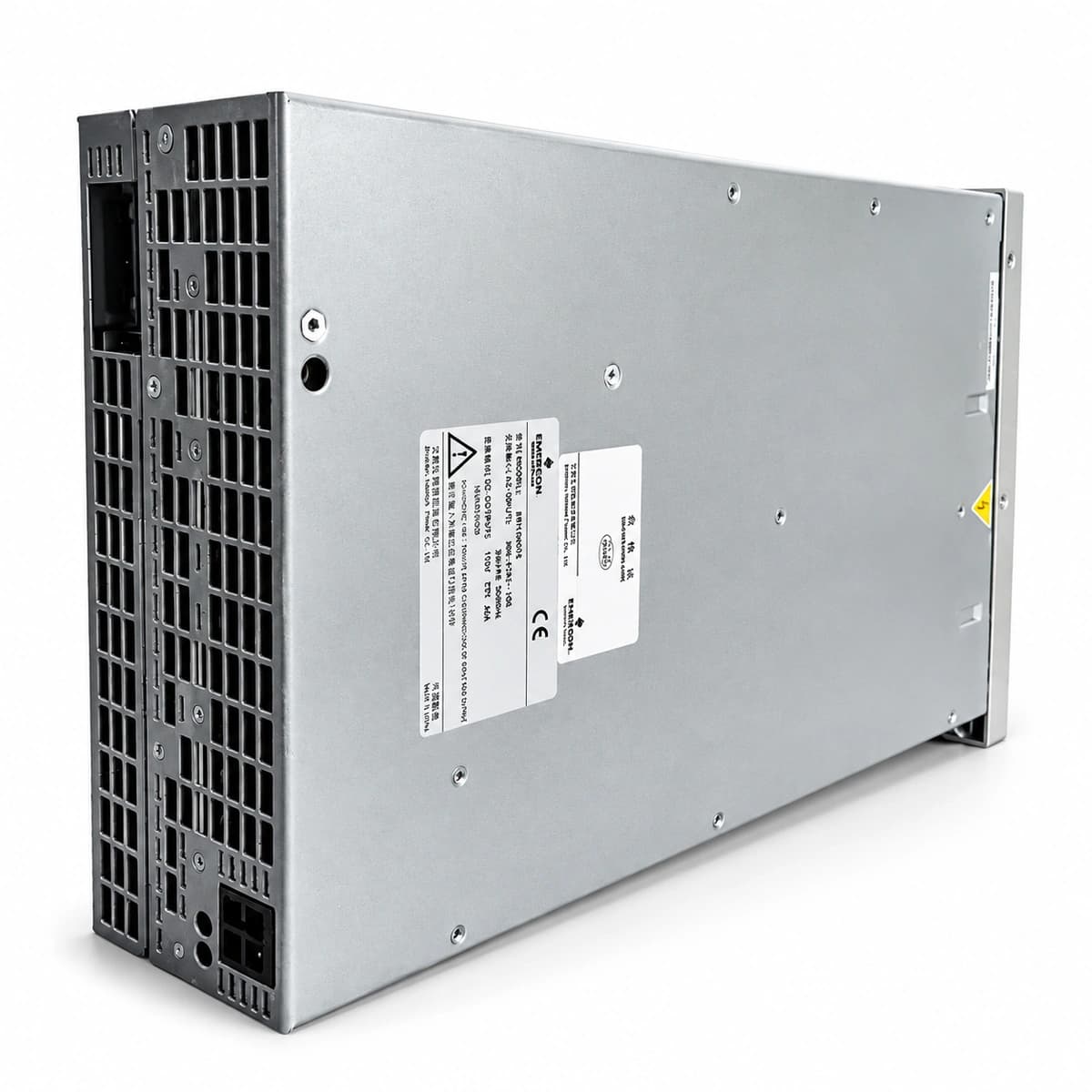

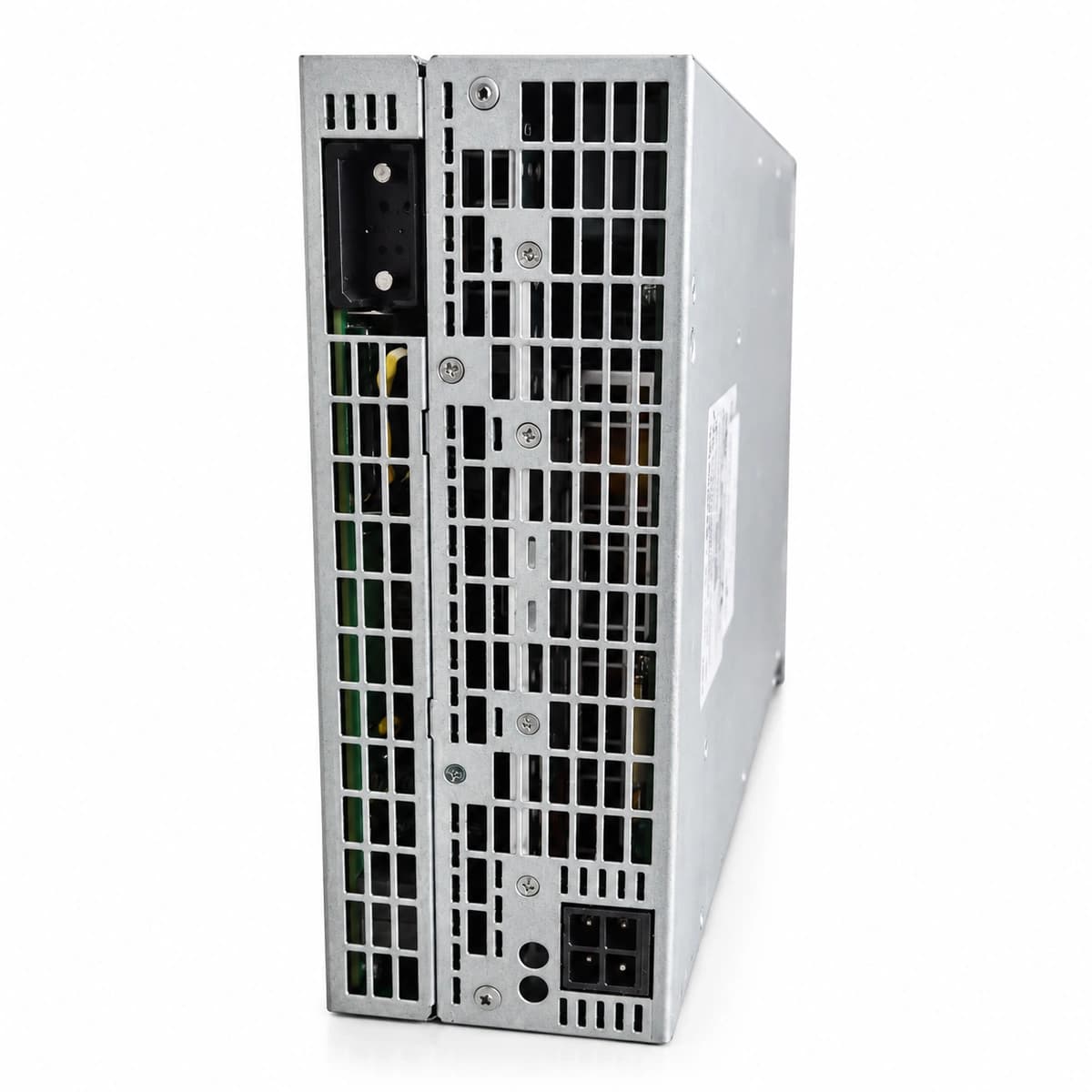

Emerson (Vertiv) ER11040/T5 is an industrial-grade switch-mode rectifier and battery charger module engineered for electrical utility substations, stepping down 3-phase 380VAC to regulated 110VDC at 40A for switchgear tripping and relay protection.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Core rectifier and battery charger for high-voltage substation DC auxiliary power systems.
Ensures uninterrupted operating power for circuit breaker trip coils and protection relays under severe substation electromagnetic transients.
High-voltage electrical substations (110kV-500kV), power generation plants, and railway traction substations.
| Key specifications | Value |
|---|---|
| 3-Phase AC Input Voltage Range | 3-Phase 323VAC ~ 475VAC (Nominal 380VAC) |
| Nominal DC Output Voltage | 90VDC ~ 140VDC (Nominal 110VDC Regulated) |
| Rated Constant Output Current | 40A Rated Constant DC Output |
| Rated Output Power | 4400W Utility Rated Output Power |
| Cooling Architecture | Natural Convection / Silent Internal Airflow |
| Power Conversion Efficiency | ≥93.0% High-Frequency Utility Efficiency |
