Vertiv ER22020-T High-Power DC Rectifier Module (220Vdc/20A 4.4kW Utility Substations & DC Systems) - Internal Assembly & Wiring Layout
VertivModel: ER22020-T

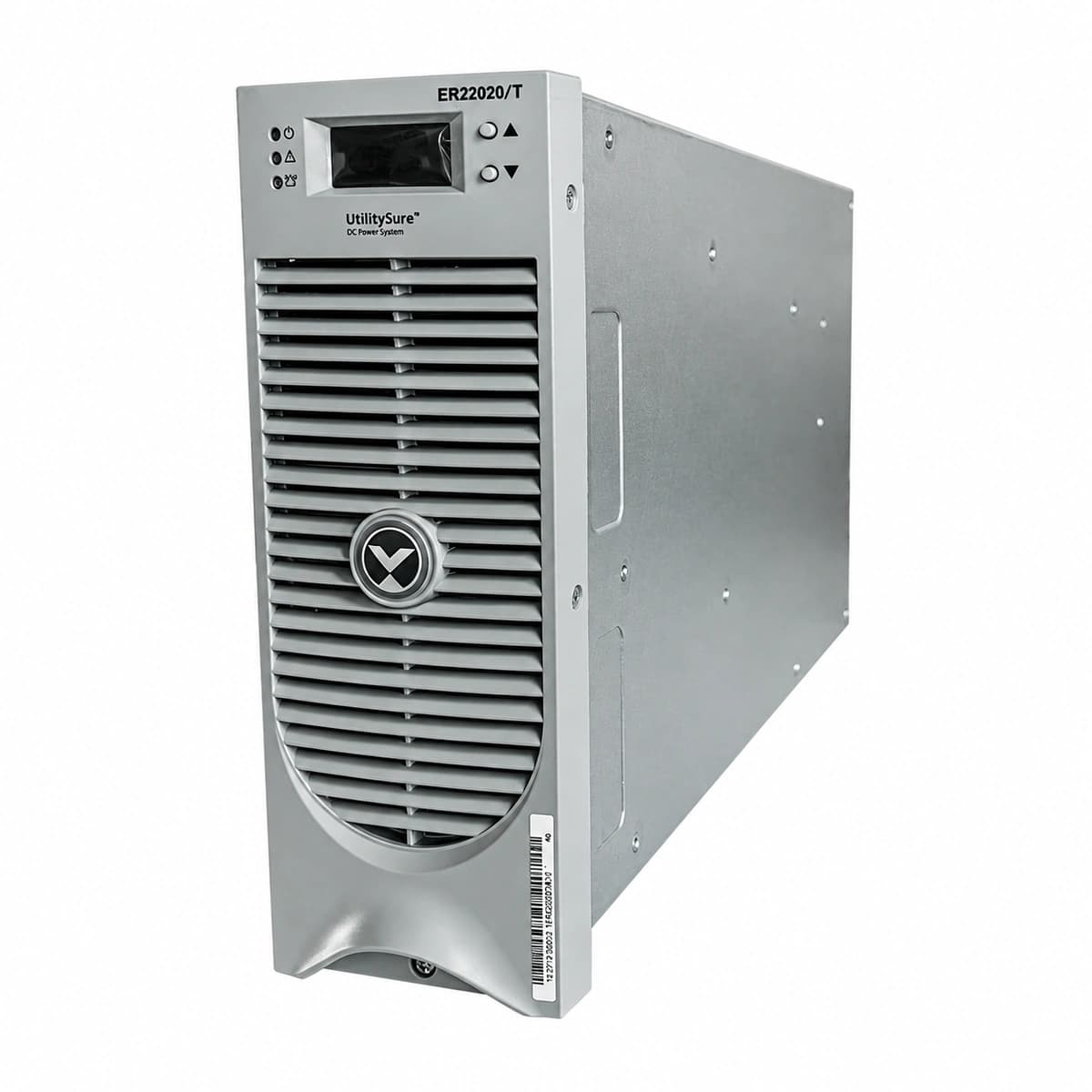

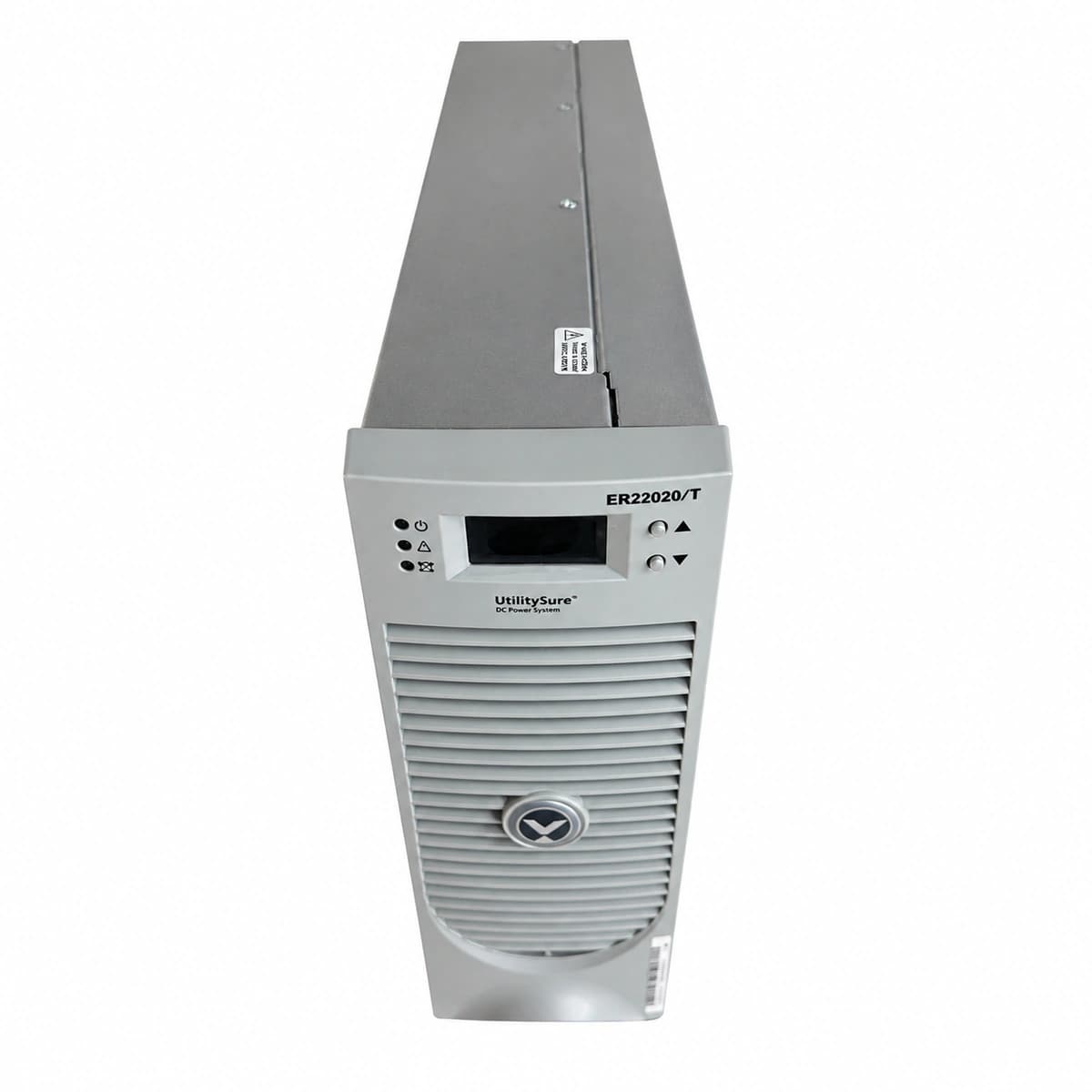

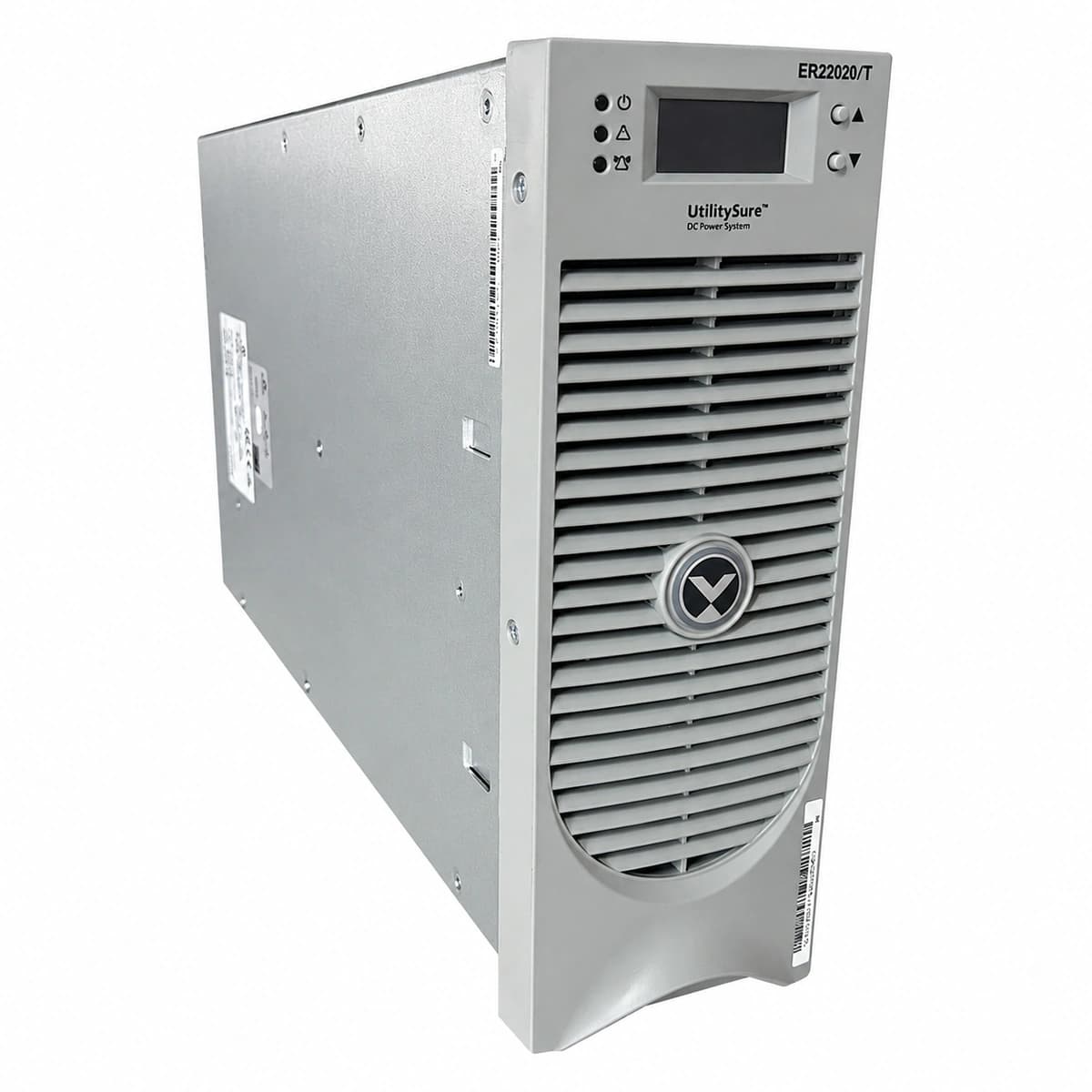

Vertiv ER22020-T High-Power DC Rectifier Module (220Vdc/20A 4.4kW Utility Substations & DC Systems)

The Vertiv ER22020-T is a 4.4kW high-power switch-mode rectifier module delivering 220Vdc/20A for utility substations and critical industrial DC systems. Powered by full DSP digital control and LLC resonant conversion, it provides industry-leading electrical stability across extreme temperatures.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
Rated DC Output Voltage
220VDC (176V ~ 286V)
Rated DC Output Current
20A (Full Load Power 4400W)
AC Input Phase Voltage Range
323Vac - 475Vac 3-Phase 3-Wire Balanced VAC
Nominal Conversion Efficiency
≥ 94.5%
Wide Operating Temperature Range
-40°C ~ +75°C
Supervisory Bus & Sharing
Isolated CAN Bus / Autonomous Sharing

What this product is

What this product is

The Vertiv ER22020-T is a 4.4kW high-power switch-mode rectifier module delivering 220Vdc/20A for utility substations and critical industrial DC systems. Powered by full DSP digital control and LLC resonant conversion, it provides industry-leading electrical stability across extreme temperatures.

What problem it solves

Resolves power grid instability, excessive OPEX energy dissipation, battery degradation, and rack footprint constraints.

Who and where it is for

5G cellular cell sites, core telecom DC plants, AI data centers, transport networks, and critical industrial DC UPS.

Core advantages

  • 4.4kW Power Density: Provides 20A continuous utility charging current, significantly saving panel footprint.
  • LLC Resonant Design: Minimizes switching losses, ensures uniform thermal distribution, and extends MTBF by >40%.
  • Three-Phase Neutral-Free: Eliminates floating neutral burn-out risks, ideal for industrial grid environments.
  • Dual Hardware OVP: Redundant hardware-triggered overvoltage protection isolates the unit instantly to protect battery banks.

Technical specifications

Key specificationsValue
Rated DC Output Current20A (Full Load Power 4400W)
Nominal Conversion Efficiency≥ 94.5%
Rated DC Output Voltage220VDC (176V ~ 286V)
Supervisory Bus & SharingIsolated CAN Bus / Autonomous Sharing
AC Input Phase Voltage Range323Vac - 475Vac 3-Phase 3-Wire Balanced VAC
Overall System EfficiencyUp to 96.2% (Gold Standard)
Wide Operating Temperature Range-40°C ~ +75°C
Ingress Protection RatingIP20 (Indoor Dust & Finger Proof)
Acoustic Noise≤ 55 dBA (at 25°C ambient load)
Dielectric Withstand Voltage3000VAC Input to Ground (< 5mA)

Applications

01

Telecom 4G/5G macro cellular base stations and distributed remote power sites

02

Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups

03

Utility power grid dispatch centers and high-voltage substation DC switchgear rooms

04

Railway transit signaling, automated train control, and communications equipment rooms
