Question 1

When the HD4825-3 triggers DC output over-voltage protection (OVP) and latches into a red alarm state, how can engineers differentiate between internal hardware failure and external supervisory bus faults?

Accepted Answer

1. Withdraw the rectifier from the shelf to disconnect AC power and the backplane interface, allowing internal bulk capacitors to discharge for 3 minutes to reset the hardware OVP latch.
2. Reinsert the module into an isolated slot without CAN/RS485 communication, or disconnect the central supervisory unit (CSU) to enforce standalone operation under nominal 220 VAC.
3. Measure the open-circuit output voltage: if the voltage surges past 58.5 VDC and immediately latches the red LED, the fault is an internal failure in the secondary feedback loop or reference circuit. If the module maintains a steady default output (typically 53.5 VDC), the issue stems from an erroneous supervisory regulation command, an address conflict, or incorrect float voltage calibration configured in the system controller.

Question 2

In a multi-rectifier parallel system, if a single HD4825-3 exhibits severe current sharing imbalance (drawing near-zero load or remaining pegged at maximum limit), what electrical procedure should be followed?

Accepted Answer

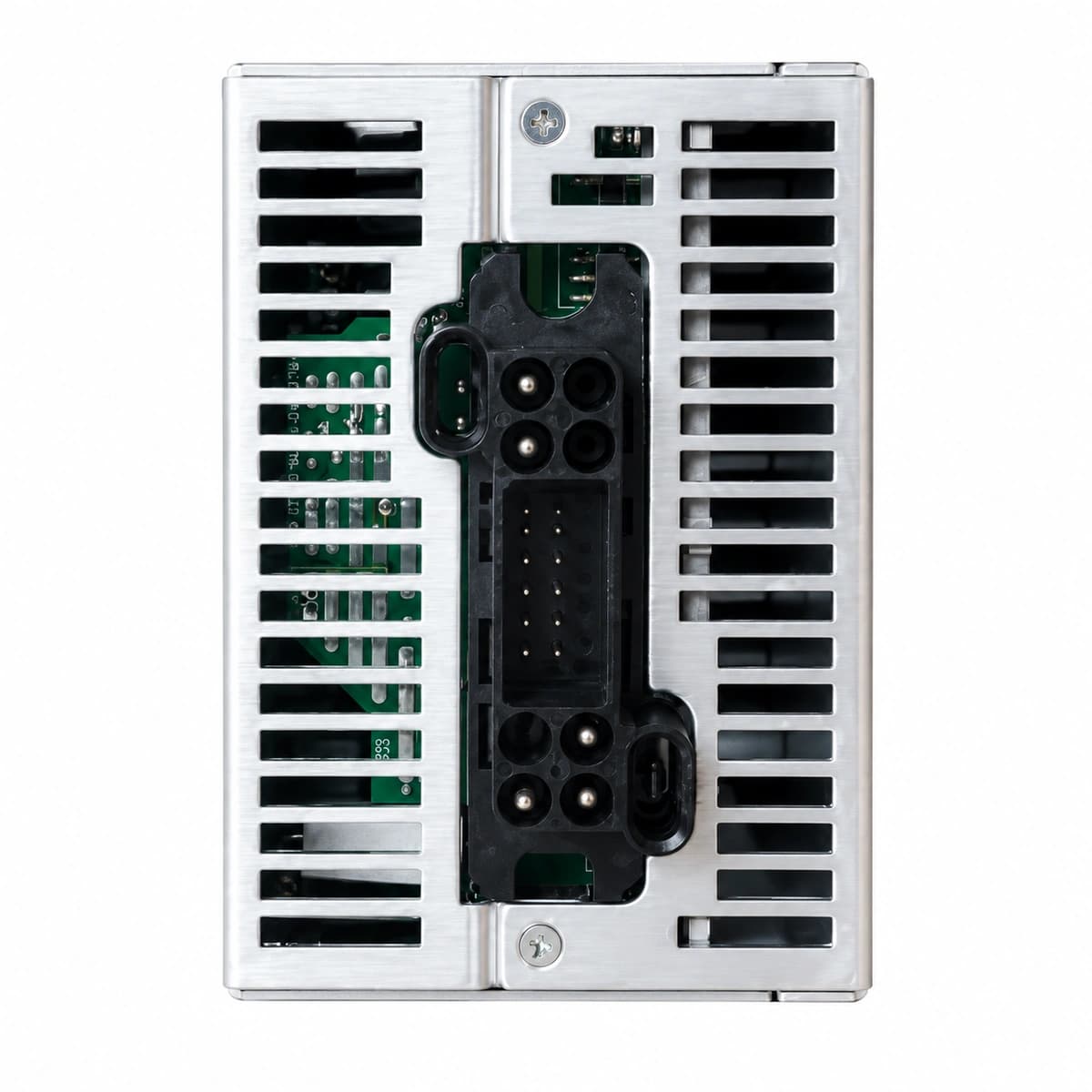

1. Inspect the backplane gold-finger connector: unlatch and reseat the module to rule out oxidation or bent contacts on the active current share bus (CSB) and communication pins.
2. Verify supervisory bus status and node addressing: check whether the supervisory display registers the unit as 'Online'. An uncommunicative module defaults to autonomous setpoint regulation; slight reference voltage offsets will cause it to either starve of load or saturate fully against controlled peers.
3. Measure the share bus analog differential voltage using a DMM in DC mV range between the share bus pin and DC negative: the signal should scale proportionally with overall plant load (typically 0–2 V corresponding to 0–100% capacity). If the pin reads 0 V or saturates to the internal Vcc rail while peers are active, the internal current-sharing op-amp or decoupling diode has failed, requiring module swap.

Question 3

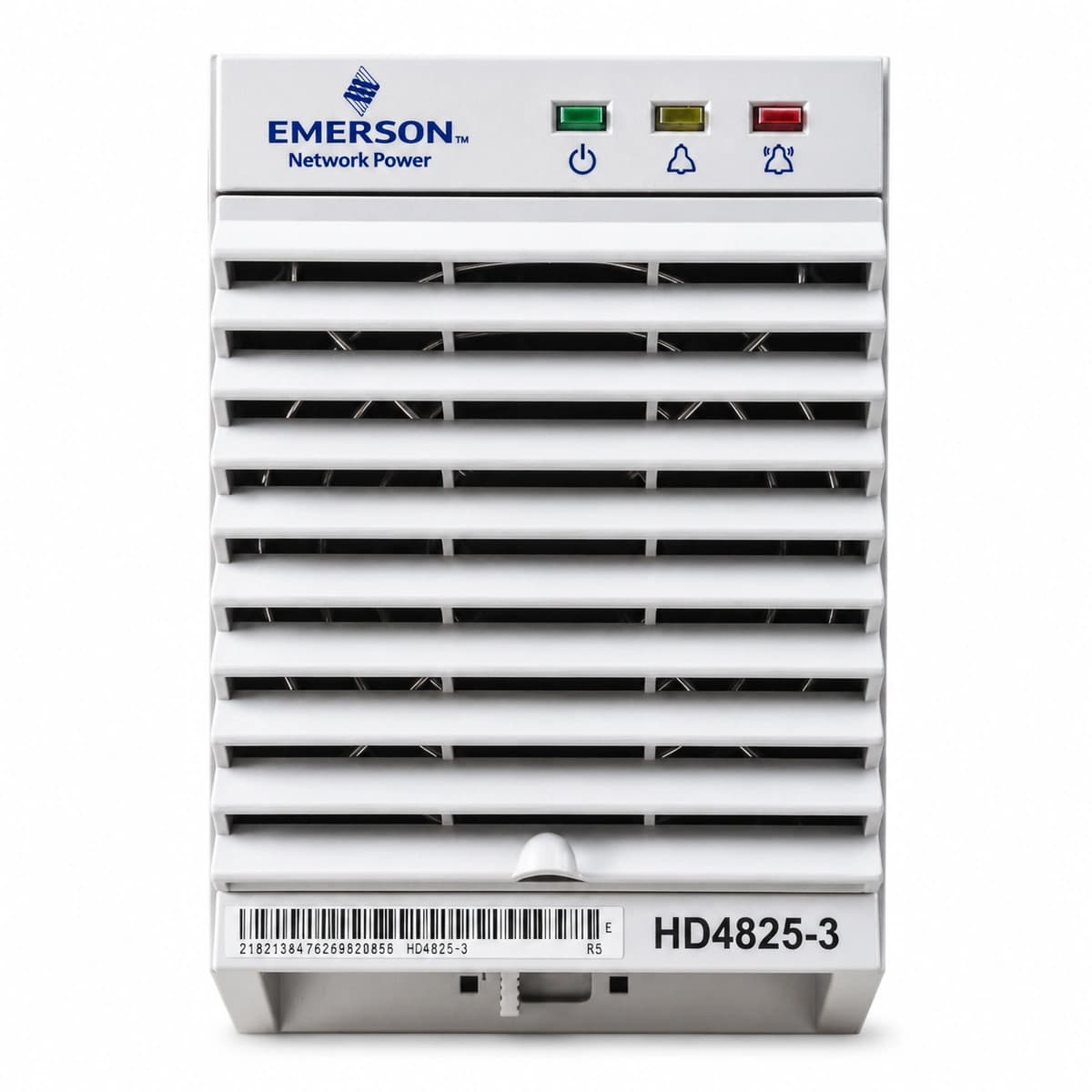

When the module LED shows a continuous yellow warning (thermal derating/alarm) accompanied by abnormal fan acoustic noise, how do you isolate between thermal airway blockage, PWM drive failure, and tachometer feedback loss?

Accepted Answer

1. Check external airflow and dust ingress: inspect the air intake grill and internal heatsink channels. Heavy clogging causes excessive internal heatsink temperatures, triggering automatic power derating above 45°C ambient; blow clear with dry compressed air to see if temperatures normalize.
2. Observe power-on self-test (POST) fan dynamics: at initial power-up, the MCU delivers a 100% PWM pulse for several seconds, producing a distinct high-velocity air rush. If the fan merely twitches, rattles, or exhibits loud bearing squeal, mechanical bearing seizure has occurred, requiring fan replacement.
3. Query the controller fault log: if the fan spins at maximum speed without restriction yet the unit persistently reports 'Fan Alarm' with a yellow LED, the PWM driver circuit is functioning, but the internal Hall-effect tachometer feedback line has broken or failed. The MCU defaults to protective derating because it cannot verify airflow velocity.

Key specifications	Value
Cooling System	Forced Air Cooling with Front-Removable Structure
AC Input Voltage	90VAC ~ 290VAC
Operating Efficiency Rating	≥91.5%
Operating Temperature Range	-40°C ~ +75°C
Nominal DC Output Voltage	-48VDC (-42V ~ -58V)
Rated Output Power Capacity	1450W (25A @ 58VDC)
Overall System Efficiency	Up to 96.2% (Gold Standard)
Acoustic Noise	≤ 55 dBA (at 25°C ambient load)
Ingress Protection Rating	IP20 (Indoor Dust & Finger Proof)
Dielectric Withstand Voltage	3000VAC Input to Ground (< 5mA)

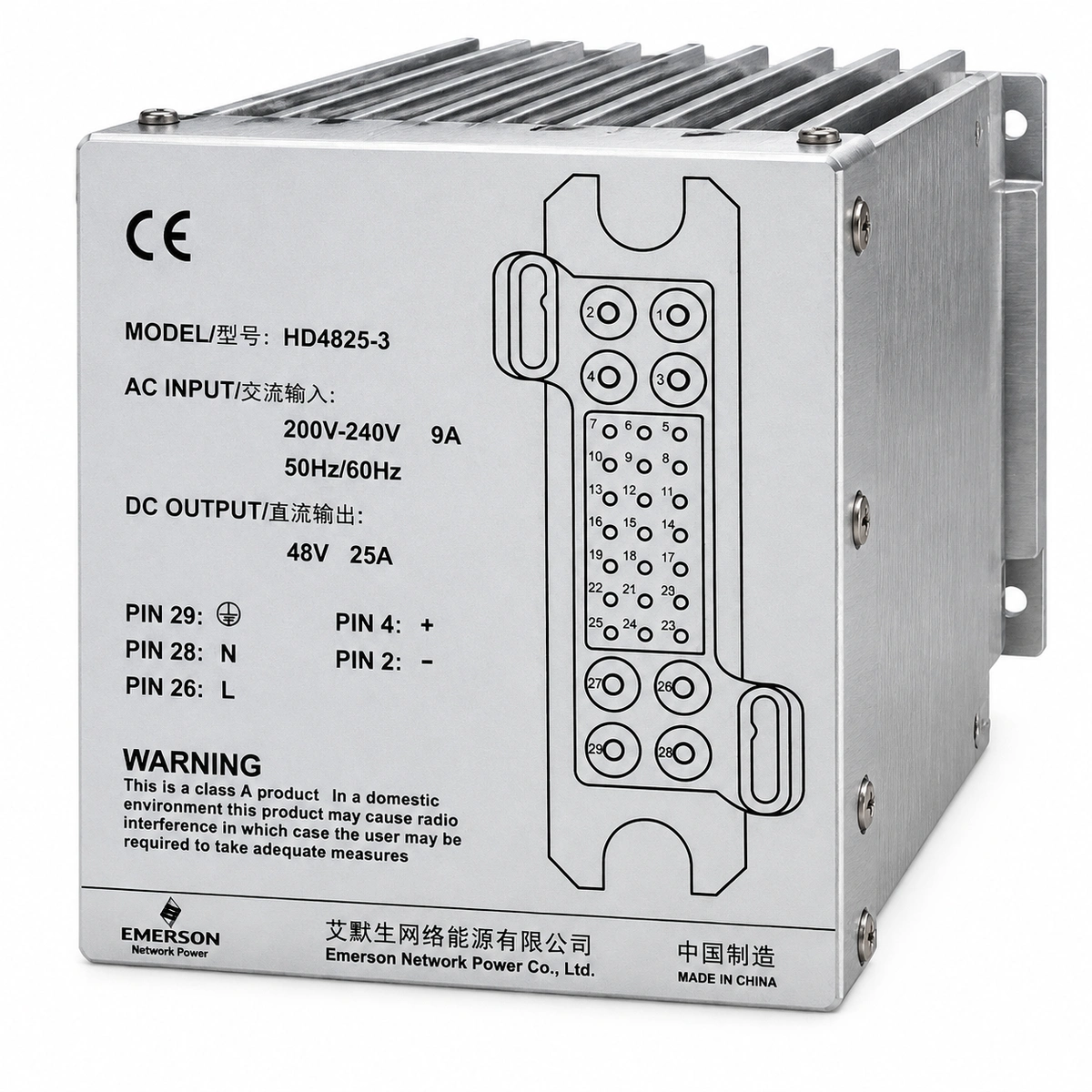

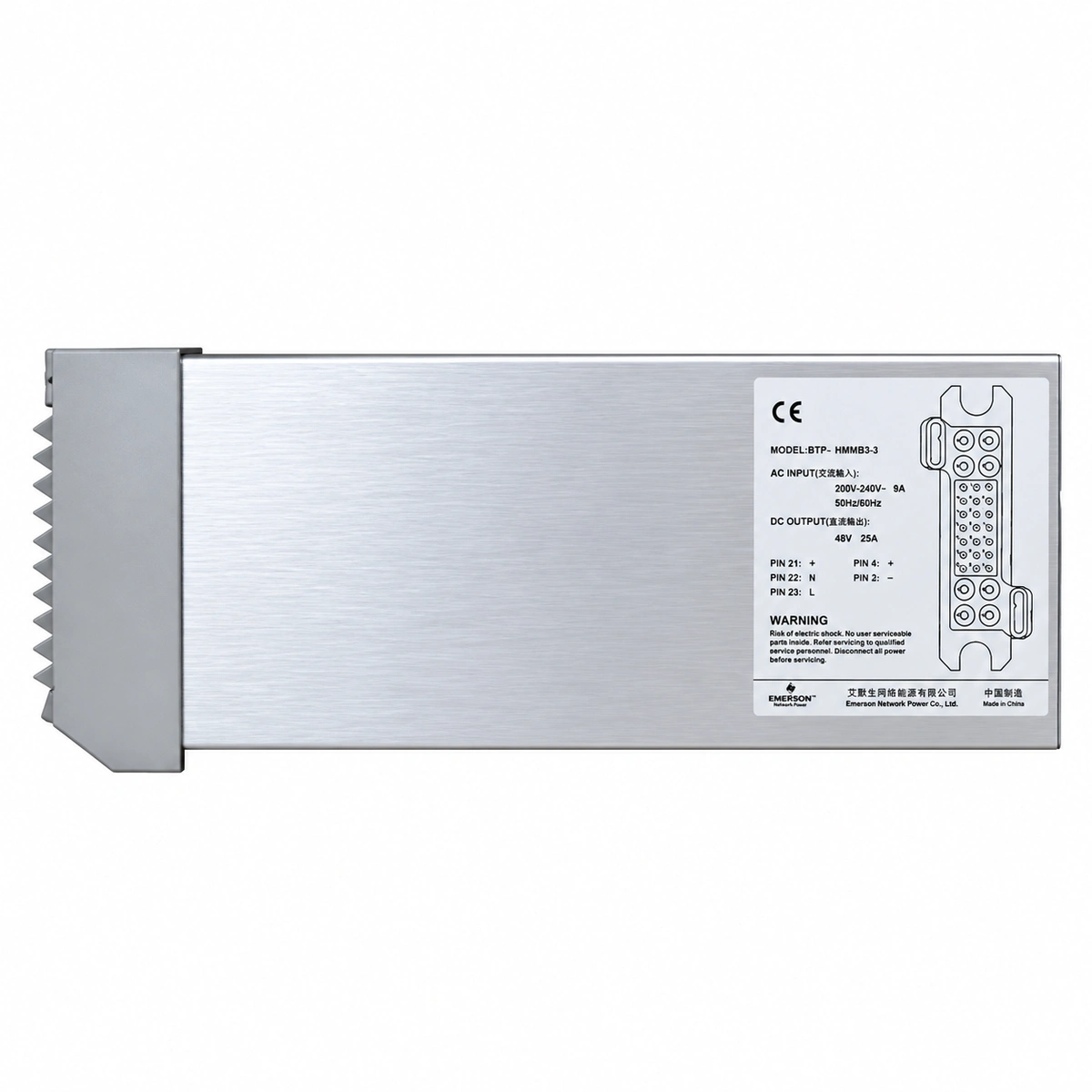

Emerson HD4825-3 Telecom Switch-Mode Rectifier Module (-48V 25A 1450W)

Talk to RICEWIND

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Telecom 4G/5G macro cellular base stations and distributed remote power sites

Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups

Utility power grid dispatch centers and high-voltage substation DC switchgear rooms

Railway transit signaling, automated train control, and communications equipment rooms

Frequently asked questions
