Question 1

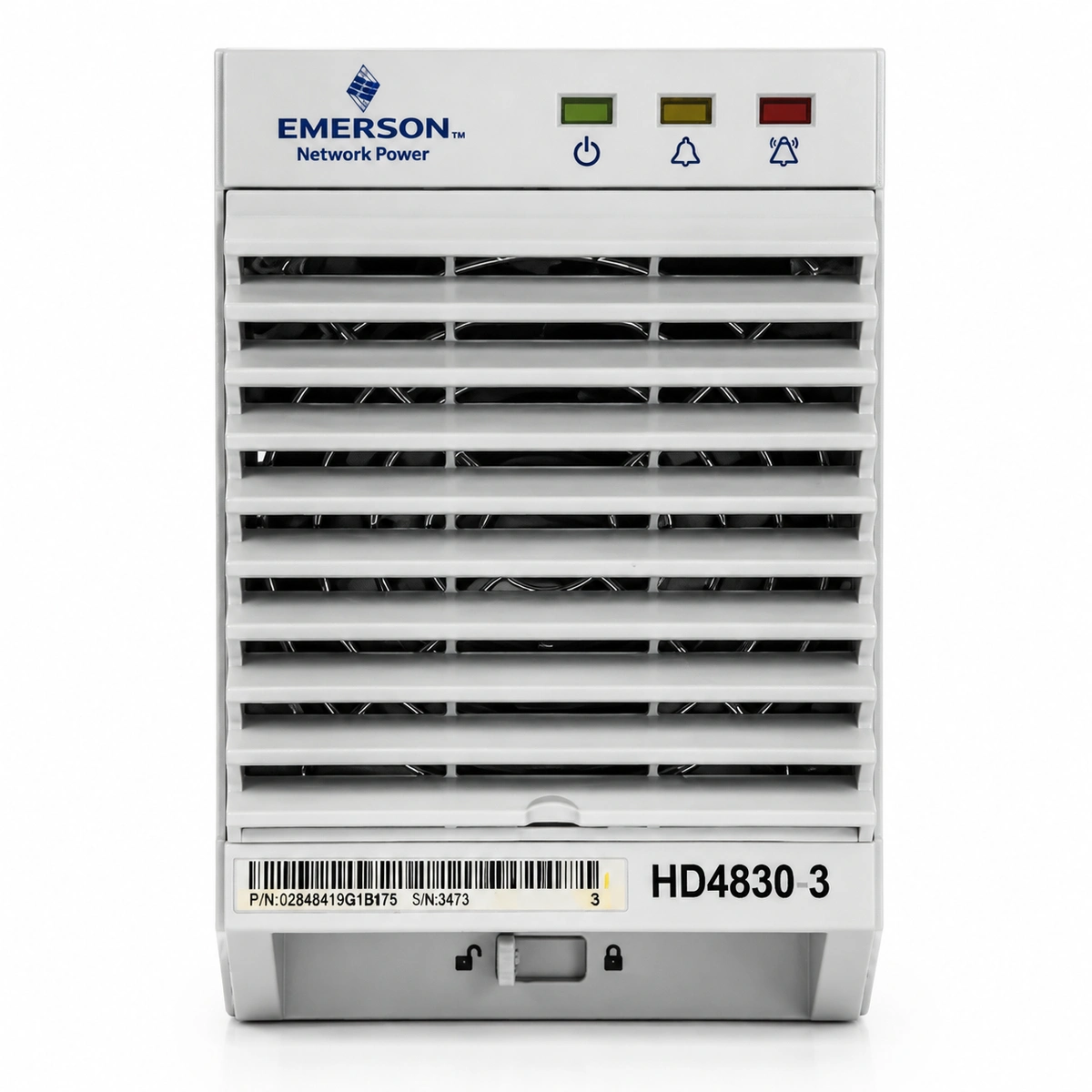

What does a solid yellow LED on the HD4830-3 front panel indicate when accompanied by a 'Power Derating / Current Limit' alarm?

Accepted Answer

A solid yellow LED denotes a non-critical alarm or autonomous protection state. Power derating is typically caused by two conditions: 1) Low AC input voltage (below 176Vac, the module enters linear power derating, reducing output to ~50% capacity between 80Vac and 176Vac); 2) Ambient inlet temperature exceeding 55°C or choked airflow triggering thermal self-derating. Check the line voltage at the module backplane with a true-RMS multimeter and verify that the cooling fan rotates freely without dust obstruction.

Question 2

The red alarm LED is solid, output has shut down, and the controller reports 'Output Overvoltage (OVP)'. How is this reset and diagnosed?

Accepted Answer

The HD4830-3 features hardware-level overvoltage lockout protection (typically latched between 58.5V and 60.0Vdc). Once triggered, the internal PWM drive is latched off and will not auto-restart. Diagnostic and reset procedure: 1) Unseat and extract the faulty module from the shelf backplane; 2) Wait 3 to 5 minutes until internal high-voltage electrolytic capacitors fully discharge and all LEDs extinguish; 3) Measure the DC bus voltage with an independent calibrated multimeter to confirm if a controller configuration error or runaway float voltage caused a bus-wide excursion; 4) Reinsert the module. If the red OVP latch reoccurs instantly while bus voltage is normal, the module internal voltage sensing circuit or optocoupler feedback loop is damaged, requiring module replacement.

Question 3

During parallel operation of multiple HD4830-3 modules, one module delivers significantly lower or zero current (severe load share imbalance). How should this be resolved?

Accepted Answer

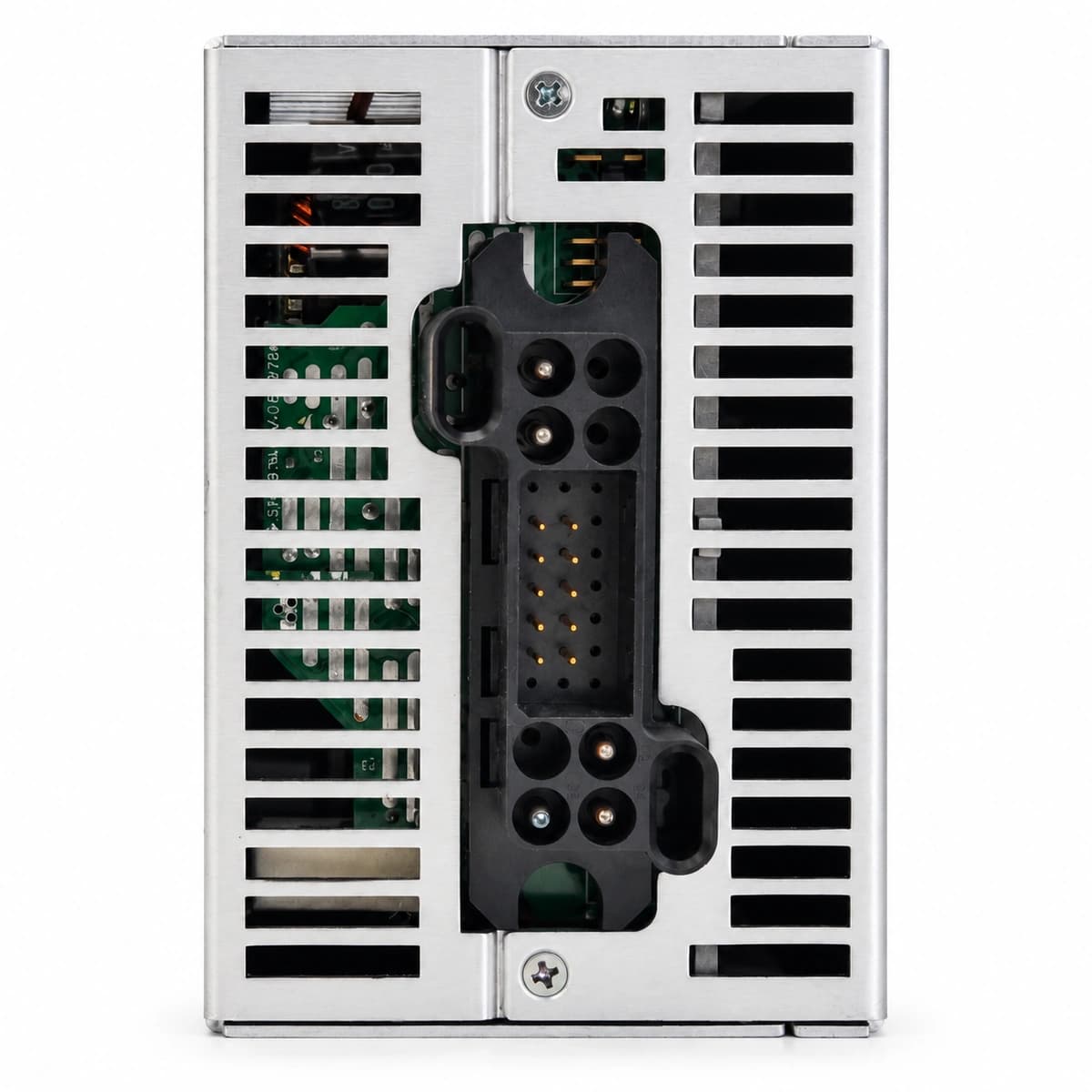

The HD4830-3 relies on CAN bus communication and hardware load-share interconnects via the backplane to coordinate active current sharing. Step-by-step resolution: 1) Verify communication status on the central supervisory controller (e.g., PSM/NetSure controller); if supervisory comms are down, rectifiers fall back to autonomous voltage regulation where minor differences in factory trimmer calibrations cause one unit to starve; 2) Inspect the rear blind-mate connector for bent, oxidised, or recessed pins on the CAN_H/CAN_L lines and current-share bus pins; 3) Verify in controller software that current sharing is enabled; 4) Swap the module into an adjacent slot: if the symptom follows the slot, inspect the backplane PCB trace and CAN terminating resistor (120 Ohm); if it follows the module, the internal current-sense amplifier or Hall sensor circuit has failed.

Key specifications	Value
Nominal DC Output Voltage	-48VDC (-42V ~ -58V)
Rated Output Power Capacity	1740W (30A @ 58VDC)
AC Input Voltage	90VAC ~ 290VAC
Operating Efficiency Rating	≥91.5%
Operating Temperature Range	-40°C ~ +75°C
Cooling System	Forced Air Cooling with Exhaust Extraction
Overall System Efficiency	Up to 96.2% (Gold Standard)
Acoustic Noise	≤ 55 dBA (at 25°C ambient load)
Ingress Protection Rating	IP20 (Indoor Dust & Finger Proof)
Dielectric Withstand Voltage	3000VAC Input to Ground (< 5mA)

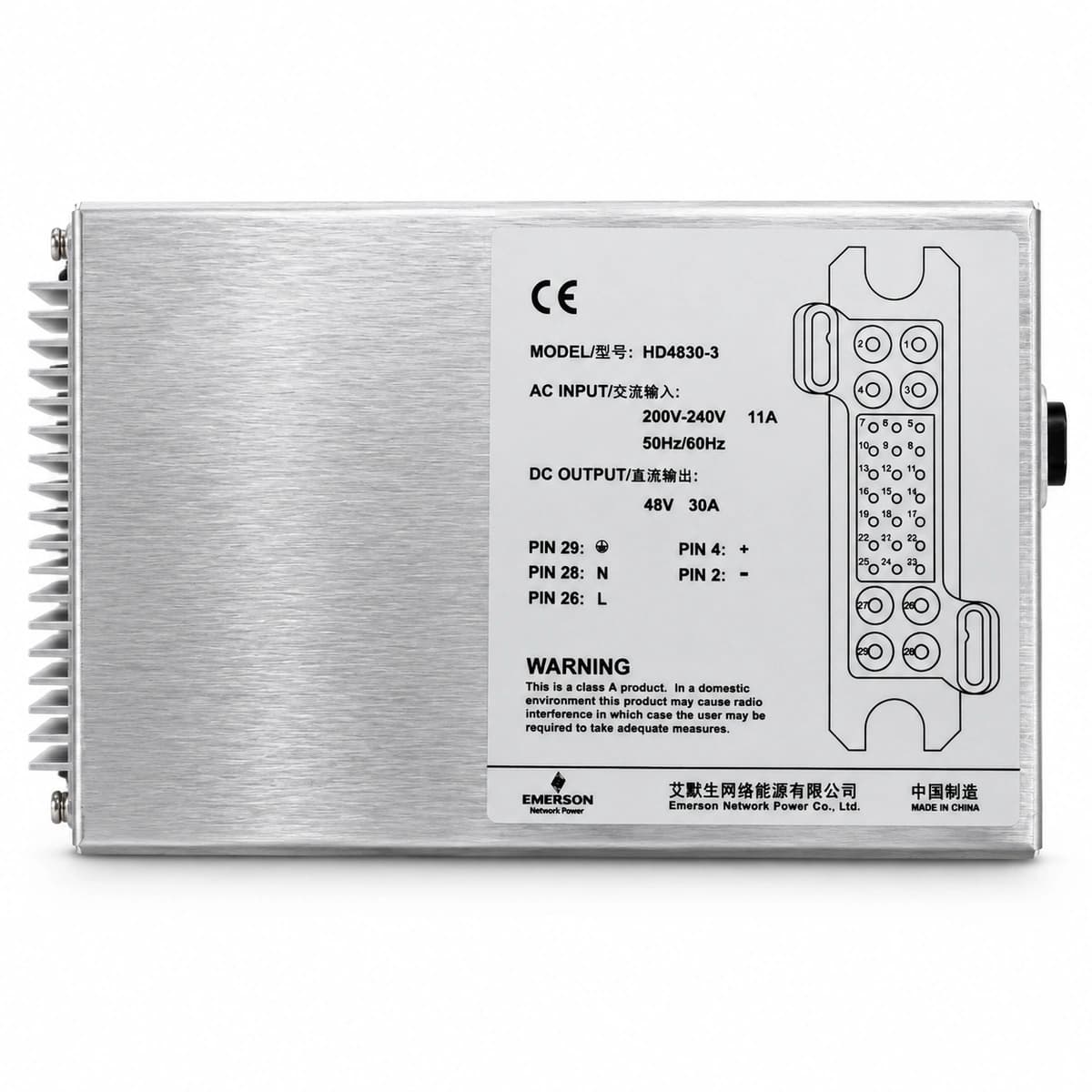

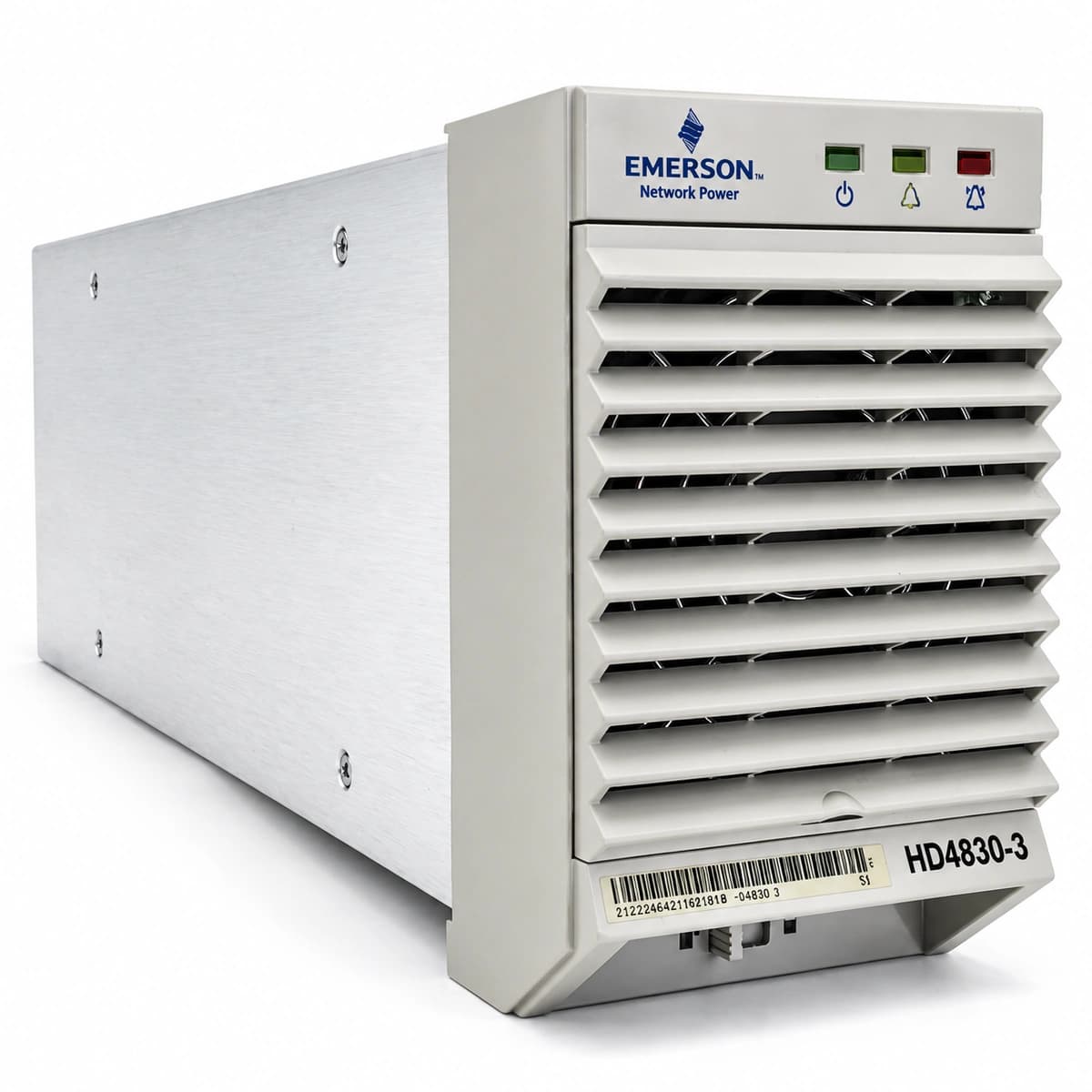

Emerson HD4830-3 Telecom High-Frequency Switch-Mode Rectifier Module (-48V 30A 1740W)

Talk to RICEWIND

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Telecom 4G/5G macro cellular base stations and distributed remote power sites

Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups

Utility power grid dispatch centers and high-voltage substation DC switchgear rooms

Railway transit signaling, automated train control, and communications equipment rooms

Frequently asked questions

Continue exploring

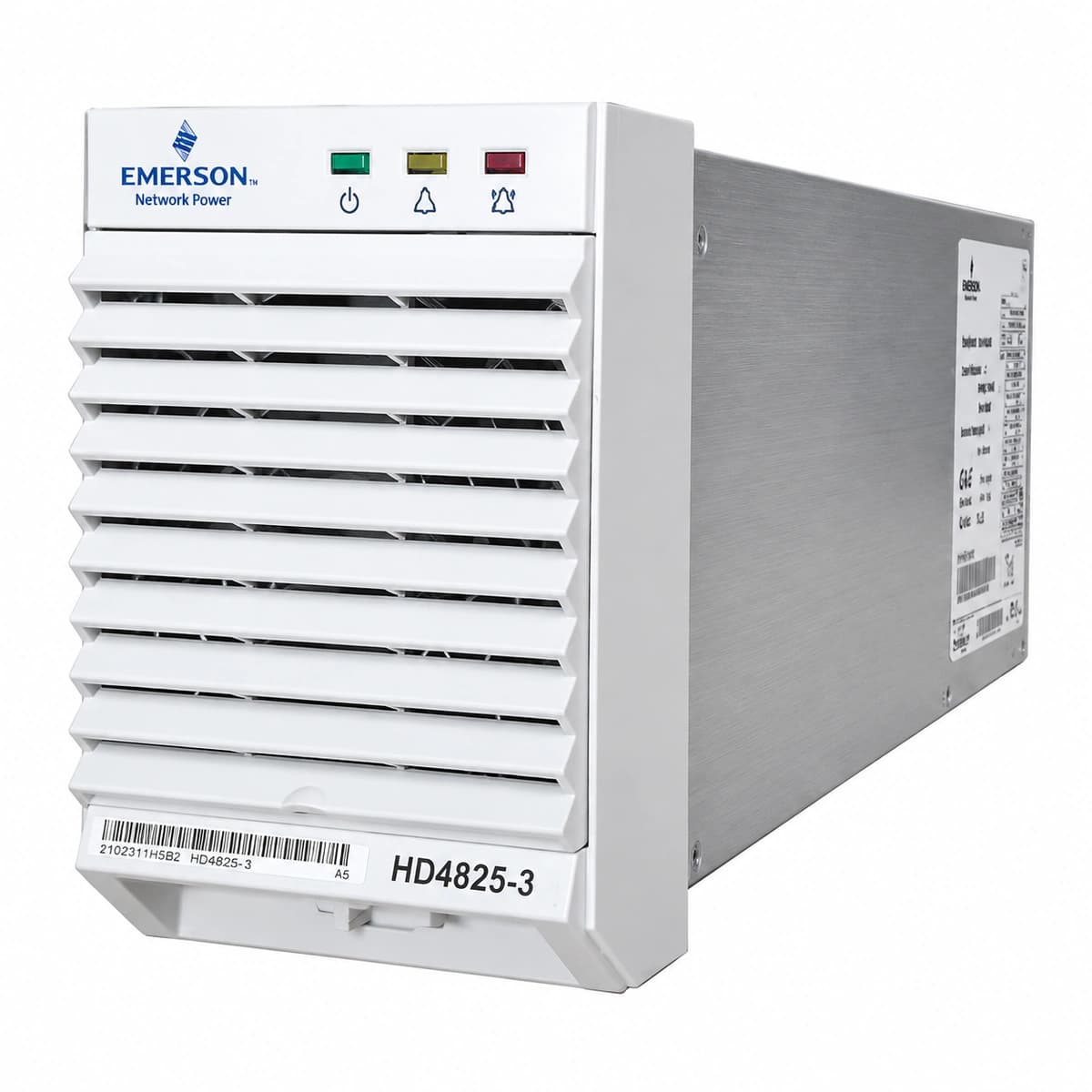

Emerson HD4825-3 Telecom Switch-Mode Rectifier Module (-48V 25A 1450W)

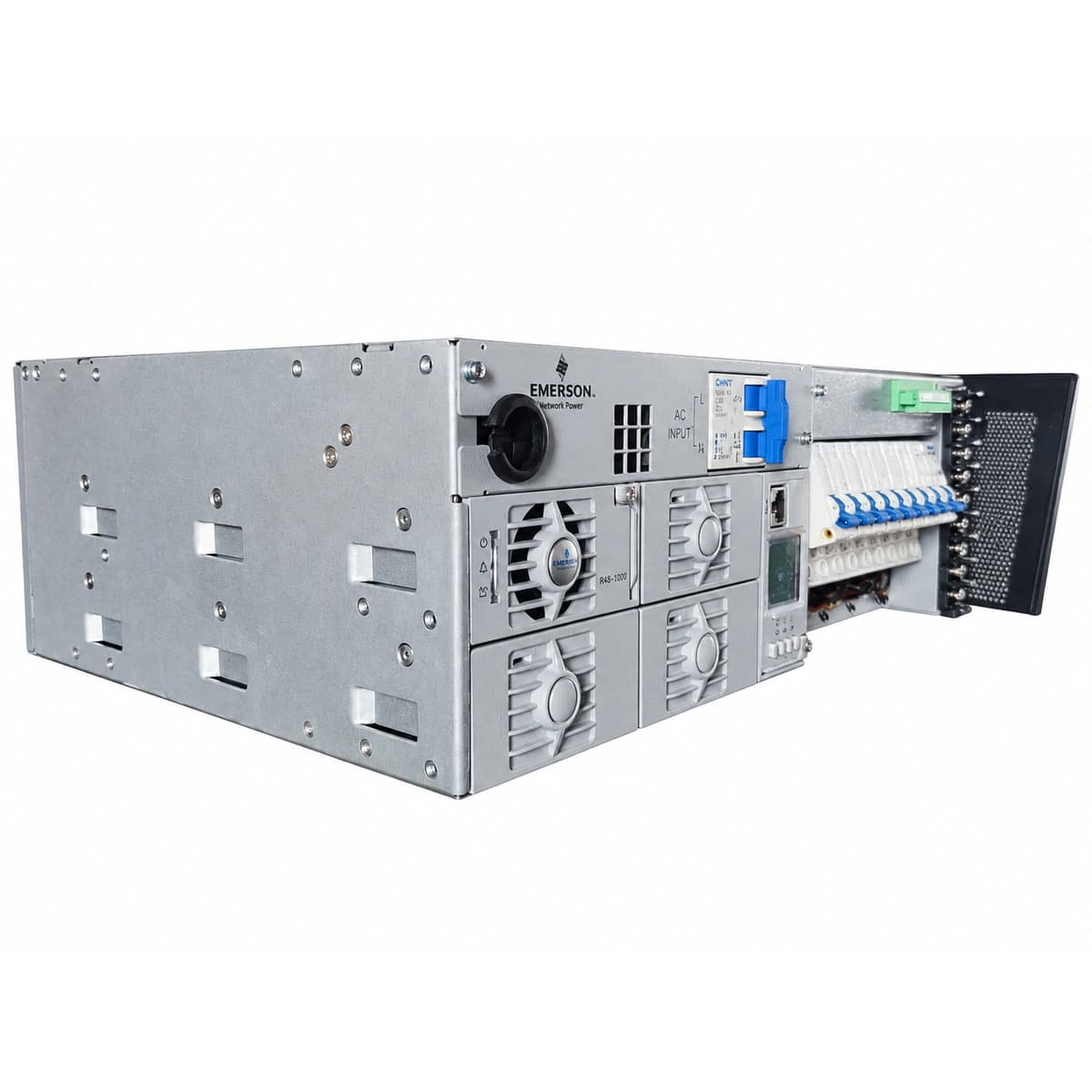

Emerson NetSure 211 C46-S1 Embedded DC Power System (-48V 60A/80A 2U Subrack)

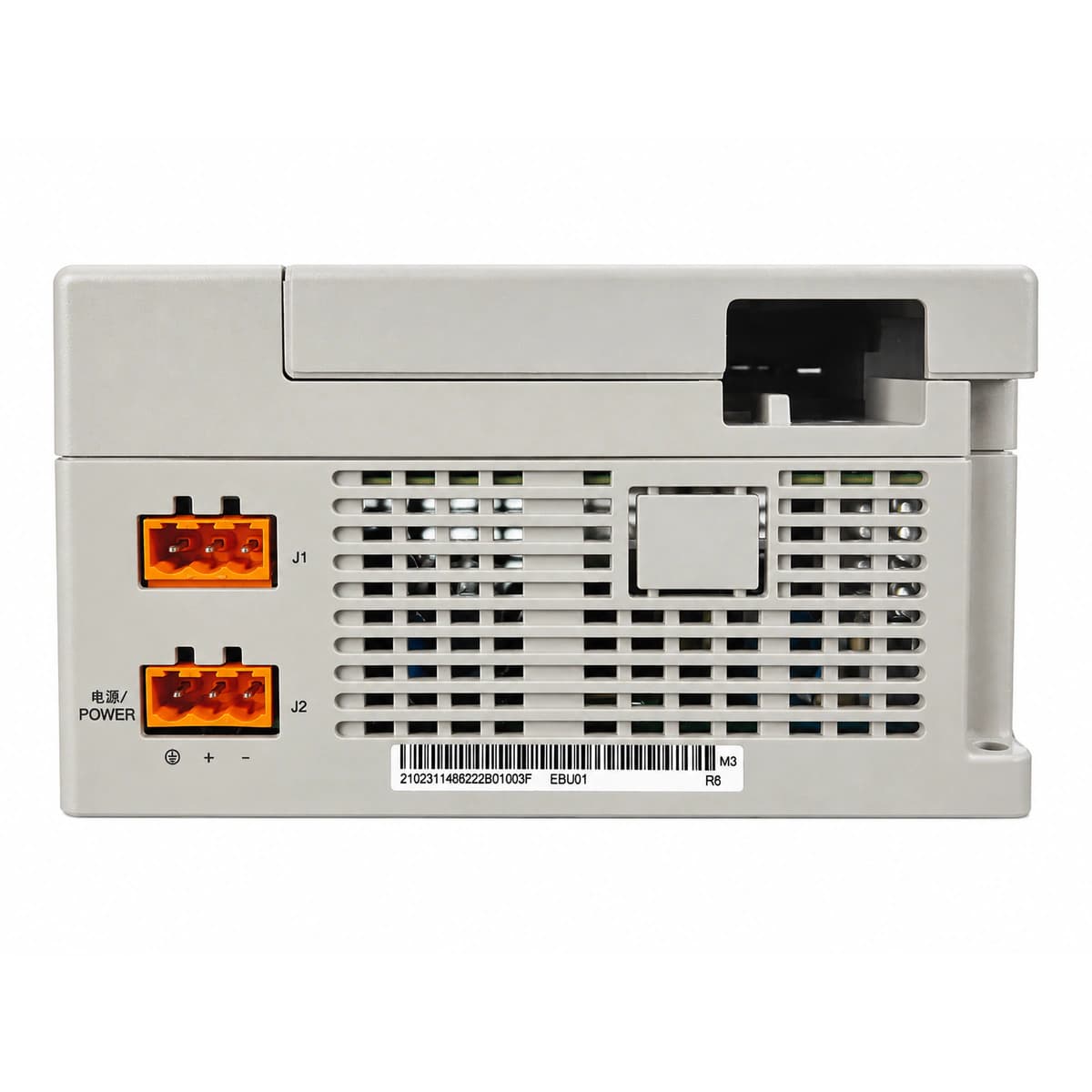

Emerson EBU01 Battery System Expansion Supervisory Unit (Critical Power Backup Sensor Interface Module)

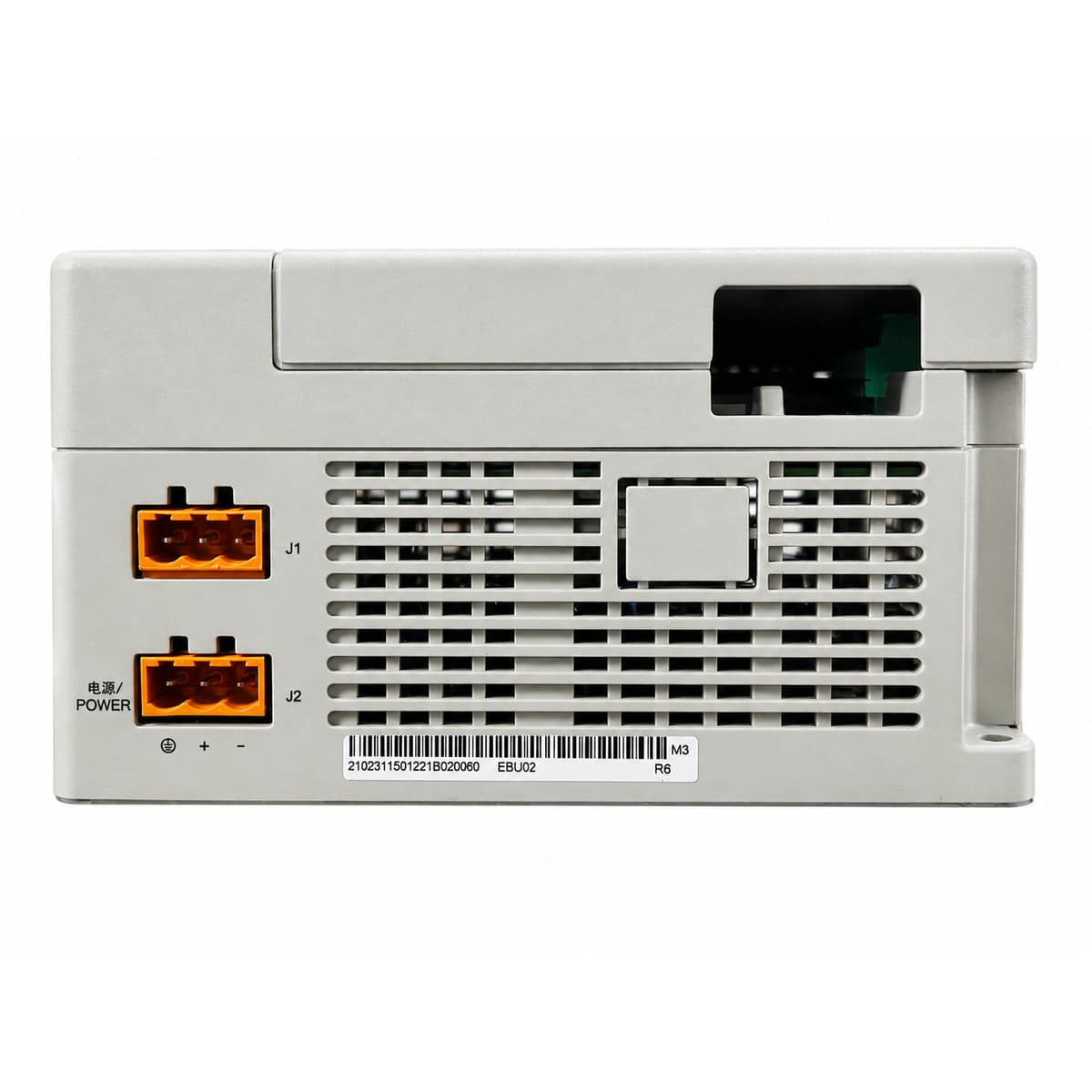

Emerson EBU02 Advanced Battery String Telemetry Unit (Large-Capacity DC Plant Backup Storage Management)
