Emerson M500F Genuine Telecom Hardware Shot 2
EmersonModel: M500F

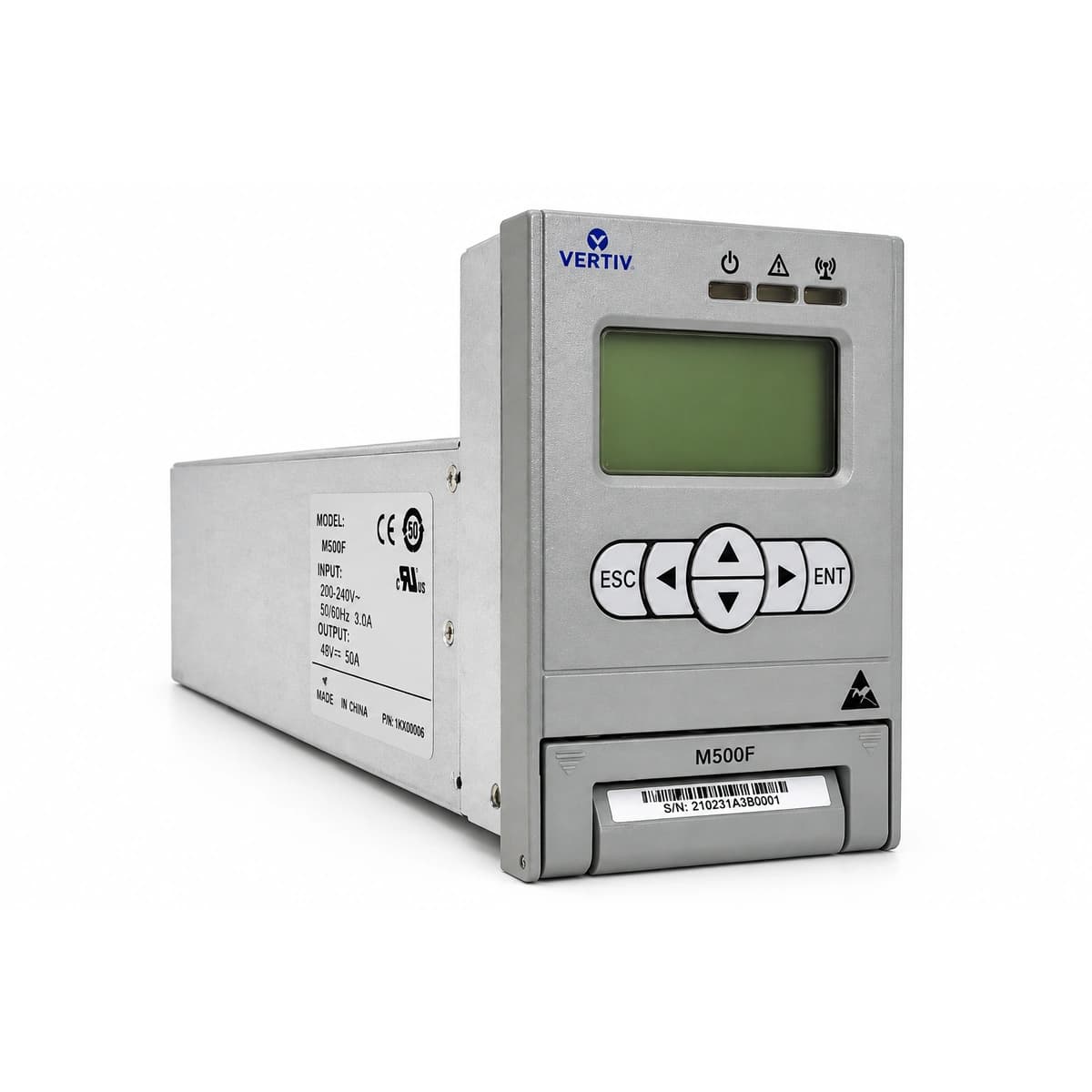

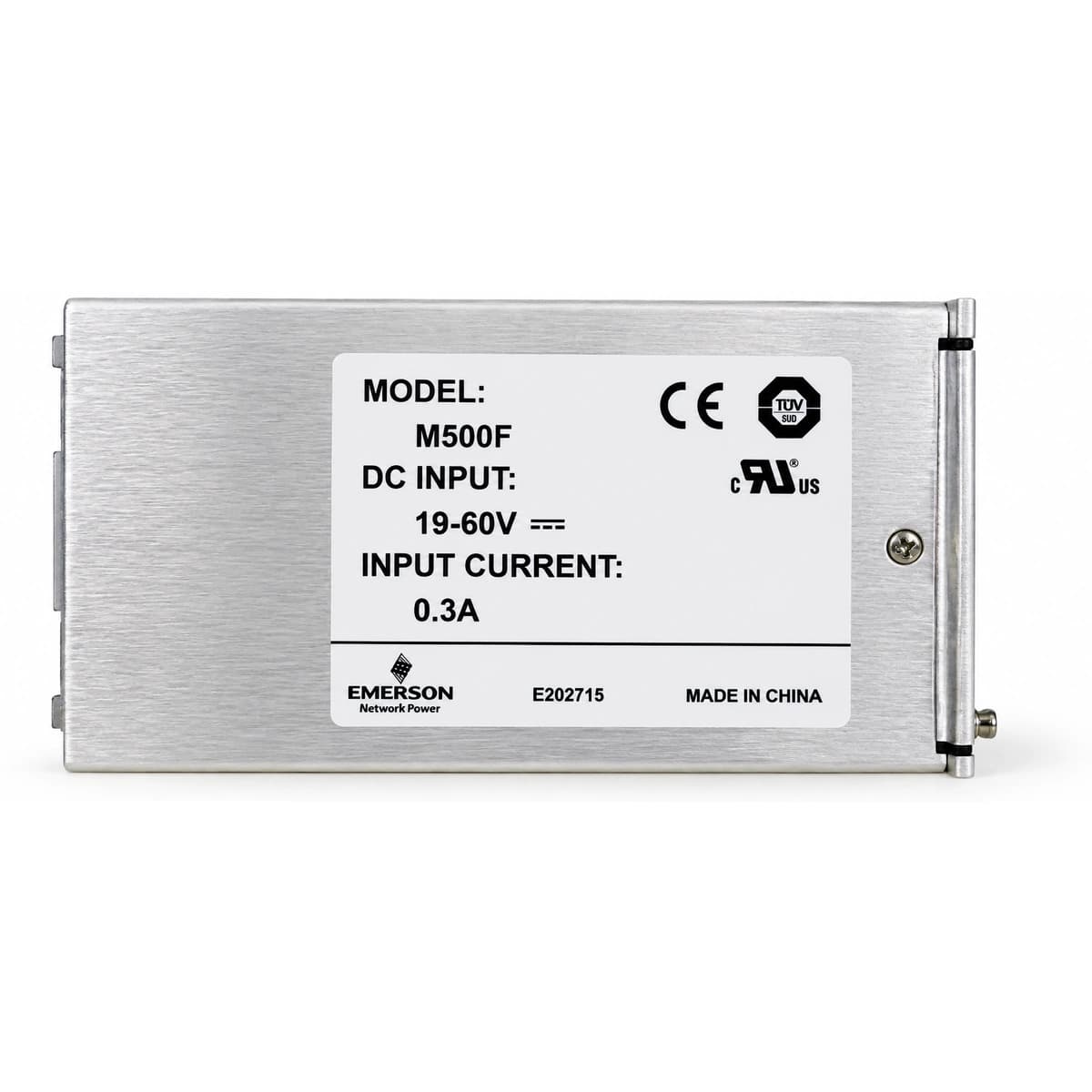

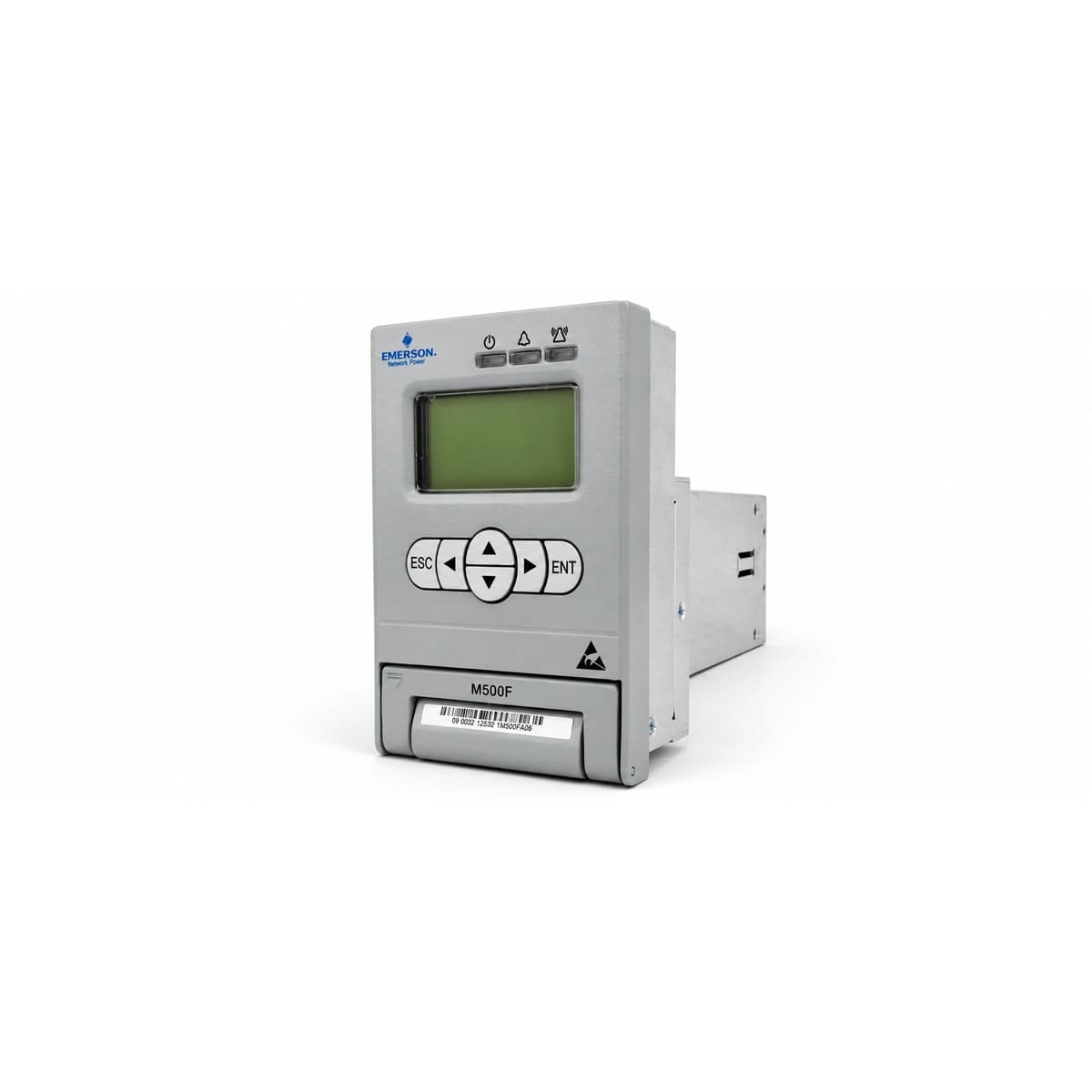

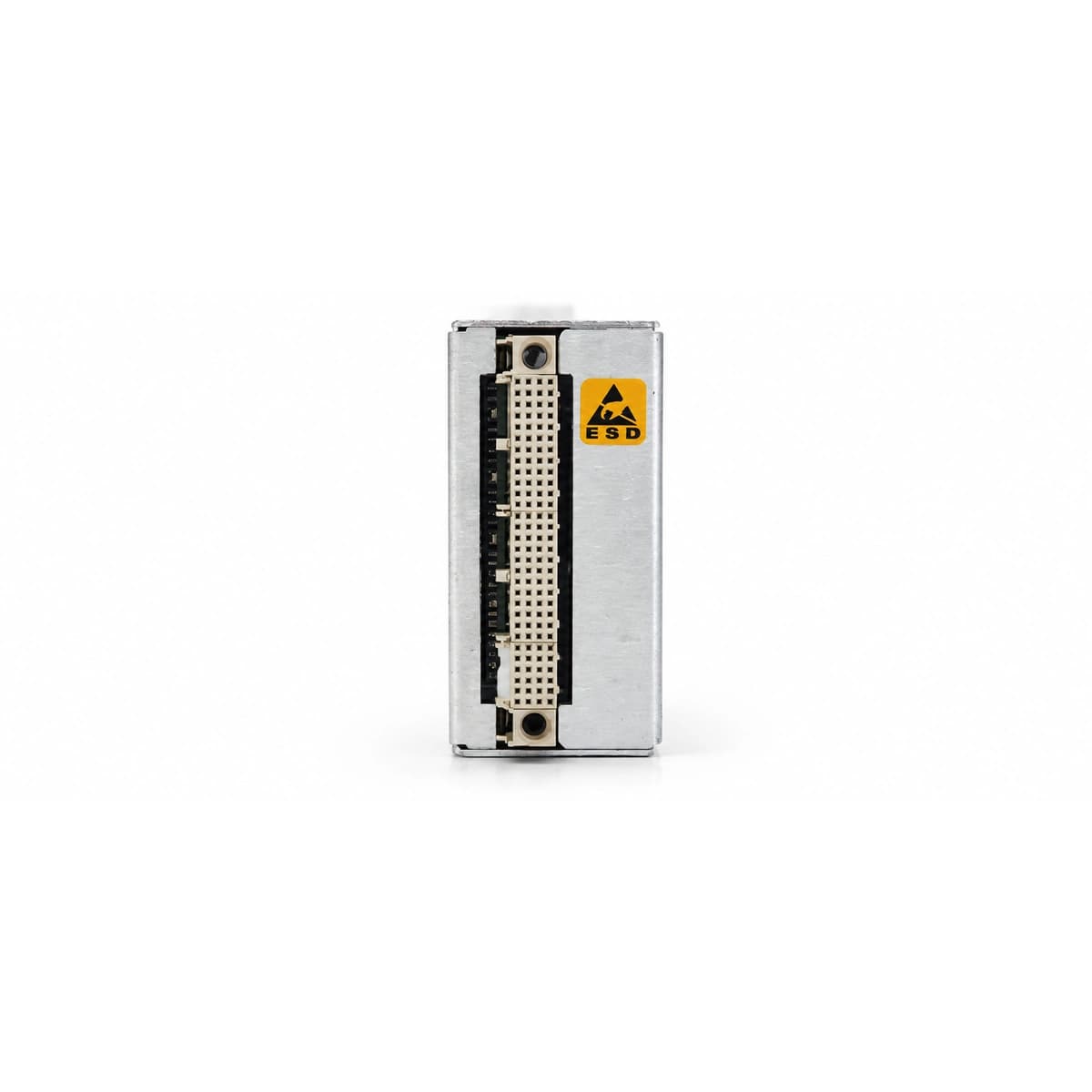

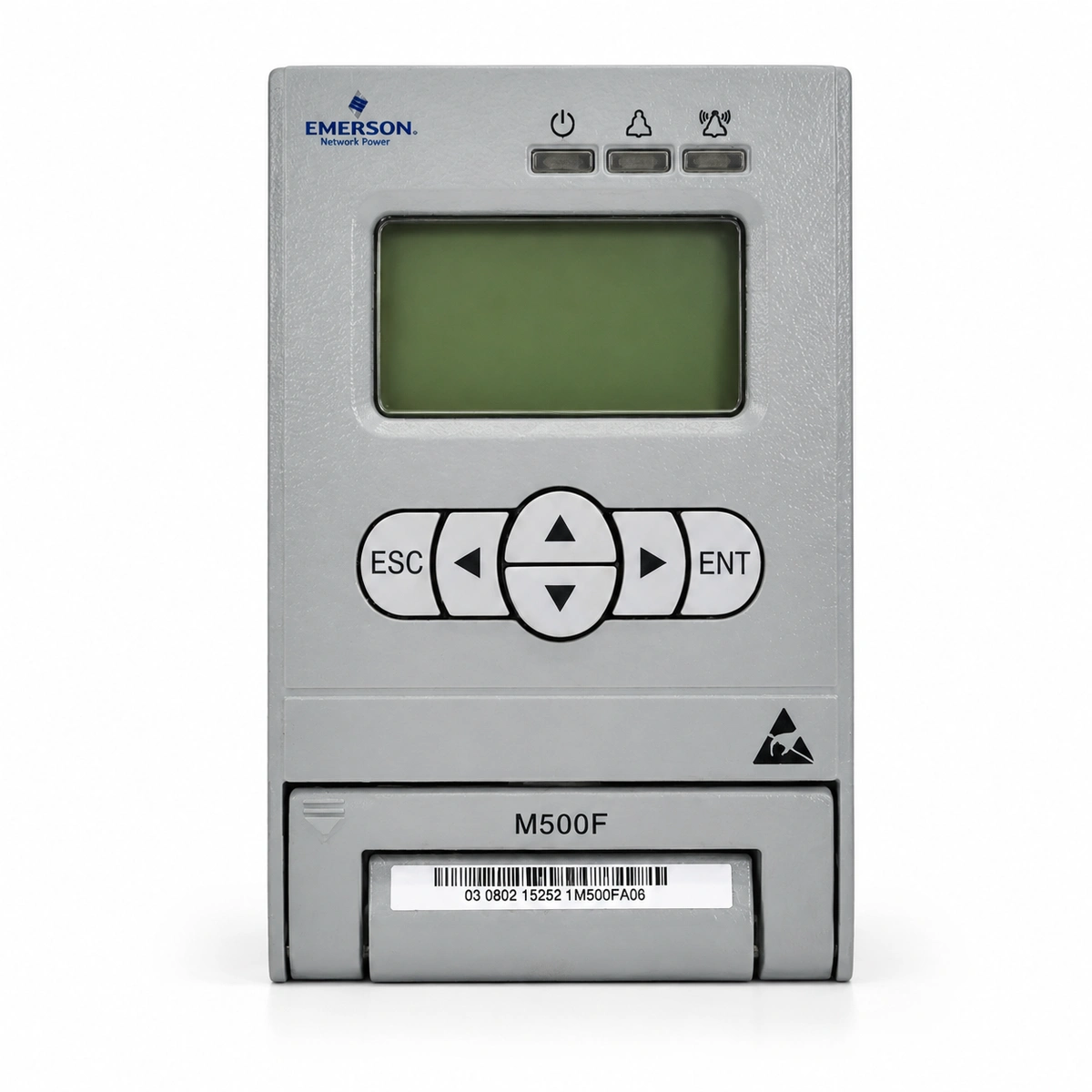

Emerson M500F Advanced Site Energy & Environment Intelligent Supervisory Unit (LCD/CAN/FE)

The Emerson M500F is a high-performance, embedded intelligent supervisory and control unit designed specifically for -48V DC telecom power systems and edge infrastructure monitoring. Integrating a dedicated microprocessor core, high-contrast local LCD, and rich fieldbus connectivity, it executes precision telemetry, autonomous rectifier management, and algorithmic battery charging optimization.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
System Nominal Voltage
48V DC
Communication Interfaces
RS485, CAN, FE (Ethernet), USB
Supported Protocols
SNMP, HTTPS, Modbus-RTU
Operating Temperature Range
-40°C ~ +75°C
Hot-Swappable Support
Yes (Live Hot-Pluggable / Plug-and-Play without Power Interruption)
Display Type
Display Interface

What this product is

What this product is

Architecturally, the M500F employs a dual-bus distributed supervision model. The central controller board hosts a deterministic real-time operating system that monitors rectify clusters, distribution panels, and auxiliary environmental sensors via galvanically isolated CAN and RS485 physical layers. Upstream network convergence is achieved via an integrated 10/100Base-T Ethernet port supporting SNMPv1/v2c/v3, HTTPS WebUI, and Modbus-RTU. The module meets IEC/EN 60950-1 safety requirements and complies with stringent telecom EMC immunity standards, featuring live hot-swappable mechanical insertion.

What problem it solves

The M500F mitigates operational risks including catastrophic battery thermal runaway, unrecoverable deep-discharge degradation, high operational expenditure caused by non-optimized rectifier low-load efficiencies, and delayed environmental alarm propagation (flood, smoke, temperature anomalies) in unstaffed remote installations.

Who and where it is for

Ideal for 4G/5G macro cell towers, Centralized Radio Access Network (C-RAN) hub sites, optical long-haul transport repeaters, rail signaling power panels, and large-scale enterprise DC power plants (such as the Emerson/Vertiv NetSure series).

Core advantages

  • Dual-bus distributed architecture with hardware watchdog ensures high reliability and zero single-point-of-failure.
  • Supports SNMP, HTTPS, and Modbus-RTU protocols for seamless integration with OSS/DCIM management systems.
  • Precise battery charge/discharge and rectifier efficiency control eliminate thermal runaway and deep discharge risks.
  • Engineered for -20°C to +70°C operation and industrial surge standards with live hot-swappable capability.

Technical specifications

Key specificationsValue
System Nominal Voltage48V DC
Communication InterfacesRS485, CAN, FE (Ethernet), USB
Supported ProtocolsSNMP, HTTPS, Modbus-RTU
Display TypeDisplay Interface
Operating Temperature Range-40°C ~ +75°C
Hot-Swappable SupportYes (Live Hot-Pluggable / Plug-and-Play without Power Interruption)
Non-Volatile Log Capacity10,000+ Cyclic Event Records
Unit Power Consumption< 8W (Ultra-Low Standby Design)
Industrial EMC LevelEN 55032 Class A / IEC 61000-4 Level 4
Relative Humidity Tolerance5% to 95% RH (Non-Condensing)

Applications

01

Telecom macro cell base stations and outdoor integrated power cabinets (NetSure 500/700 series)

02

Rail transit signaling and dispatch centers requiring robust -48V DC continuous power monitoring

03

Remote off-grid and hybrid solar-diesel-battery telecom repeater stations with automated load shedding

04

Hyperscale and edge data center DC bus management and secondary power distribution telemetry
