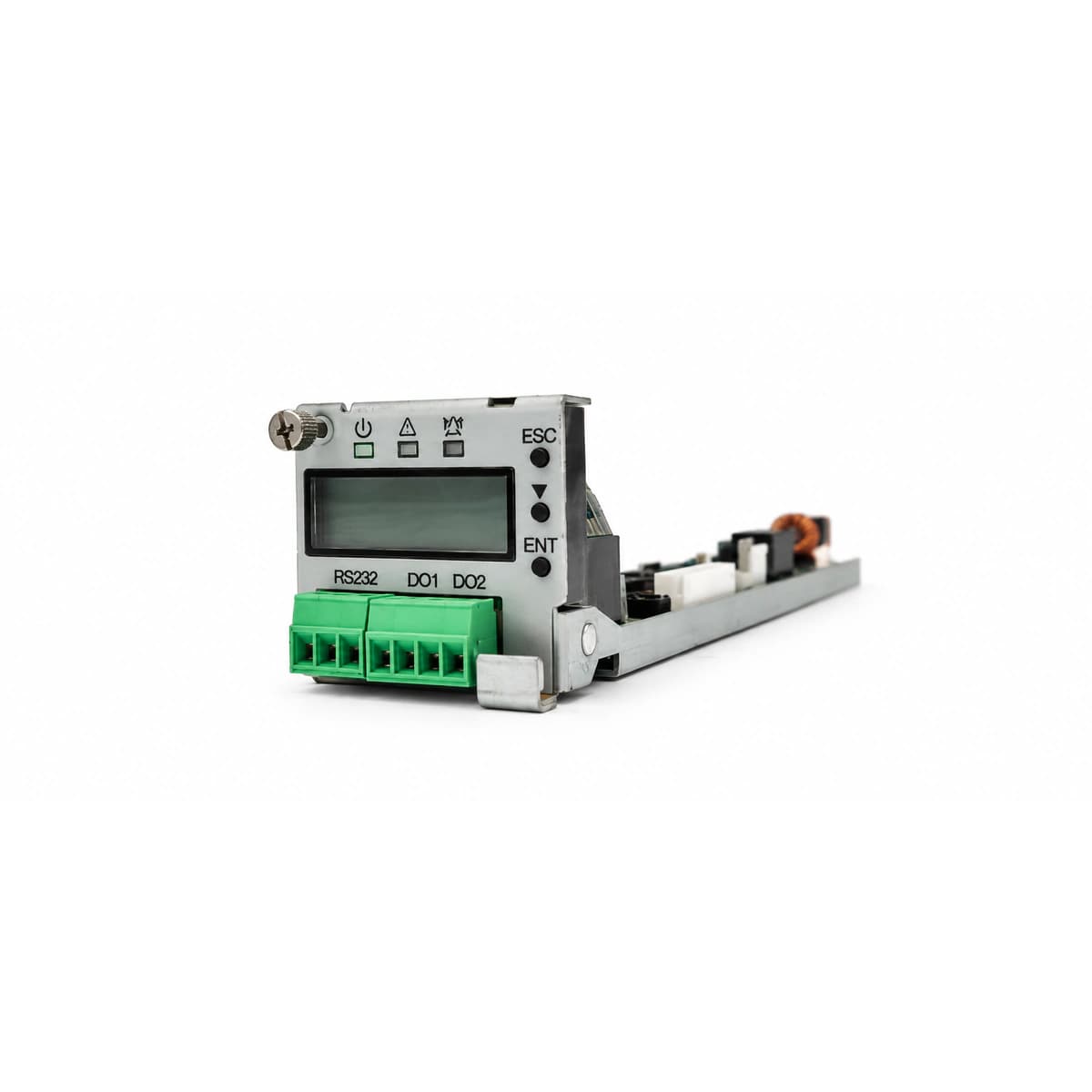

Emerson PSM-212C23 Telecom Power System Intelligent Supervisory Controller (RS485/CAN) - Official Front View
EmersonModel: PSM-212C23

Emerson PSM-212C23 Telecom Power System Intelligent Supervisory Controller (RS485/CAN)

The Emerson PSM-212C23 is an intelligent central supervisory controller engineered for Emerson/Vertiv NetSure power systems, delivering automated rectifier coordination and dual low-voltage disconnect control.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
DC Operating Voltage Range
48V DC (-36V to -72V DC)
Display & Keypad
Graphic Backlit LCD Display + Buttons
Communication Interfaces
RS232 / RS485 / Isolated CAN Bus
Battery Protection Algorithms
Temp Compensation / Equalize / LLVD
Operating Temperature Range
-40°C ~ +75°C
Chassis Form Factor
19-Inch Rackmount

What this product is

What this product is

This controller occupies the central slot of Emerson telecom power subracks, auditing AC inputs, DC bus parameters, and battery bank health while regulating rectifier float levels and contactor states.

What problem it solves

Solves lack of synchronized voltage regulation, prevents battery failure from undercharging or thermal runaway, and bridges field power plant telemetry to remote operations teams.

Who and where it is for

Engineered for Emerson NetSure embedded subracks, 4G/5G indoor telecom power plants, and industrial utility substation DC monitoring retrofits.

Core advantages

  • Industrial-Grade Hardware Architecture: Embedded processor engineered for high electromagnetic noise tolerance ensures non-stop uptime.
  • Advanced 4-Stage Battery Care: Integrates constant-current bulk, float, equalize, and thermal compensation charging to maximize battery lifespan.
  • Comprehensive Audio/Visual & Relay Alarms: Onboard status LEDs, audible buzzer, and programmable dry contacts facilitate site telemetry integration.
  • Field-Friendly Operation: Backlit LCD interface and intuitive keypad allow technicians to audit telemetry and adjust parameters without a laptop.

Technical specifications

Key specificationsValue
DC Operating Voltage Range48V DC (-36V to -72V DC)
Display & KeypadGraphic Backlit LCD Display + Buttons
Communication InterfacesRS232 / RS485 / Isolated CAN Bus
Operating Temperature Range-40°C ~ +75°C
Chassis Form Factor19-Inch Rackmount
Battery Protection AlgorithmsTemp Compensation / Equalize / LLVD
Non-Volatile Log Capacity10,000+ Cyclic Event Records
Unit Power Consumption< 8W (Ultra-Low Standby Design)
Industrial EMC LevelEN 55032 Class A / IEC 61000-4 Level 4
Relative Humidity Tolerance5% to 95% RH (Non-Condensing)

Applications

01

Data center intelligent power distribution header cabinets and busway telemetry systems

02

Master supervisory brain for telecom power plants and autonomous parallel rectifier fleets

03

Substation battery bank string telemetry, cell impedance monitoring, and predictive alarms

04

Integrated power and environment automation for remote unattended telecom hub stations
