Q: Which rectifier modules and monitoring units are compatible with ETP48200-C5B6, and how is autonomous current sharing managed?

The subrack natively supports 50A hot-swappable rectifiers including R4850G2 (96% high-efficiency) and R4850N6 (94% standard), accommodating N+1 redundancy. Managed by SMU02C or SMU02B controllers, the system utilizes high-speed CAN bus digital communication to enforce autonomous active load balancing with current unbalance under ±5%. It provides SNMPv3/HTTPS telemetry for remote OSS integration and permits live slot expansion without service interruption.

Q: What are the temperature tolerances, surge suppression levels, and dual-LVD battery protection designs of ETP48200-C5B6 for harsh telecom sites?

Designed for demanding deployment, the system operates from -40°C to +65°C utilizing intelligent variable-speed fan cooling. AC inputs integrate Class C 20kA/40kA (8/20μs) surge protection devices (SPD), paired with 10kA/20kA DC surge suppression. Battery protection features dual low-voltage disconnects: LLVD sheds non-critical cellular loads to extend critical core uptime, while BLVD isolates batteries (e.g., at 43.2V) to stop permanent cell damage, supporting both VRLA and SmartLi batteries.

Question 1

What are the core electrical specifications, input modes, and conversion efficiencies of the Huawei ETP48200-C5B6 subrack system?

Accepted Answer

The ETP48200-C5B6 is a 5U 19-inch rack-mounted DC power subrack with a total rated capacity of 200A, housing 4 × 50A rectifier slots for up to 12kW output. Nominal DC output is -48V DC, dynamically adjustable from -42V to -58V DC. It supports an ultra-wide AC input range of 85V to 300V AC, compatible with both 220V single-phase and 380V three-phase (3P4W/3P5W) grids. Paired with R4850G2 rectifiers, it delivers peak conversion efficiency >96%, THD <5%, and power factor PF ≥ 0.99, optimizing telecom site PUE.

Question 2

Which rectifier modules and monitoring units are compatible with ETP48200-C5B6, and how is autonomous current sharing managed?

Accepted Answer

The subrack natively supports 50A hot-swappable rectifiers including R4850G2 (96% high-efficiency) and R4850N6 (94% standard), accommodating N+1 redundancy. Managed by SMU02C or SMU02B controllers, the system utilizes high-speed CAN bus digital communication to enforce autonomous active load balancing with current unbalance under ±5%. It provides SNMPv3/HTTPS telemetry for remote OSS integration and permits live slot expansion without service interruption.

Question 3

What are the temperature tolerances, surge suppression levels, and dual-LVD battery protection designs of ETP48200-C5B6 for harsh telecom sites?

Accepted Answer

Designed for demanding deployment, the system operates from -40°C to +65°C utilizing intelligent variable-speed fan cooling. AC inputs integrate Class C 20kA/40kA (8/20μs) surge protection devices (SPD), paired with 10kA/20kA DC surge suppression. Battery protection features dual low-voltage disconnects: LLVD sheds non-critical cellular loads to extend critical core uptime, while BLVD isolates batteries (e.g., at 43.2V) to stop permanent cell damage, supporting both VRLA and SmartLi batteries.

Key specifications	Value
DC Output Voltage	-48VDC (-42V ~ -58V) V DC
System Monitoring Controller	Central Controller
Overall System Efficiency	Up to 96.2% (Gold Standard)
Physical Dimensions	222 (5U) × 442 × 360 mm
Acoustic Noise	≤ 55 dBA (at 25°C ambient load)
Ingress Protection Rating	IP20 (Indoor Dust & Finger Proof)
Dielectric Withstand Voltage	3000VAC Input to Ground (< 5mA)
Operating Temperature Range	-40°C ~ +65°C
Rectifier Module Slots	4 × 50A Slots
AC Input Mode	380V 3-Phase / 220V 1-Phase Compatible

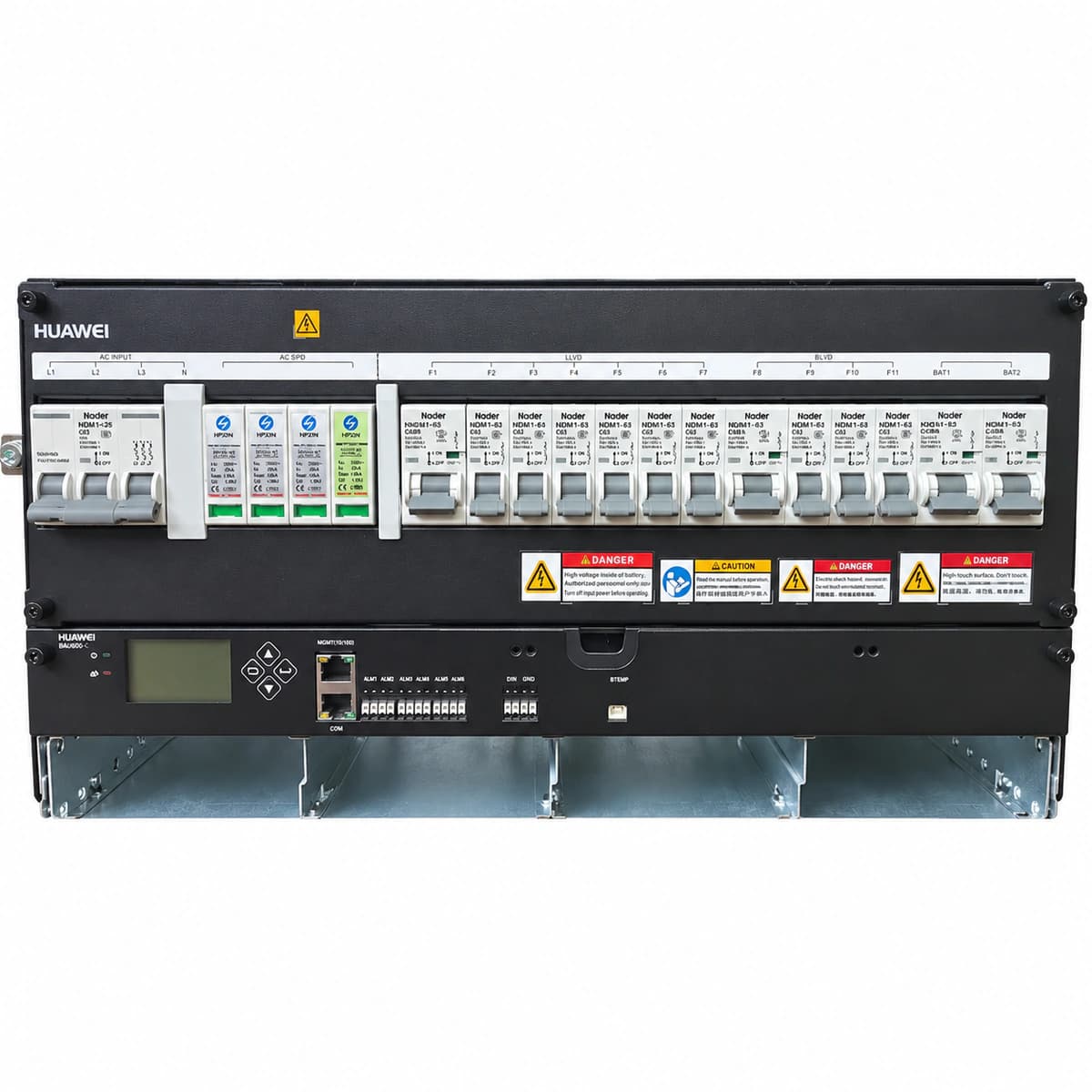

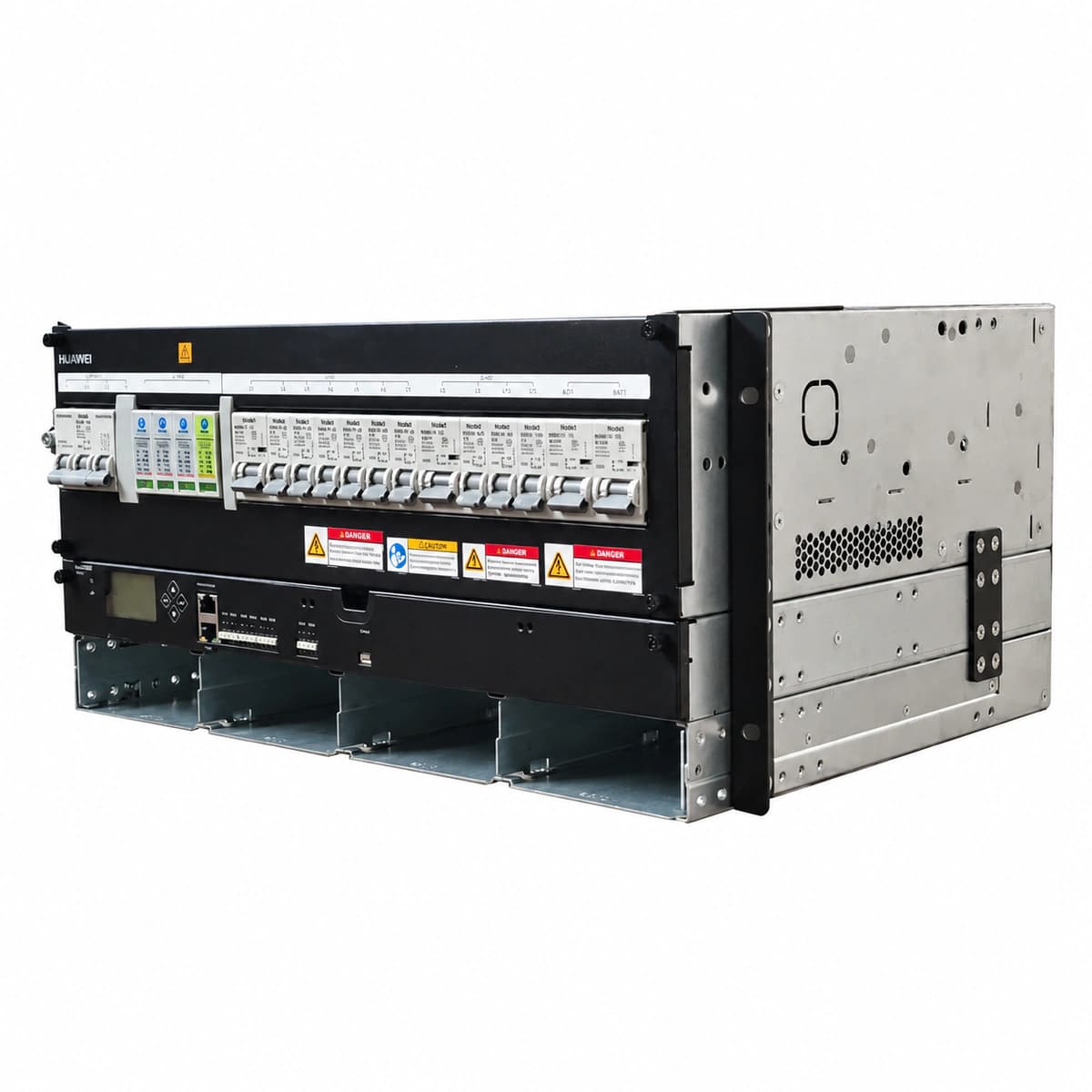

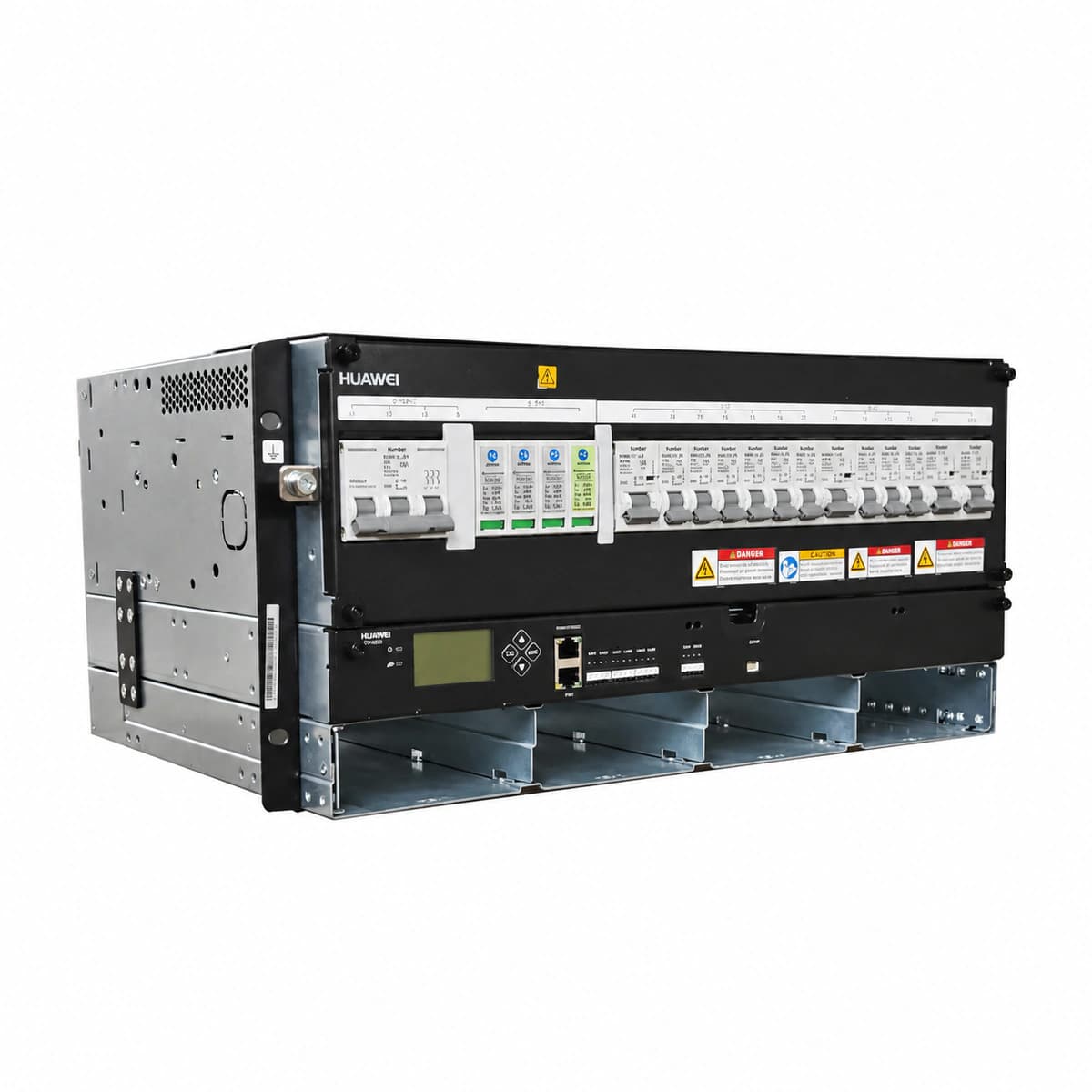

Huawei ETP48200-C5B6 Embedded Telecom DC Power System Subrack (48V 200A 5U)
