HuaweiModel: Huawei ETP4830-A1

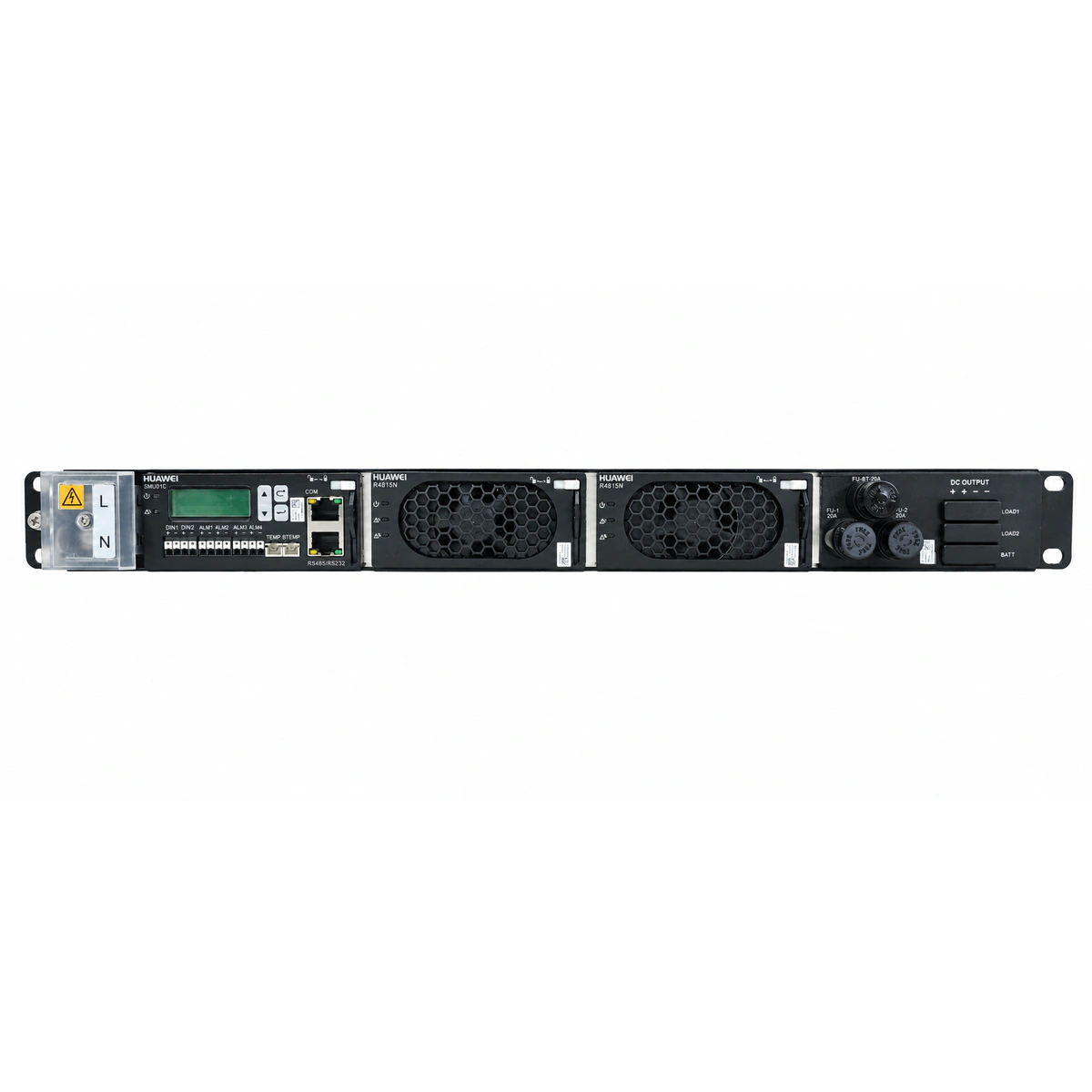

Huawei ETP4830-A1 1U Embedded Telecom Power System (30A -48V DC / 2x R4815 Slots / SMU01C)
The Huawei ETP4830-A1 is a compact 1U 19-inch rack-mounted embedded DC power supply system designed for space-constrained telecom applications. It integrates two rectifier slots accommodating R4815N1 or high-efficiency R4815G1 modules to convert an ultra-wide AC input (85V to 300V AC) into stable -48V DC (nominal -53.5V DC) with a total system capacity of 30A, achieving up to 96% conversion efficiency alongside integrated distribution and SMU01C monitoring.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- System Output Capacity
- 30A (-48V DC)
- AC Input Voltage
- 85V AC ~ 300V AC
- Rectifier Module Slots
- 2 Slots
- System Monitoring Controller
- SMU01C / SMU01B Controller Unit
- Form Factor
- 43.6 (1U) × 442 × 255 mm
- Power Conversion Efficiency
- ≥ 96%
What this product is
What this product is

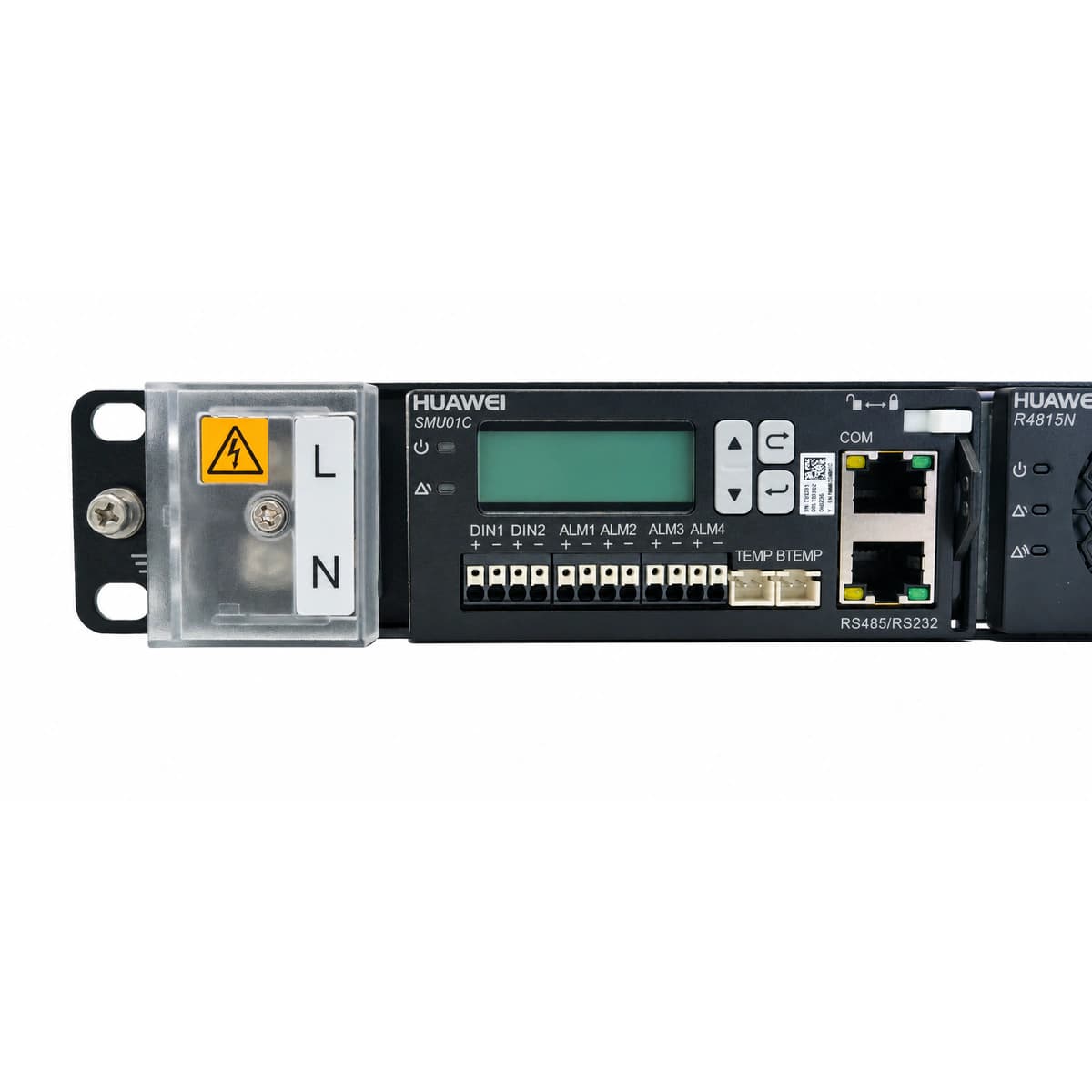

The Huawei ETP4830-A1 is an all-in-one 1U rack-mount subrack power unit that incorporates AC input terminals, two hot-swappable rectifier bays, battery and load DC distribution, and an embedded SMU01C monitoring unit inside a depth of only 255mm.
What problem it solves
Eliminates power infrastructure bottlenecks in space-critical installations (such as street outdoor cabinets and mini-shelters) while counteracting unstable grid conditions and providing remote out-of-band monitoring with automated battery preservation.
Who and where it is for
Ideal for 4G/5G micro base stations, optical access nodes (FTTx OLT/ONU racks), edge transmission networking sites, smart grid SCADA substations, and enterprise ICT branch cabinets.
Core advantages
- Ultra-compact 1U profile for standard 19-inch and 21-inch rack mounting, optimizing interior equipment space
- Wide AC input range of 85V AC to 300V AC with integrated surge protection to mitigate electrical grid fluctuations
- High power efficiency (≥ 96% with R4815G1 rectifiers), substantially reducing heat emission and overall site PUE
- Fully hot-swappable modular design with intelligent battery health management and remote RS485/CAN telemetry
Technical specifications
| Key specifications | Value |
|---|---|
| System Output Capacity | 30A (-48V DC) |
| AC Input Voltage | 85V AC ~ 300V AC |
| Form Factor | 43.6 (1U) × 442 × 255 mm |
| Rectifier Module Slots | 2 Slots |
| System Monitoring Controller | SMU01C / SMU01B Controller Unit |
| Power Conversion Efficiency | ≥ 96% |
| DC Output Voltage | -42V DC ~ -58V DC (Rated -53.5V DC) |

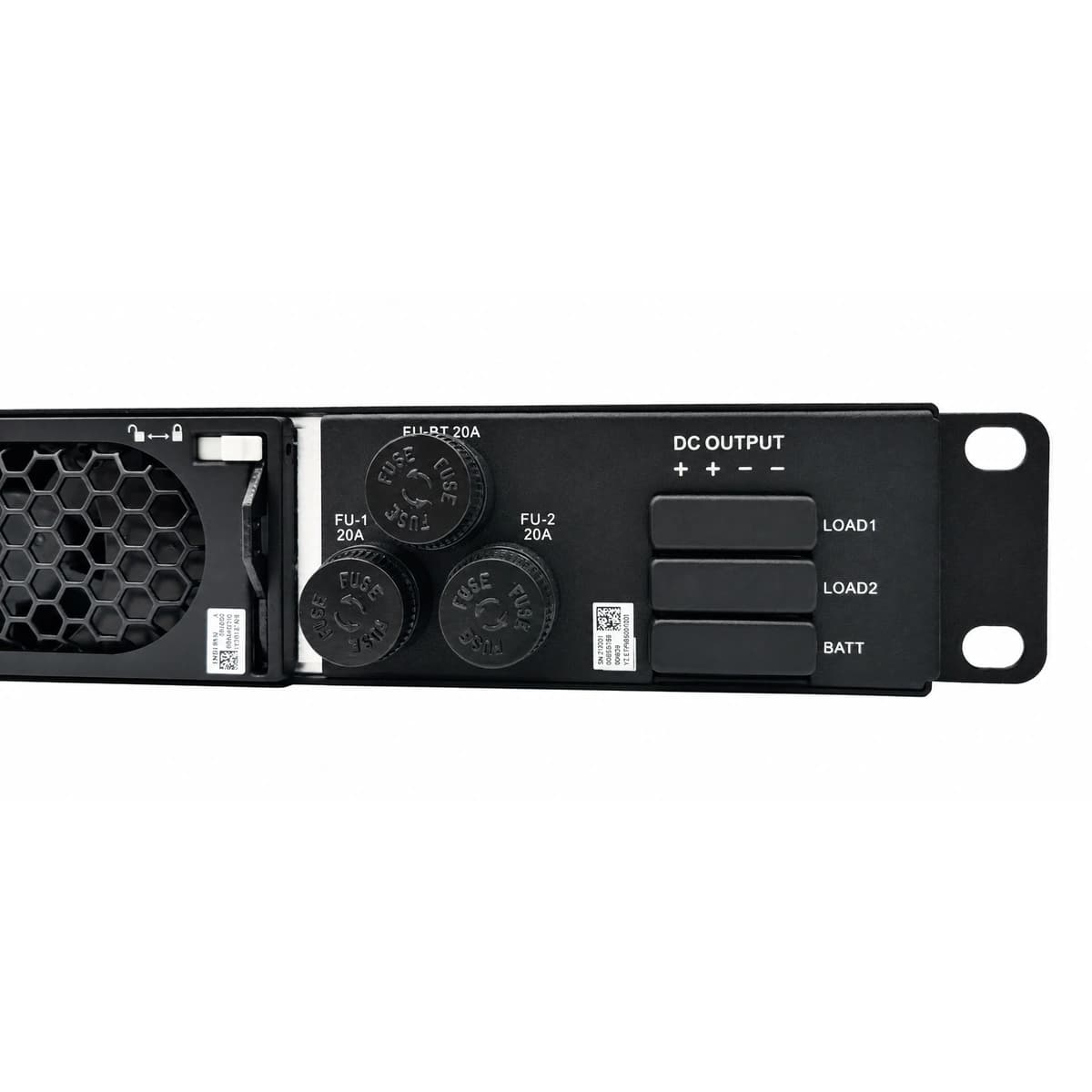

| DC Distribution Branches | Battery Path: 1×20A + Load Branches: 2×20A / 10A |
| Operating Temperature Range | -40°C to +65°C |
Applications
01
Micro base station (BTS) and remote radio head (RRU) power supply
02
Fiber-to-the-Home (FTTH) street cabinet and enterprise access network hubs
03
Industrial automation, oil/gas, and railway wayside DC infrastructure
04
Edge computing racks and video surveillance centralized power distribution
