HuaweiModel: Huawei ETP48600-C5A8

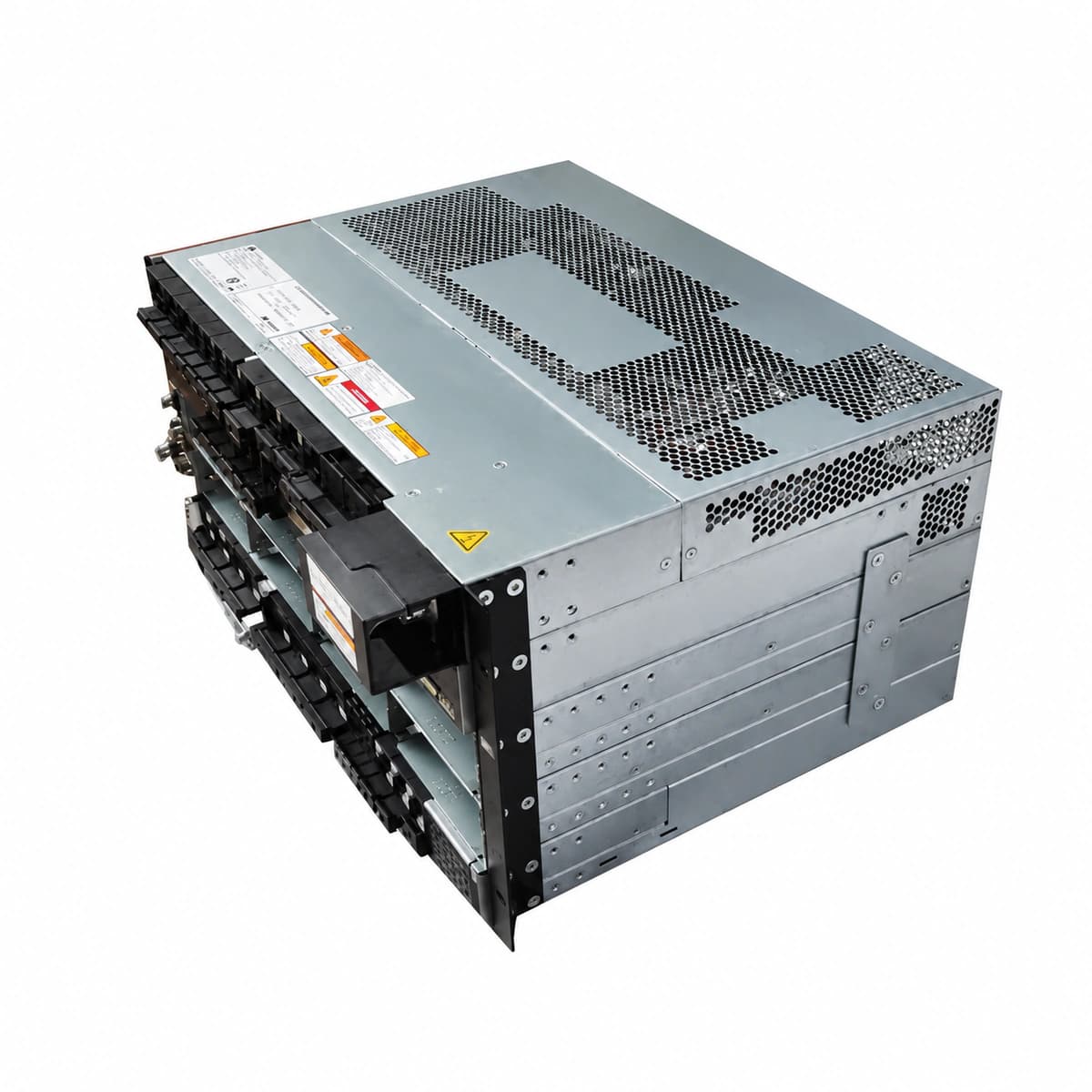

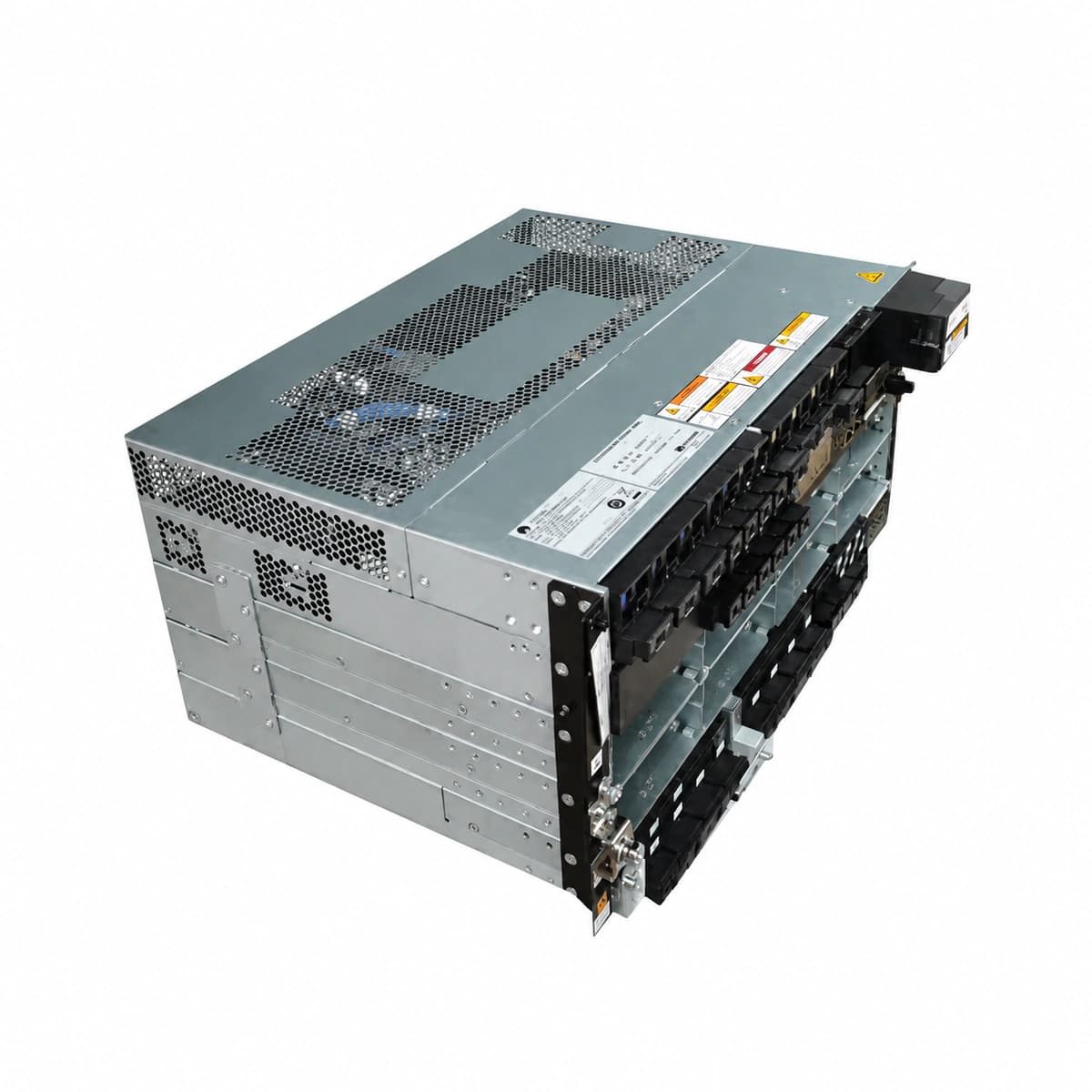

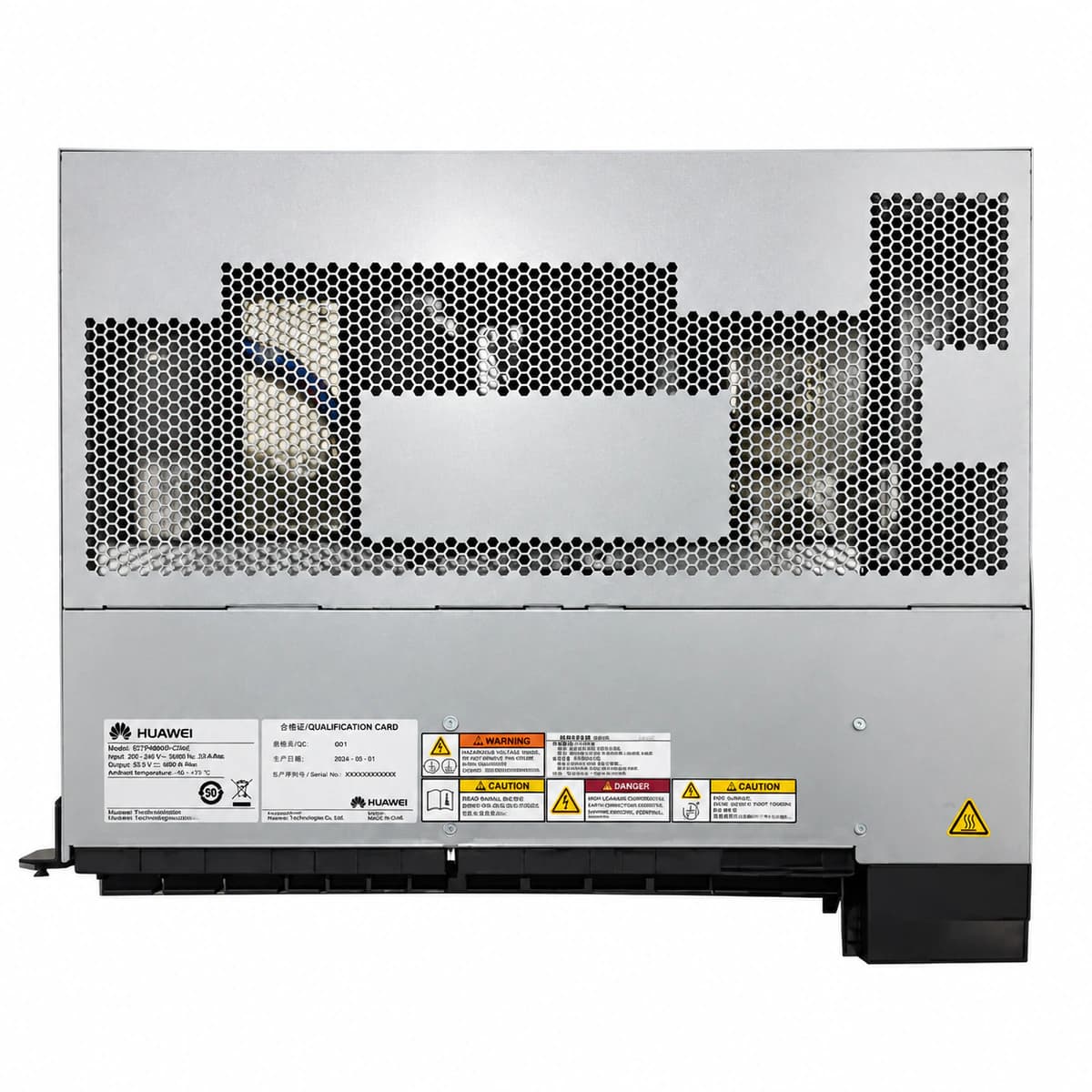

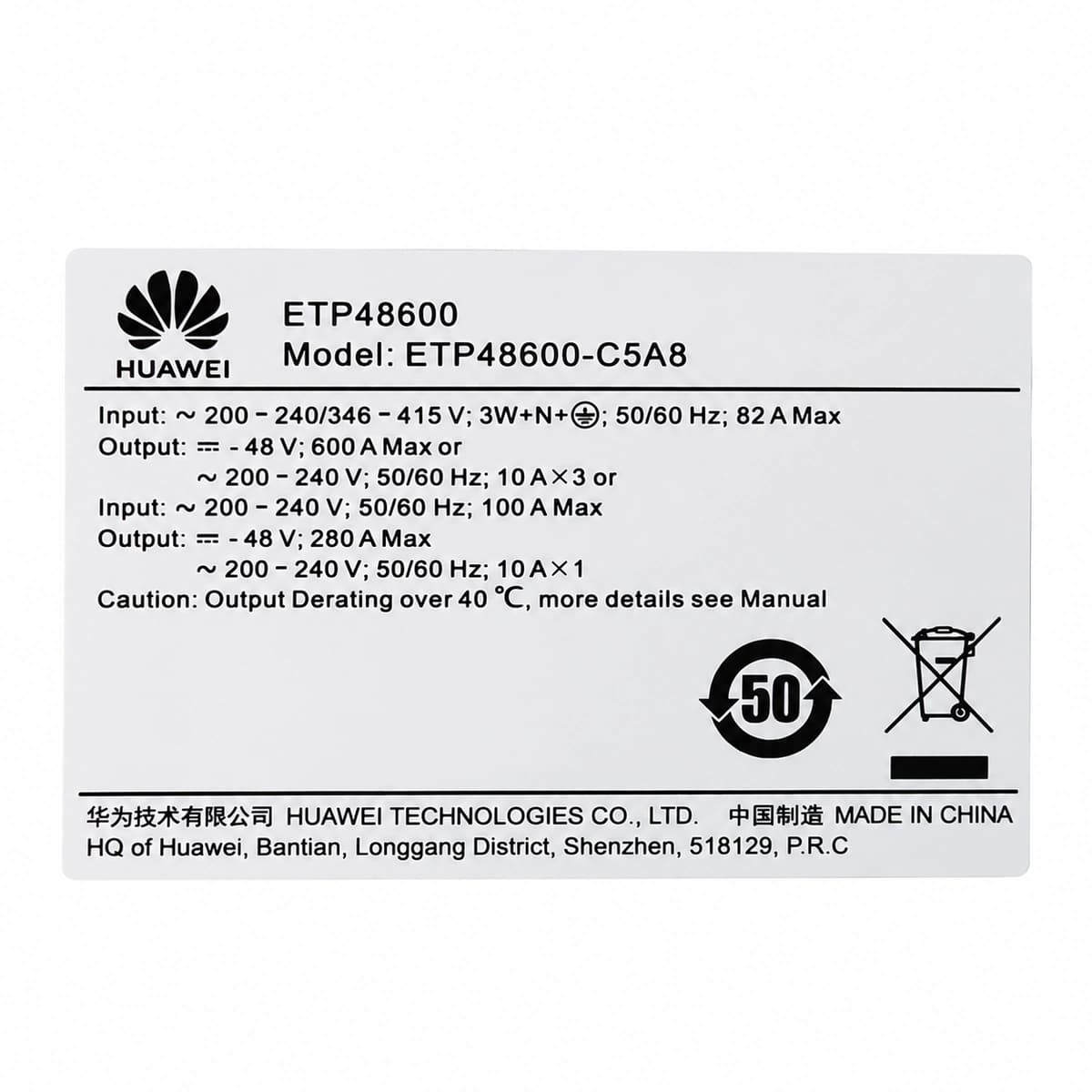

Huawei ETP48600-C5A8 11U 600A Embedded DC Power System (12×R4850G2 Slots, SMU02C)
Huawei ETP48600-C5A8 is a heavy-duty 11U 19-inch rack-mounted embedded DC power subrack designed for central telecom offices and large-scale sites, providing 600A/-48V DC output capacity across 12 high-efficiency rectifier slots managed by an SMU02C intelligent controller with comprehensive multi-level battery disconnection protection.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- System Output Capacity
- 600A (-48V DC)
- Rectifier Module Slots
- 12 Slots
- Form Factor
- 222 (5U) × 442 × 360 mm
- System Monitoring Controller
- SMU02C Intelligent Network Controller Unit
- AC Input Voltage
- 85V AC ~ 300V AC (3-Phase 5-Wire 380V/220V)
- Power Conversion Efficiency
- ≥ 96%
What this product is
What this product is

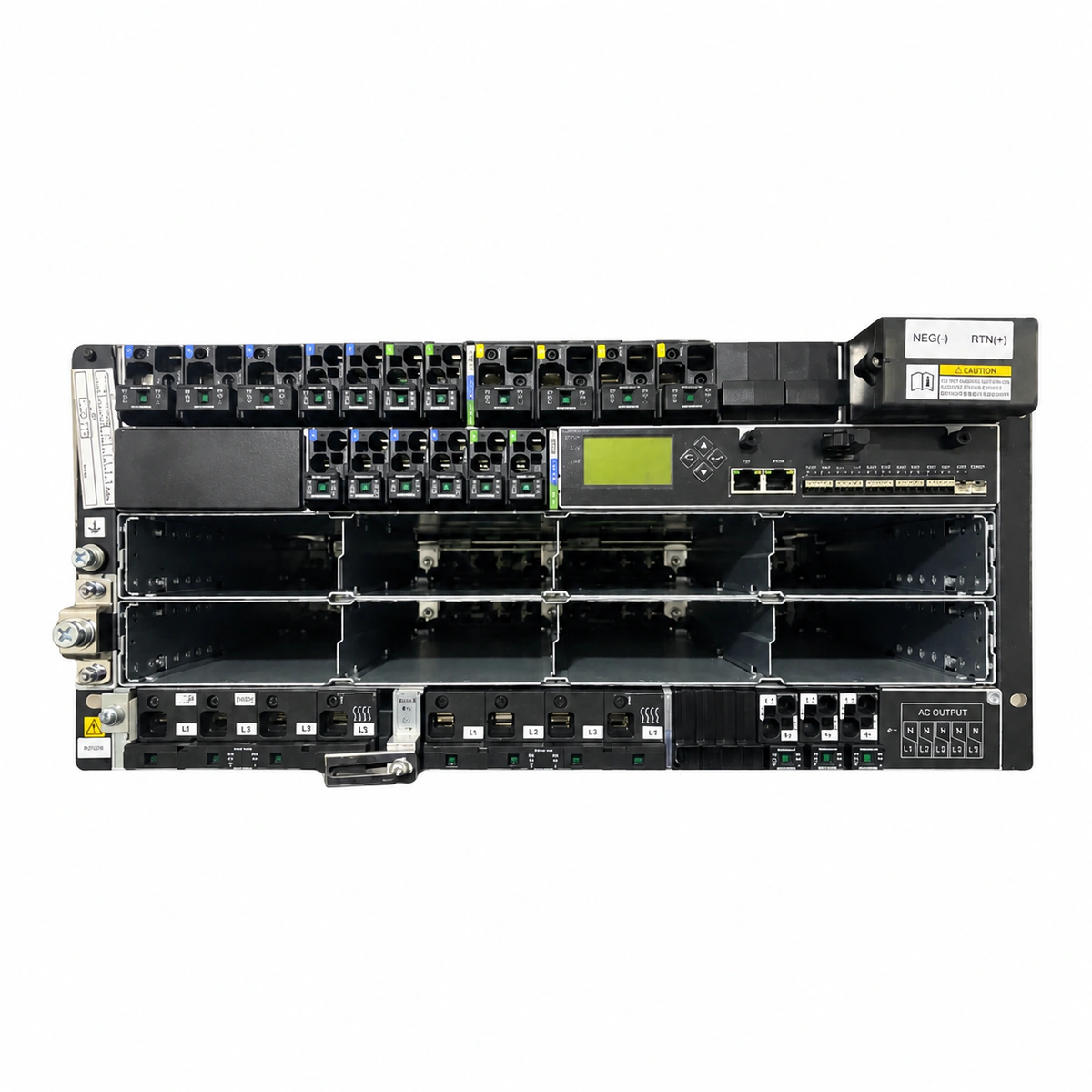

An 11U heavy-duty 19-inch subrack housing an AC input distribution bay, 12 hot-swappable rectifier bays, an SMU02C central monitoring module, and a multi-branch DC distribution panel with dual-level LVD protection and 4-way NT2 battery protection.
What problem it solves
Eliminates power bottlenecks in high-capacity telecom hubs by packing 600A into an 11U space while safeguarding against erratic grid fluctuations and extending battery lifespan through precise temperature-compensated charging.
Who and where it is for
Central cellular macro base stations, metro aggregation core rooms, industrial DCS control stations, data center rack-end DC distribution, and rail transit communication centers.
Core advantages
- Ultra-high power density delivering up to 600A in a compact 11U standard 19-inch rack frame
- Native support for 12× R4850G2 50A rectifiers achieving industry-leading ≥96% conversion efficiency
- Rugged 85V AC to 300V AC operational range with integrated Class C/D surge protection devices
- SMU02C controller offering real-time battery analytics, remote SNMP/Web access, and LLVD/BLVD protection
Technical specifications
| Key specifications | Value |
|---|---|
| System Output Capacity | 600A (-48V DC) |
| AC Input Voltage | 85V AC ~ 300V AC (3-Phase 5-Wire 380V/220V) |
| Form Factor | 222 (5U) × 442 × 360 mm |
| Rectifier Module Slots | 12 Slots |
| System Monitoring Controller | SMU02C Intelligent Network Controller Unit |
| Power Conversion Efficiency | ≥ 96% |
| DC Distribution Branches | Battery: 4×250A/NT2 + Multi-Stage LVD Load Disconnect |
| Operating Temperature Range | -40°C to +65°C |
Applications
01
5G/4G Centralized RAN and Core Macro Sites
02
Telecom Central Office & Metro Aggregation Nodes
03
Industrial Power Automation and Substation DC Backing
04
Data Center Edge Computing & Row-end DC Cabinets
