HuaweiModel: Huawei ETP4890-A2
Huawei ETP4890-A2 1U Subrack Telecom Power System (90A/-48VDC/Supports 3×R4830G1/SMU01C)
The Huawei ETP4890-A2 is a 1U 19-inch rack-mounted embedded DC power supply designed with a wide-input AC architecture and digital switching topology, accommodating up to three 30A rectifier modules (90A total at -48V DC nominal) alongside an intelligent SMU01C controller to ensure reliable, high-efficiency power for edge and telecommunication sites.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- System Output Capacity
- 90A (-48V DC)
- Rectifier Module Slots
- 3 Slots
- Form Factor
- 88.9 (2U) × 442 × 255 mm
- System Monitoring Controller
- SMU01C / SMU01B Intelligent Controller Module
- AC Input Voltage
- 85V AC ~ 300V AC (Nominal 220V AC)
- Power Conversion Efficiency
- ≥ 96%
What this product is
What this product is

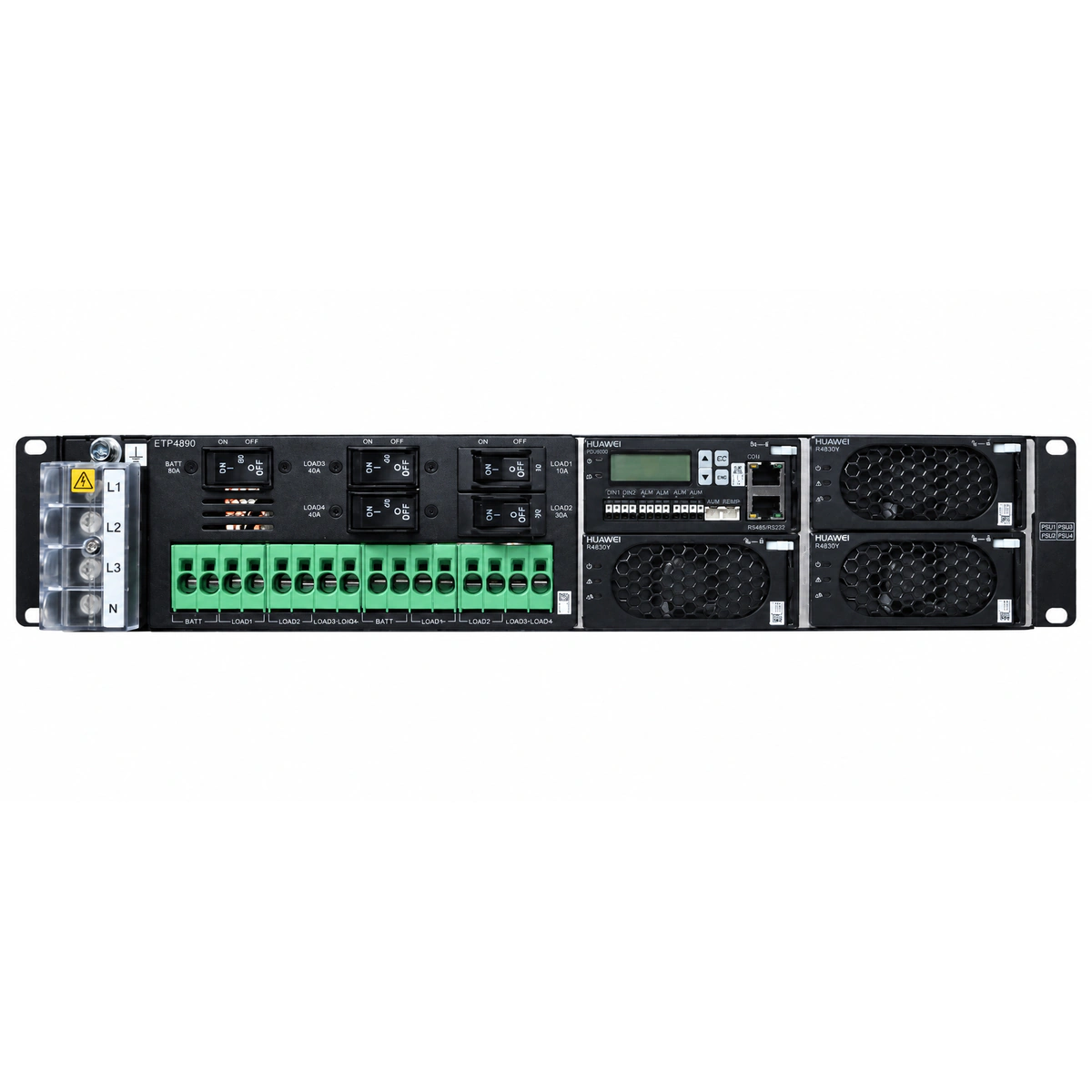

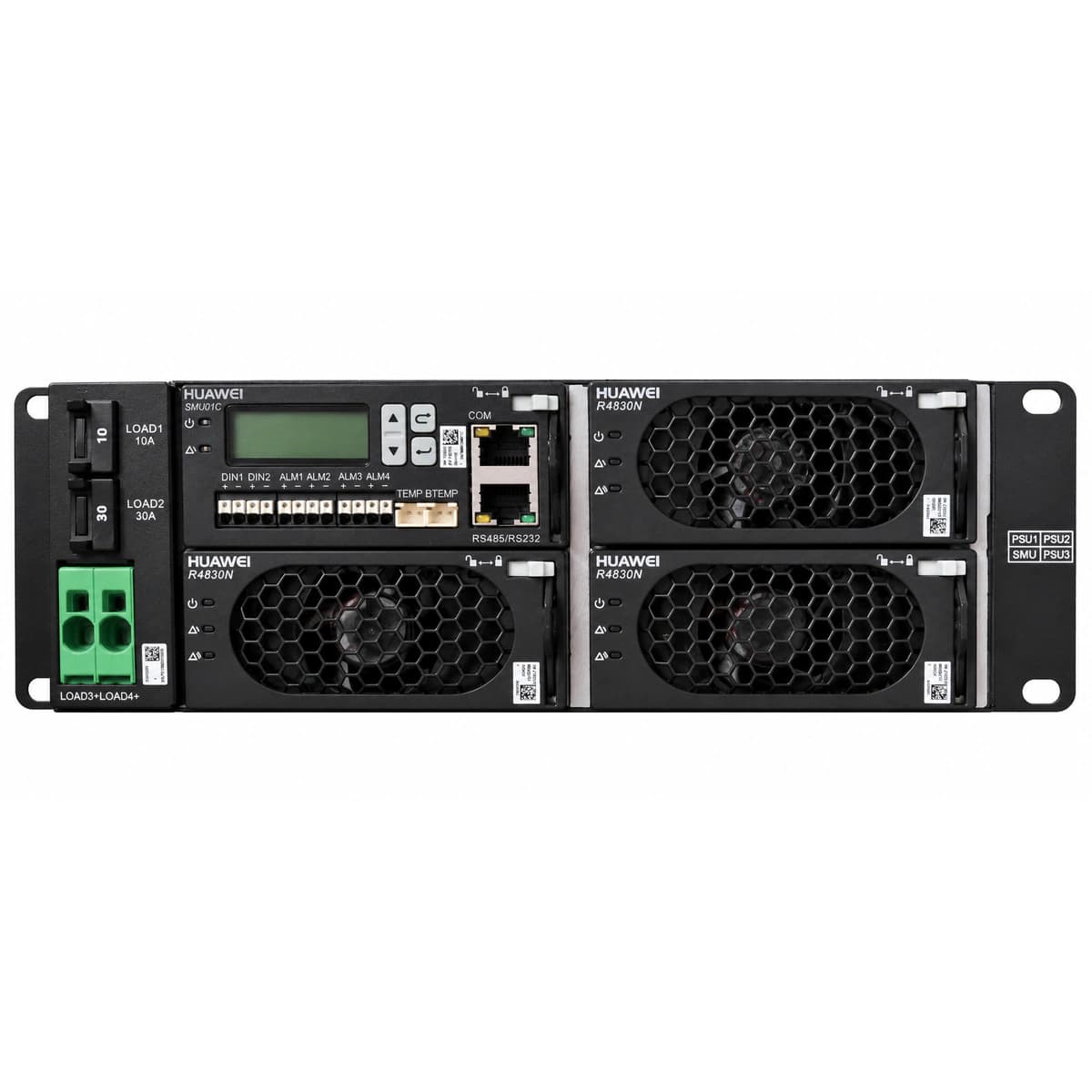

An ultra-dense DC subrack system integrating AC power distribution, three hot-swappable rectifier bays, one intelligent supervisory slot (SMU01C/SMU01B), and multi-channel DC distribution with battery and load breakers within a standardized 1U form factor (43.6mm height).
What problem it solves
Eliminates physical space limitations in 1U-reserved outdoor cabinets, safeguards systems against severe grid anomalies via wide voltage resilience, prevents lead-acid/lithium battery deep discharge using intelligent LVD, and simplifies remote management in unmanned sites.
Who and where it is for
5G/4G wireless base stations, access network central offices, optical transport nodes (FTTx/OLT), railway signaling/dispatch centers, and industrial automation control racks.
Core advantages
- Ultra-Compact 1U Density: Delivers 90A pure DC power within a 43.6mm height, preserving critical cabinet U-space
- High Energy Efficiency: Reaches ≥96% conversion efficiency with R4830G1 rectifiers, drastically lowering operational costs
- Extreme Voltage Adaptability: Operates stably between 85V AC and 300V AC; withstands up to 415V AC phase surges
- Two-Stage Low Voltage Disconnect: Configurable LLVD and BLVD thresholds to maximize uptime for primary mission-critical loads
Technical specifications
| Key specifications | Value |
|---|---|
| System Output Capacity | 90A (-48V DC) |
| AC Input Voltage | 85V AC ~ 300V AC (Nominal 220V AC) |
| Form Factor | 88.9 (2U) × 442 × 255 mm |
| System Monitoring Controller | SMU01C / SMU01B Intelligent Controller Module |
| Rectifier Module Slots | 3 Slots |
| Power Conversion Efficiency | ≥ 96% |

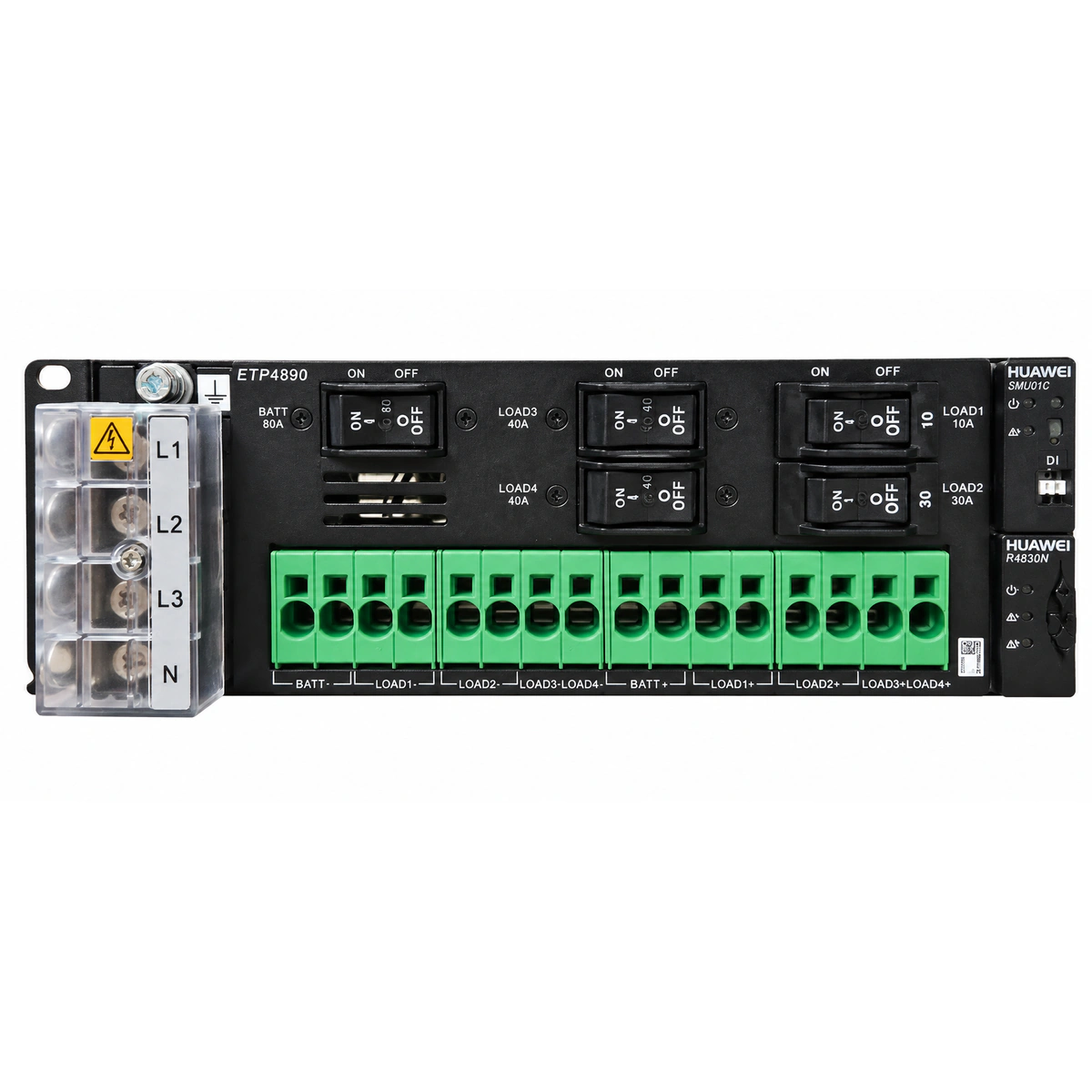

| DC Distribution Branches | Battery: 1×80A + Load: 1×40A, 2×25A, 2×16A |
| Operating Temperature Range | -40°C to +65°C |
Applications
01
Outdoor 5G/LTE Micro Base Station Power Enclosures
02
Enterprise Edge Aggregation and FTTx/GPON Transmission Hubs
03
Substation SCADA, Switchgear Automation, and Power Distribution
04
Intelligent Transport Systems (ITS) and Rugged Industrial IoT Racks
