HuaweiModel: Huawei S4875G1 Solar Rectifier
Huawei S4875G1 Solar MPPT Rectifier Module (4000W 75A -48V Telecom Power)
The Huawei S4875G1 is a high-efficiency, hot-swappable 1U DC-DC telecom solar converter module engineered with state-of-the-art Maximum Power Point Tracking (MPPT) topology, transforming high-voltage photovoltaic array input ranging from 100V to 430V DC into a regulated -48V DC bus power with up to 98.5% industry-leading efficiency.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- Rated Output Power
- 4000W PV Solar DC Conversion Power
- DC Output Voltage
- -48VDC (-42V ~ -58V)
- Rated Output Current
- 75A (-48V DC Continuous High Current)
- PV Solar Input Range
- 100V DC ~ 430V DC (MPPT High Efficiency Tracking)
- Power Conversion Efficiency
- ≥ 98.5%
- Cooling Method
- Internal Temperature-Controlled Intelligent Variable Speed Fan
What this product is
What this product is

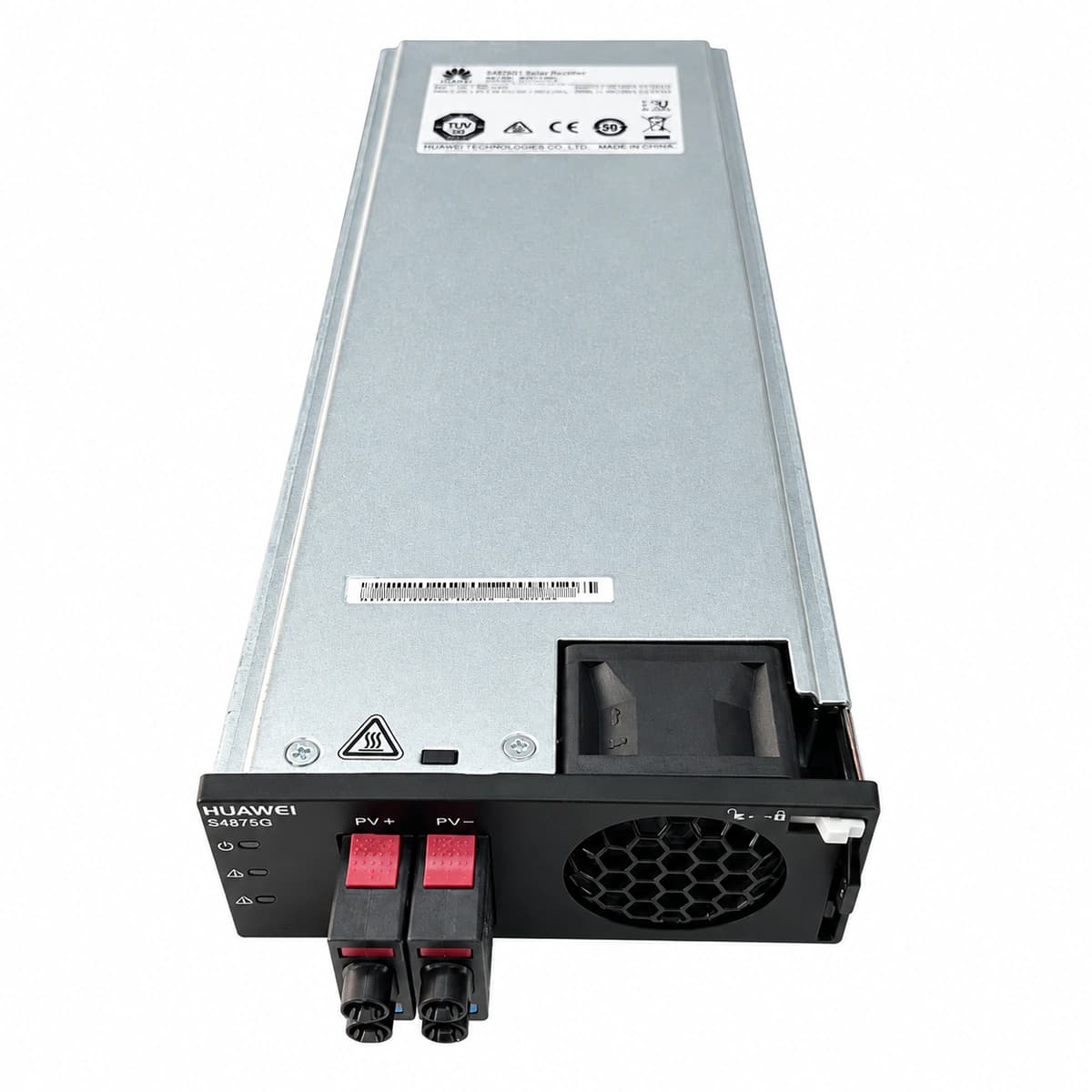

The S4875G1 is a high-frequency isolated DC-DC step-down solar MPPT converter controlled by advanced digital signal processors (DSP), packaged in a modular 1U hot-pluggable enclosure equipped with integrated CAN communication bus and variable-speed dual-ball cooling fans.
What problem it solves
Eliminates high fuel consumption and maintenance costs associated with off-grid diesel generators, mitigates erratic power fluctuation caused by cloudy conditions via ultra-fast MPPT, and bridges the gap between solar arrays and telecom DC power racks via unified hybrid slot operation.
Who and where it is for
Green telecom 5G base stations, remote microwave repeater sites, solar-diesel-battery hybrid off-grid power systems, and edge industrial IoT 48V DC cabinets.
Core advantages
- Ultra-High Peak Efficiency: Achieves ≥98.5% peak MPPT conversion efficiency, maximizing energy yield per square meter of solar panel arrays.
- Hybrid Parallel Operation: Can be mixed with Huawei grid rectifiers (like R4875G1) in identical subracks under unified SMU controller orchestration.
- High Density 1U Form Factor: Compact 1U hot-swappable modular architecture allows seamless live insertion without interrupting power supply.
- Harsh Environment Resilience: Designed to operate flawlessly between -40°C and +75°C, equipped with robust built-in surge protection.
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Output Power | 4000W PV Solar DC Conversion Power |
| Form Factor | 1U Standard High-Density Hot-Pluggable Module |
| Rated Output Current | 75A (-48V DC Continuous High Current) |
| PV Solar Input Range | 100V DC ~ 430V DC (MPPT High Efficiency Tracking) |
| Power Conversion Efficiency | ≥ 98.5% |
| Cooling Method | Internal Temperature-Controlled Intelligent Variable Speed Fan |
| DC Output Voltage | -48VDC (-42V ~ -58V) |
| Operating Temperature Range | -40°C to +75°C |
Applications
01
Solar modernization retrofits for off-grid and weak-grid telecom base stations
02
Remote solar-powered transmission and optical relay backhaul stations
03
Industrial hybrid microgrids and edge computing power cabinets
04
High-reliability 48V DC emergency solar power backup infrastructures
