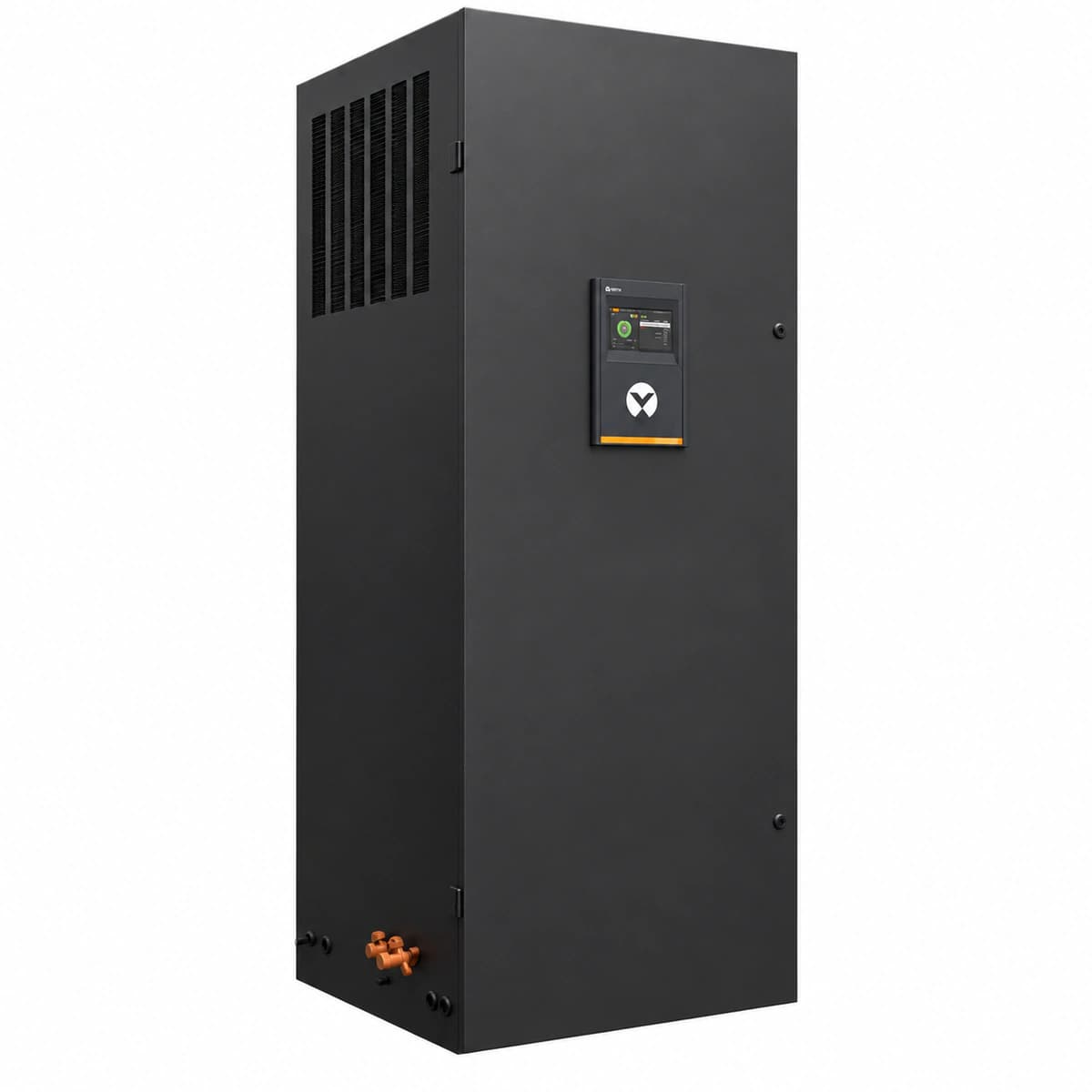

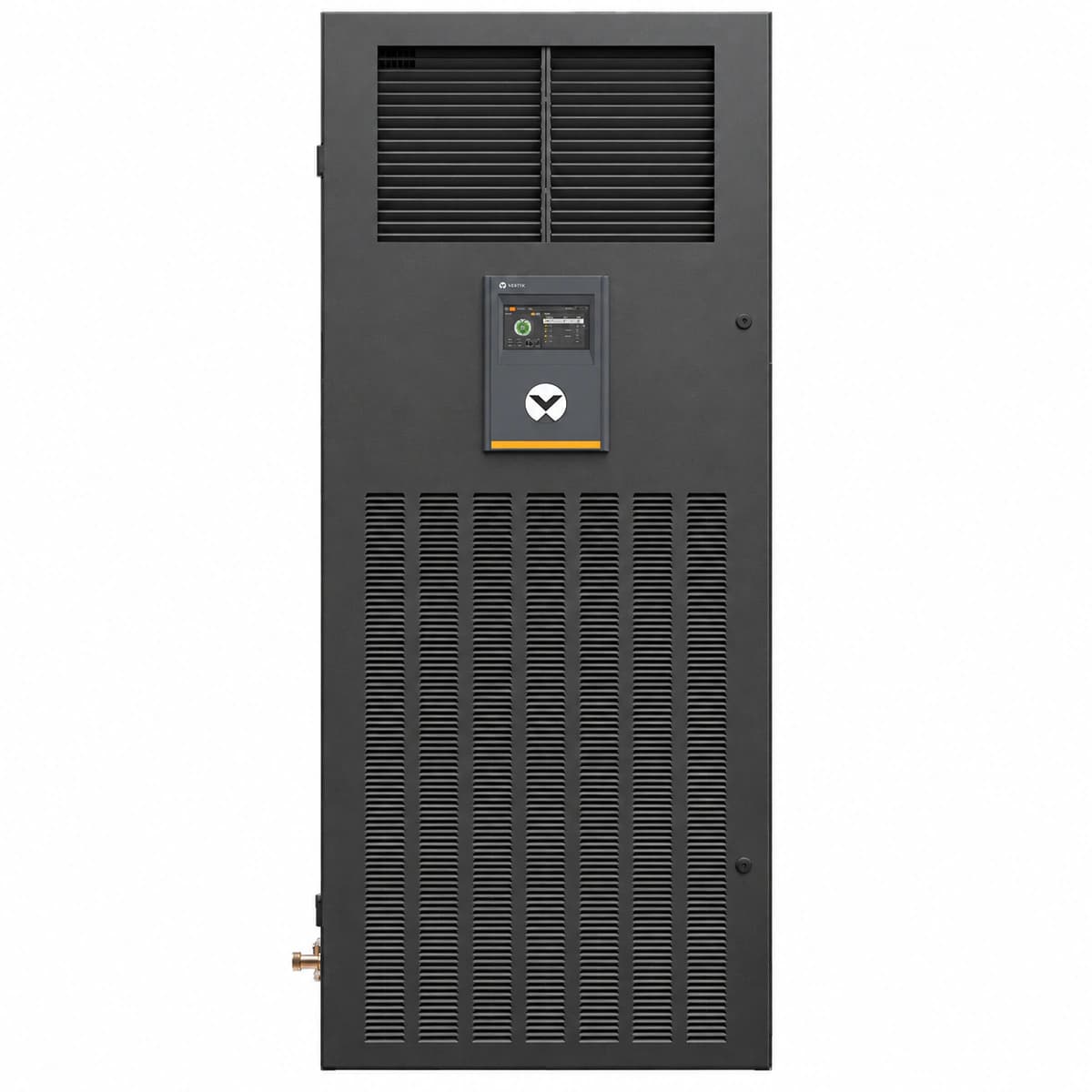

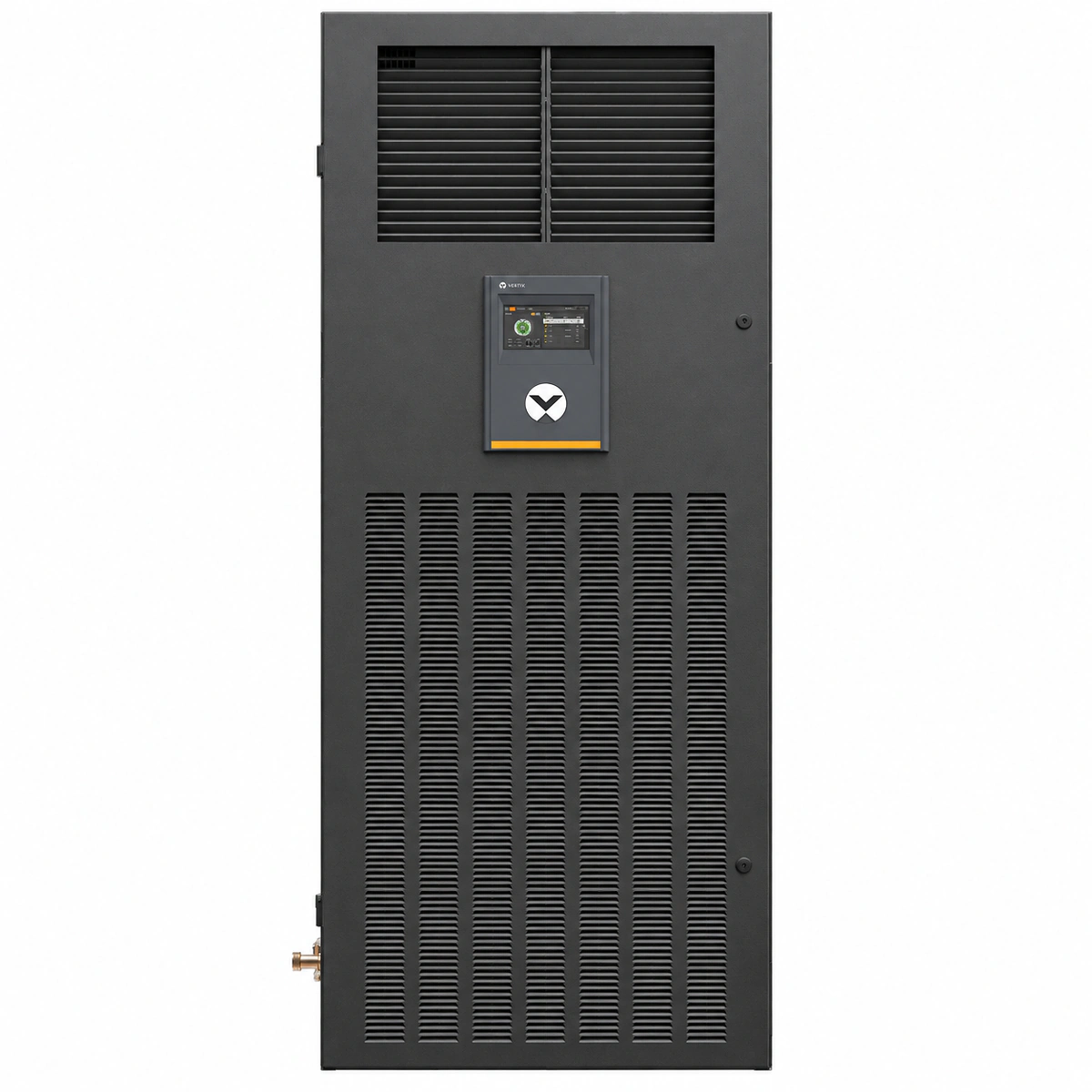

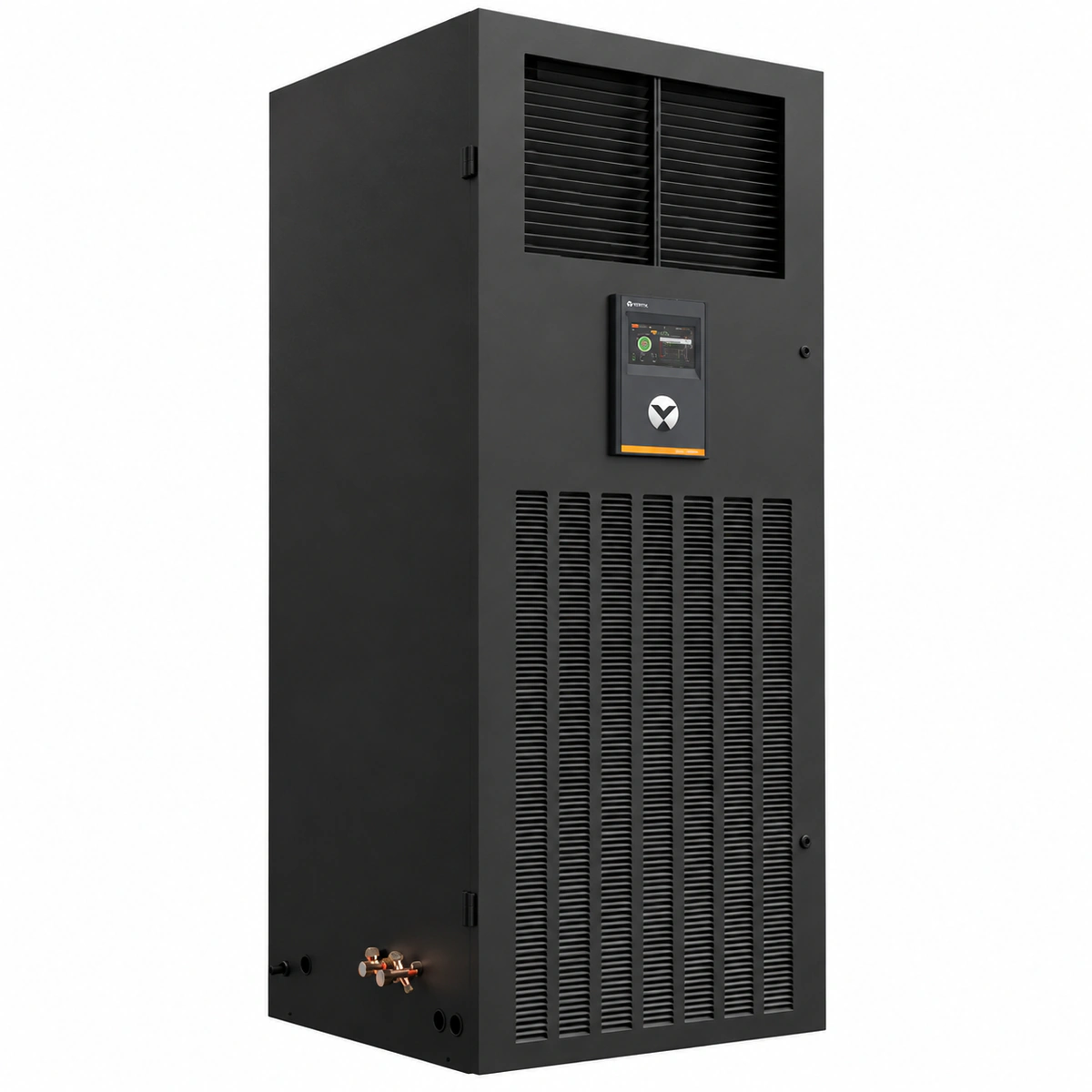

Vertiv Liebert DataMate3000-2 DME22 is a next-generation 22kW room-level precision air conditioner featuring an 800x765x1975mm compact footprint, 7-inch HMI touchscreen, and eco-friendly R410A refrigerant.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Vertiv Liebert DataMate3000-2 DME22 is a next-generation 22kW room-level precision air conditioner featuring an 800x765x1975mm compact footprint, 7-inch HMI touchscreen, and eco-friendly R410A refrigerant.
Vertiv Liebert DataMate3000-2 DME22 delivers 22kW continuous cooling with AI self-diagnostic controls and high sensible heat ratio for telecom shelters and substation equipment rooms.
Vertiv Liebert DataMate3000-2 DME22 is a next-generation 22kW room-level precision air conditioner featuring an 800x765x1975mm compact footprint, 7-inch HMI touchscreen, and eco-friendly R410A refrigerant.
| Key specifications | Value |
|---|---|
| Airflow Volume | High-air-volume, low-enthalpy-difference circulation design |
| HMI Display Interface | 7-inch full-color HMI touchscreen (self-learning and self-diagnostics) |
| Refrigerant Type | Environmentally friendly R410A |
| Grid Power Supply System | 380V 3-Phase / 220V 1-Phase Compatible |
| Airflow Delivery & Fan Type | Optional upflow / downflow air supply |
| Sensible Heat Ratio (SHF) | > 0.90 (high sensible heat ratio design) |
| Control System & HMI | Large-screen graphical microcomputer controller with a fully Chinese-language interface |
| Energy Saving Mode | Economy operating mode as standard; up to 4 optional external sleep-mode energy-saving cards |
| Rated Cooling Capacity | 22 kW (air-cooled cooling-only/electric heating/humidification) |
| Matching Outdoor Condenser | Standard configuration: DMC22M*1 (-15℃~+45℃); optional low-temperature kit for -34℃ |
| Physical Dimensions | 800mm (width) × 765mm (depth) × 1975mm (height) mm |
| Operating Temperature Range | -15℃~+45℃ (supports -34℃ when equipped with a low-temperature condenser) |
