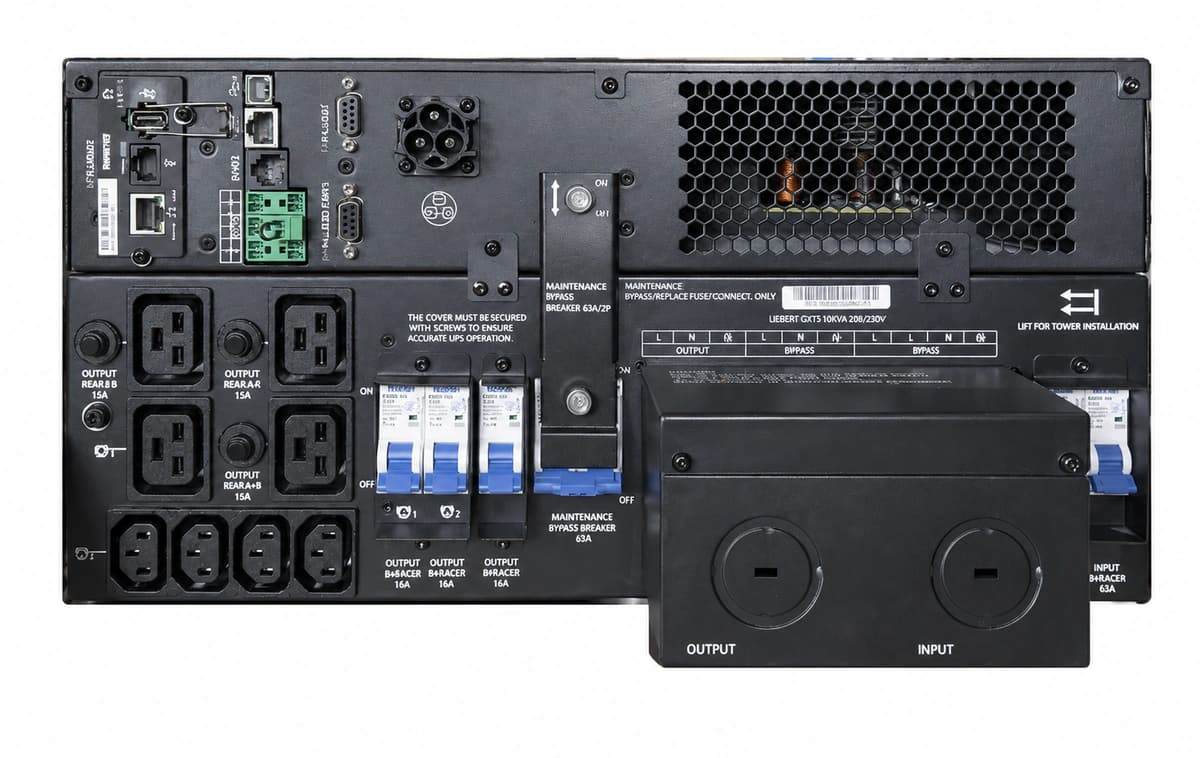

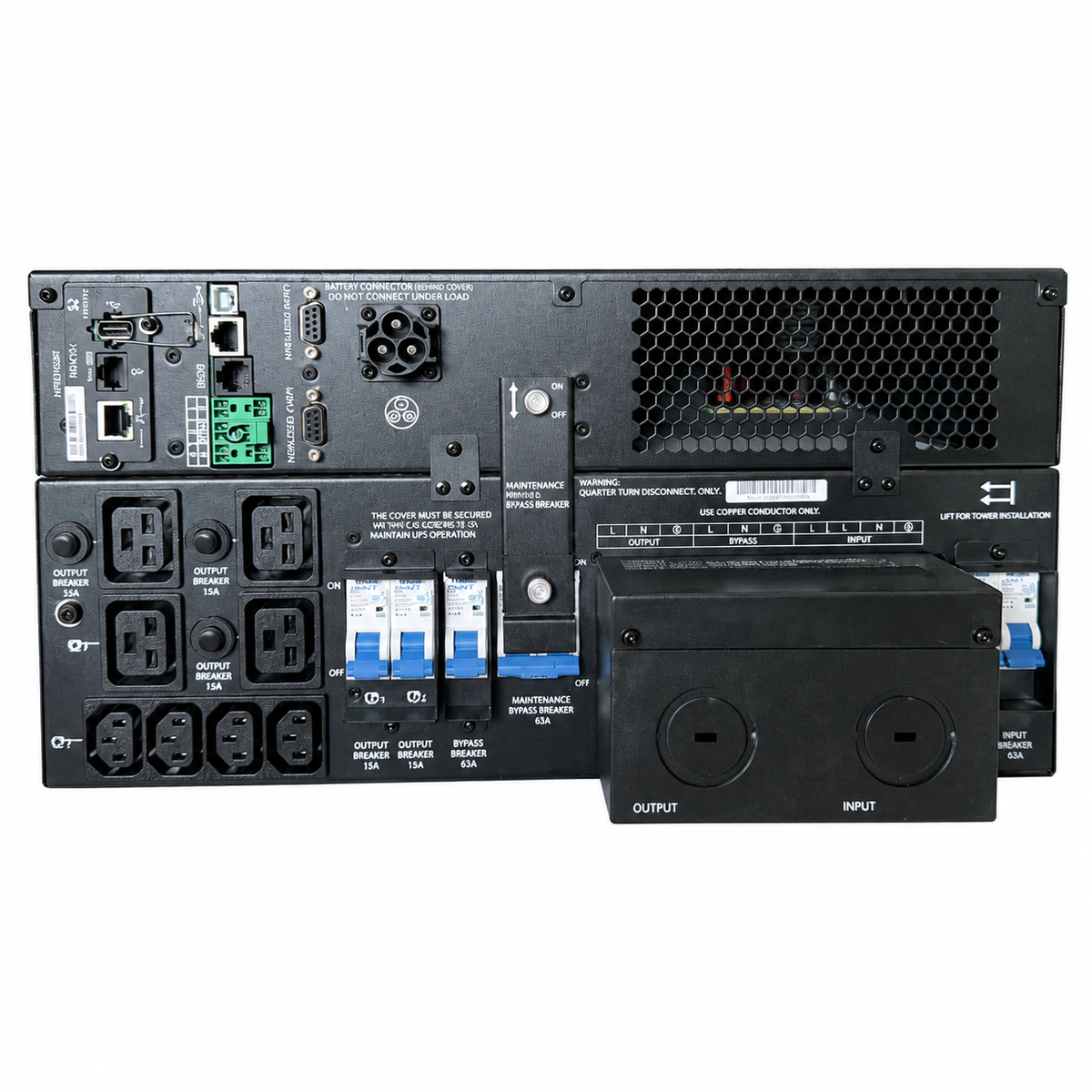

The Vertiv Liebert GXT5 10kVA (GXT5-10KIRT5UXLN) is a 5U rack/tower convertible online double-conversion UPS delivering unity power factor (10kVA/10kW) and zero transfer time for mission-critical IT racks.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Unity power factor (PF=1.0) 5U convertible rack/tower online double-conversion UPS.
Protects high-density IT servers against power disturbances and grid blackouts with zero transfer time and 100% active power utilization.
High-density compute racks, enterprise core networks, blade server clusters, and edge micro-datacenters.
| Key specifications | Value |
|---|---|
| Apparent Power | 10000 VA |
| Active Power | 10000 W |
| Output Power Factor PF | 1.0 |
| Topology | Online double-conversion pure sine-wave high-frequency UPS |
| AC Input Voltage | 176 ~ 288 VAC (full load) |
| DC Output Voltage | 220/230/240 VAC |
| Power Conversion Efficiency | 95% |
| Form Factor | 19-Inch Rackmount |
| Physical Dimensions | 217 × 430 × 730 mm (5U) |
| Operating Temperature Range | 0°C to +40°C |
Vertiv
High-reliability online double-conversion high-frequency Uninterruptible Power Supply (UPS) delivering zero-millisecond pure sine wave power to critical IT loads.
