Q: How does the GXT5-3000IRT2UXL accommodate rack integration, external battery cabinet (EBC) expansion, and smart management protocols?

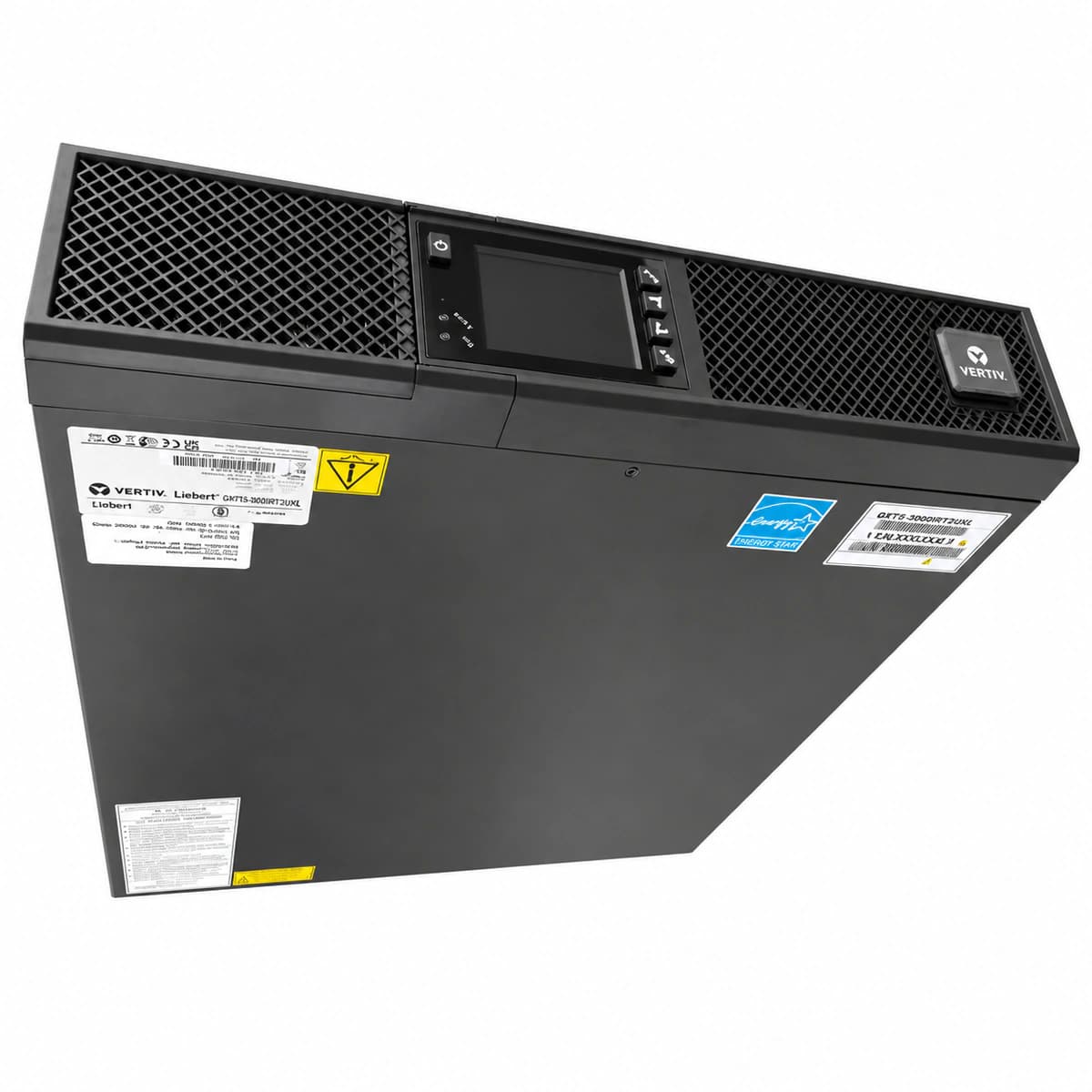

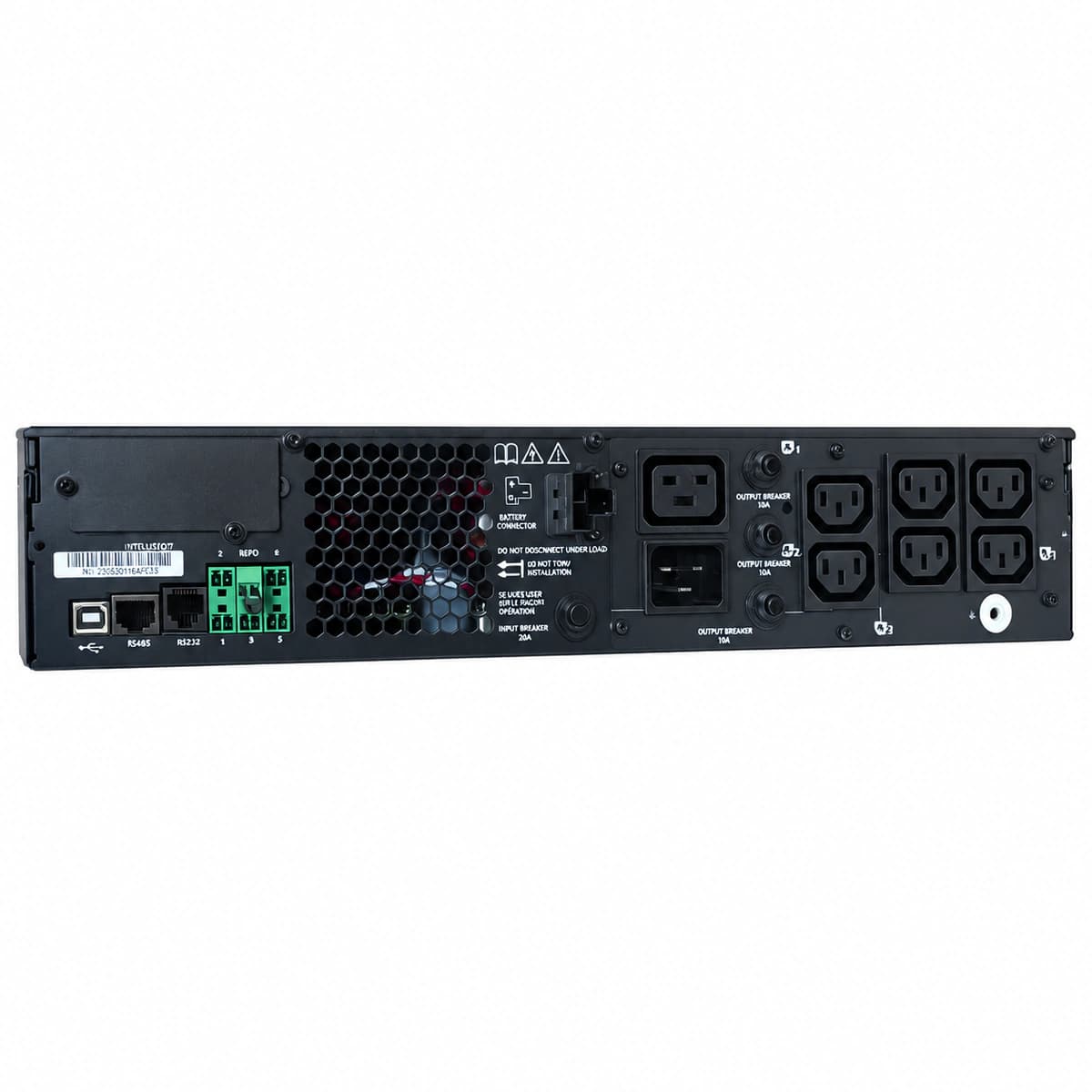

The unit features a 2U rack/tower convertible form factor equipped with rack-mount rail kits, tower support feet, and a rotatable gravity-sensing color graphic LCD. It contains hot-swappable internal VRLA batteries and provides heavy-duty DC connectors to daisy-chain up to 6 external battery cabinets (e.g., GXT5-EBC72VRT2UE, 72VDC bus) for extended runtime, with auto-detection and balanced current discharge management. For connectivity, an open IntelliSlot bay accommodates Liebert Unity-DP or RDU-SIC cards, enabling SNMP v1/v2c/v3, Modbus RTU/TCP, and BACnet integration. Dual programmable outlet groups permit remote load-shedding and power cycling for non-critical assets during extended outages.

Q: What are the environmental tolerances, surge suppression, and cooling protection architectures of this UPS in harsh field environments?

The Liebert GXT5 3kVA is engineered for rugged deployment, supporting continuous full-load operation from 0°C to +40°C (derated operation up to +50°C) at altitudes up to 3,000m. It integrates robust surge protection compliant with ANSI C62.41 Category B and IEC 61000-4-5 Level 4 standards, utilizing high-energy MOV arrays to absorb fast grid transients and lightning surges. Forced cooling is handled by microprocessor-governed variable-speed fans that dynamically modulate airflow based on internal heat-sink temperatures and load percentages, maintaining acoustic noise < 48 dBA at 1m. Printed circuit board assemblies (PCBAs) feature conformal coating to prevent degradation from humidity, dust, and industrial chemical contaminants.

Question 1

What are the key electrical output performance and conversion efficiency specifications of the Vertiv Liebert GXT5 3kVA (GXT5-3000IRT2UXL)?

Accepted Answer

The Vertiv Liebert GXT5 3kVA (SKU: VERTIV-UPS-GXT5-3KVA) features a true online double-conversion high-frequency topology delivering 3000VA/3000W at unity power factor (PF=1.0), maximizing usable power without derating. It supports a wide AC input voltage window of 115 to 288 VAC (down to 115 VAC at 50% load). Output voltage is user-configurable for 208/220/230/240 VAC (factory default: 230 VAC, ±3% regulation). System efficiency reaches up to 94% in continuous online double-conversion mode and up to 98% in Active ECO mode. With zero (0 ms) transfer time, a 3:1 crest factor, and THDv < 2% for linear loads (< 5% for non-linear), it meets rigorous telecom-grade and enterprise compute power quality standards.

Question 2

How does the GXT5-3000IRT2UXL accommodate rack integration, external battery cabinet (EBC) expansion, and smart management protocols?

Accepted Answer

The unit features a 2U rack/tower convertible form factor equipped with rack-mount rail kits, tower support feet, and a rotatable gravity-sensing color graphic LCD. It contains hot-swappable internal VRLA batteries and provides heavy-duty DC connectors to daisy-chain up to 6 external battery cabinets (e.g., GXT5-EBC72VRT2UE, 72VDC bus) for extended runtime, with auto-detection and balanced current discharge management. For connectivity, an open IntelliSlot bay accommodates Liebert Unity-DP or RDU-SIC cards, enabling SNMP v1/v2c/v3, Modbus RTU/TCP, and BACnet integration. Dual programmable outlet groups permit remote load-shedding and power cycling for non-critical assets during extended outages.

Question 3

What are the environmental tolerances, surge suppression, and cooling protection architectures of this UPS in harsh field environments?

Accepted Answer

The Liebert GXT5 3kVA is engineered for rugged deployment, supporting continuous full-load operation from 0°C to +40°C (derated operation up to +50°C) at altitudes up to 3,000m. It integrates robust surge protection compliant with ANSI C62.41 Category B and IEC 61000-4-5 Level 4 standards, utilizing high-energy MOV arrays to absorb fast grid transients and lightning surges. Forced cooling is handled by microprocessor-governed variable-speed fans that dynamically modulate airflow based on internal heat-sink temperatures and load percentages, maintaining acoustic noise < 48 dBA at 1m. Printed circuit board assemblies (PCBAs) feature conformal coating to prevent degradation from humidity, dust, and industrial chemical contaminants.

Key specifications	Value
Apparent Power	3000 VA
Active Power	3000 W
Output Power Factor PF	1.0
Topology	Online double-conversion, high-frequency pure sine wave
AC Input Voltage	115 ~ 288 VAC
DC Output Voltage	208/220/230/240 VAC
Power Conversion Efficiency	94%
Form Factor	19-Inch Rackmount
Physical Dimensions	85 × 430 × 630 mm (2U)
Operating Temperature Range	0°C to +40°C

Vertiv Liebert GXT5 3kVA Rack/Tower Online Double-Conversion UPS (3000VA/3000W PF 1.0)

Talk to RICEWIND

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Telecom cellular base stations and central offices -48V DC backup battery strings

Data center high-rate UPS battery banks delivering critical runtime for server loads

Electric utility substations 110V/220V DC switchgear breaker trip and closing power

Off-grid renewable solar/wind hybrid storage and industrial uninterruptible backup sites

Frequently asked questions
