Q: What are the environmental tolerance specs and dual Low Voltage Disconnect (LVD) protection mechanisms of this system?

The NetSure 531 A41 operates under harsh industrial conditions from -40°C to +65°C (linear thermal derating begins above +45°C). Modules incorporate temperature-controlled step-less cooling fans and conform to Class B environment conformal coating requirements. Its DC distribution architecture incorporates dual-stage disconnects: Load Low Voltage Disconnect (LLVD for non-critical load shedding) and Battery Low Voltage Disconnect (BLVD to protect VRLA/Lithium batteries from deep discharge damage). It integrates Class C (20kA nominal, 40kA max, 8/20µs waveform) AC surge protective devices (SPD) alongside fast-acting short-circuit, over-voltage, and reverse-polarity hardware protections.

Question 1

What are the core electrical conversion efficiency and rated output specifications of the Vertiv NetSure 531 A41?

Accepted Answer

The NetSure 531 A41 (SKU: VTV-SYS-NS531-A41) is engineered in a standard 19-inch rack-mount subrack, delivering a nominal -48VDC output (adjustable from -42VDC to -58VDC) with a maximum system capacity of 120A (up to 6kW nominal DC output). It accommodates a wide AC input range of 85VAC to 300VAC (full linear load between 176VAC and 290VAC). When populated with R48-2000e3 high-efficiency rectifier modules, the system achieves a peak conversion efficiency of 96.2%, maintaining >95% efficiency across 30% to 80% load loads, with Total Harmonic Distortion (THD) ≤ 5% and Power Factor (PF) ≥ 0.99, dramatically optimizing site PUE and reducing upstream grid capacity strain.

Question 2

Which rectifier modules are compatible with the NetSure 531 A41 subrack, and how are mixed-insertion and current sharing managed?

Accepted Answer

The NetSure 531 A41 provides 4 rectifier slots natively supporting Vertiv 2000W modules, including the high-efficiency R48-2000e3 and standard R48-2000A3. Featuring an internal high-speed CAN-bus architecture, it supports hot-swappable mixed insertion and automated provisioning across modules. Active digital current sharing ensures current unbalance is tightly controlled within <±3% across 10% to 100% load intervals, eliminating localized stress. Supervised by the M221S or M830B monitoring controller, the system enables intelligent module sleep cycling to maximize efficiency under low-load conditions alongside non-disruptive online capacity expansion.

Question 3

What are the environmental tolerance specs and dual Low Voltage Disconnect (LVD) protection mechanisms of this system?

Accepted Answer

The NetSure 531 A41 operates under harsh industrial conditions from -40°C to +65°C (linear thermal derating begins above +45°C). Modules incorporate temperature-controlled step-less cooling fans and conform to Class B environment conformal coating requirements. Its DC distribution architecture incorporates dual-stage disconnects: Load Low Voltage Disconnect (LLVD for non-critical load shedding) and Battery Low Voltage Disconnect (BLVD to protect VRLA/Lithium batteries from deep discharge damage). It integrates Class C (20kA nominal, 40kA max, 8/20µs waveform) AC surge protective devices (SPD) alongside fast-acting short-circuit, over-voltage, and reverse-polarity hardware protections.

Key specifications	Value
AC Input Mode	380V 3-Phase / 220V 1-Phase Compatible
System Output Capacity	120A (-48VDC)
Physical Form Factor	222 (5U) × 482 × 380 mm
Controller Unit	M221S / M830B centralized controller
Rectifier Module Slots	4 Slots
DC Distribution Branches	-48VDC (-42V ~ -58V)
Overall System Efficiency	Up to 96.2% (Gold Standard)
Acoustic Noise	≤ 55 dBA (at 25°C ambient load)
Ingress Protection Rating	IP20 (Indoor Dust & Finger Proof)
Dielectric Withstand Voltage	3000VAC Input to Ground (< 5mA)

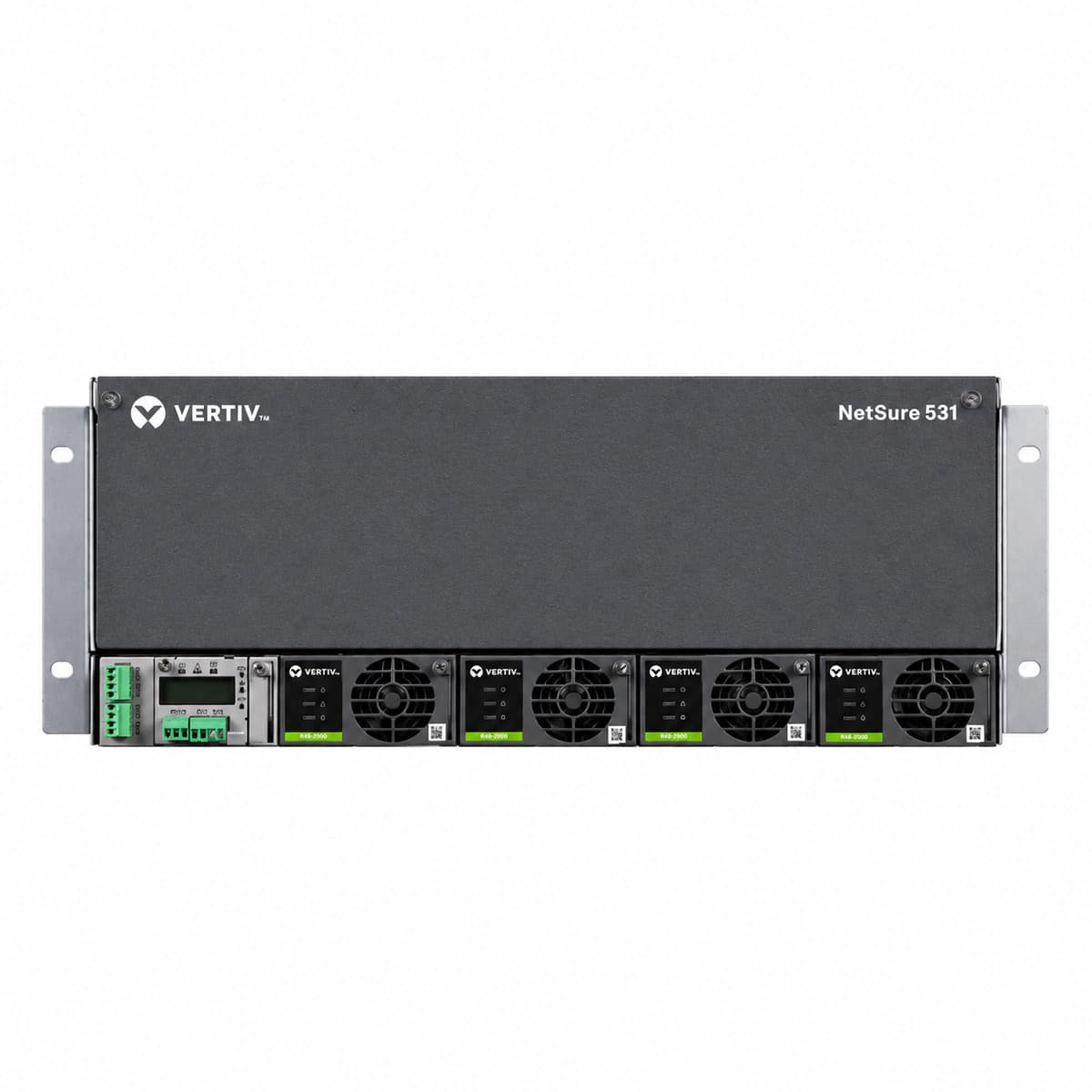

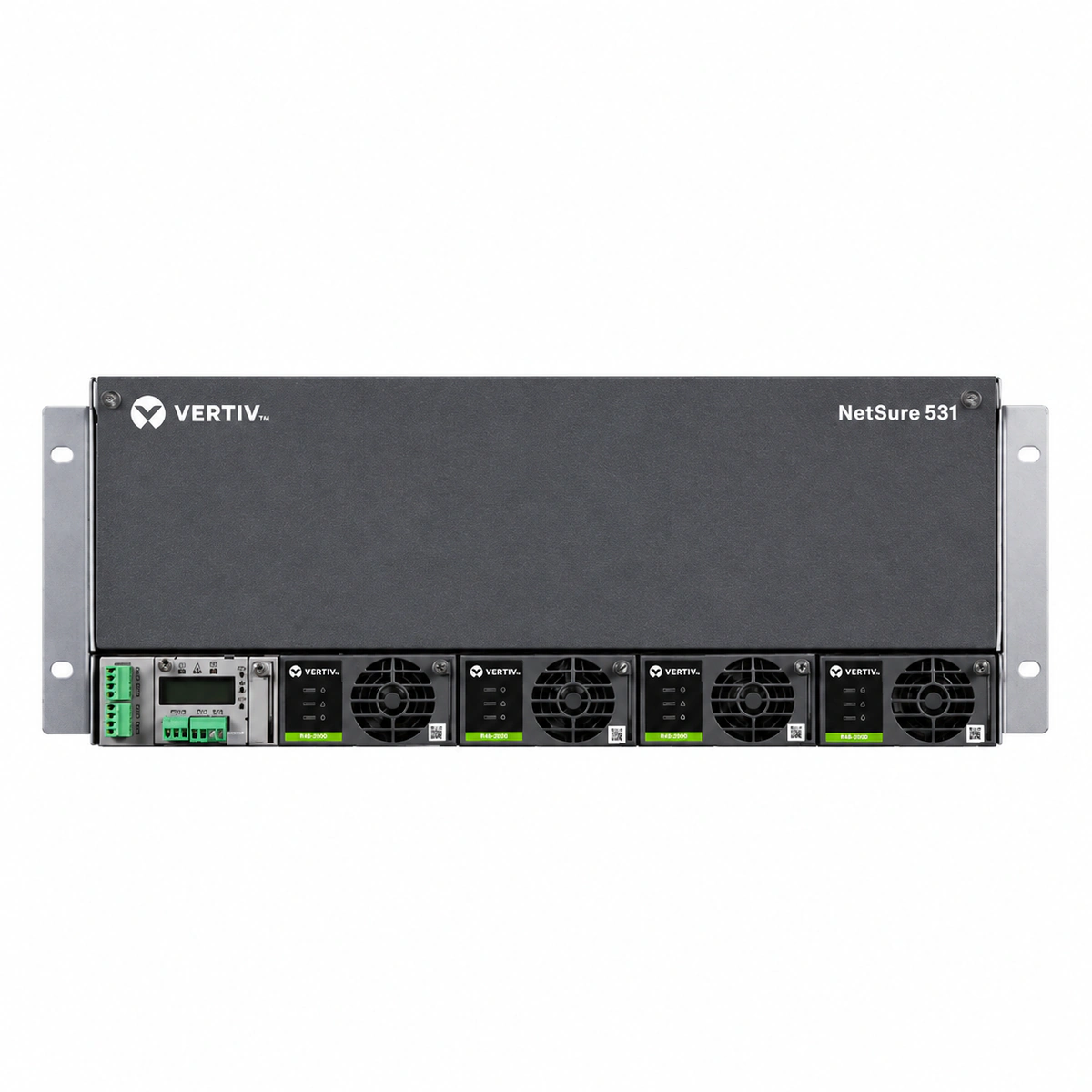

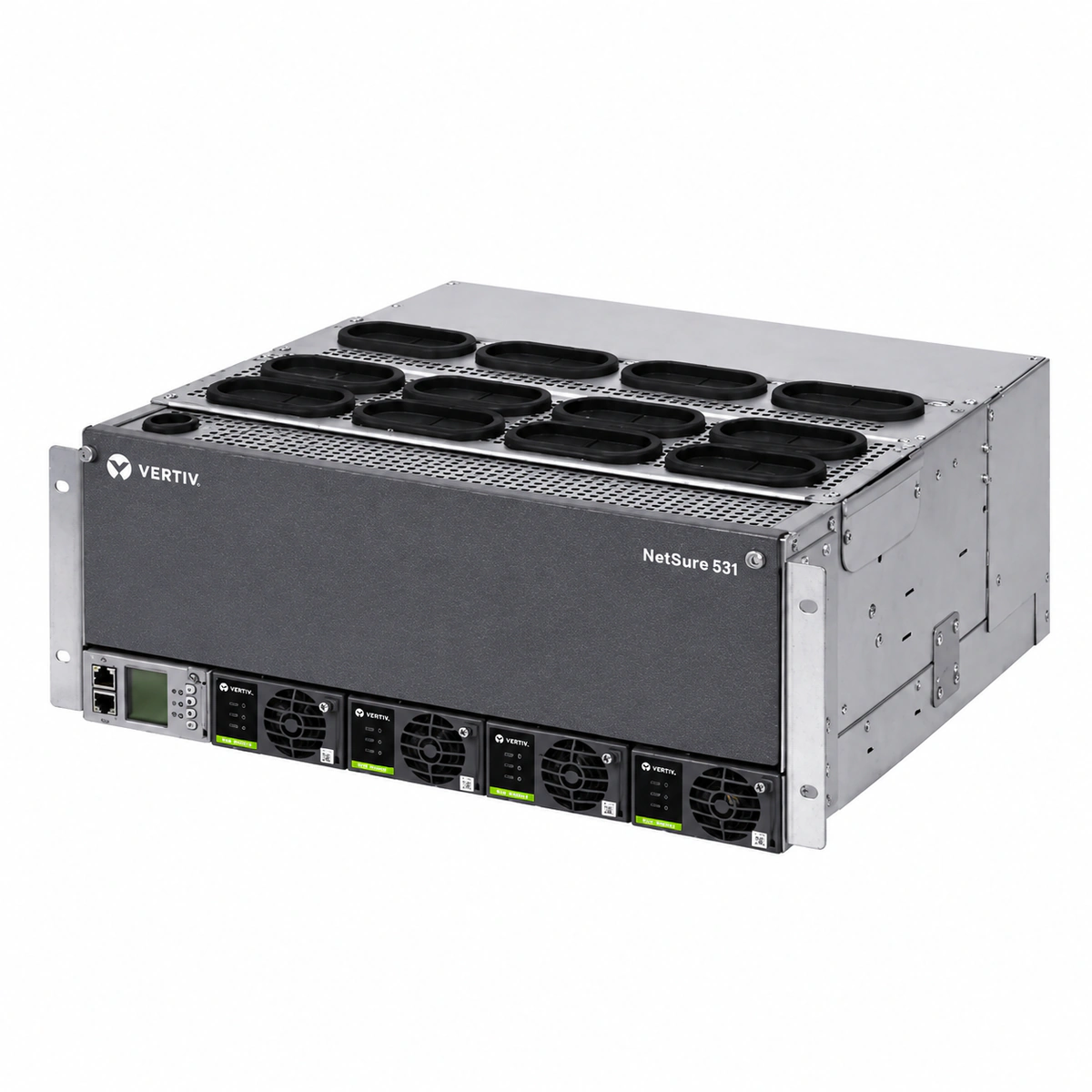

Vertiv NetSure 531 A41 Embedded Telecom DC Power System (48V 120A)

Talk to RICEWIND

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Telecom 4G/5G macro cellular base stations and distributed remote power sites

Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups

Utility power grid dispatch centers and high-voltage substation DC switchgear rooms

Railway transit signaling, automated train control, and communications equipment rooms
