Q: How does the NetSure 531 A31-S1 perform regarding extreme environmental tolerance, surge suppression, and dual-battery protection?

The system operates from -40°C to +70°C (intelligent derating above +45°C) and 5% to 95% non-condensing RH, rated at IP20 enclosure protection with independent speed-controlled fans per rectifier module. It integrates Class C (nominal 20kA, 8/20μs) surge protection on the AC input and comprehensive filtering on the DC bus. For storage preservation, it incorporates dual-level Low Voltage Disconnect (LLVD for non-critical loads and BLVD for battery deep-discharge protection), supplemented by precision PT1000/NTC thermal sensors for automated temperature-compensated charging.

Question 1

What are the core electrical performance specifications and conversion efficiencies of the Vertiv NetSure 531 A31-S1 DC power system?

Accepted Answer

The NetSure 531 A31-S1 features a 3U 19-inch subrack delivering a nominal -48VDC output (adjustable between -42VDC and -58VDC) with a maximum total capacity of 120A. Configured with 3 rectifier slots, it natively pairs with R48-2000e3 (50A) high-efficiency rectifiers achieving >95.8% peak efficiency. The AC input accommodates 85VAC to 300VAC (single-phase or three-phase input), providing full output power between 176VAC and 300VAC and linear derating from 176VAC down to 85VAC. Governed by the M221S/M222S supervisory controller, it ensures voltage stabilization accuracy better than ±0.5% with telecom-grade low ripple noise.

Question 2

What rectifier compatibility, mixed-insertion rules, and current-sharing mechanisms are supported by the NetSure 531 A31-S1?

Accepted Answer

The system utilizes CAN bus digital current-sharing with unbalance <±3%, natively supporting hot-swappable R48-2000e3 rectifiers with backward compatibility for R48-2000 and R48-1800 modules (uniform firmware recommended for optimized curve tracking). The integrated front-access distribution subrack accommodates dual battery breakers (up to 1×100A/1P or 2×63A/1P) alongside configurable DC branch breakers. It supports live hot-swap expansion up to N+1 redundancy, while the M221S controller executes automatic rectifier registration, dynamic load balancing, and autonomous fault isolation.

Question 3

How does the NetSure 531 A31-S1 perform regarding extreme environmental tolerance, surge suppression, and dual-battery protection?

Accepted Answer

The system operates from -40°C to +70°C (intelligent derating above +45°C) and 5% to 95% non-condensing RH, rated at IP20 enclosure protection with independent speed-controlled fans per rectifier module. It integrates Class C (nominal 20kA, 8/20μs) surge protection on the AC input and comprehensive filtering on the DC bus. For storage preservation, it incorporates dual-level Low Voltage Disconnect (LLVD for non-critical loads and BLVD for battery deep-discharge protection), supplemented by precision PT1000/NTC thermal sensors for automated temperature-compensated charging.

Key specifications	Value
System Output Capacity	120 A
Nominal Output Voltage	-48VDC (-42V ~ -58V) VDC
Output Voltage Range	-48VDC (-42V ~ -58V) VDC
AC Input Voltage	85 ~ 300 VAC
Rectifier Module Slots	3 Slots
System Monitoring Controller	M221S / M222S LCD centralized monitoring unit
Power Conversion Efficiency	95.8%
Ingress Protection (IP Rating)	IP20
Physical Dimensions	132 × 482 × 330 mm (3U 19-inch)
Operating Temperature Range	-40°C to +70°C

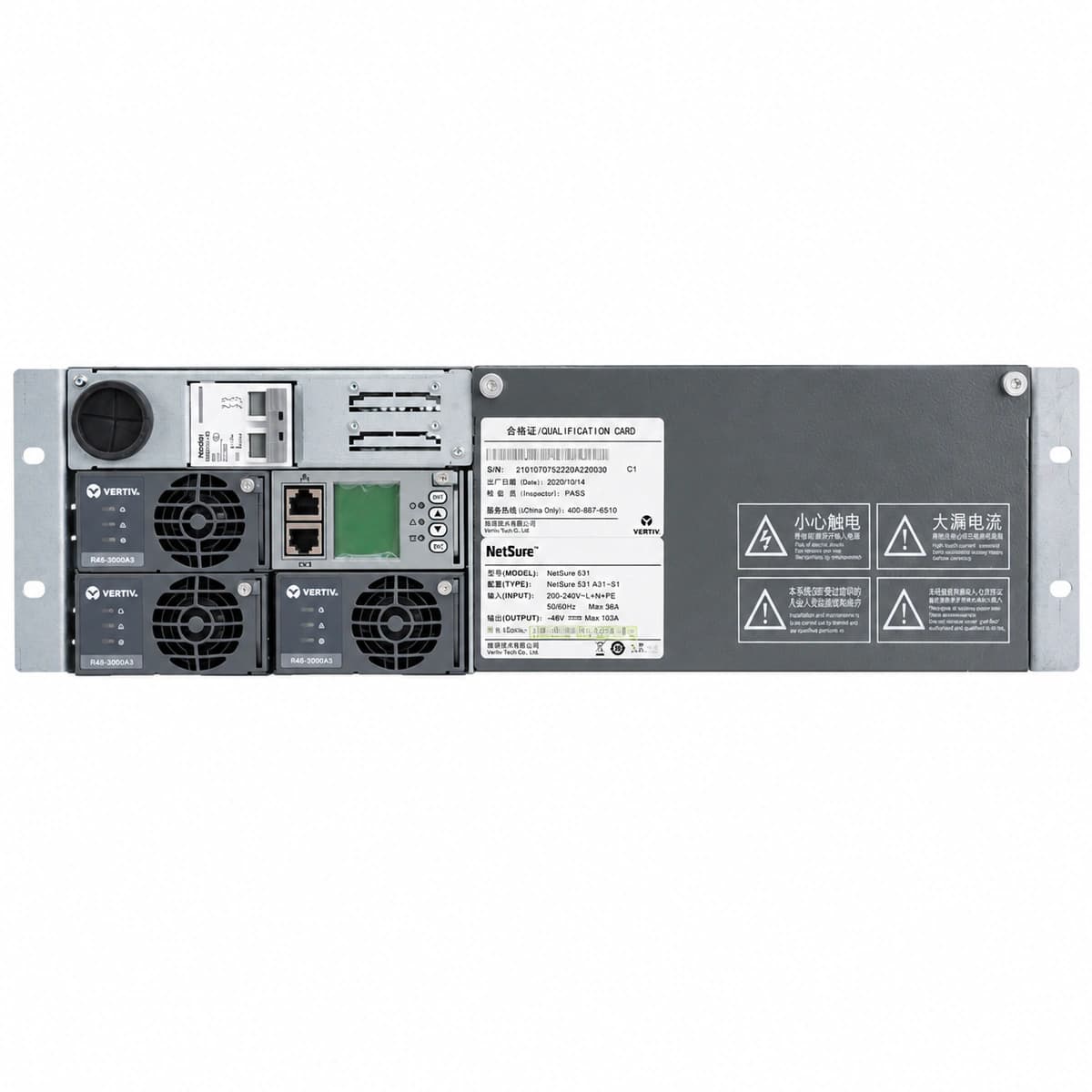

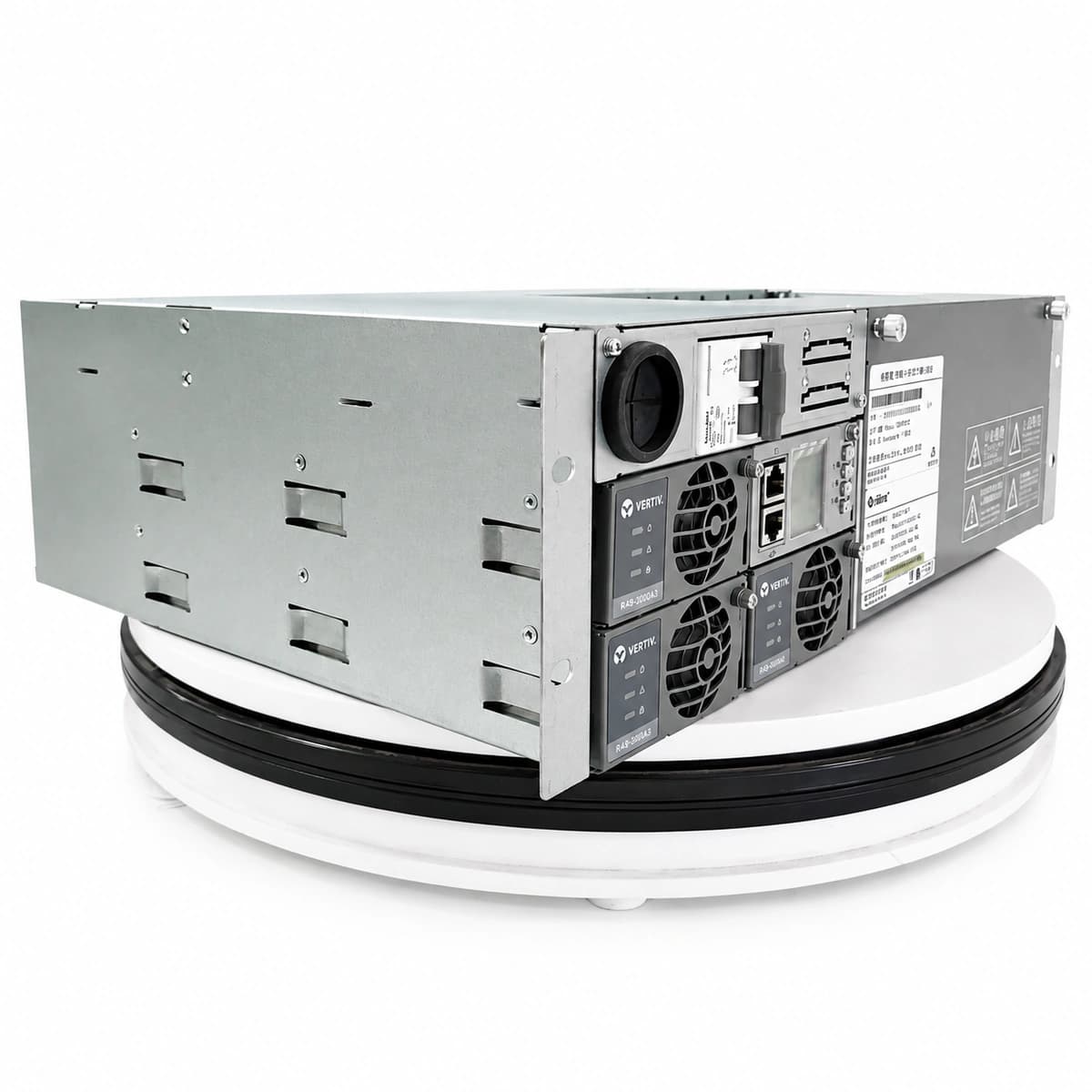

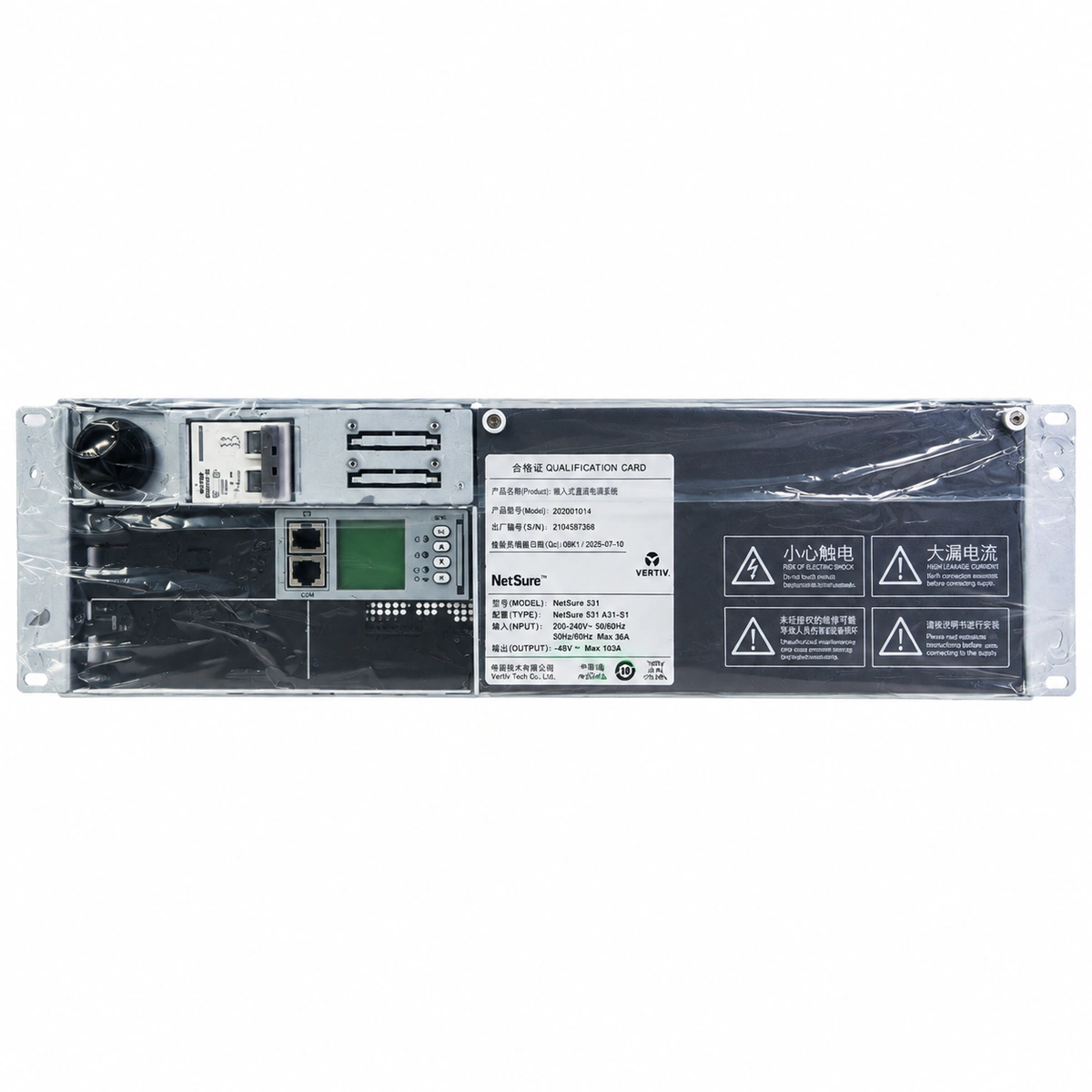

Vertiv NetSure 531 A31-S1 Embedded Telecom DC Power Subrack (-48V 120A 3U)

Talk to RICEWIND

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Telecom 4G/5G macro cellular base stations and distributed remote power sites

Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups

Utility power grid dispatch centers and high-voltage substation DC switchgear rooms

Railway transit signaling, automated train control, and communications equipment rooms
