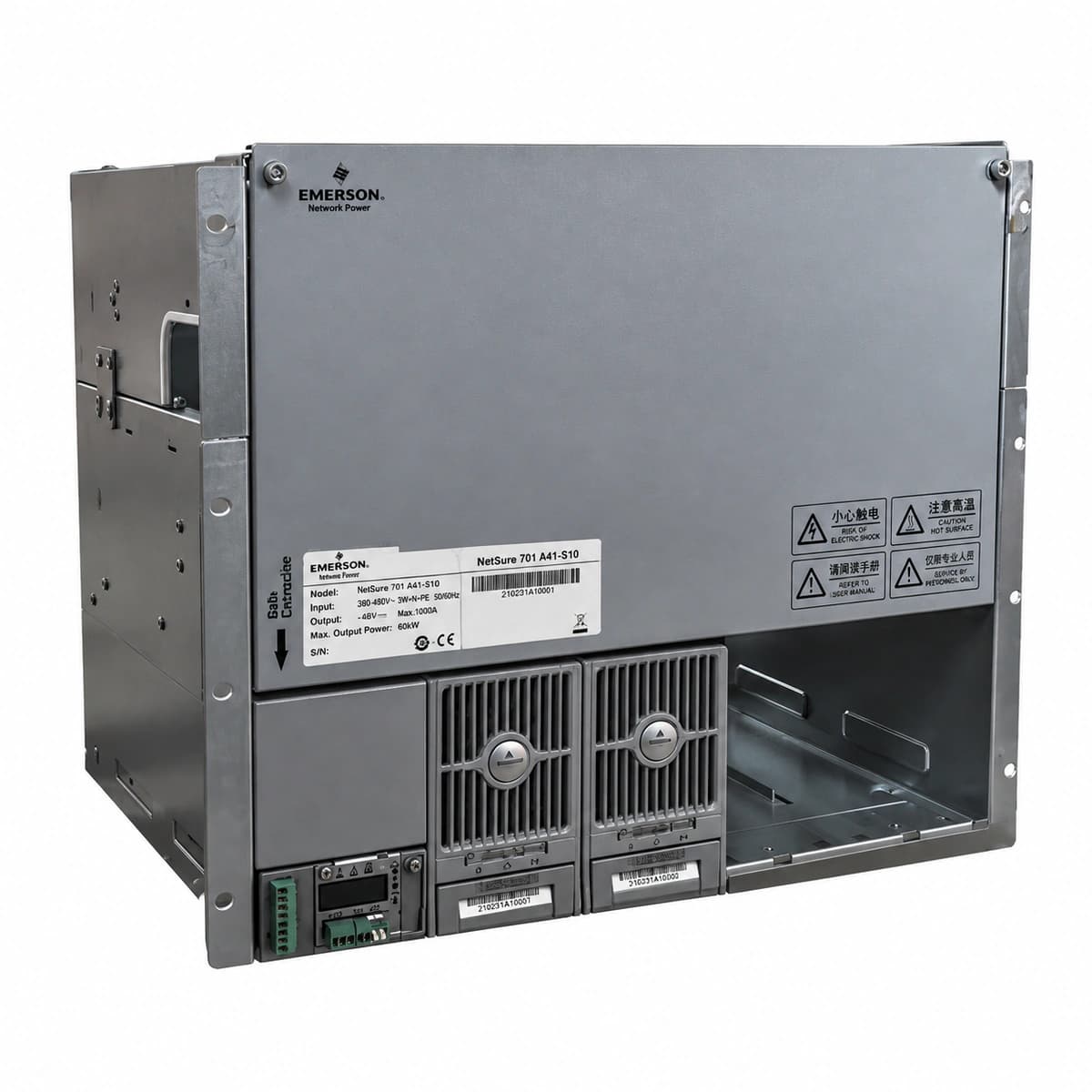

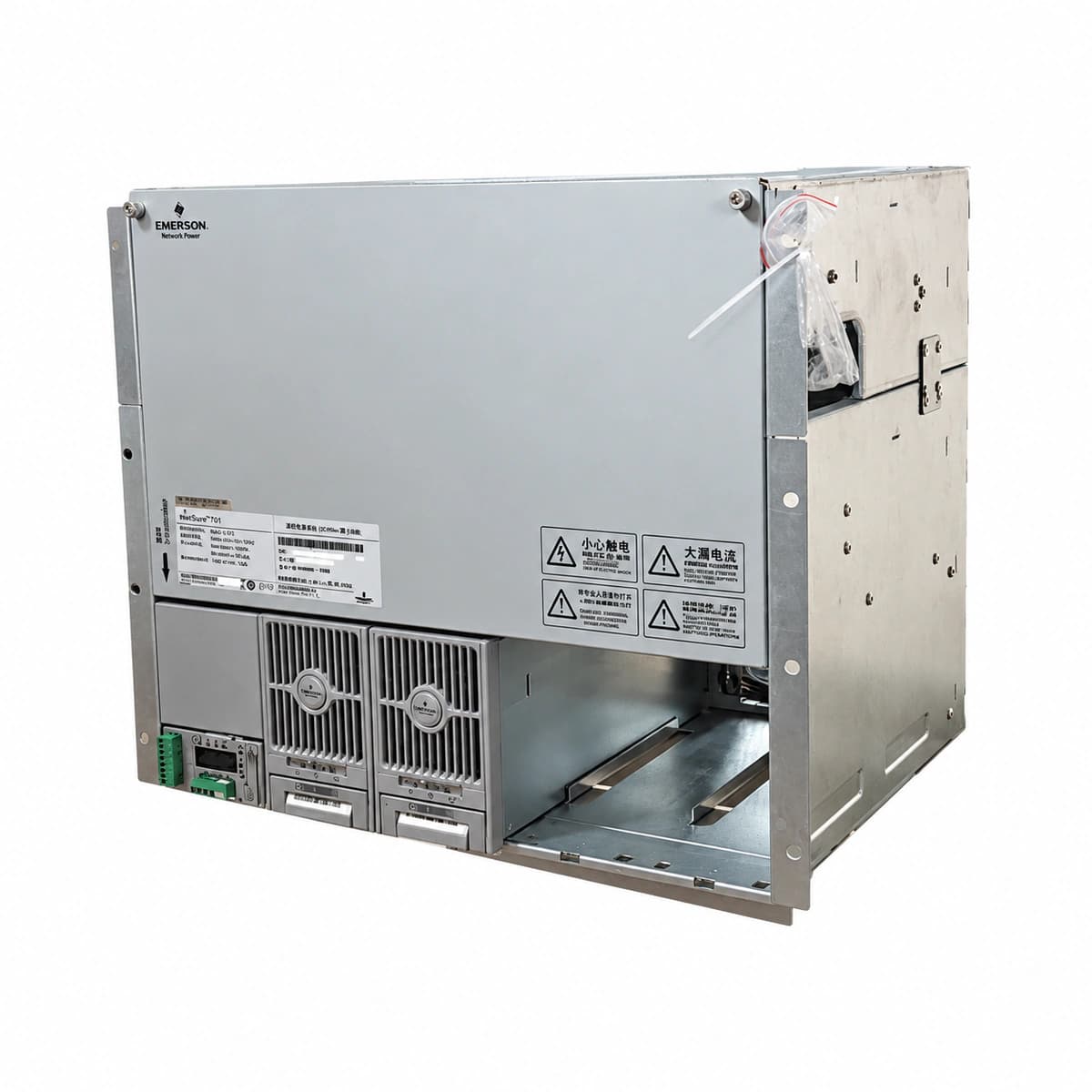

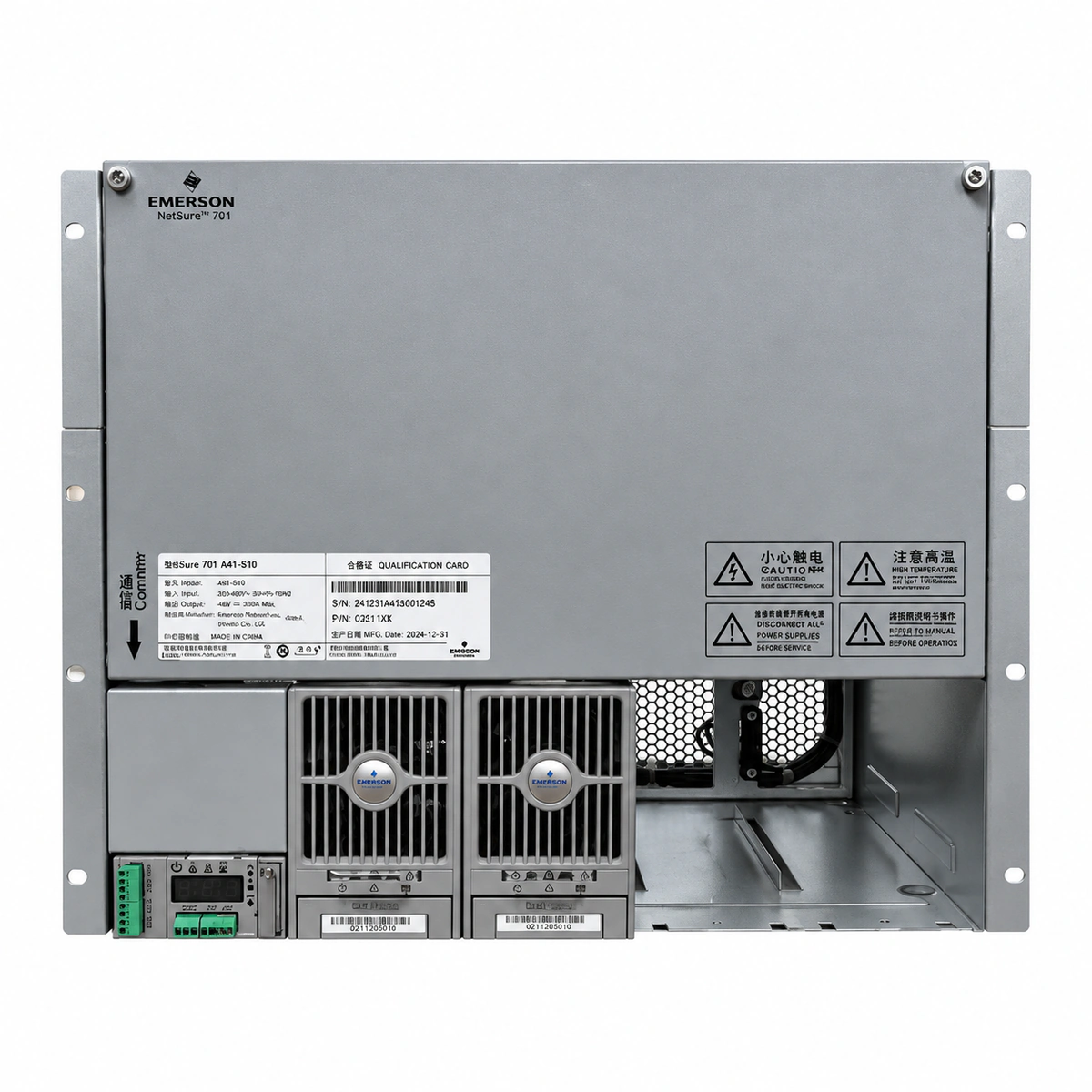

The Vertiv NetSure 701 A41-S10 is a highly integrated 6U 19-inch rack-mount -48V DC embedded power system delivering up to 200A output, engineered with 4 rectifier slots compatible with R48-2900U/R48-3200e modules, an M221S/M222S controller, and intelligent battery management for enterprise and carrier-grade infrastructure.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

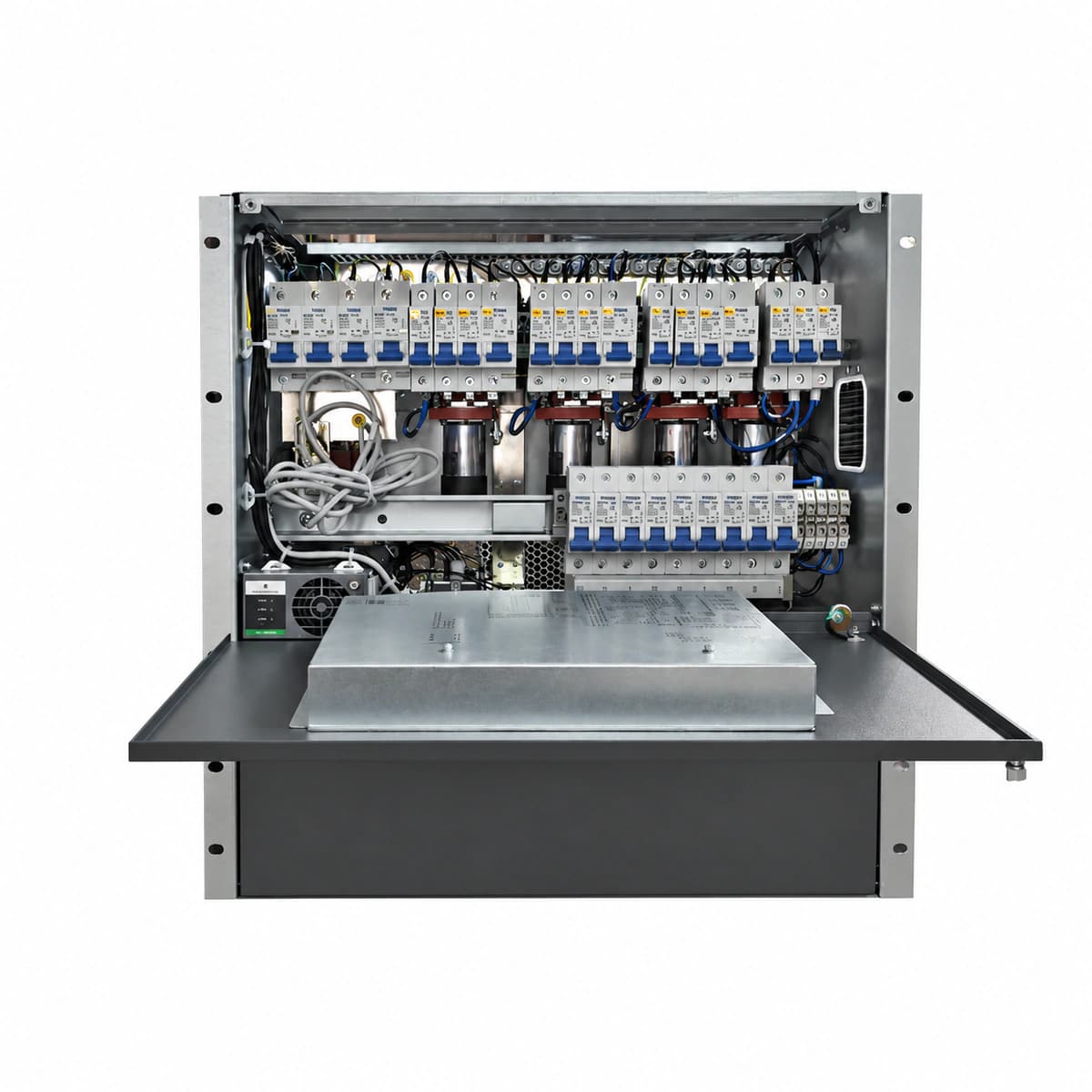

A standard 19-inch 6U integrated power subrack accommodating AC/DC distribution, intelligent monitoring, and 4 hot-swappable 50A telecom rectifier positions. It incorporates built-in lightning protection, battery breakers with Low Voltage Disconnect (LVD), and comprehensive remote telemetry ports.
Mitigates challenges of constrained cabinet space, unstable utility grids prone to deep sags and high voltage spikes, and premature battery degradation via dynamic thermal management and multi-stage battery disconnect controls.
Telecom operators (4G/5G macro and micro base stations), microwave backbone nodes, railway signaling repeaters, utility substation automation, and enterprise edge data aggregation centers.
| Key specifications | Value |
|---|---|
| Physical Form Factor | 19-Inch Rackmount |
| DC Distribution Branches | Input: 1×125A/2P + Output: 1×16A/1P + Battery: 2×125A |
| AC Input Voltage | 85V AC ~ 300V AC (Nominal 220V AC) |
| Operating Temperature Range | -40°C to +65°C |
| Power Conversion Efficiency | ≥ 96% |
| System Output Capacity | 200A (-48V DC) |
| Rectifier Module Slots | 4 Slots |
| System Monitoring Controller | M221S / M222S Intelligent Controller Unit |
