Question 1

How are DC output and battery cable cross-sections sized to satisfy telecom loop voltage drop standards?

Accepted Answer

DC cross-sectional area is determined by the formula: S = (2 × L × I) / (γ × ΔV), where S is the conductor cross-section (mm²), L is the one-way route length (m), I is the maximum circuit current (A), γ is conductivity (57 m/(Ω·mm²) for standard annealed copper), and ΔV is the total allowable loop voltage drop (telecom standards typically specify a maximum ΔV between 0.5V and 1.0V). For a 400A continuous load across a 15m physical route with a 0.8V target limit: S = (2 × 15 × 400) / (57 × 0.8) ≈ 263 mm². Telecom deployment practice mandates either dual parallel 150 mm² or a single 300 mm² copper conductor.

Question 2

What are the engineering criteria for configuring the LLVD and BLVD disconnection thresholds?

Accepted Answer

The dual Low Voltage Disconnect configuration segregates non-critical loads to preserve primary telecom services. For standard 24-cell 2V VRLA battery strings: 1. LLVD (Load Disconnect) should be set between 45.0VDC and 45.6VDC (1.875V to 1.90V per cell), which sheds non-critical nodes and aux systems during extended utility failure; 2. BLVD (Battery Disconnect) should be configured between 43.2VDC and 44.0VDC (1.80V to 1.83V per cell) to isolate all outputs and prevent destructive cell reversal and irreversible plate sulfation. When deploying Lithium Iron Phosphate (LiFePO4) systems, the BLVD threshold must be raised to 44.5VDC–45.0VDC to prevent BMS internal lockout under sustained discharge.

Question 3

What is the operating principle and parameter configuration for the battery temperature compensation function?

Accepted Answer

Lead-acid battery electrochemical potential shifts inversely with temperature. As ambient temperatures climb, float voltage must decrease to prevent thermal runaway; conversely, float voltage must increase at low temperatures to ensure complete saturation. The NetSure NCU controller reads sensor telemetry installed at the center of the battery string and applies the algorithm: V_float(T) = V_nominal + (T_ref - T) × N × K, where T_ref is baseline reference (typically 25°C), N is the cell count (24 for -48VDC nominal), and K is the compensation slope (typically 3.0 to 3.5 mV/°C/cell). Voltage clamps are established across lower and upper limits (typically 0°C to 45°C) to restrict terminal voltages to acceptable hardware limits.

Key specifications	Value
Smart Monitoring Controller	M830B / NCU Advanced Controller Unit
AC Input Voltage	85VAC ~ 300VAC (Nominal 220V/380VAC) VAC
Cooling System Architecture	Temperature-controlled Forced Air Cooling
Nominal Output Voltage	-48VDC (-42V ~ -58V) VDC
Rated DC Output Current	600A (Max Capacity 28.8kW)
Managed Rectifier Capacity	6 × R48-2900U / R48-3200e Modules
Peak Energy Efficiency	≥96.0%
Form Factor Dimensions (HxWxD)	177 (4U) × 482 × 360 mm
Operating Temperature Range	-40°C ~ +65°C

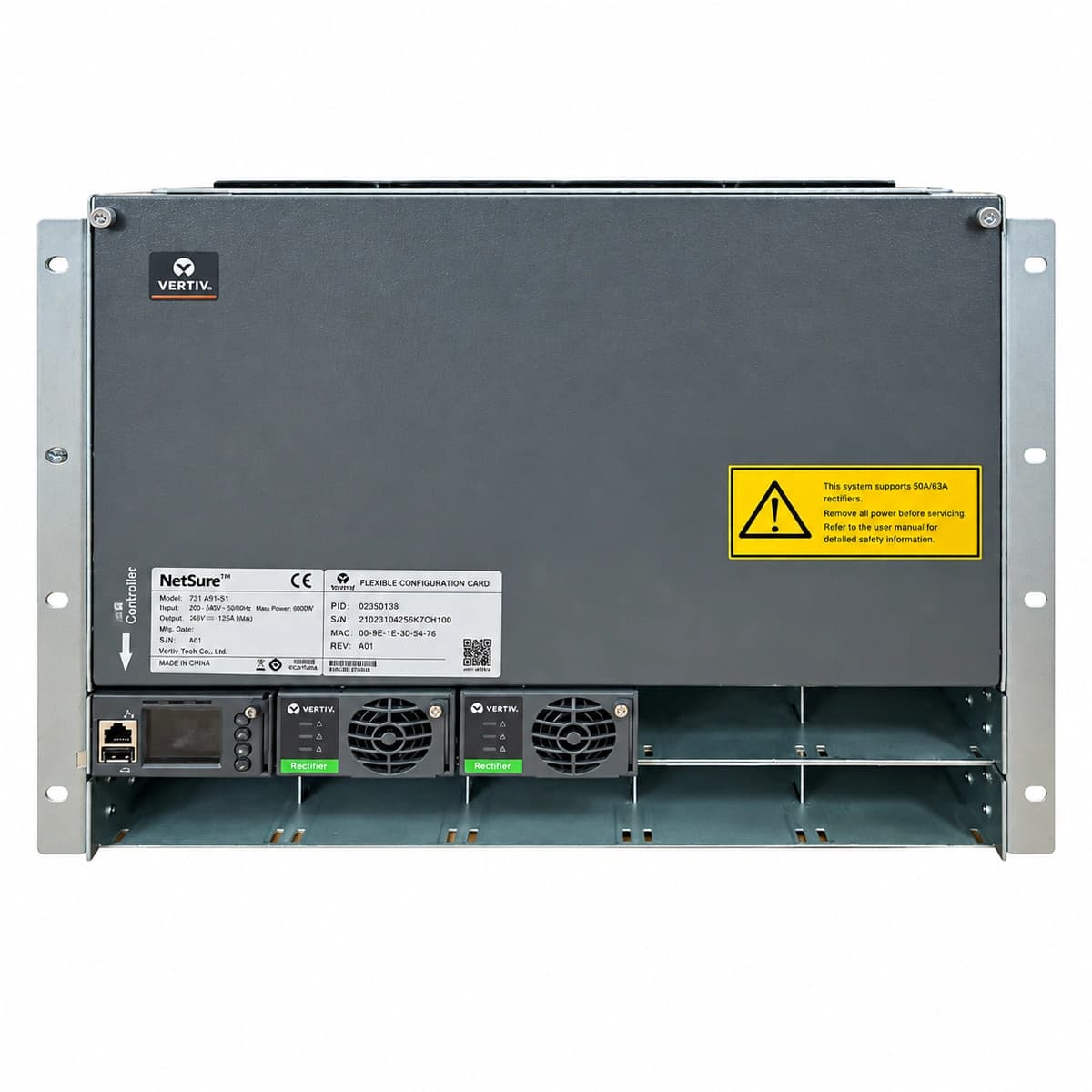

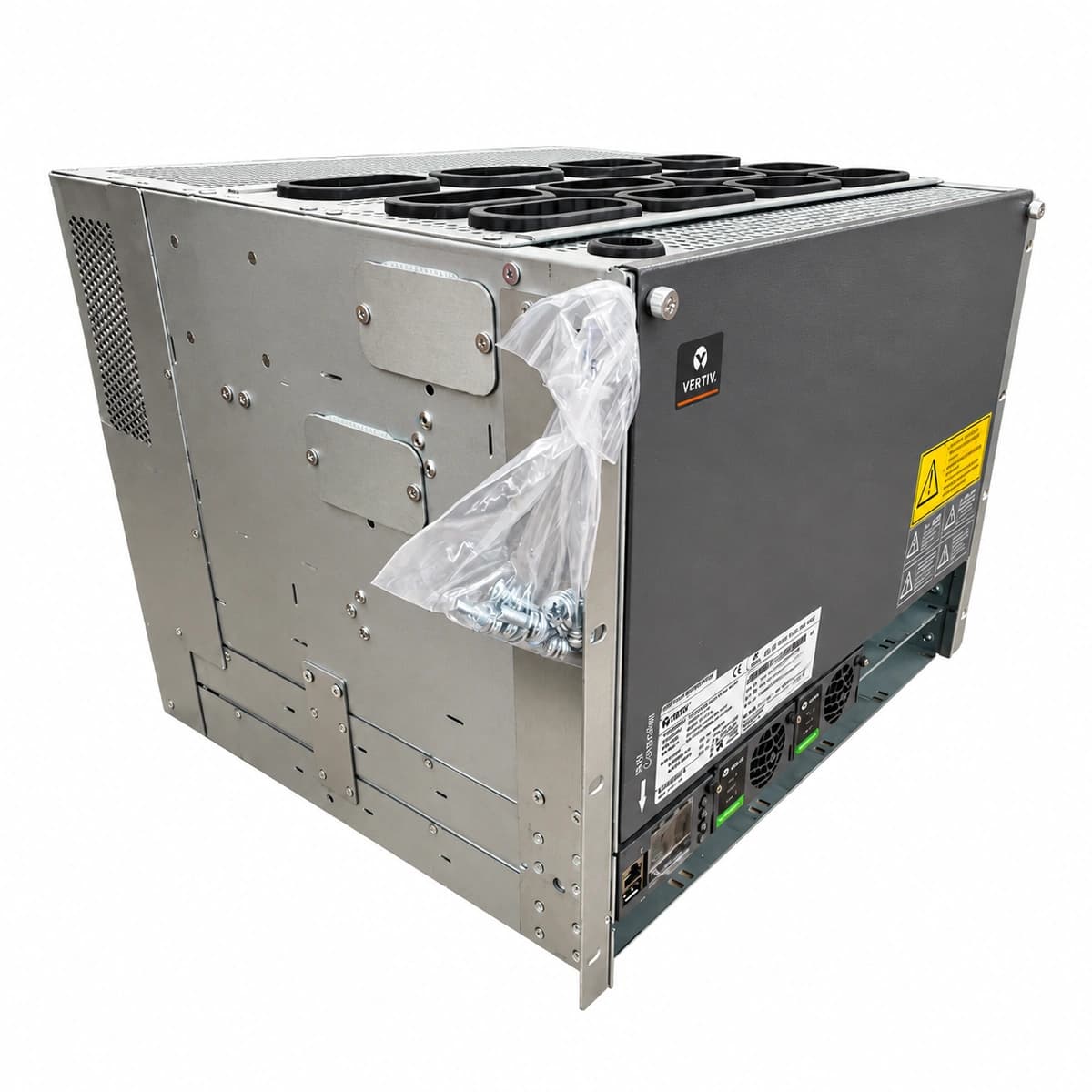

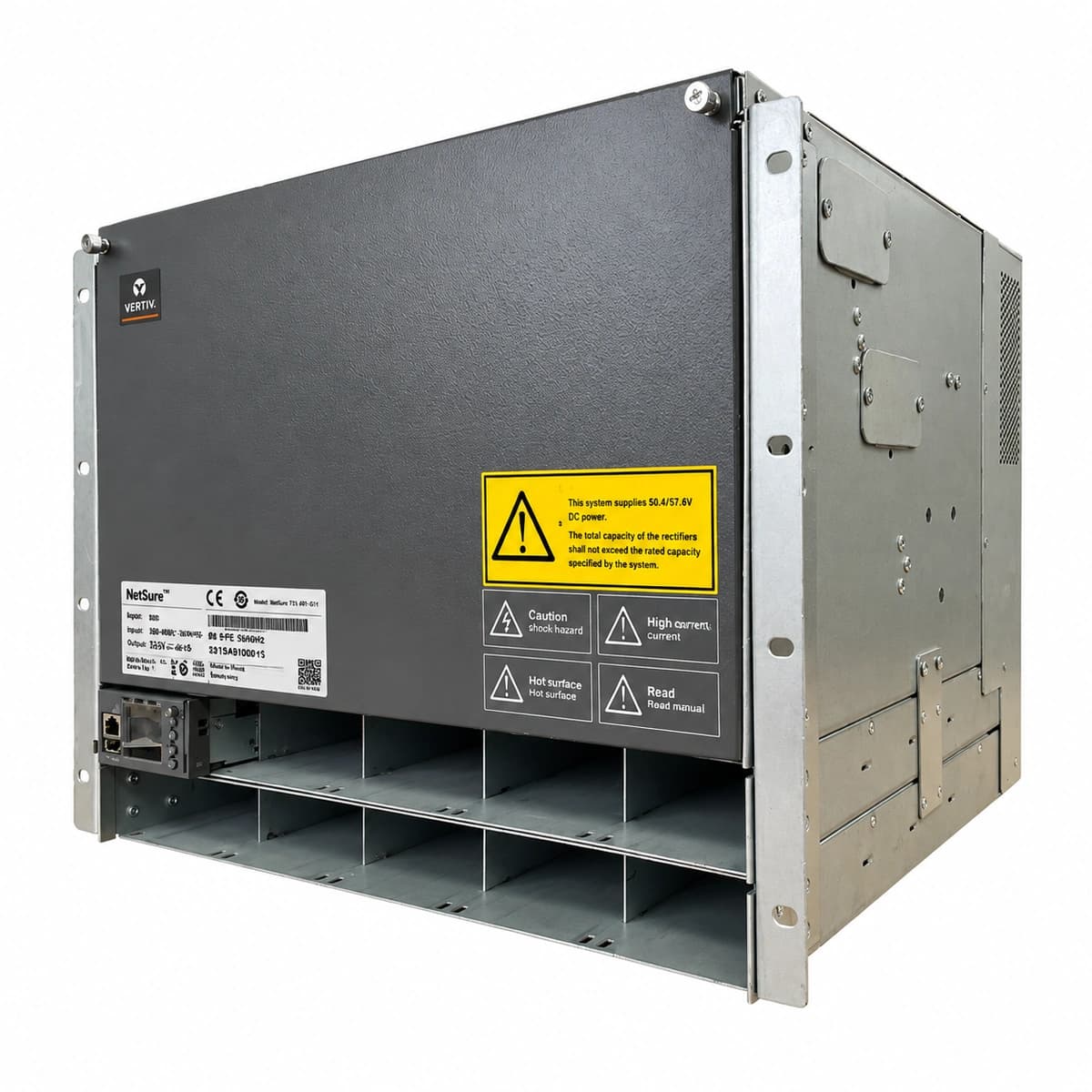

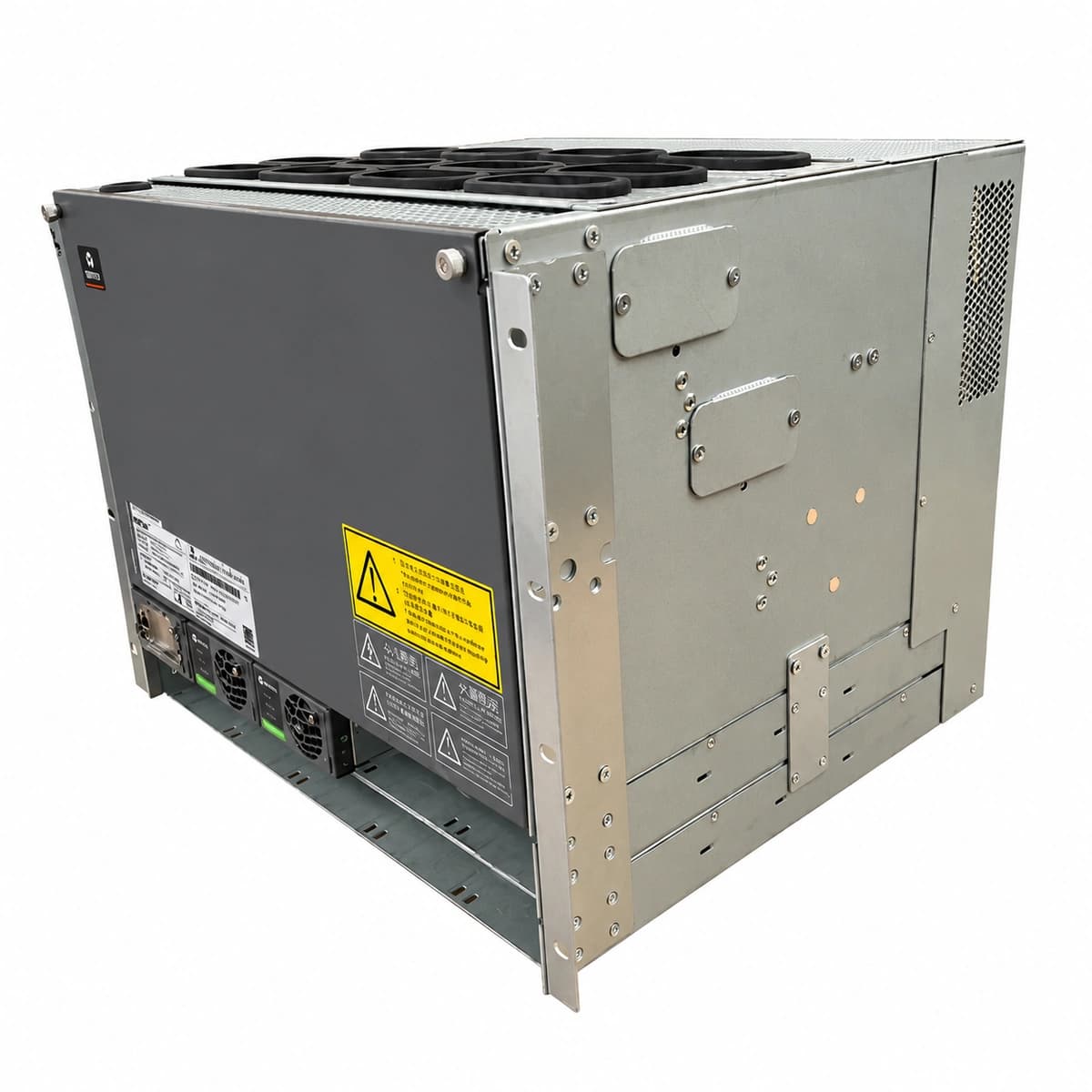

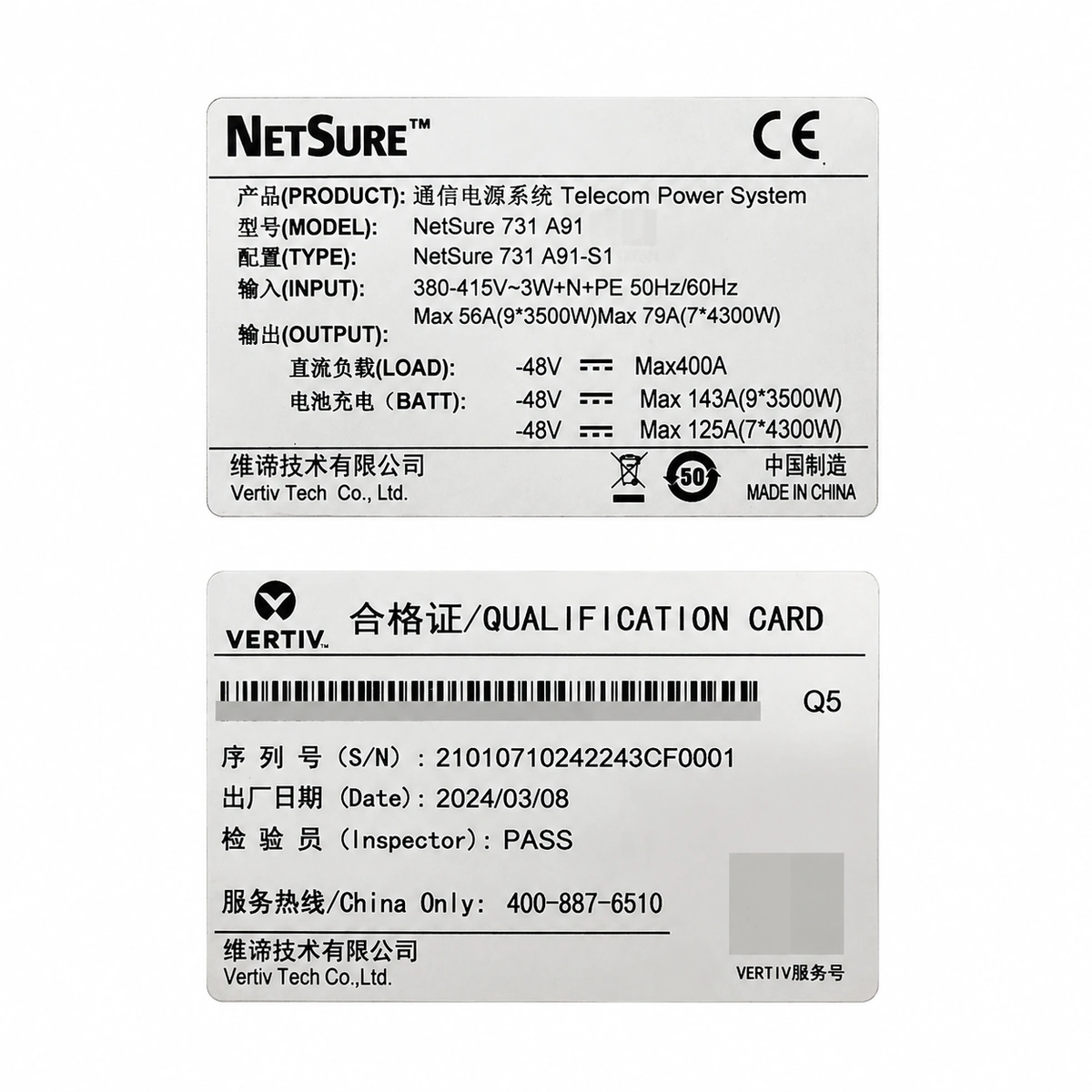

Vertiv NetSure 731 A91-S1 Subrack Telecom DC Power System (-48V 600A 4U)

Talk to RICEWIND

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Telecom 4G/5G macro cellular base stations and distributed remote power sites

Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups

Utility power grid dispatch centers and high-voltage substation DC switchgear rooms

Railway transit signaling, automated train control, and communications equipment rooms
