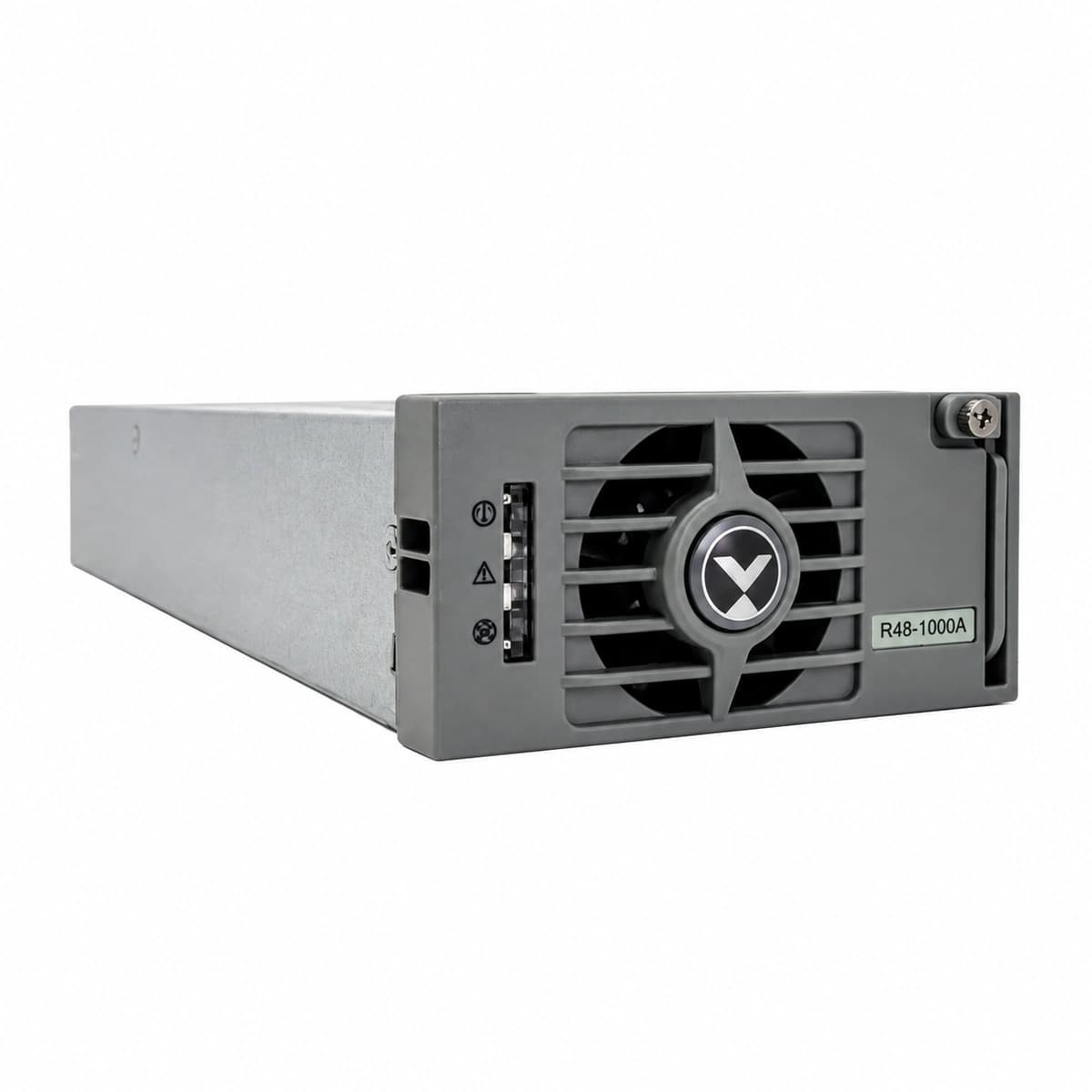

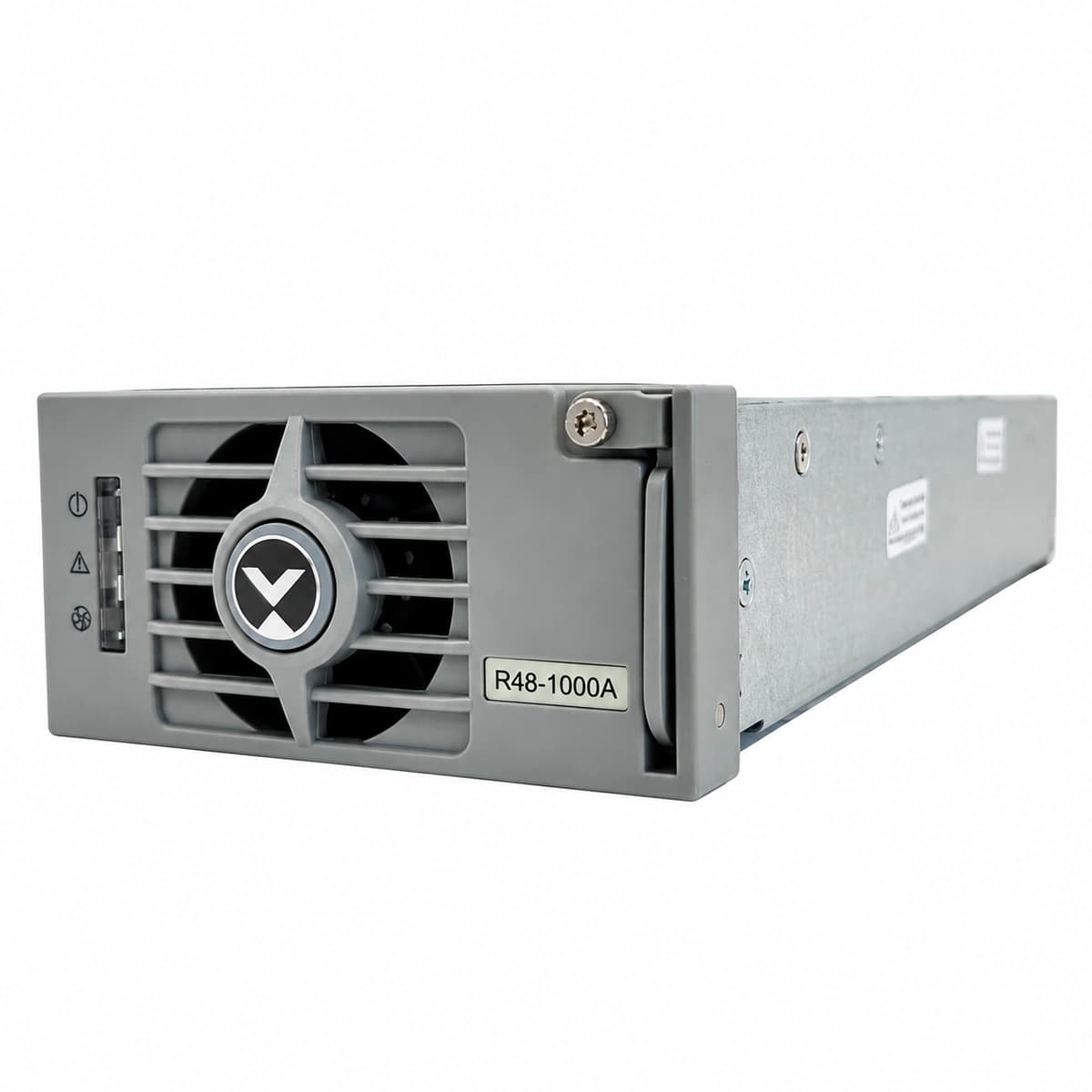

The Vertiv R48-1000A is a high-reliability AC/DC switch-mode power supply featuring high-frequency soft-switching and active PFC to convert single-phase AC into stable -48V DC power with autonomous load sharing.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Compact hot-swappable AC/DC rectifier designed for Vertiv NetSure small-capacity power systems.
Provides clean regulated DC power for low-load transmission equipment under unstable rural grid conditions.
Small-cell base stations, optical remote terminals, transit signaling boxes, and outdoor pole-mount cabinets.
| Key specifications | Value |
|---|---|
| Rated Output Power | 1000W (20.8A @ 48V) |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Power Conversion Efficiency | ≥ 96.0% |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
| DC Output Voltage | -48VDC (-42V ~ -58V) V DC |
| AC Input Voltage | 85 ~ 290 V AC |
| Physical Dimensions | 132 × 85 × 287 mm |
| Operating Temperature Range | -40 ~ +75°C |
